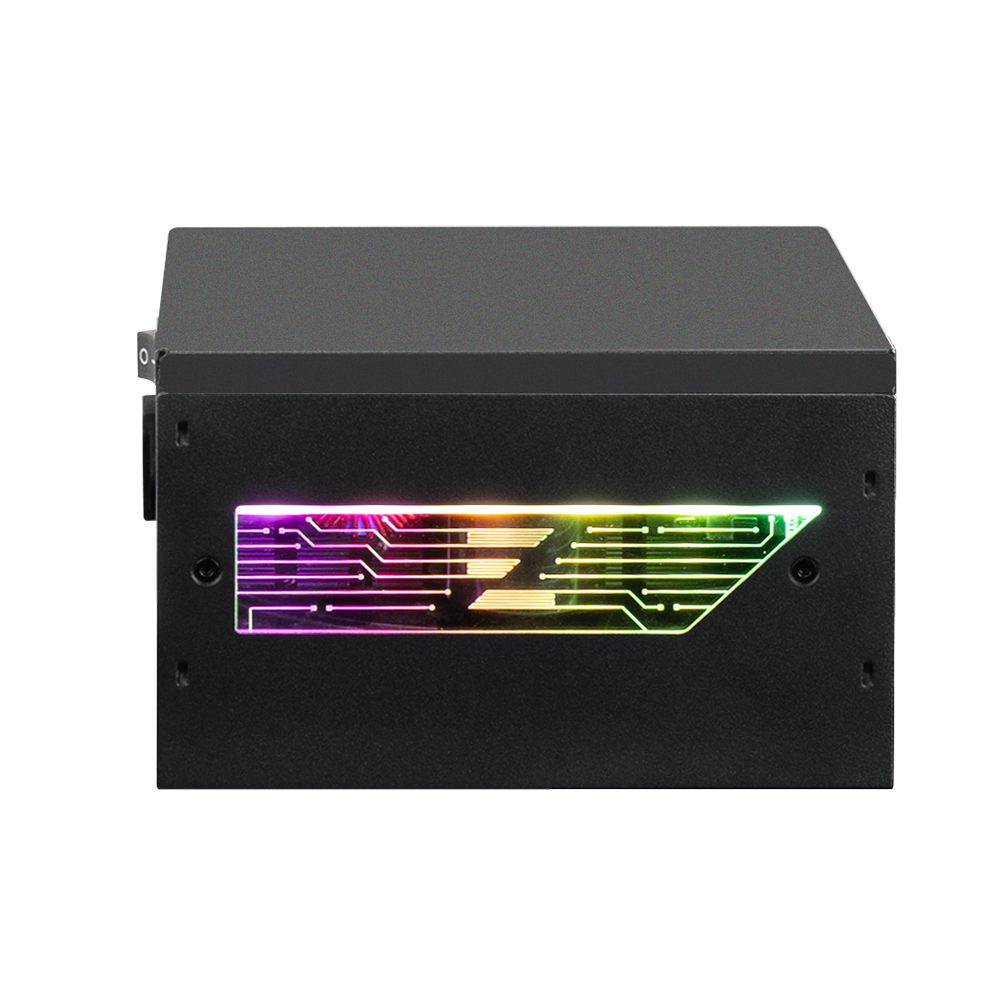

Захранващ блок PSU ZALMAN ZM1200-TMX2 VIE 1.2

Захранващ блок PSU ZALMAN ZM1200-TMX2 VIE 1.2

• Модел: ZM1200-TMX2 VIEW
• Тип: ATX Ver. 3.1 Power Supply
• Размери: 140 × 150 × 86 mm
• Цвят: Black
• Тегло: 2.8 kg
• Спецификации:
  • Efficiency: Max. 90% @ 115 VAC, Typical Load
  • Operating Temperature: 10–40°C
• Охлаждане: 120 mm FDB Fan, Honeycomb Vents
• Форм-фактор: Standard ATX
• Конектори:
  • 1 × Mainboard Cable
  • 2 × EPS Cables
  • 1 × PCI Express Cable (2 Connectors)
  • 2 × PCI Express Cables
  • 1 × IDE Cable (3 Connectors) + 1 × FDD
  • 3 × SATA Cables
  • 1 × 12V-2x6 Cable
  • 1 × 5V Addressable Extension RGB Cable
• Функции:
  • 80 PLUS Gold
  • ATX 3.1
  • PCIe 5.1 Ready
  • 12V-2x6
  • Fully Modular
  • ARGB
  • 3-Pin 5V RGB Sync
  • Active PFC
  • +12 V DC-to-DC
  • Gold-Plated Connector
  • Japanese High-Temperature Capacitor
  • Aluminum Solid Capacitor
  • EMI Filter
  • Low Standby Power Consumption
  • Honeycomb Vents
• Вентилатор: 120 mm FDB Fan with ARGB Lighting
• Лагер: FDB (Fluid Dynamic Bearing)
• Напрежение: 100–240 VAC
• Вход AC: 100–240 VAC, 14–7 A, 50–60 Hz
• PFC type: Active PFC, up to 99% Power Factor
• MTBF [hours]: 100,000 Hours
• Безопасност:
  • CE, CB, RoHS, EAC, cTUVus, TUV
  • OCP / OTP / OPP / OVP / UVP / SCP
  • EU ErP Lot 6
• Cable information: Fully Modular, Flat Cables
• Power [Watts]: 1200 W
• Fan size [mm]: 120 mm
• Изход DC: +12 V DC-to-DC Converter with 100% Availability
