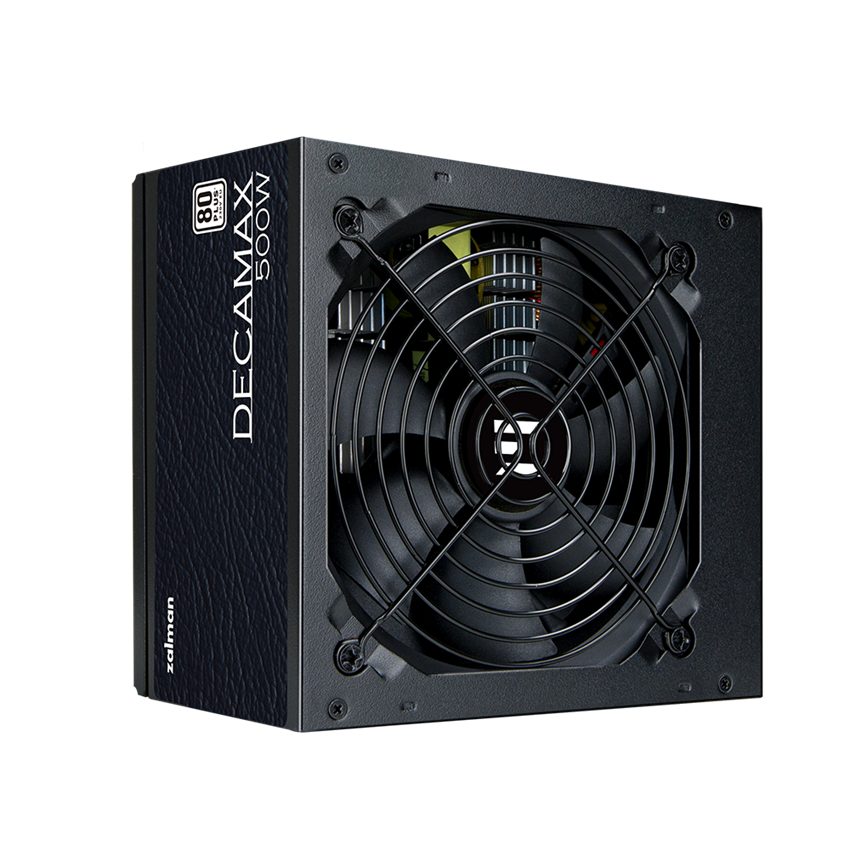

Захранващ блок PSU ZALMAN ZM500-LX3 500W PFC

Захранващ блок PSU ZALMAN ZM500-LX3 500W PFC

• Модел: ZM500-LX3
• Тип: Intel ATX 12V Ver. 2.31 Power Supply
• Размери: 140 (L) × 150 (W) × 86 (H) mm
• Цвят: Black
• Тегло: 1.35 kg
• Спецификации:
  • Efficiency: Max. 85% @ 230 VAC, Typical Load
  • Operating Temperature: 10–45°C
• Охлаждане: 120 mm Low-Noise HDB Fan
• Форм-фактор: Standard ATX
• Конектори:
  • Mainboard Cable
  • 1 × CPU Cable
  • 2 × PCI Express Cables (2 Connectors each)
  • 3 × IDE
  • 4 × SATA
• Функции:
  • 80 PLUS 230V EU Standard
  • Active PFC
  • +12 V Single Rail
  • 105°C Capacitor
  • Built-In EMI Filter
  • Dual Aluminum Heatsink
  • Standby Power Consumption below 0.5 W
• Вентилатор: 120 mm Low-Noise Fan
• Лагер: Hydro-Dynamic Bearing (HDB)
• Напрежение: 200–240 VAC
• Вход AC: 200–240 VAC, 5 A, 50–60 Hz
• PFC type: Active PFC, up to 99% Power Factor
• Fan rotation speed [rpm]: 2,500 RPM
• MTBF [hours]: 100,000 Hours
• Безопасност:
  • KC, CE, CB, RoHS, EAC, RCM
  • OPP / OVP / UVP / SCP
  • EU ErP Lot 6
• Cable information:
  • All Black Cables
  • Sleeve Cable
  • Black Flat Cable
• Power [Watts]: 500 W
• Fan size [mm]: 120 mm
• Изход DC: +12 V Single Rail
• Други: Intel 5Vsb 3.0A Compatible
