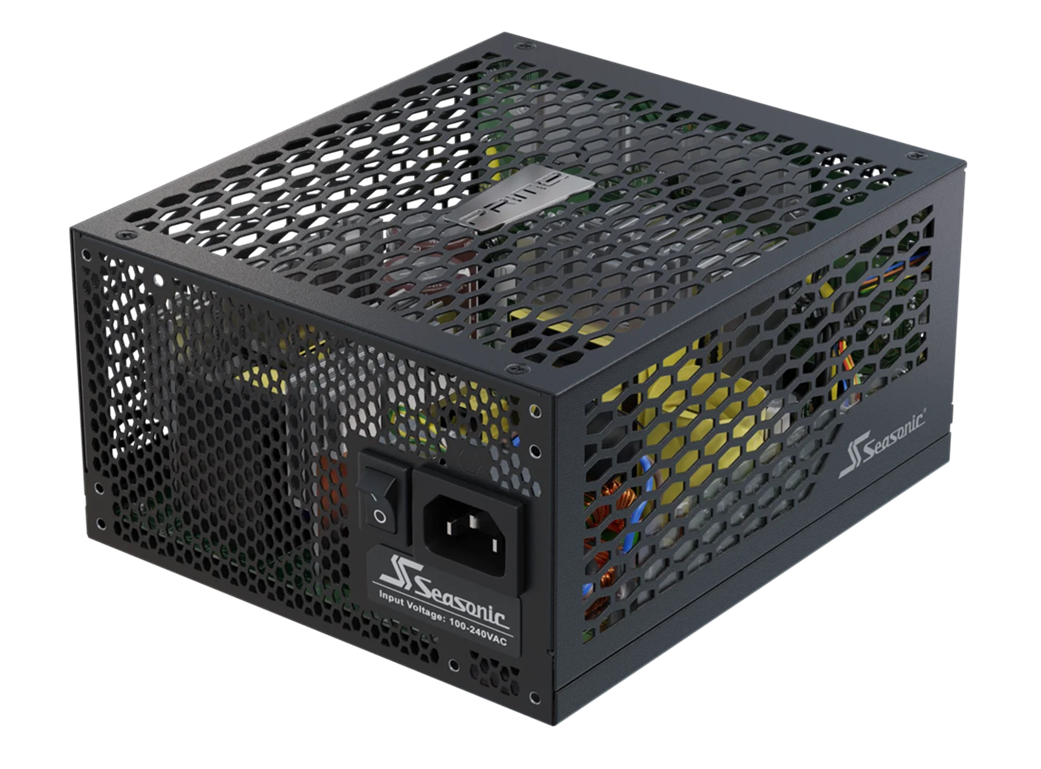

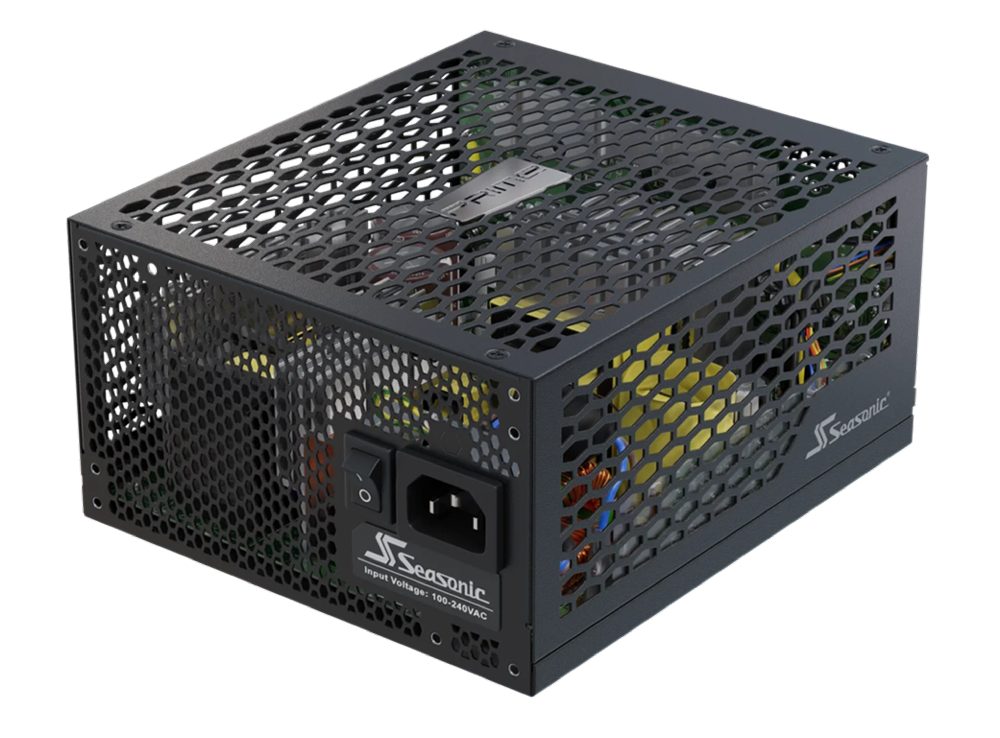

Захранващ блок PSU SEASONIC PRIME 700 FANLESS

PSU SEASONIC PRIME 700 FANLESS

• Модел: PRIME 700 FANLESS
• Размери: 170 × 150 × 86 mm
• Вентилатор: Fanless
• Форм-фактор: ATX/EPS

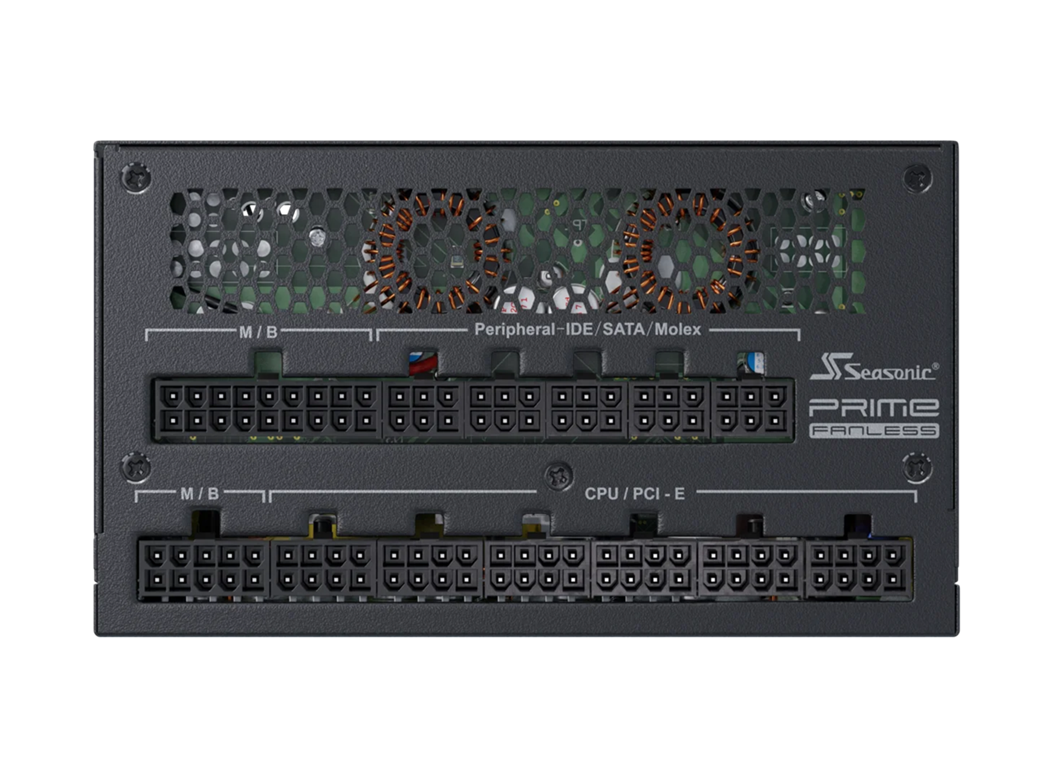

• Конектори:
  • 1 x MB (24/20 pins)
  • 1 x CPU (8/4 pins)
  • 1 x PCIe (8/6 pins)
  • 4 x SATA
  • 4 x SATA
  • 2 x SATA
  • 3 x Molex
  • 2 x Molex
  • 2 x Molex to SATA 3.3 Adapter
• Функции:
  • Electrical Features:
  • Operating Temperature: 0 - 45 °C (derating from 100 % to 80% from 40 °C to 45 °C linearly)
  • MTBF @ 25 °C, excl. fan: 100,000 hours
  • AC Input: Full Range
  • Protection: OPP, OCP, OTP, OVP, SCP, UVP
• Вход AC:
  • 100 V - 240 V
  • 9 - 4.5 A
  • 50 Hz - 60 Hz
• Безопасност:
  • Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
  • Environmental Compliance: Energy Star, ErP Lot 6, REACH, RoHS, WEEE
• Cable information:
  • Modularity: Fully Modular
  • Cable type: Webbed cables (MB, CPU, PCIe) - Flat Black Cables
• Power [Watts]: 700 W
• Изход DC:
  • Rail: +3.3 V/ +5 V/ +12 V/ -12 V/ +5 VSB
  • Maximum Power: 20 A - 100 W/ 20 A/ 58 A - 696 W/ 0.3 A - 3.6 W/ 3 A - 15 W
• Други:
  • Cybenetics Efficiency Level: Titanium
  • Cybenetics Noise Level: A++
