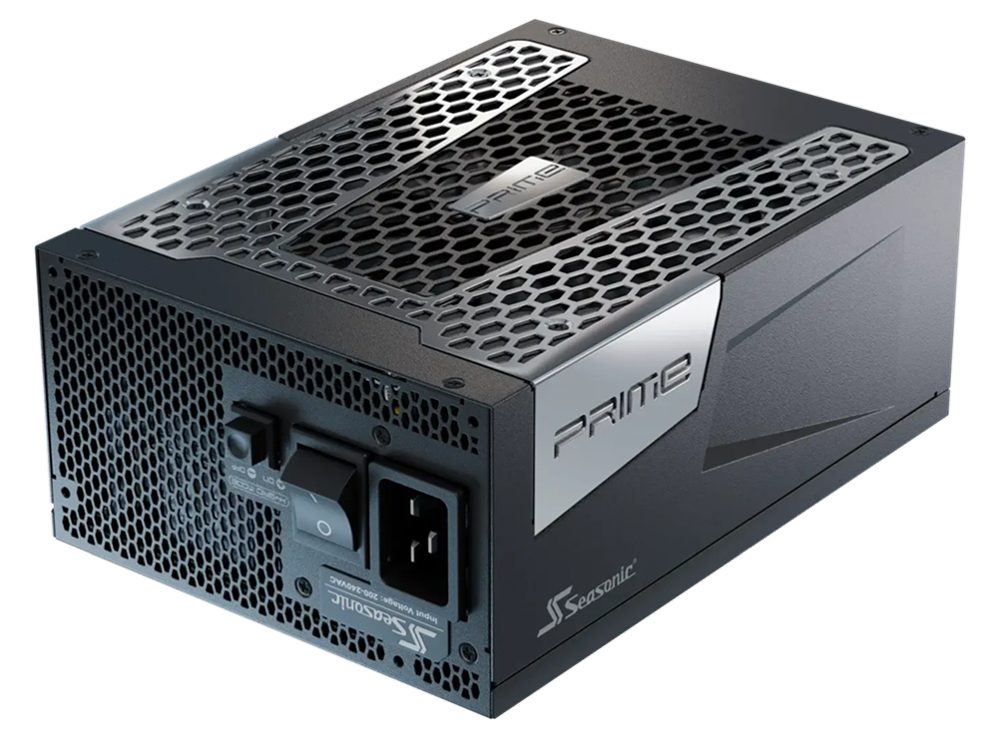

Захранващ блок PSU SEASONIC PRIME PX-2200 PLA

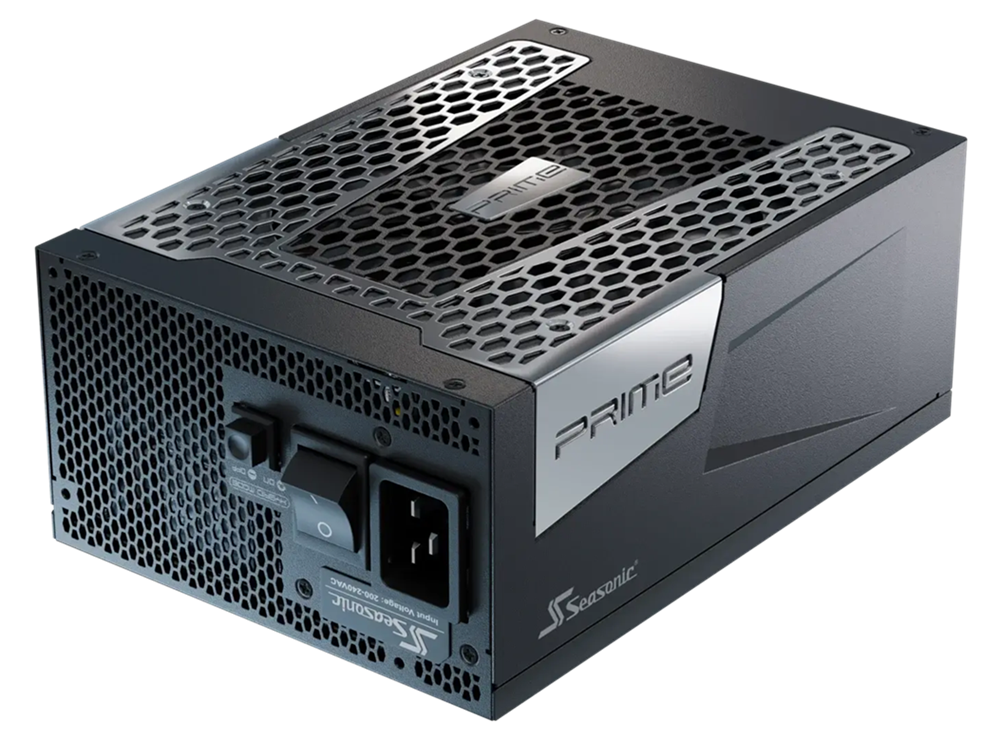

PSU SEASONIC PRIME PX-2200 PLA

• Размери: 210 × 150 × 86 mm
• Вентилатор:
  • Fan Size: 135 mm
  • Fan Control Digital Hybrid Fan Control
  • Fan Bearing: Fluid Dynamic Bearing
  • Life Expectancy: 50,000 hours at 40 °C, 15 % - 65 % RH
• Форм-фактор: ATX/EPS
• Конектори:
  • 1 x MB (24/20 pins)
  • 1 x CPU (8/4 pins)
  • 1 x PCIe (8/6 pins)
  • 4 x SATA
  • 2 x SATA3.3 V
  • 3 x Molex
  • 1 x 12V-2x6 (12+4 Pins to 12+4 Pins)
  • 1 x 12V-2x6 (2x 8-pin to 12+4 Pins)
• Функции:
  • Electrical Features:
  • Operating Temperature: 0 - 50 °C
  • MTBF @ 25 °C, excl. fan: 100,000 hours
  • AC Input: Fixed 230 V
  • Protection: OPP, OCP, OTP, OVP, SCP, UVP
• Вход AC:
  • 200 V - 240 V
  • 15 A
  • 50 Hz - 60 Hz
• Безопасност:
  • Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
  • Environmental Compliance: Energy Star, ErP Lot 6, REACH, RoHS, WEEE
• Cable information:
  • Modularity: Fully Modular
  • Cable type: Individual Black Cables with Braided Pattern
• Power [Watts]: 2200 W
• Изход DC:
  • Rail: +3.3 V/ +5 V/ +12 V/ -12 V/ +5 Vsb
  • Maximum Power: 25 A - 125 W/ 25 A/ 183.3 A - 2200 W / 0.5 A - 6 W/ 3 A - 15 W
• Други:
  • 80PLUS® : Platinum
  • Cybenetics Efficiency Level: Titanium
  • Cybenetics Noise Level: Standard++
