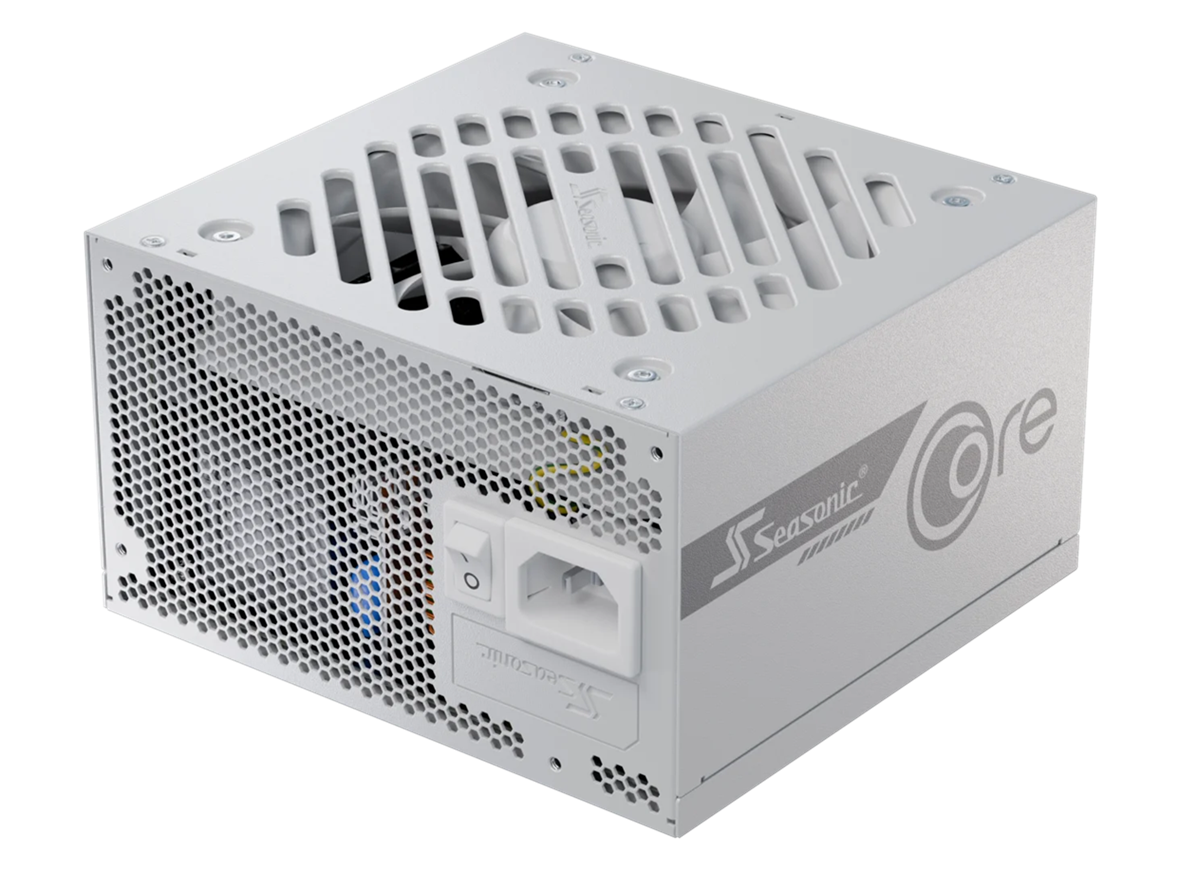

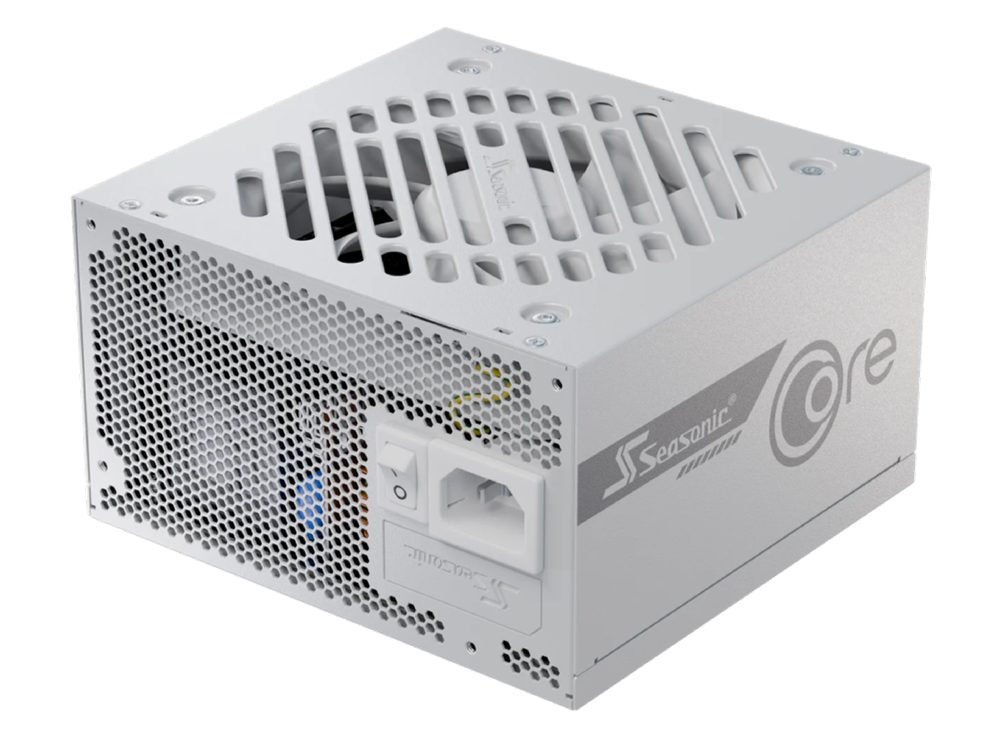

Захранващ блок PSU SEASONIC CORE GX-850 WHITE

PSU SEASONIC CORE GX-850 WHITE

• Модел: GX-850
• Размери: 140 × 150 × 86 mm
• Вентилатор:

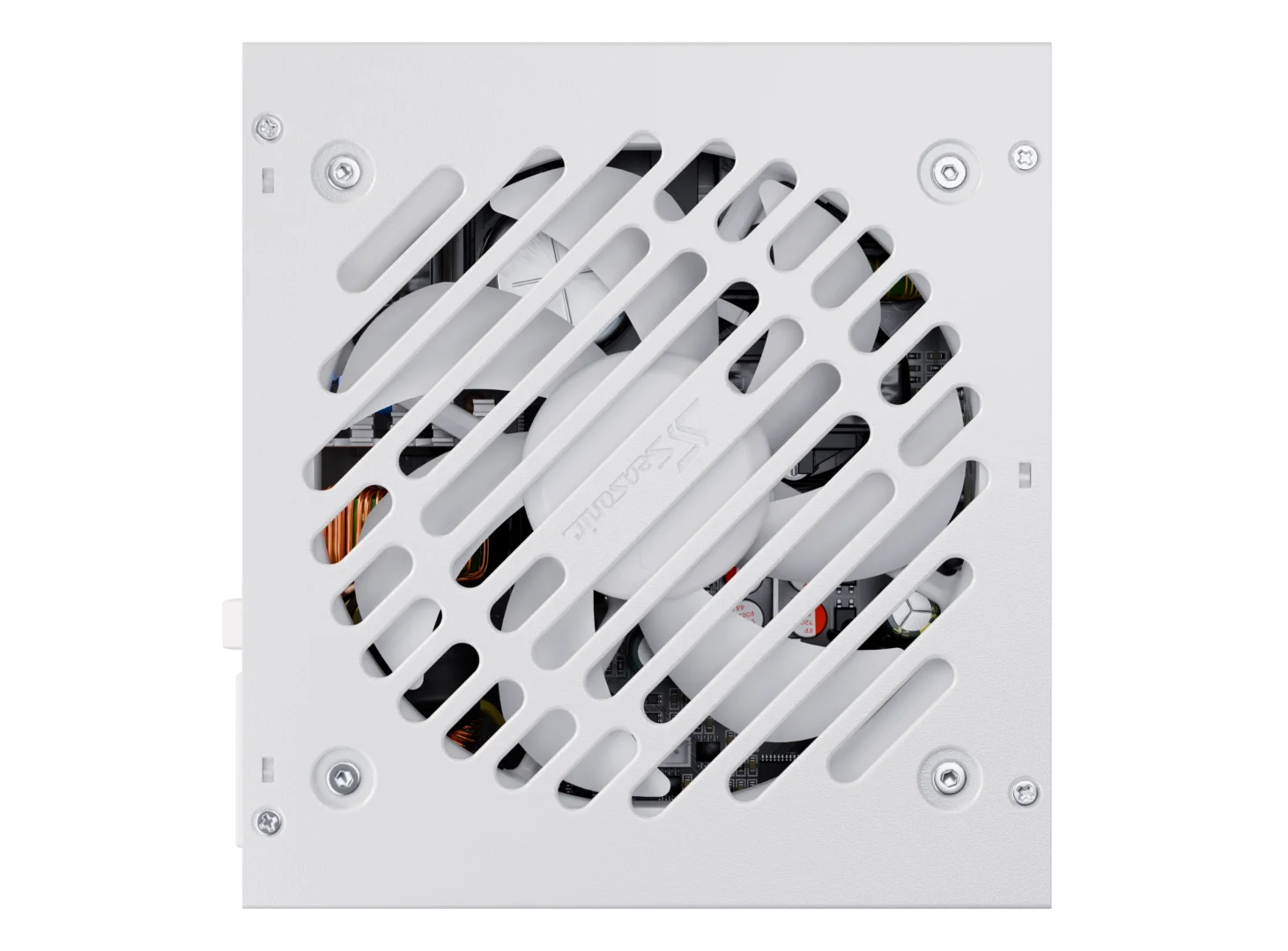

  • Fan Size: 120 mm
  • Fan Control: Smart and Silent Fan Control
  • Fan Bearing: Hydro Dynamic Bearing
  • Life Expectancy: 25,000 hours at 40 °C, 15 % — 65 % RH
• Форм-фактор: ATX/EPS

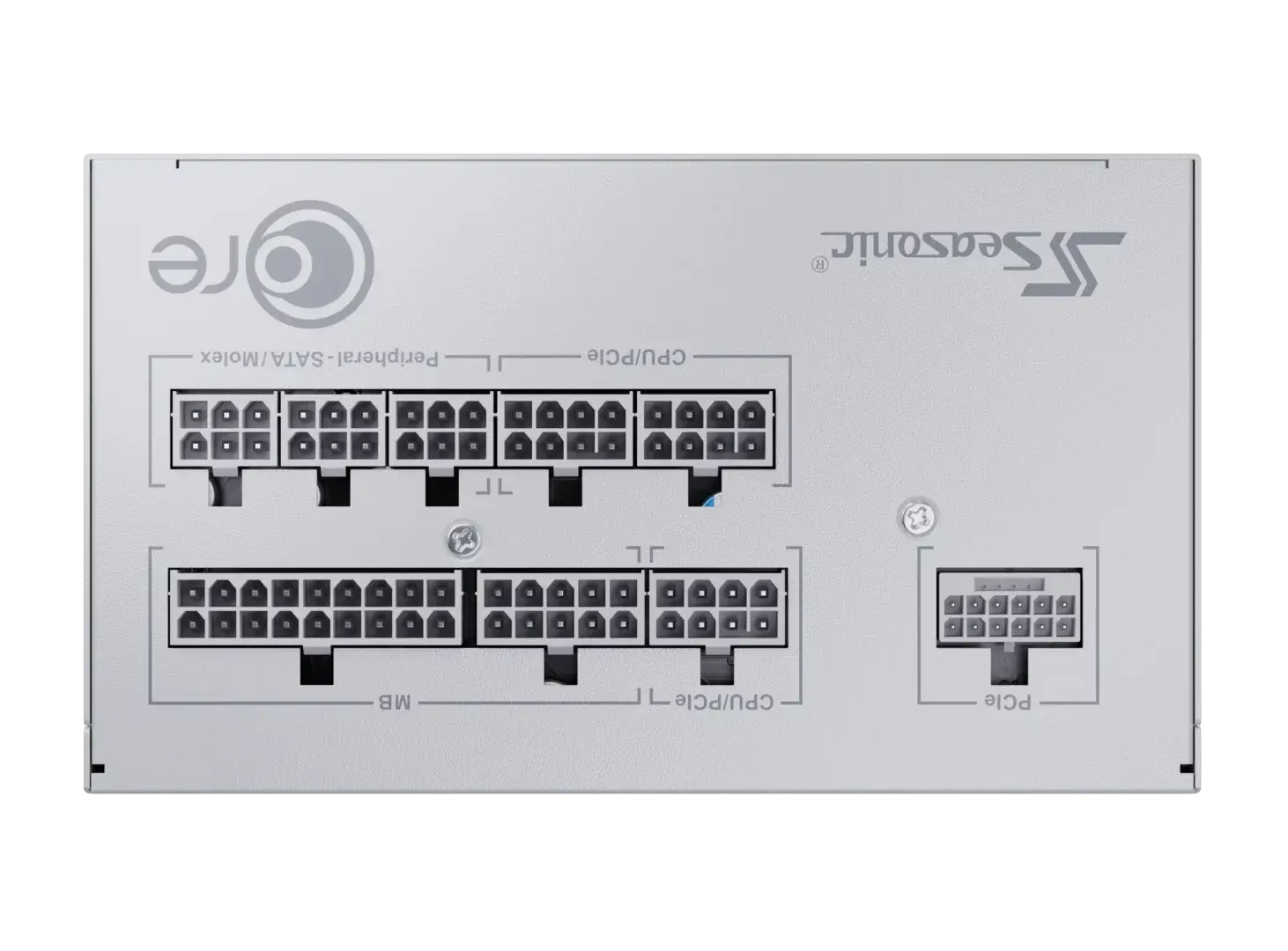

• Конектори:
  • 1 x MB (24/20 pins)
  • 1 x CPU (8/4 pins)
  • 1 x 12V-2x6 (12+4 Pins to 12+4 Pins)
  • 1 x PCIe (8/6 pins)
  • 2 x PCIe (8/6 pins)
  • 3 x SATA
  • 3 x Molex
• Функции:
  • Electrical Features:
  • Operating Temperature: 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
  • MTBF @ 25 °C, excl. fan: 100,000 hours
  • AC Input: Full Range
  • Protection: OPP, OCP, OTP, OVP, SCP, UVP
• Вход AC:
  • 100 V - 240 V
  • 11 - 5.5 A
  • 50 Hz - 60 Hz
• Безопасност:
  • Safety and EMC: BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA
  • Environmental Compliance: Energy Star, ErP Lot 6, REACH, RoHS, WEEE
• Cable information:
  • Modularity: Fully Modular
  • Cable type: Individual White Cables with Braided Pattern
• Power [Watts]: 850 W
• Изход DC:
  • Rail: +3.3 V/ +5 V/ +12 V/ -12 V/ +5 Vsb
  • Maximum Power: 20 A - 100 W/ 20 A/ 70 A - 840 W/ 0.3 A - 3.6 W/ 3 A - 15 W
• Други:
  • 80PLUS® : Gold
  • Cybenetics Efficiency Level: Platinum
  • Cybenetics Noise Level: A-
