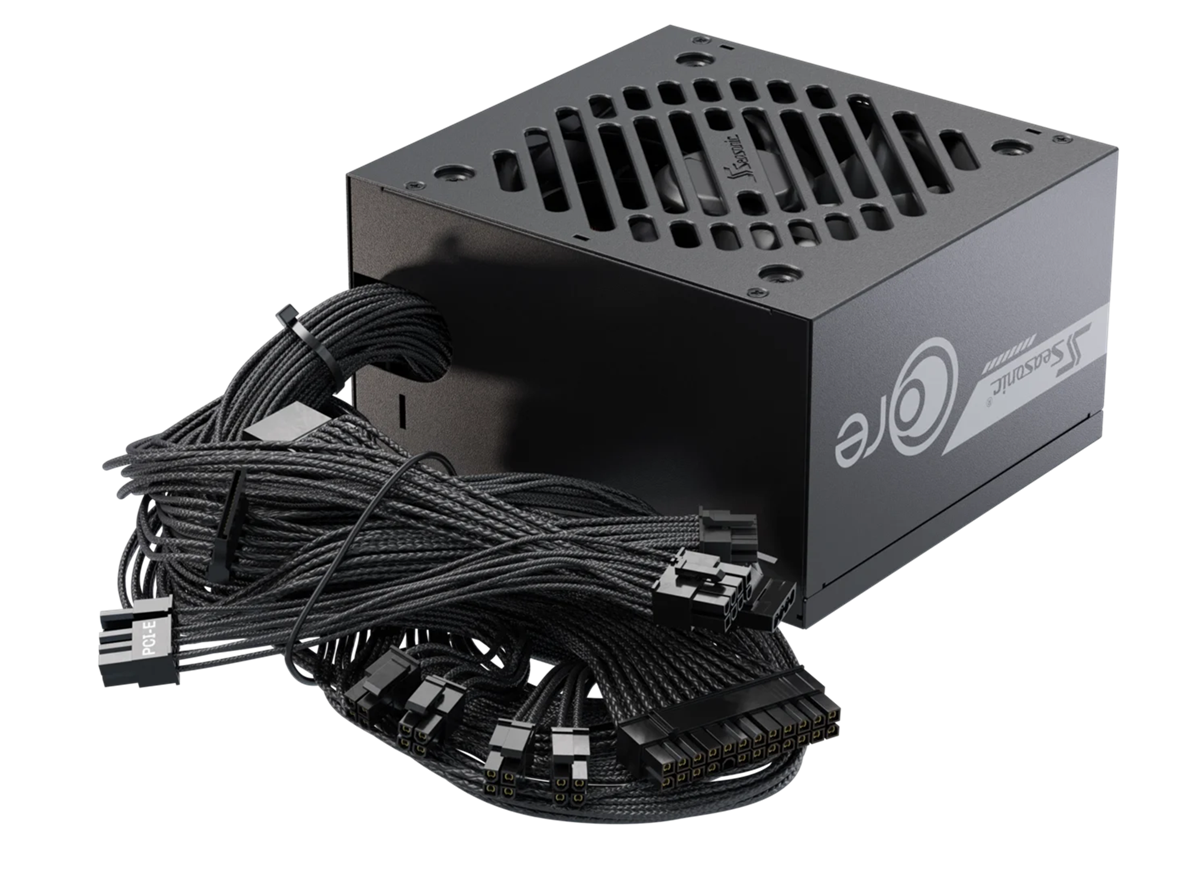

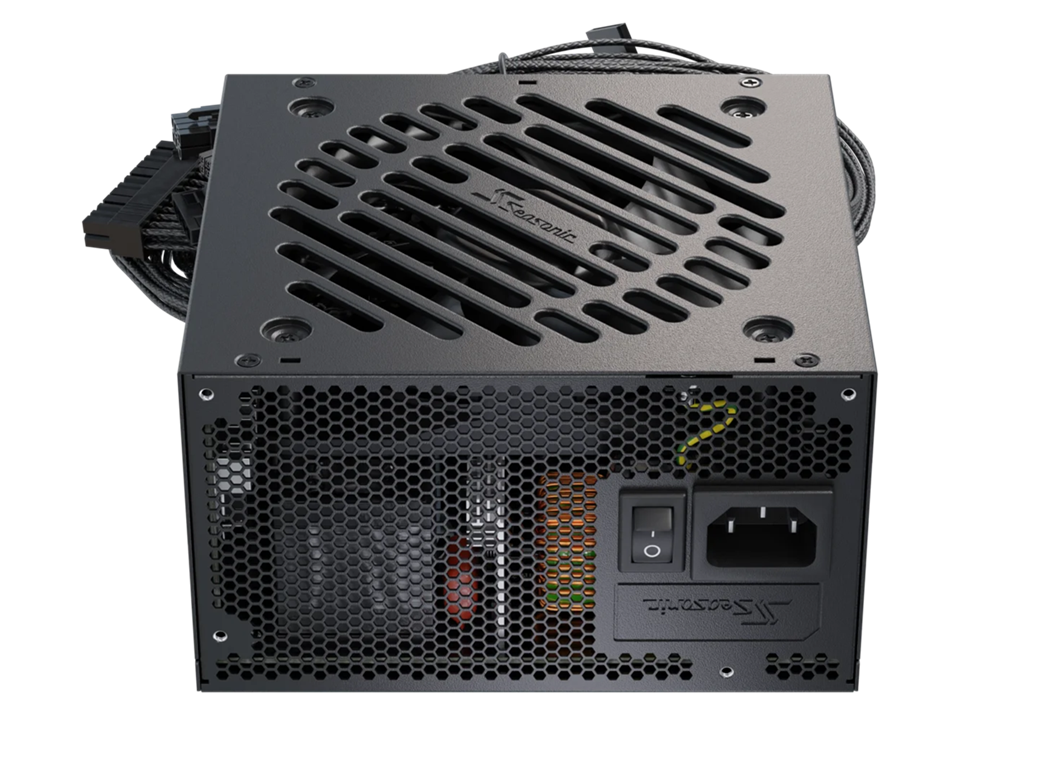

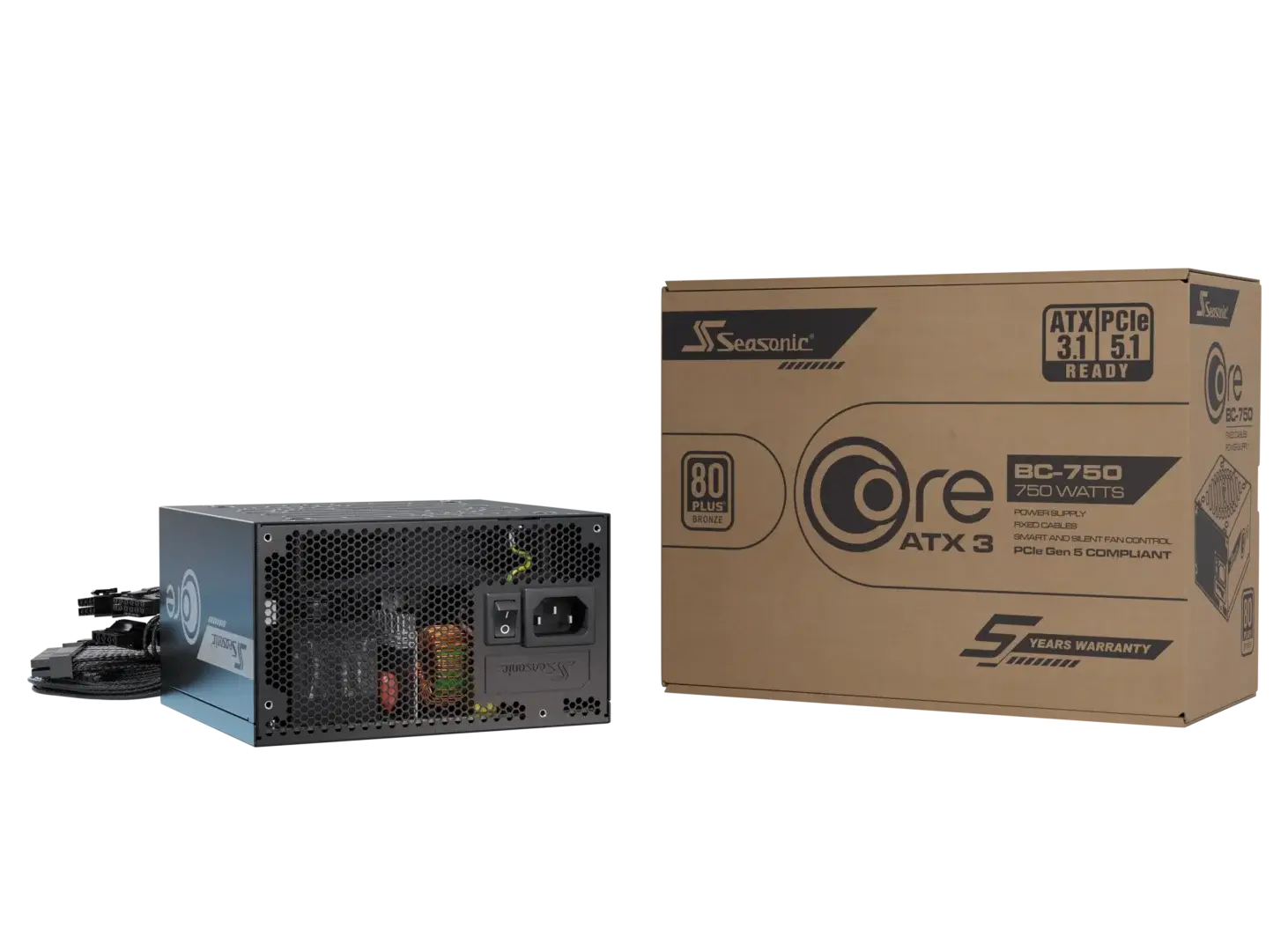

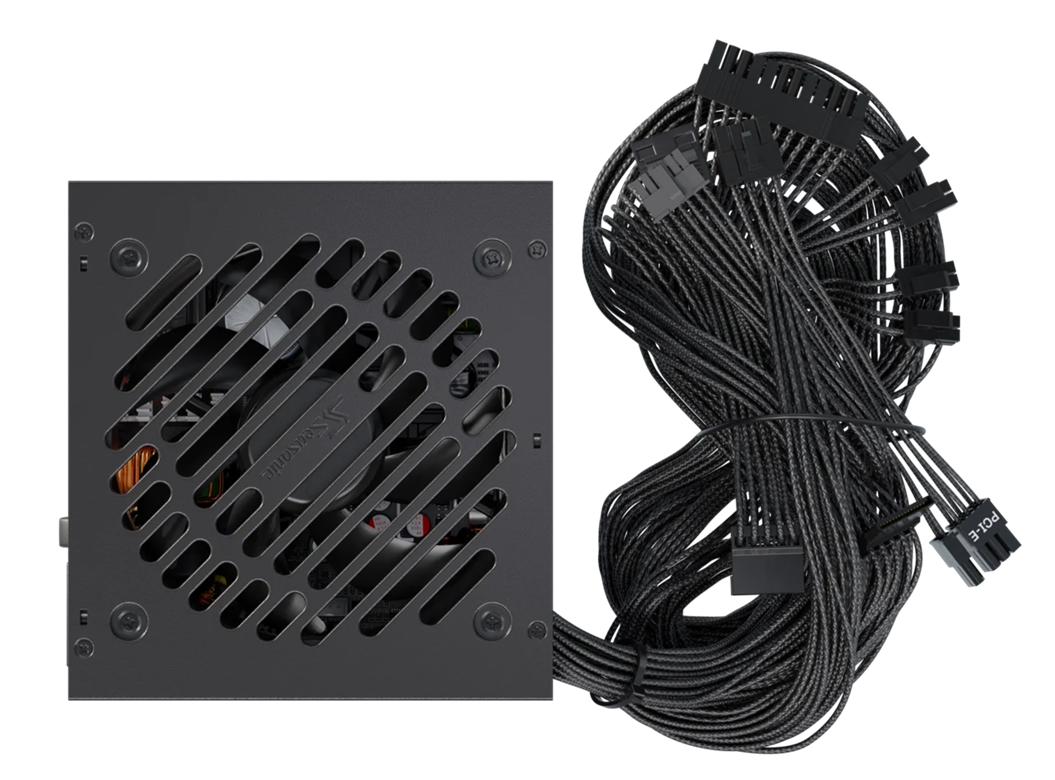

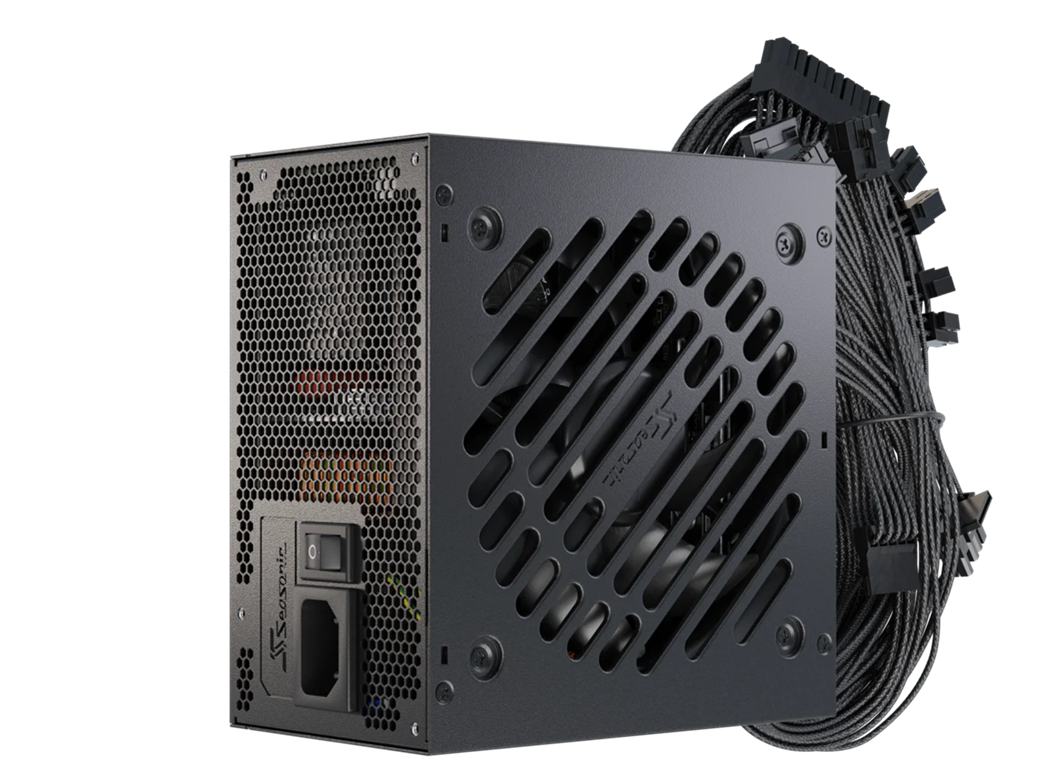

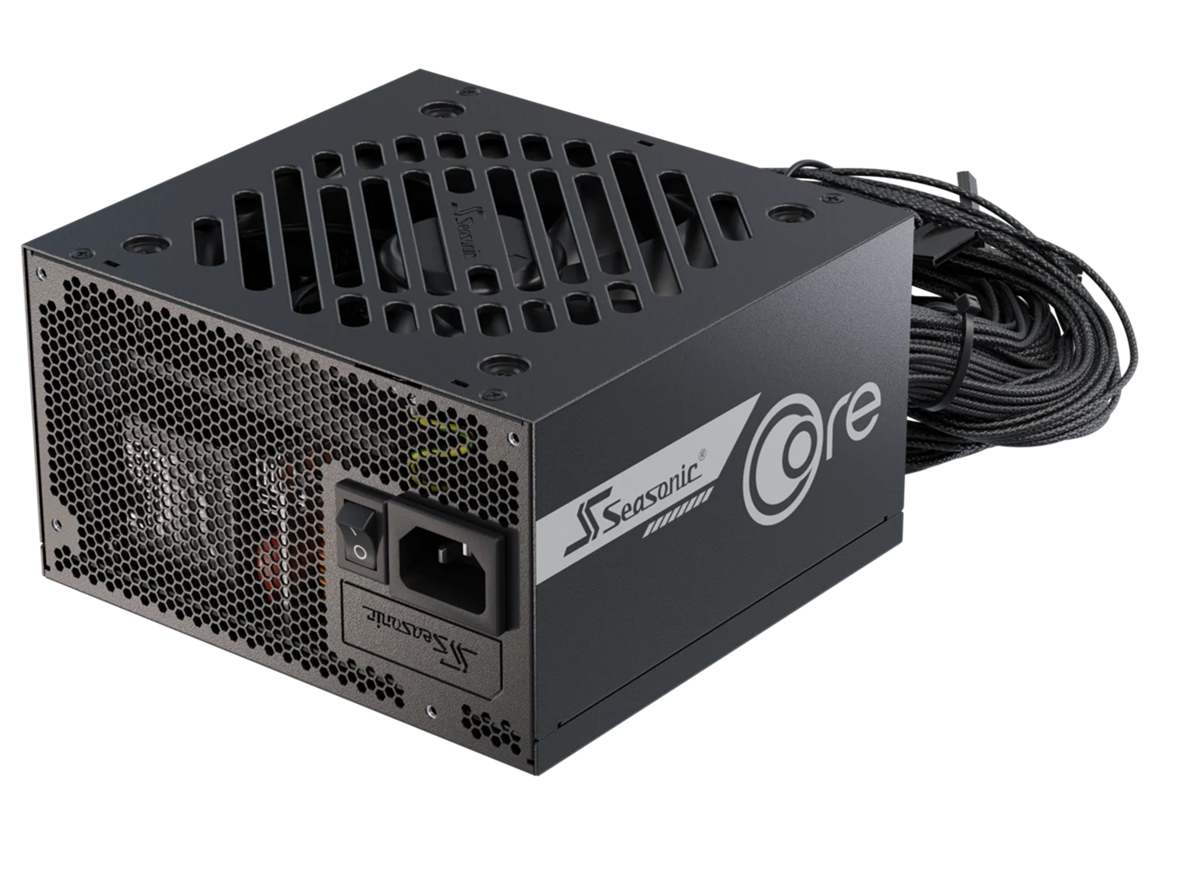

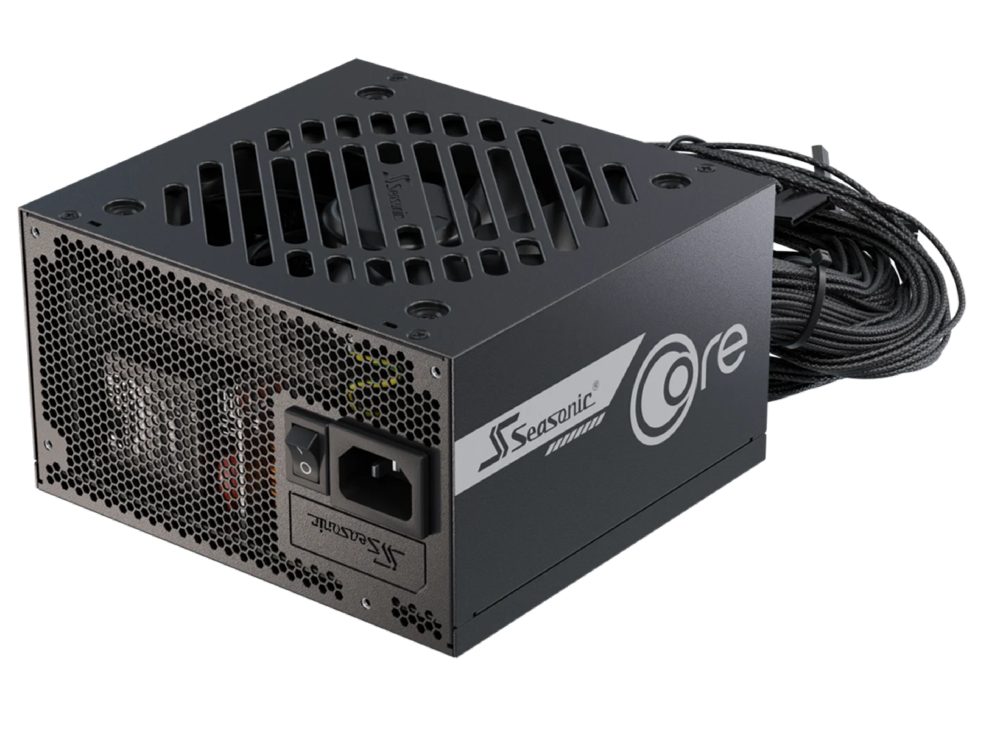

Захранващ блок PSU SEASONIC CORE BC-750 BRONZ

PSU SEASONIC CORE BC-750 BRONZ

• Модел: BC-750
• Вентилатор:
  • Fan Size: 120 mm
  • Fan Control: S²FC
  • Fan Bearing: Hydro Dynamic Bearing
  • Life Expectancy: 40,000 hours at 40 °C, 15 % - 65 % RH
• Форм-фактор: ATX/EPS
• Функции:
  • Electrical Features:
  • Operating Temperature: 0 - 40 °C
  • MTBF @ 25 °C, excl. fan: 100,000 hours
  • AC Input: Full Range
  • Protection: OCP, OPP, OTP, OVP, SCP, UVP
• Вход AC:
  • 100 V - 240 V
  • 10 - 5 A
  • 50 Hz - 60 Hz
• Безопасност:
  • Safety and EMC: CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA
  • Environmental Compliance: Energy Star, RoHS, REACH, WEEE, ErP Lot 6
• Cable information:
  • Modularity: Fixed Cables
  • Cable type: Individual Black Cables with Braided Pattern
• Power [Watts]: 750W
• Изход DC:
  • Rail: +3.3 V/ +5 V/ +12 V/ -12 V/ +5 Vsb
  • Maximum Power: 20 A - 100 W/ 20 A/ 62 A - 744 W/ 0.3 A - 3.6 W/ 2.5 A - 12.5 W
