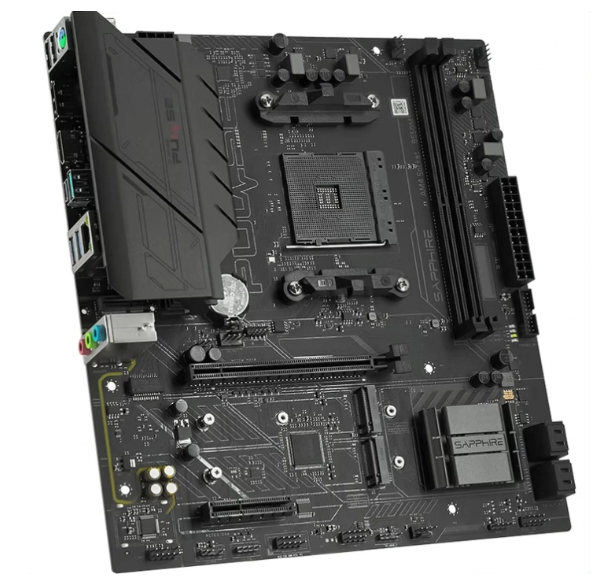

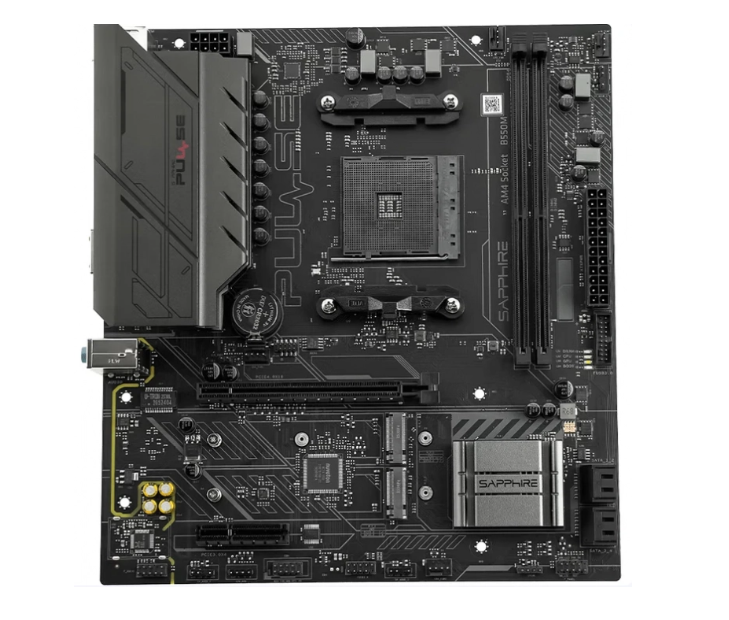

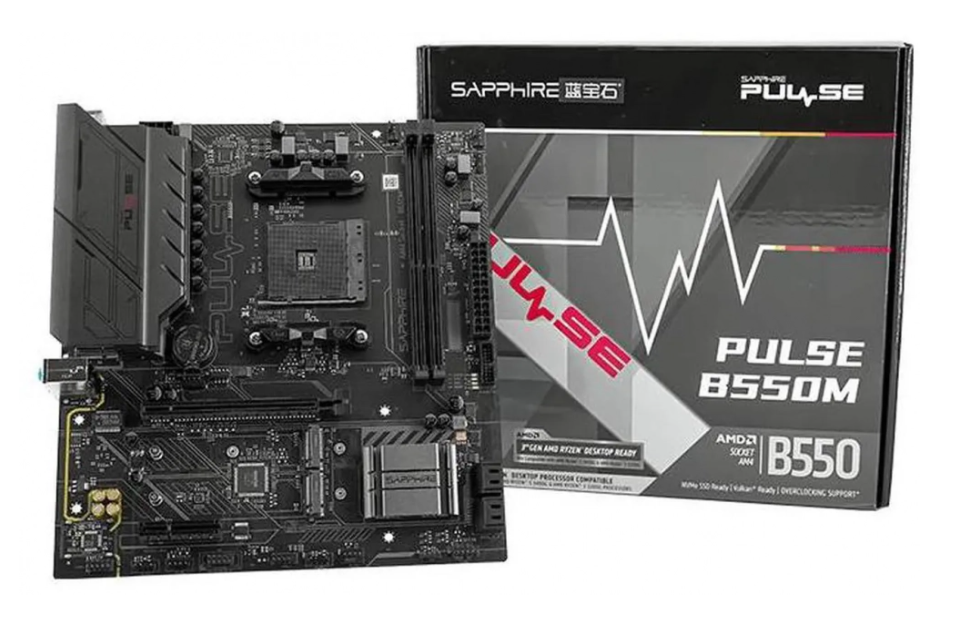

Дънна платка SAPPHIRE PULSE B550M / AM4

SAPPHIRE PULSE B550M / AM4

• Безжична връзка: None
• Аудио: Realtek ALC897 HD Audio, 5.1 Channel
• Памет: 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
• Слотове за разширение:
  • 1 x PCIe 3.0 x4 slot
  • 1 x PCIe 4.0 supports up to x16
• Форм-фактор: Micro ATX
• Поддържани процесори: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Чипсет: AMD B550
• Съхранение:
  • 4 x SATA3 6.0 Gb/s
  • 1 x M.2 (Key M), type 2280 supports PCIe 3.0 x4 mode
  • 1 x M.2 (Key M), type 2280(supports PCIe 4.0 x4 mode)

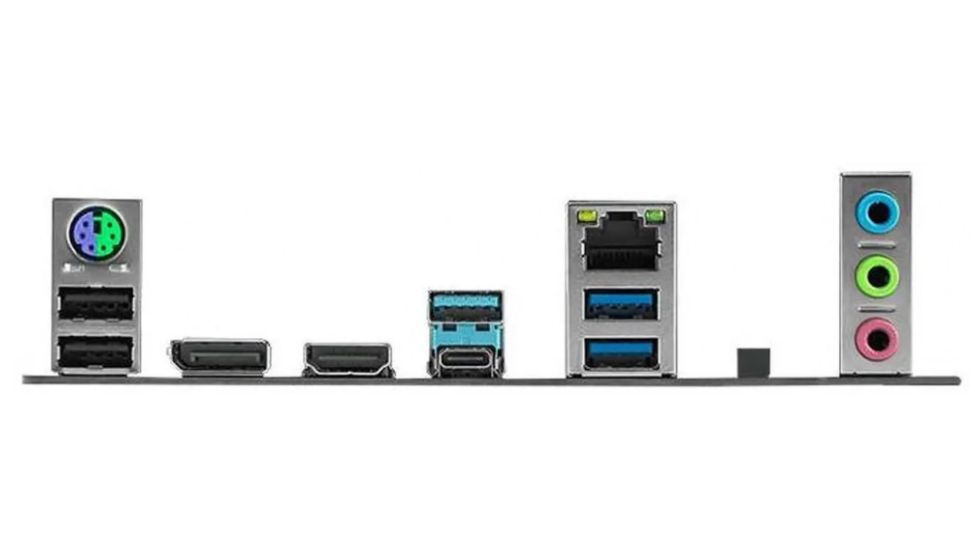

• Портове отзад:
  • 1 x PS/2 Keyboard
  • 3 x Audio jacks
  • 1 x DisplayPort
  • 2 x USB 2.0
  • 1 x HDMI Port
  • 1 x USB Type-C
  • 3 x USB 3.2 Gen 1
  • 2.5G LAN Port
• Конектори:
  • 1 x SPI TPM Header
  • 1 x CPU Fan
  • 2 x System Fan Connectors
  • 1 x COM Port header
  • 1 x Front Panel Audio header
  • 1 x Clear CMOS button
  • 1 x Front panel audio header (F_AUDIO)
  • 1 x AIO_PUMP connector (1 x 4 -pin)
  • 3 x 5V ARGB
  • 1 x 12V RGB
• Мрежа (LAN): 1 x Realtek® Dragon RTL8125BG 2.5G LAN
