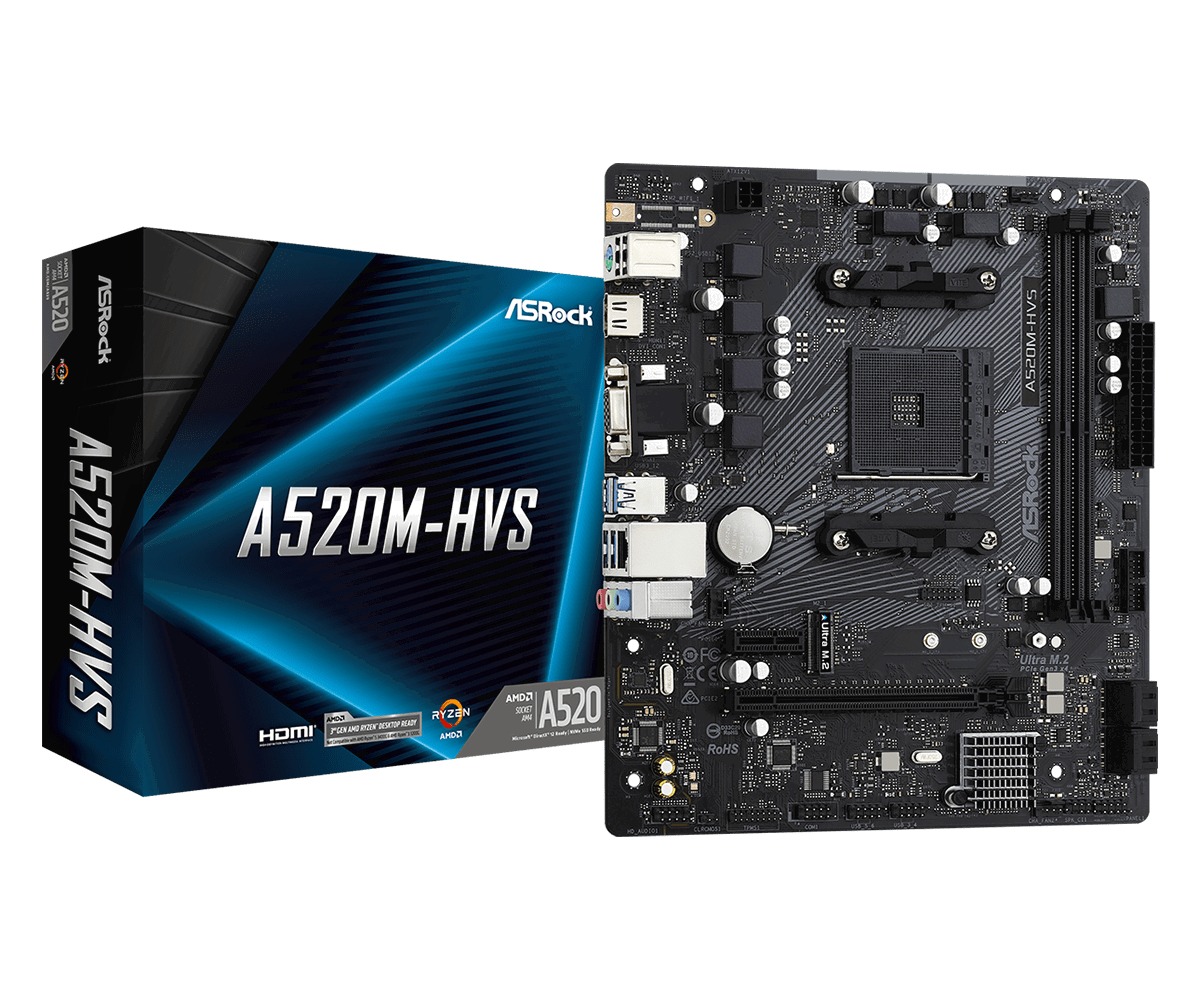

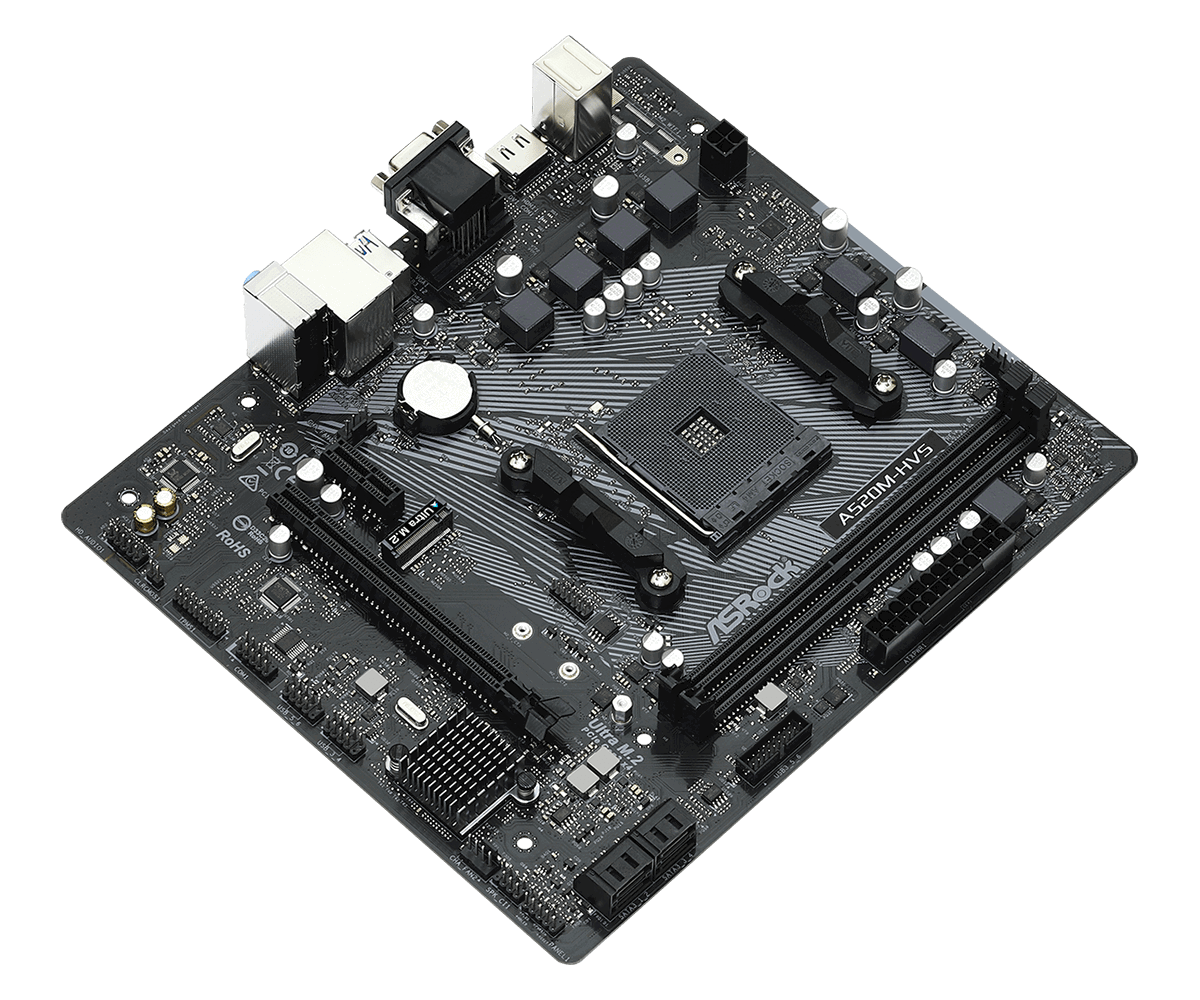

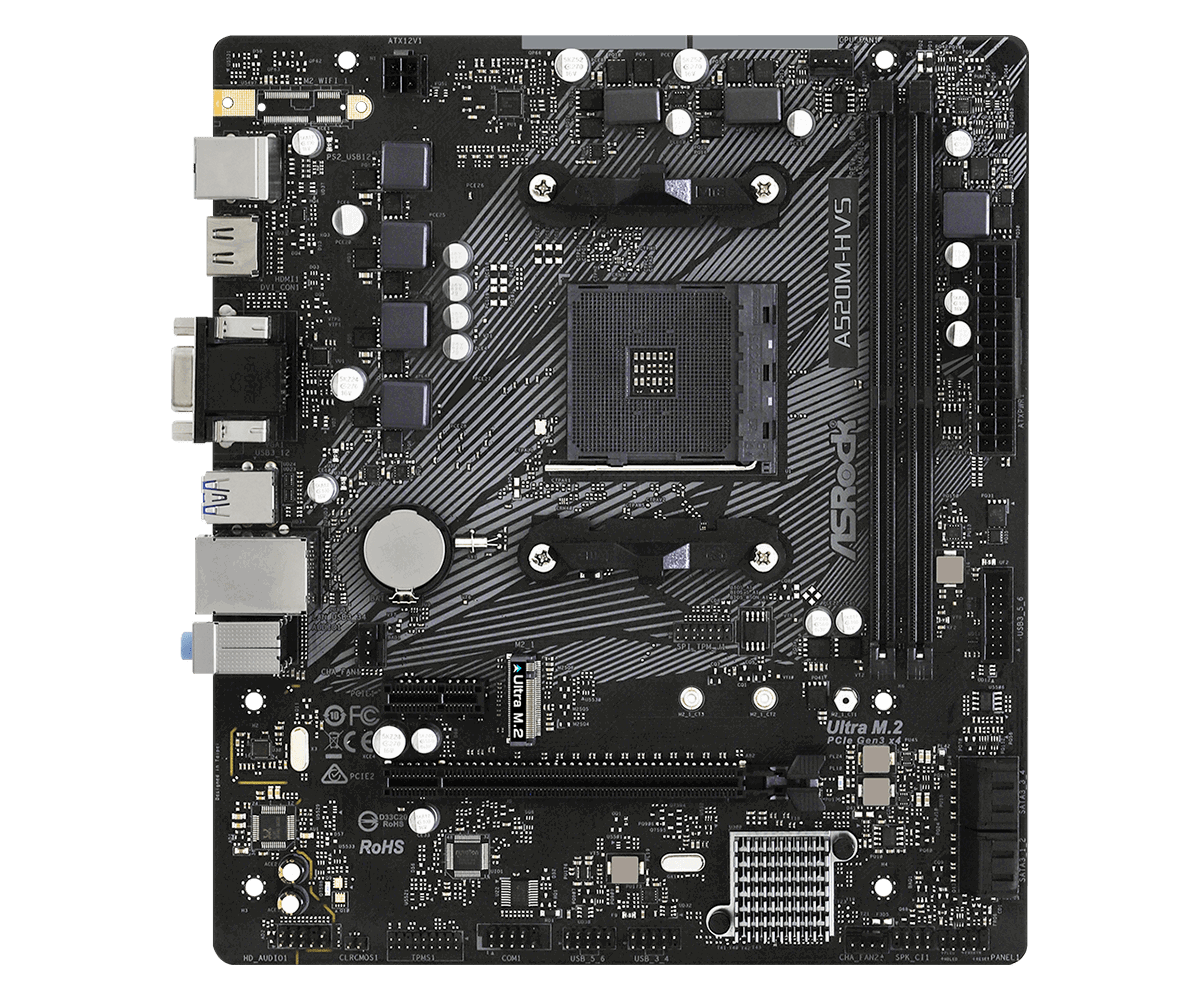

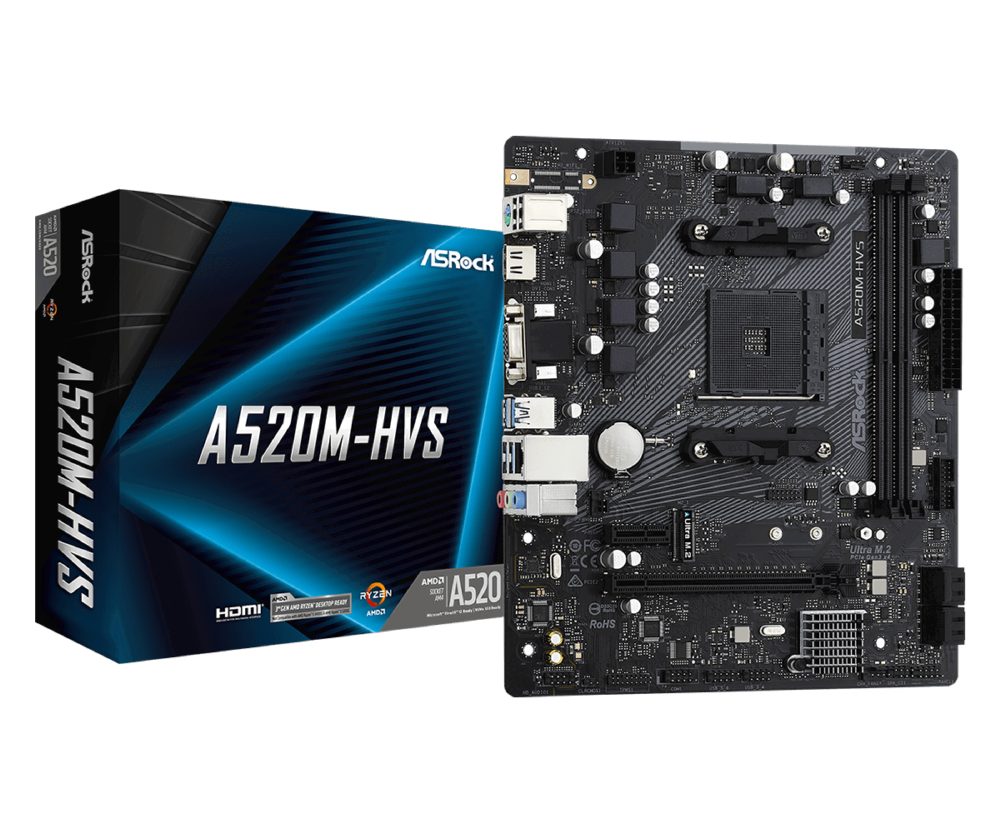

Дънна платка ASROCK A520M-HVS /AM4

ASROCK A520M-HVS /AM4

• Операционна система: Microsoft® Windows® 10 64-bit
• Аудио: 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection
• Памет:
  • Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  • AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  • Max. capacity of system memory: 64GB**
  • Supports Extreme Memory Profile (XMP) memory modules
  • 15? Gold Contact in DIMM Slots
• Графика:
  • Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
  • DirectX 12, Pixel Shader 5.0
  • Shared memory default 2GB. Max Shared memory supports up to 16GB.**
  • Dual graphics output: support D-Sub and HDMI ports by independent display controllers
  • Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  • Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
  • Supports HDR (High Dynamic Range) with HDMI 2.1
  • Supports HDCP 2.3 with HDMI 2.1 Port
  • Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
  • Supports Microsoft® PlayReady
• Слотове за разширение:
  • 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
  • 1 x PCI Express 3.0 x1 Slot
• Форм-фактор: Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm - Solid Capacitor design
• Чипсет: AMD A520
• Съхранение:
  • 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  • 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

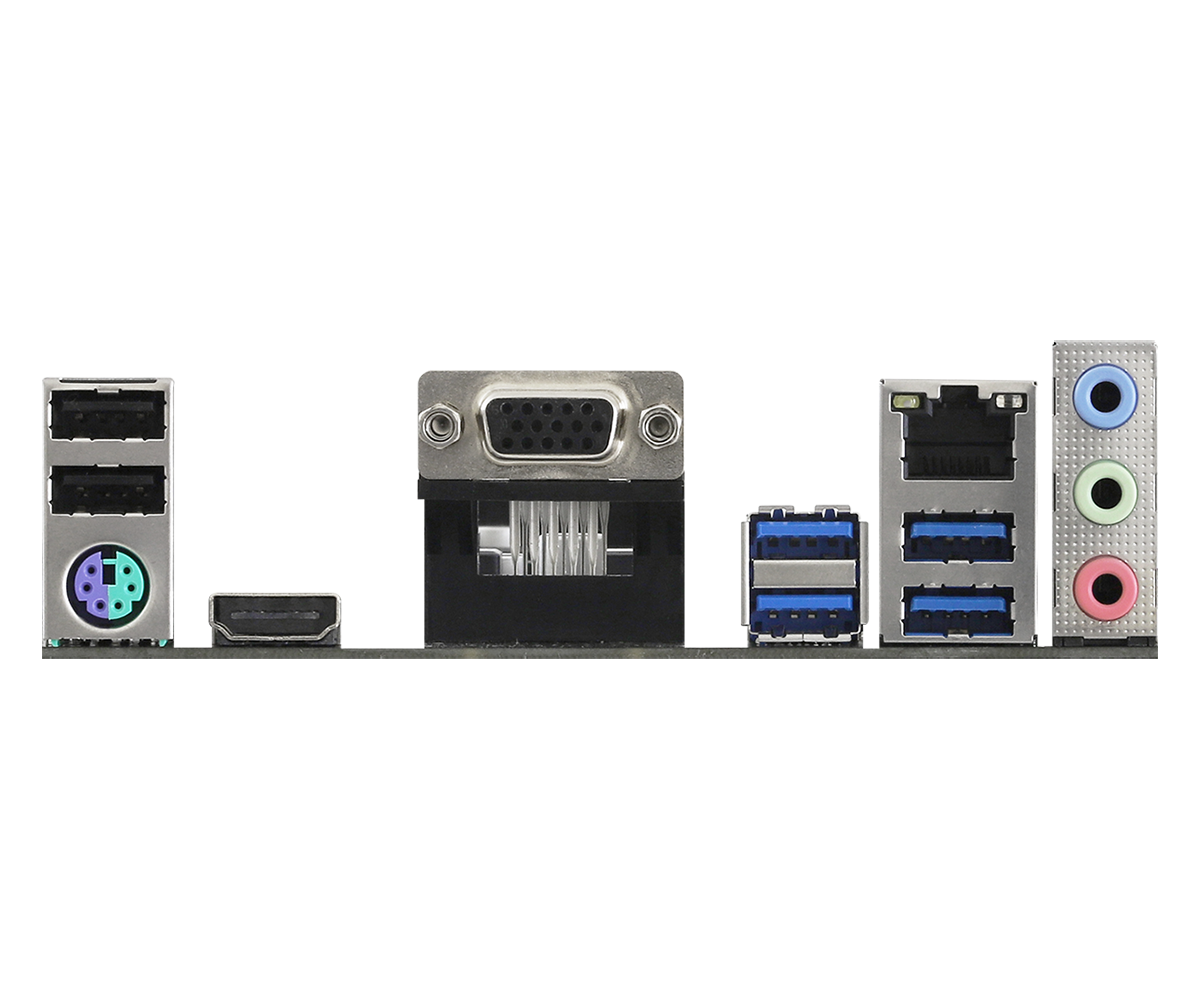

• Портове отзад:
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x D-Sub Port
  • 1 x HDMI Port
  • 2 x USB 2.0 Ports (Supports ESD Protection)
  • 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Конектори:
  • 1 x SPI TPM Header
  • 1 x COM Port Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (4-pin)*
  • 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
  • 1 x 24 pin ATX Power Connector
  • 1 x 4 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
• Мрежа (LAN):
  • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111H
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE
• BIOS:
  • 128Mb AMI UEFI Legal BIOS with GUI support
  • Supports "Plug and Play"
  • ACPI 5.1 compliance wake up events
  • Supports jumperfree
  • SMBIOS 2.3 support
  • CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
