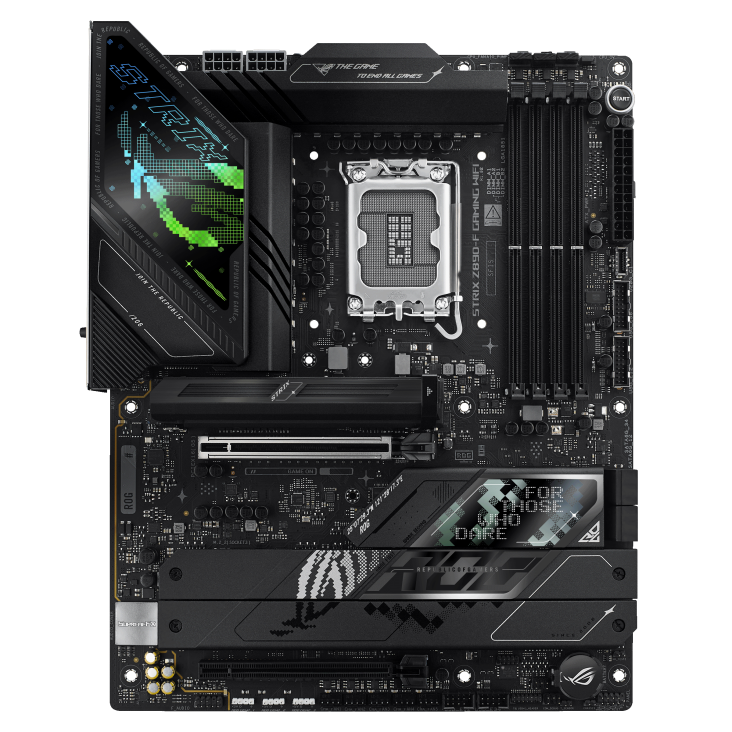

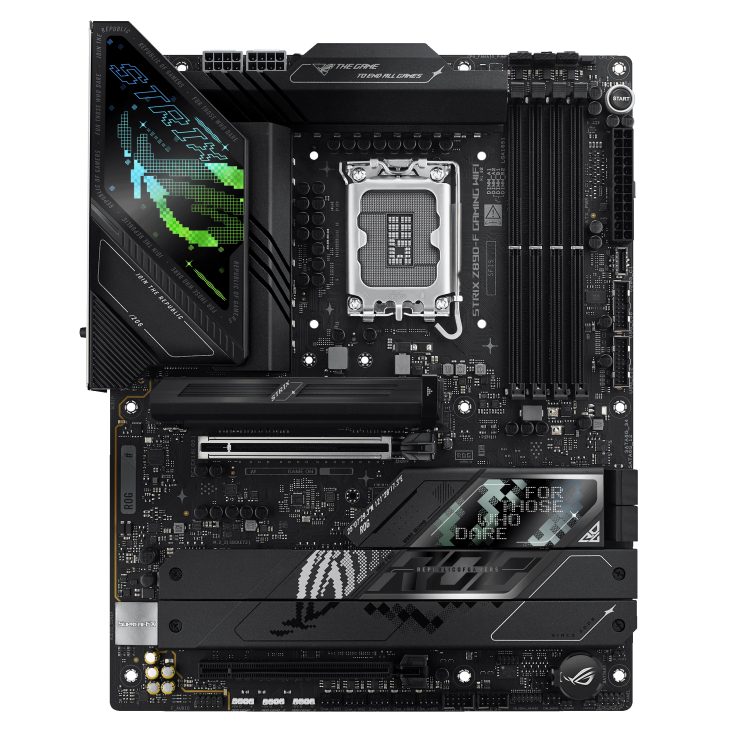

Дънна платка ASUS ROG STRIX Z890-F GAM WIFI

ASUS ROG STRIX Z890-F GAM WIFI

• Безжична връзка:
  • Wi-Fi 7
  • 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate
  • Bluetooth® v5.4
• Bluetooth: 5.4
• Операционна система: Windows® 11 (22H2 & later)
• Аудио:
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback on front panel
  • Audio Features
  • SupremeFX Shielding Technology
  • Savitech SV3H712 AMP
  • Gold-plated audio jacks- Rear optical S/PDIF out port
  • Premium audio capacitors
  • Audio cover
• Памет:
  • 4 x DIMM slots, max. 256GB, DDR5
  • Support up to 9066+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP) memory module
  • Supports DIMM FlexDIMM Fit
  • ASUS Enhanced Memory Profile III (AEMP III)
• Графика:
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs
• Слотове за разширение:
  • Intel® Core™ Ultra Processors(Series 2)
  • 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
  • Intel® Z890 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
• Форм-фактор:
  • ATX Form Factor
  • 30.5 cm x 24.4 cm
• Поддържани процесори:
  • Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Чипсет: Intel® Z890 Chipset
• Съхранение:
  • Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® Core™ Ultra Processors(Series 2)
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • Intel® Z890 Chipset
  • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5

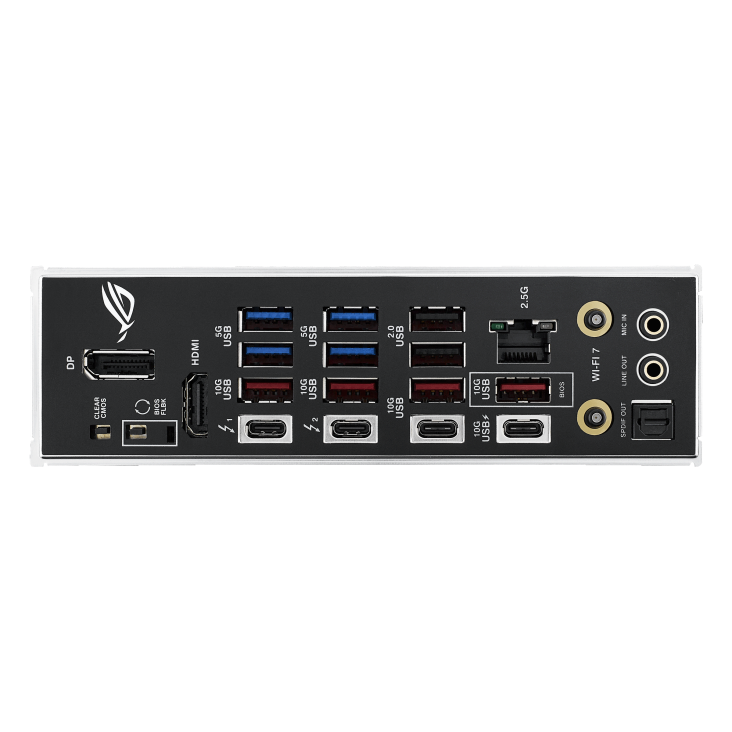

• Портове отзад:
  • 2 x Thunderbolt™ 4 (2 x USB Type-C®)
  • 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Wi-Fi module
  • 1 x Intel® 2.5Gb Ethernet port
  • 2 x Gold-plated audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
• Конектори:
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 5 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connectors
  • Storage related
  • 5 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 20Gbps connector (supports USB Type-C®)
  • 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen2 headers
  • 1 x Chassis Intrusion header
  • 1 x CPU Over voltage jumper
  • 1 x Front Panel Audio header (F_AUDIO)
• Мрежа (LAN):
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• USB:
  • Rear USB (Total 14 ports)
  • 2 x Thunderbolt™ 4 (2 x USB Type-C®)
  • 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 2 x USB 2.0 ports
  • Front USB (Total 9 ports)
  • 1 x USB 20Gbps connector (1 x USB Type-C®)
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
