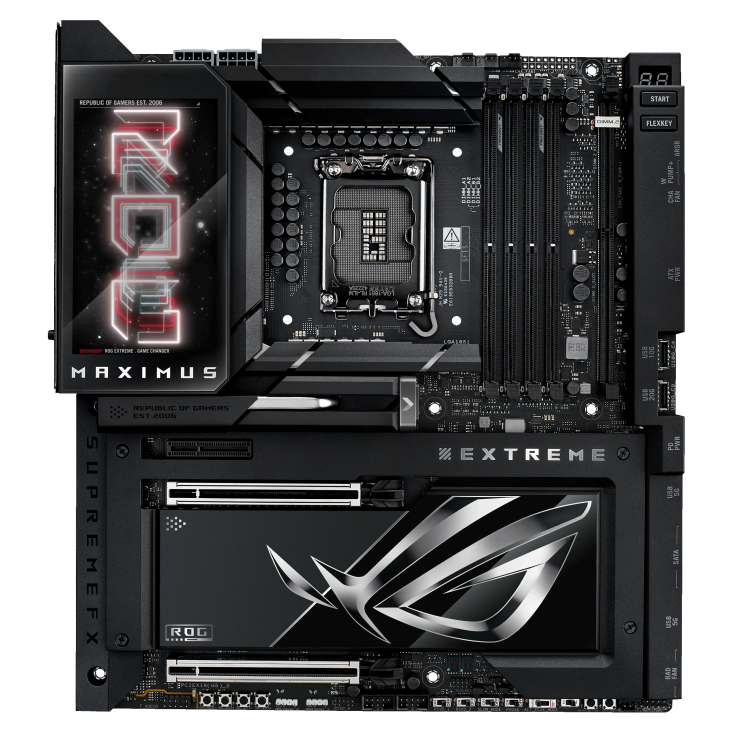

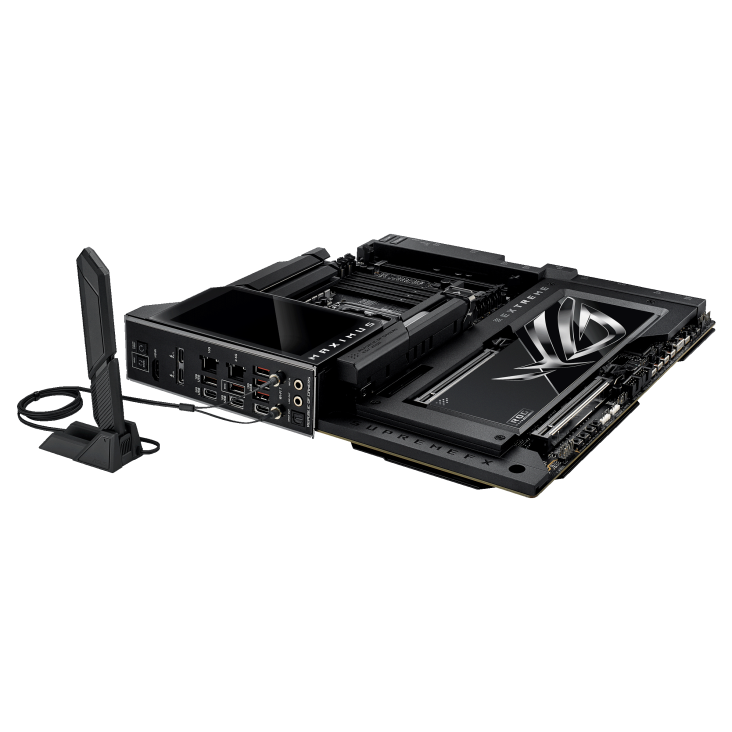

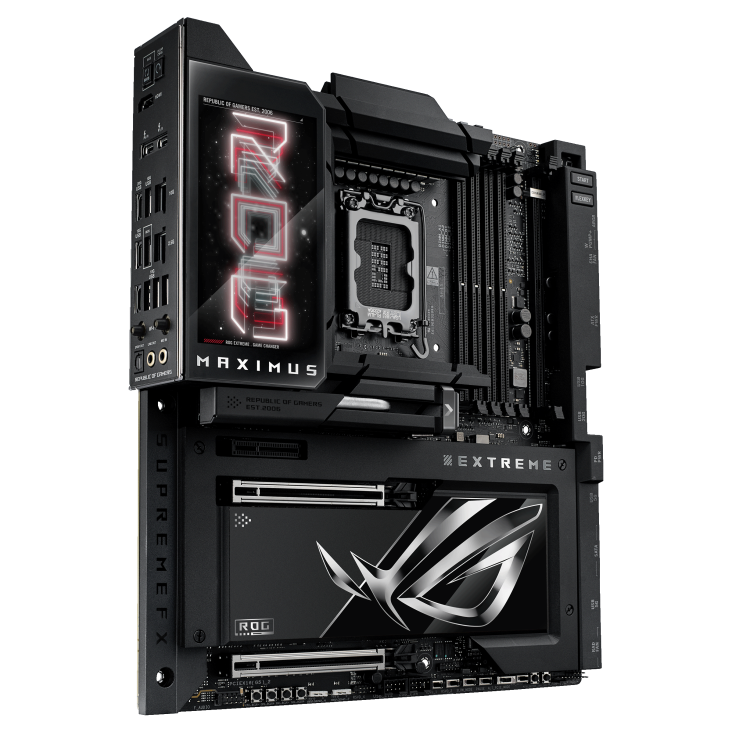

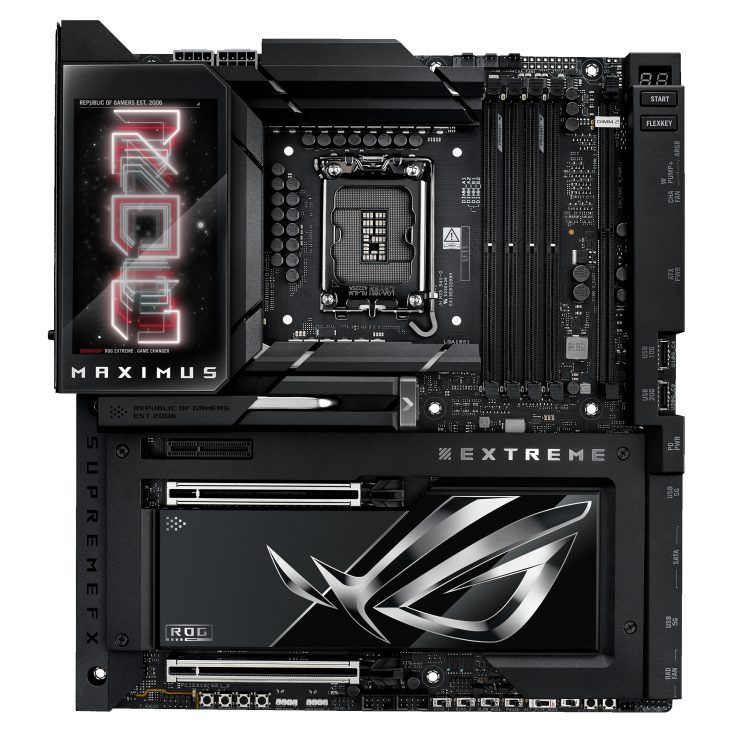

Дънна платка ASUS ROG MAXIMUS Z890 EXTREME

ASUS ROG MAXIMUS Z890 EXTREME

• Безжична връзка:
  • Intel® Wi-Fi 7
  • 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate
  • Bluetooth® v5.4
• Bluetooth: 5.4
• Операционна система: Windows 11 (22H2 & later)
• Аудио:
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback on front panel
  • Audio Features
  • SupremeFX Shielding Technology
  • ESS® ES9219 QUAD DAC
  • LED-illuminated audio jacks
  • Rear optical S/PDIF out port
  • Premium audio capacitors
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
• Памет:
  • 4 x DIMM slots, max. 256GB, DDR5
  • Support up to 9200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP) memory module
  • ASUS Enhanced Memory Profile III (AEMP III)
  • Supports DIMM Flex
  • DIMM Fit
  • NitroPath DRAM Technology
• Графика:
  • 1 x HDMITM port
  • 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs
• Слотове за разширение:
  • Intel® Core™ Ultra Processors(Series 2)
  • 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)
  • Intel® Z890 Chipset
  • 1 x PCIe 4.0x4 slot
• Форм-фактор:
  • E-ATX Form Factor
  • 30.5 cm x 27.7 cm
• Поддържани процесори:
  • Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Чипсет: Intel® Z890 Chipset
• Съхранение:
  • Total supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports
  • Support Intel® Core™ Ultra Processors(Series 2)
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)
  • Intel® Z890 Chipset
  • DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
• Портове отзад:
  • 2 x Thunderbolt™ 5 USB Type-C® ports
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)
  • 1 x HDMITM port
  • 1 x Wi-Fi Module
  • 1 x Intel® 2.5Gb Ethernet port
  • 1 x Marvell® AQtion 10Gb Ethernet port2 x LED-illuminated audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
• Конектори:
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 2 x 4-pin Chassis Fan headers
  • 2 x 4-pin Radiator Fan headers
  • 2 x W_PUMP+ headers
  • 1 x WB_SENSOR header
  • Power related
  • 1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connector
  • 1 x 8-pin PCIe Power connector
  • Storage related
  • 4 x M.2 slots (Key M)
  • 1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 20Gbps connector (supports USB Type-C®)
  • 1 x USB 10Gbps connector (supports USB Type-C®)
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
• Мрежа (LAN):
  • 1 x Intel® 2.5Gb Ethernet
  • 1 x Marvell® AQtion 10Gb Ethernet
  • ASUS LANGuard  
• BIOS: 2 x 256 Mb Flash ROM, UEFI AMI BIOS
• USB:
  • Rear USB (Total 10 ports)
  • 2 x Thunderbolt™ 5 ports (2 x USB Type-C®)
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)
  • Front USB (Total 10 ports)
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*
  • 1 x USB 10Gbps connector (supports USB Type-C®)
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • USB Type-C® power delivery output: max. 5V/3A
  • *USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
