Дънна платка ASUS TUF GAMING Z890-PRO WIFI

ASUS TUF GAMING Z890-PRO WIFI

• Безжична връзка:
  • Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band**
  • Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  • Bluetooth® v5.4***
  • *Wi-Fi features may vary depending on the operating system
  • For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
  • For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor`s website for details.
  • ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  • *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer`s website for the latest specifications.
• Bluetooth: 5.4
• Операционна система: Windows 11 (22H2 & later)
• Аудио:
  • Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
  • Impedance sense for front and rear headphone outputs
  • Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • Supports up to 32-Bit/192 kHz playback*
  • Audio Features
  • Audio Shielding
  • Rear optical S/PDIF out port
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • Audio cover
  • Unique de-pop circuit
  • * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
• Памет:
  • 4 x DIMM slots, max. 192GB, DDR5
  • Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
  • Dual channel memory architecture
  • DIMM Fit
  • Supports Intel® Extreme Memory Profile (XMP) memory module
  • ASUS Enhanced Memory Profile III(AEMPIII)
  • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
  • ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Графика:
  • 1 x DisplayPort**
  • 1 x HDMI™ port***
  • 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
  • **** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
  • ***** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
  • ****** VGA resolution support depends on processors` or graphic cards` resolution.
  • ******* While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
• Слотове за разширение:
  • Intel® Core™ Ultra Processors(Series 2)*
  • 1 x PCIe 5.0 x16 slot
  • Intel® Z890 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x4 slot
  • 2 x PCIe 4.0 x1 slots
• Форм-фактор: ATX Form Factor 30.5 cm x 24.4 cm
• Чипсет: Intel® Z890 Chipset
• Съхранение:
  • Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® Core™ Ultra Processors(Series 2)*
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • Intel® Z890 Chipset
  • M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.

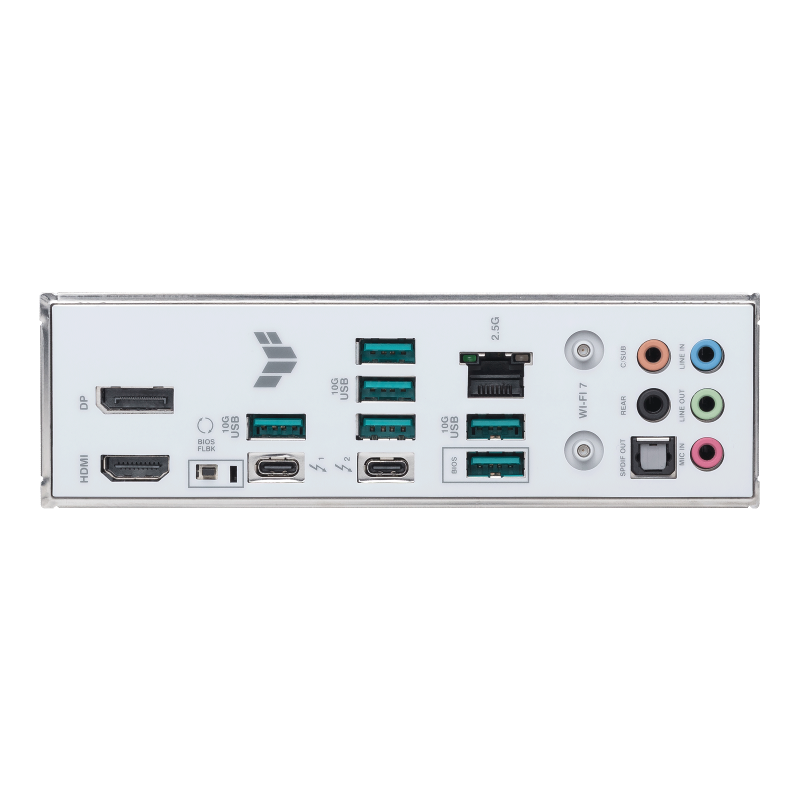

• Портове отзад:
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Wi-Fi module
  • 1 x Intel® 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • Rear USB (Total 8 ports)
  • 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
  • 6 x USB 10Gbps ports (6 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 20Gbps (supports USB Type-C® with up to 30W PD/PPS Fast-charge )*
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • * USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
• Конектори:
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • Power Related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connectors
  • Storage Related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 20Gbps connector (supports USB Type-C® )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x Chassis Intrusion header
  • 1 x COM Port header
• Мрежа (LAN): 1 x Intel® 2.5Gb Ethernet TUF LANGuard
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
