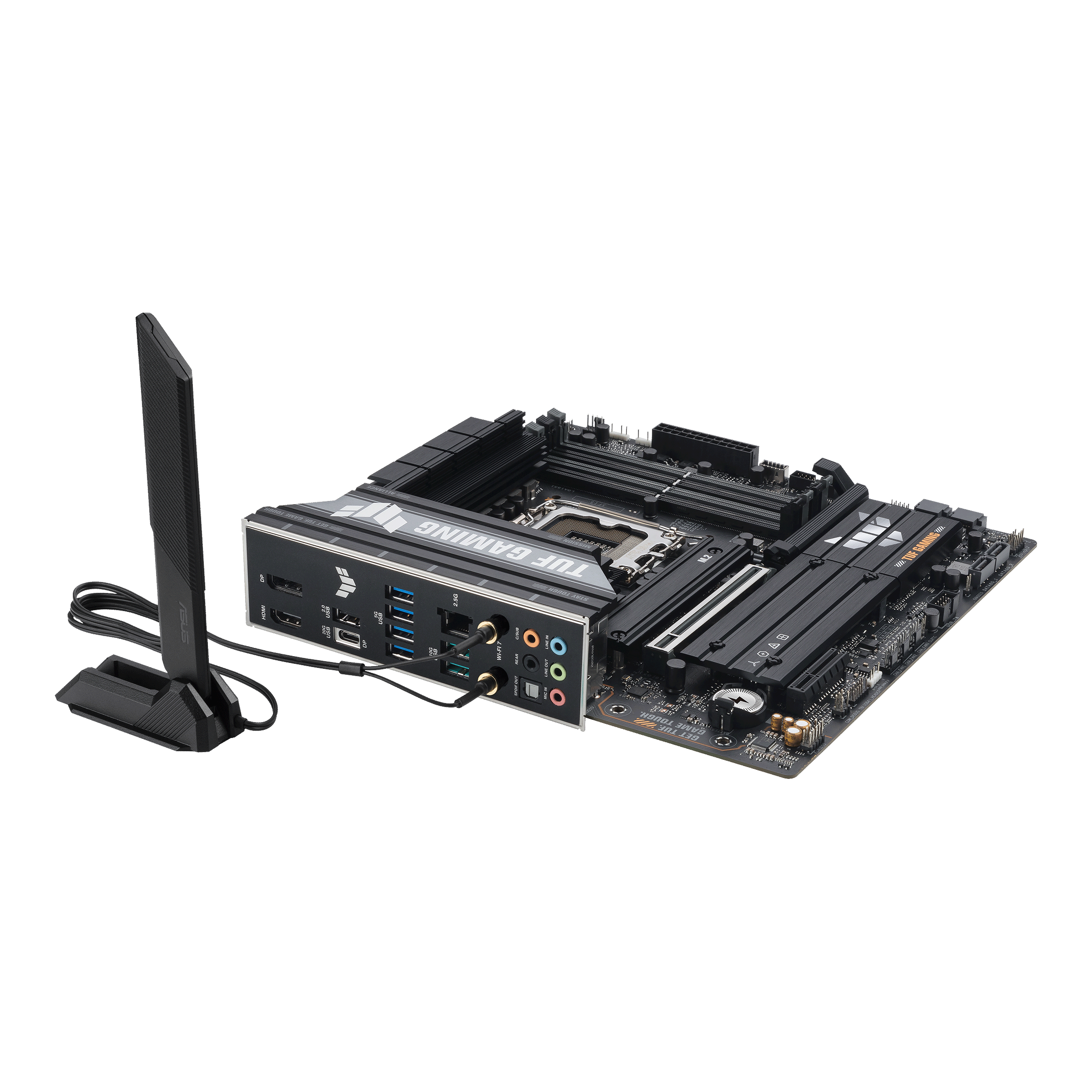

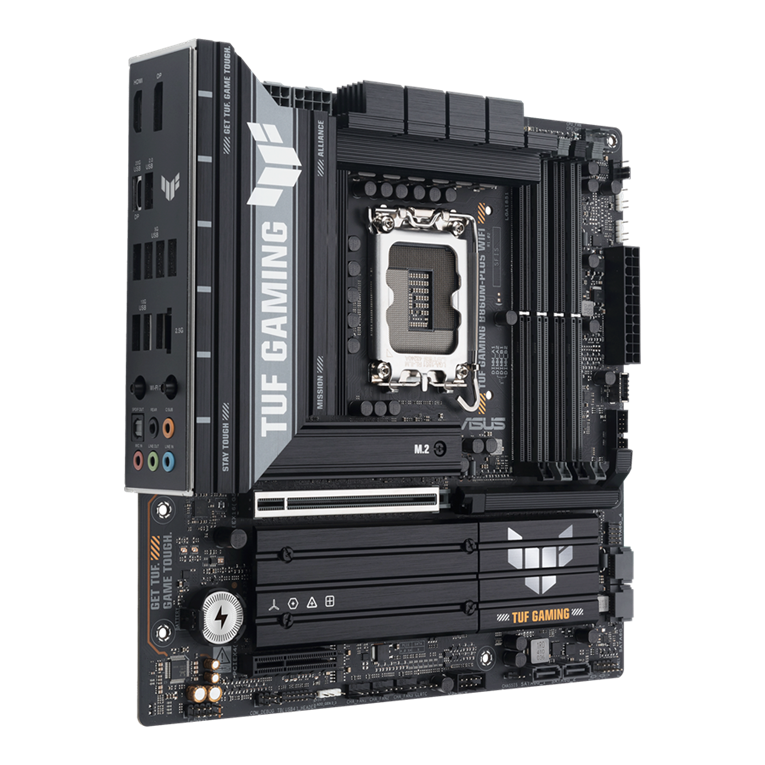

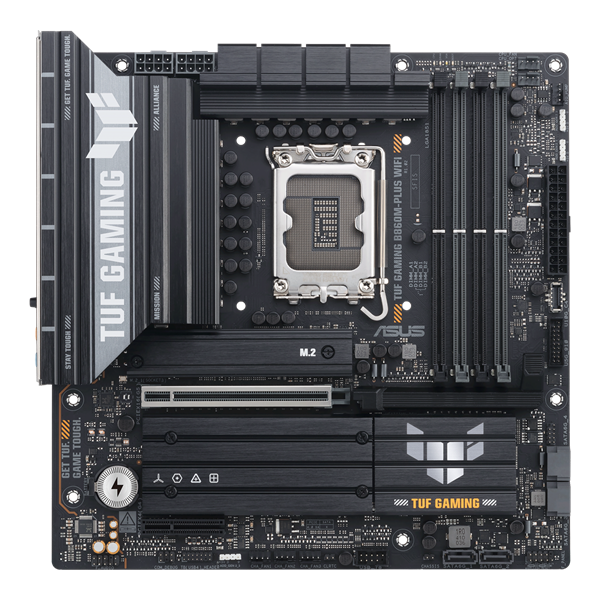

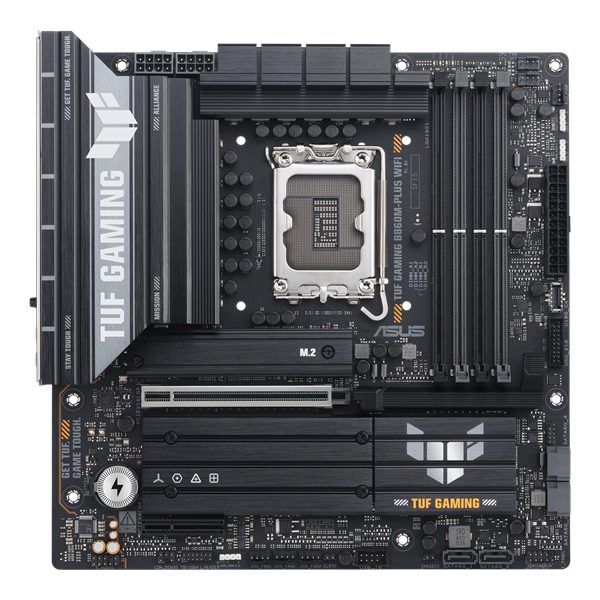

Дънна платка ASUS TUF GAMIN B860M-PLUS WIFI

ASUS TUF GAMIN B860M-PLUS WIFI

• Безжична връзка:
  • Wi-Fi 7 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
• Bluetooth: Bluetooth® v5.4
• Операционна система: Windows 11 (22H2 & later)
• Аудио:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Rear optical S/PDIF out port
  • Premium audio capacitors
  • Dedicated audio PCB layers
• Памет:
  • 4 x DIMM slots, max. 256GB, DDR5
  • Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
  • Dual Channel Memory Architecture DIMM Fit
  • Supports Intel® Extreme Memory Profile (XMP) memory module
  • ASUS Enhanced Memory Profile III(AEMPIII)
• Графика:
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output
• Слотове за разширение:
  • Intel® CoreTM Ultra Processors(Series 2)
  • 1 x PCIe 5.0 x16 slot
  • Intel® B860 Chipset
  • 1 x PCIe 4.0 x4 slot
• Форм-фактор: mATX, 24.4 cm x 24.4 cm
• Поддържани процесори:
  • Support Intel® Core™ Ultra Processors (Series 2) ,LGA1851
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Чипсет: Intel® B860 Chipset
• Съхранение:
  • Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® Core™ Ultra Processors(Series 2)
  • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  • Intel® B860 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports

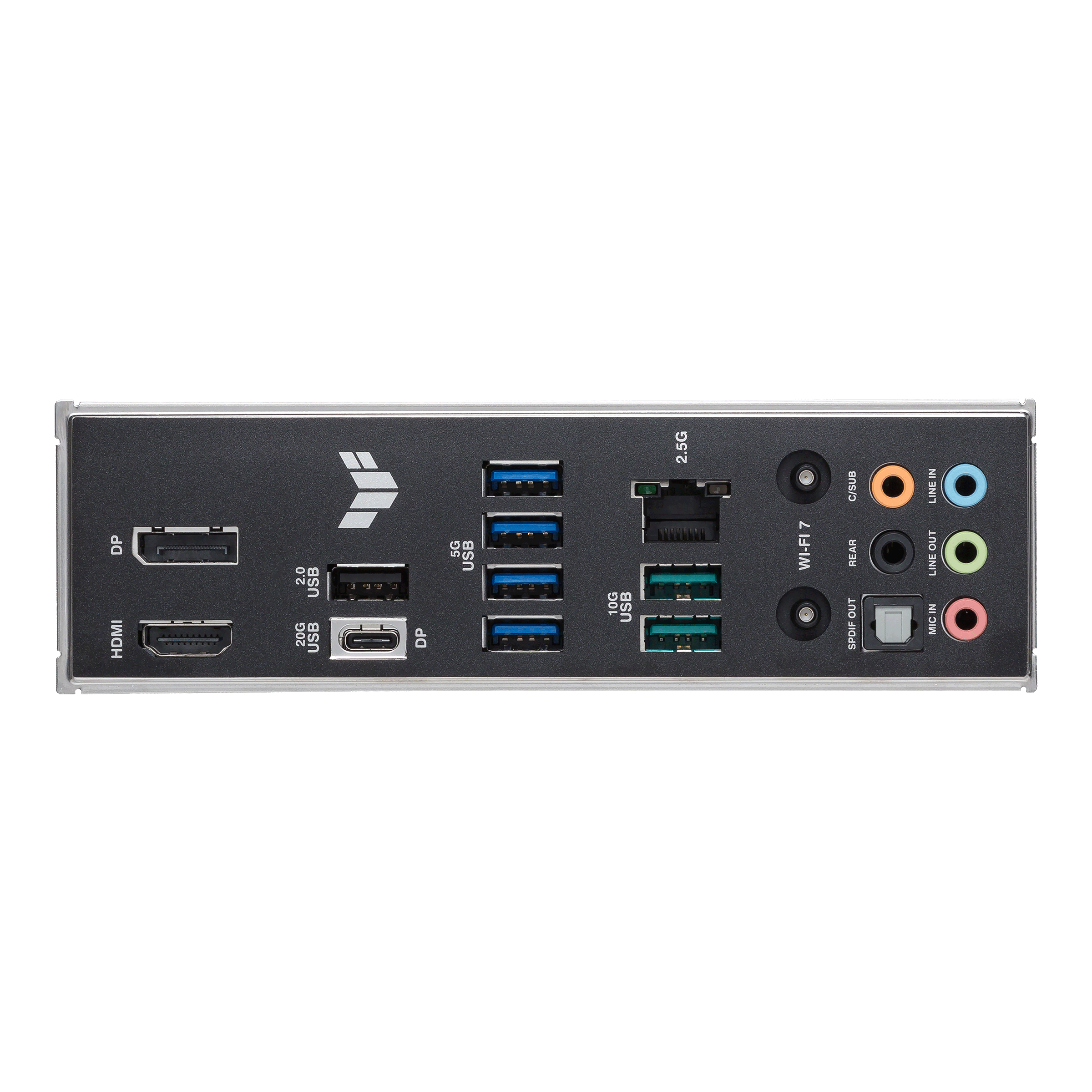

• Портове отзад:
  • 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
  • 2 x USB 10Gbps port (2 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
• Конектори:
  • I/O Connectors Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connectors
  • Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 10Gbps connector (supports USB Type-C® )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x Chassis Intrusion header
  • 1 x Front panel audio header (F_AUDIO)
• Мрежа (LAN):
  • 1 x Realtek 2.5Gb Ethernet
  • TUF LANGuard
• BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS
• USB:
  • Rear USB (Total 8 ports)
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 2 x USB 10Gbps port (2 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x USB 2.0 ports (1x Type-A)
  • Front USB (Total 5 ports)
  • 1 x USB 10Gbps connector (supports USB Type-C®)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 headers support 2 additional USB 2.0 ports
  • * USB Type-C® power delivery output: max. 5V/3A
