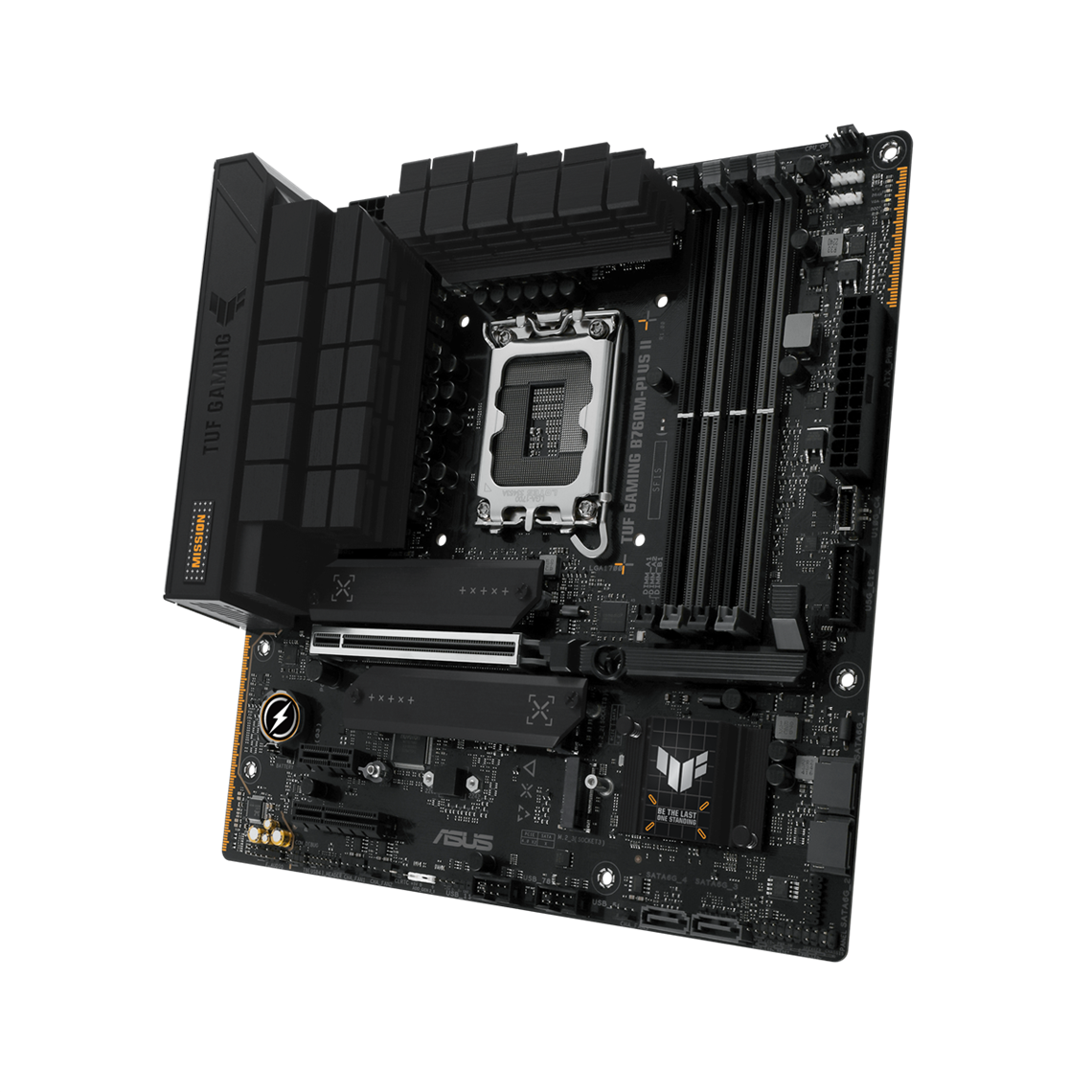

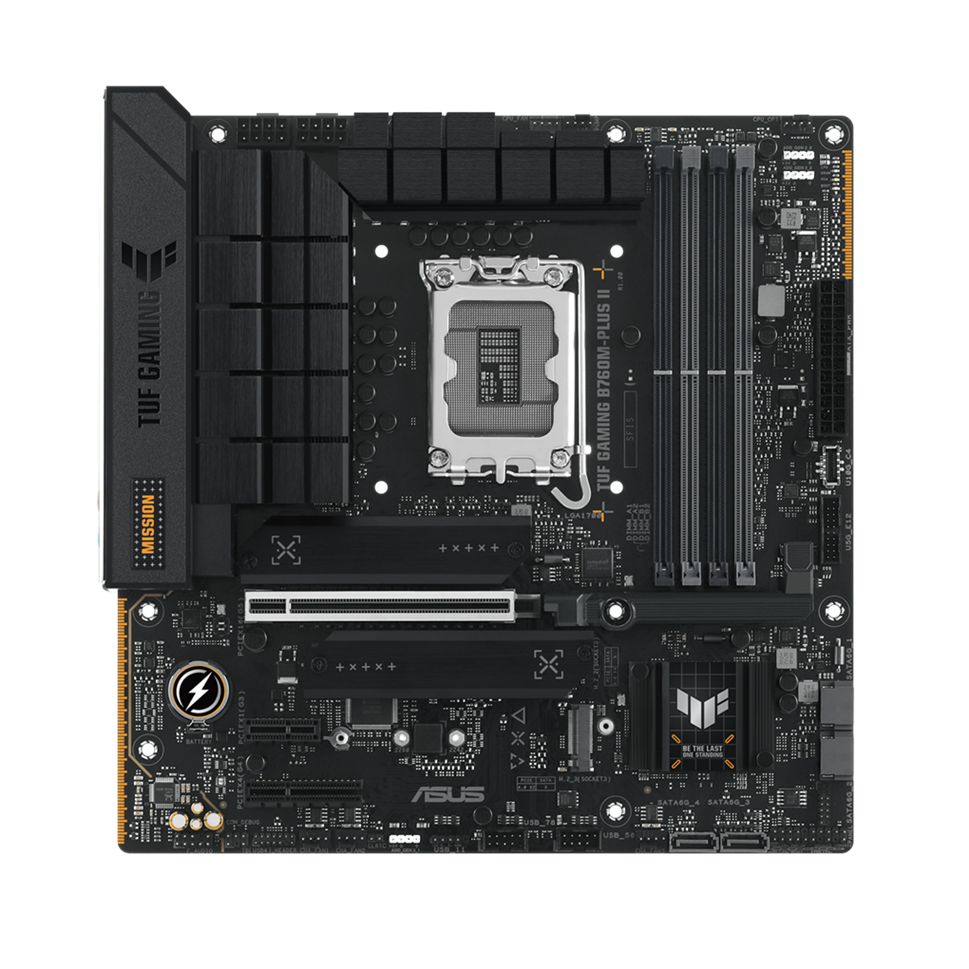

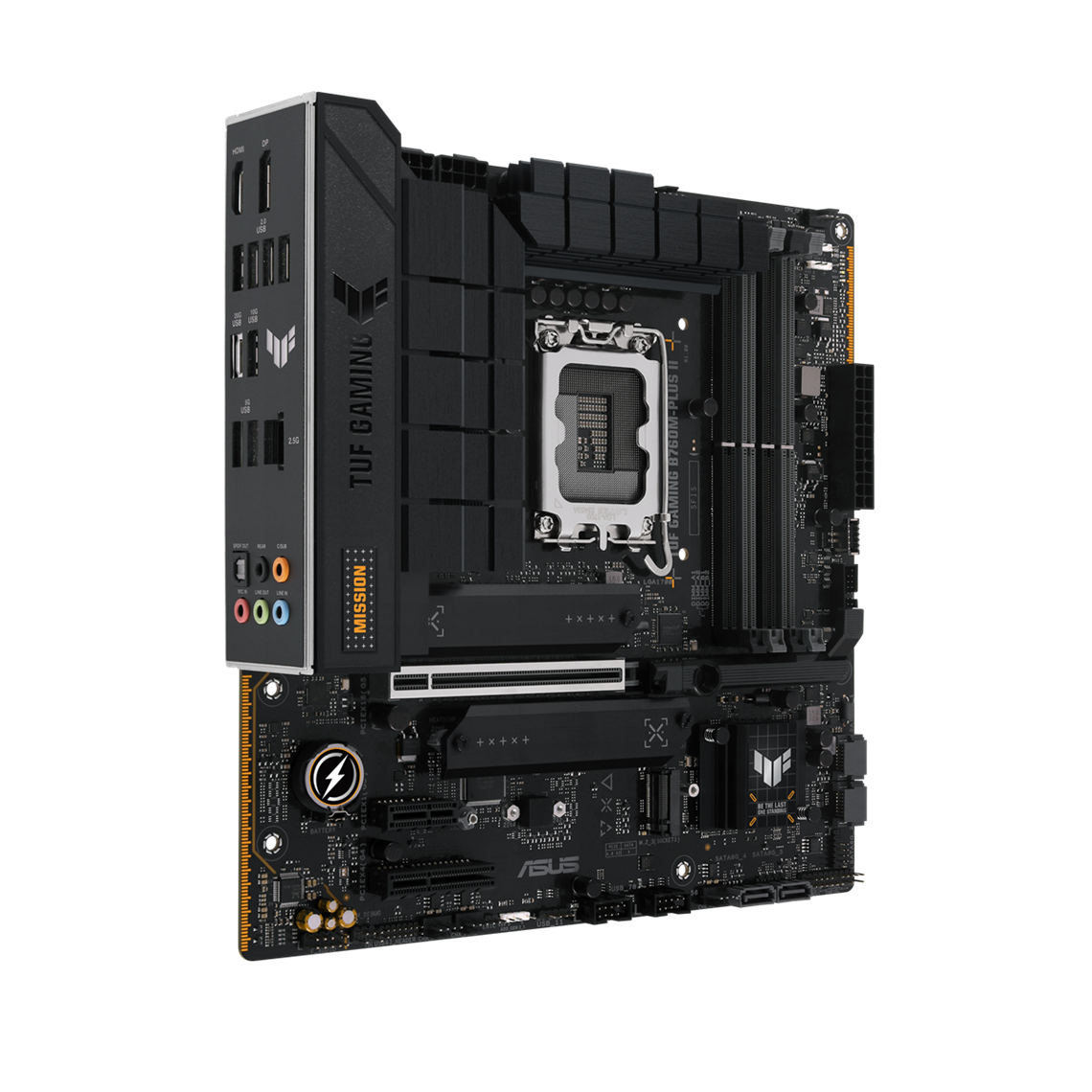

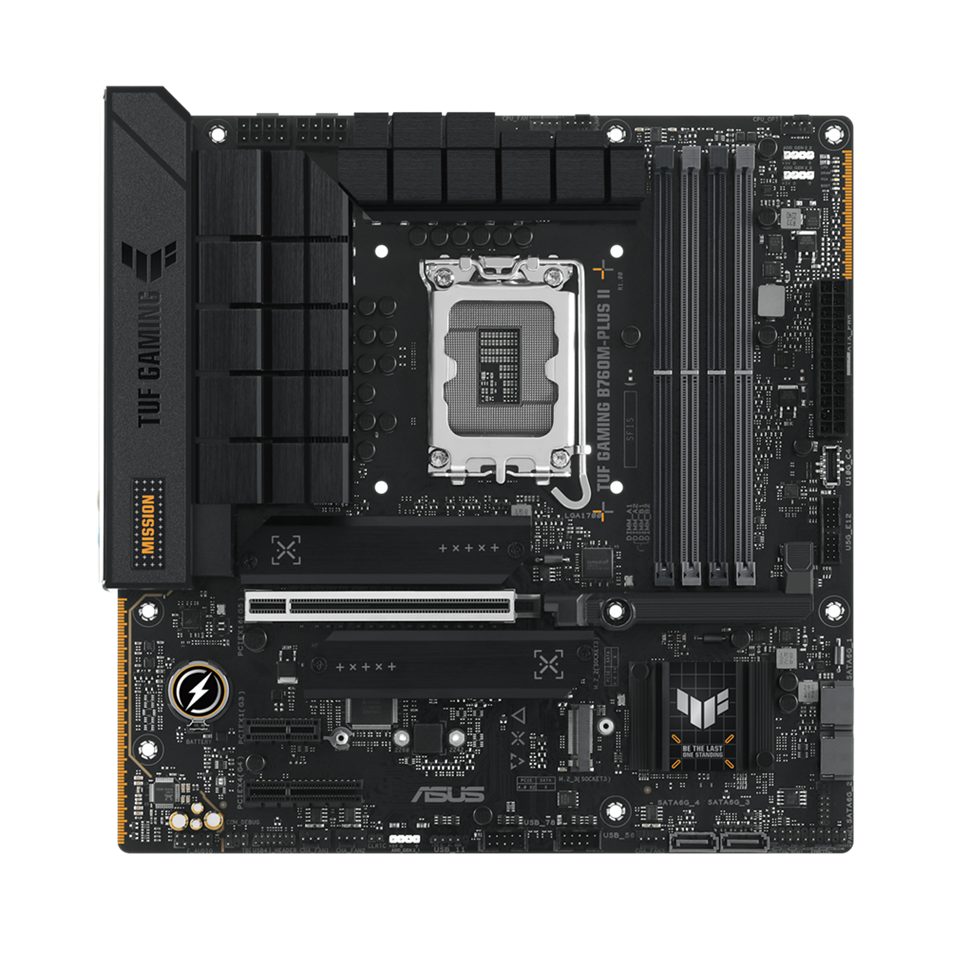

Дънна платка ASUS TUF GAMING B760M-PLUS II

ASUS TUF GAMING B760M-PLUS II

• Операционна система: Windows®11, Windows®10 64-bit
• Аудио:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jack-detection, Multi-streaming,
  • Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Rear optical S/PDIF out port
  • Premium audio capacitors
  • Dedicated audio PCB layers
• Памет:
  • 4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
  • Dual channel memory architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • ASUS Enhanced Memory Profile II (AEMP II)
• Графика:
  • 1 x DisplayPort
  • 1 x HDMI™ port
• Слотове за разширение:
  • Intel®Core™Processors (14th& 13th& 12th Gen)
  • 1 x PCIe 5.0 x16 slot
  • Intel®B760 Chipset
  • 1 x PCIe 4.0 x4 slot
  • 1 x PCIe 3.0 x1 slot
• Форм-фактор: micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
• Поддържани процесори: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron®
• Чипсет: Intel® B760 Chipset
• Съхранение:
  • Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel®Core™Processors (14th& 13th& 12th Gen)
  • M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
  • Intel®B760 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
  • 4 x SATA 6Gb/s ports

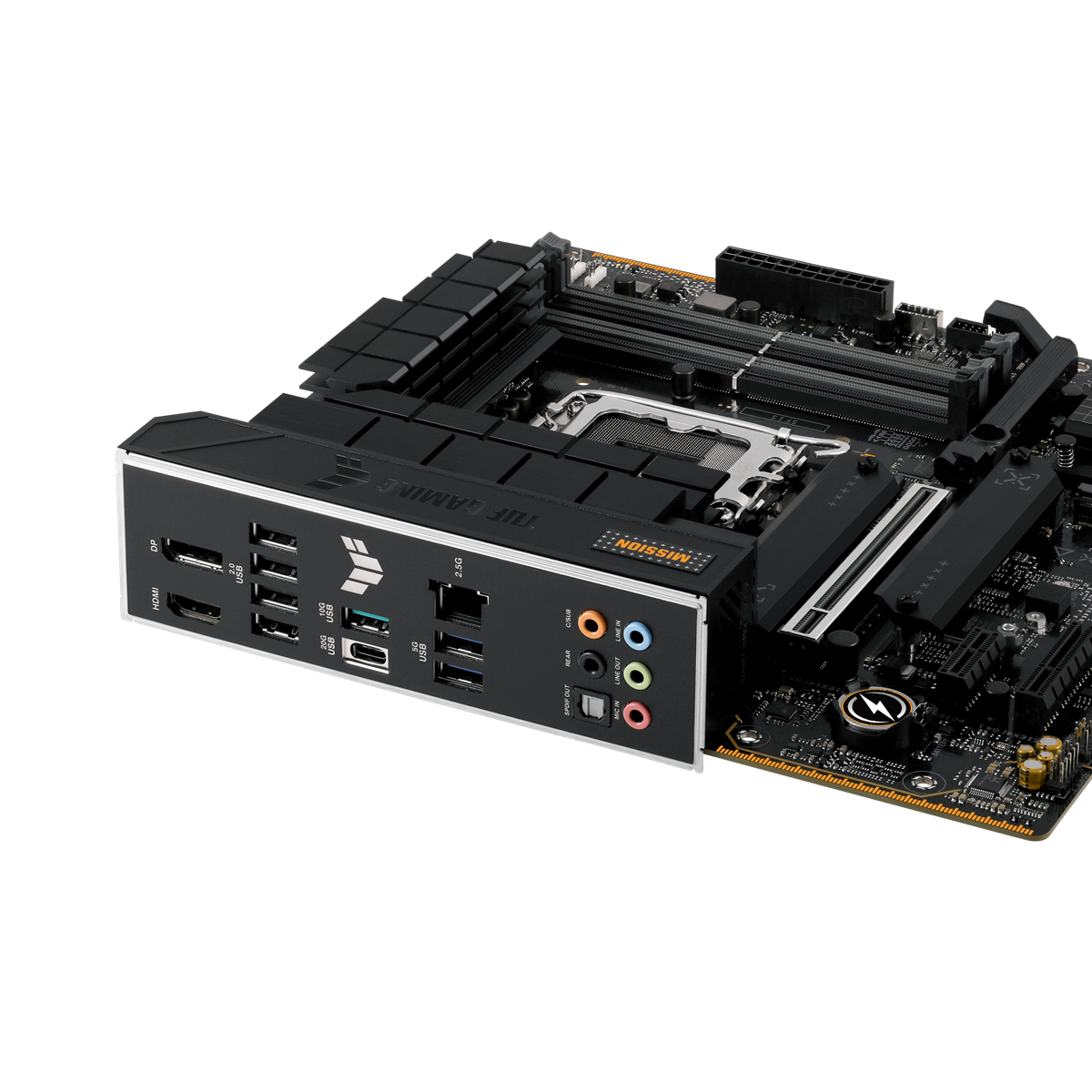

• Портове отзад:
  • Back Panel I/O Ports
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 1 x USB 10Gbps port (1 x Type-A)
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
• Конектори:
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power Related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connectors
  • Storage Related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 10Gbps connector (supports USB Type-C®)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 3 x USB 2.0 headers support 5 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header (F-AUDIO)
  • 1 x20-3 pin System Panel header with chassis intrusion function
• Мрежа (LAN): 1 x Realtek 2.5Gb Ethernet, TUF LANGuard
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
