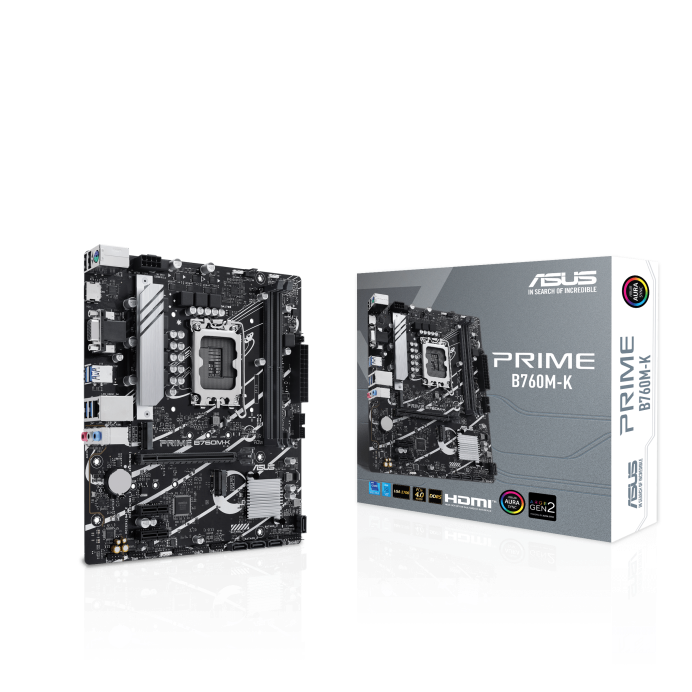

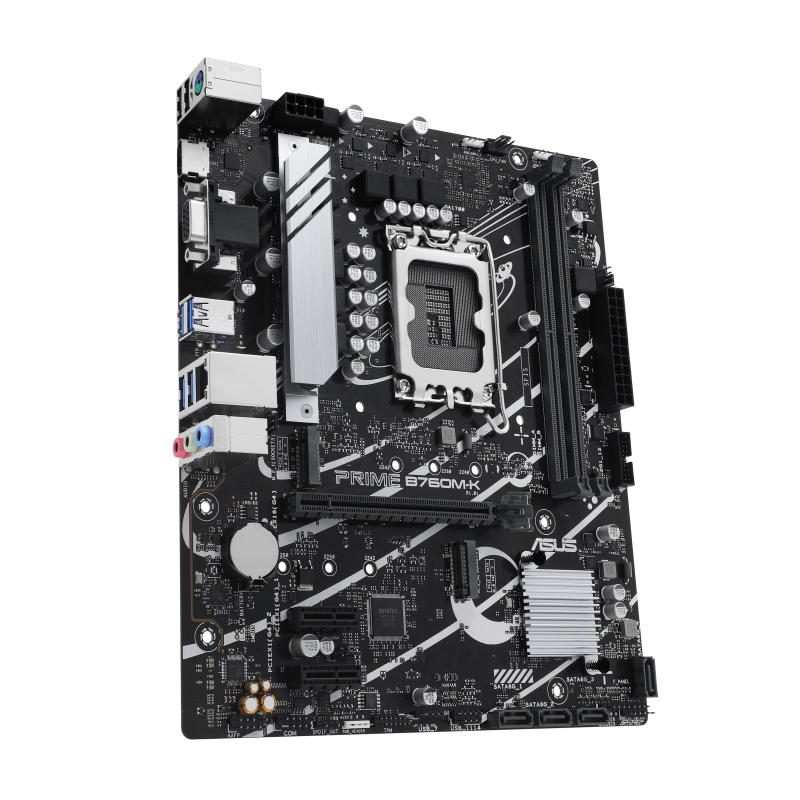

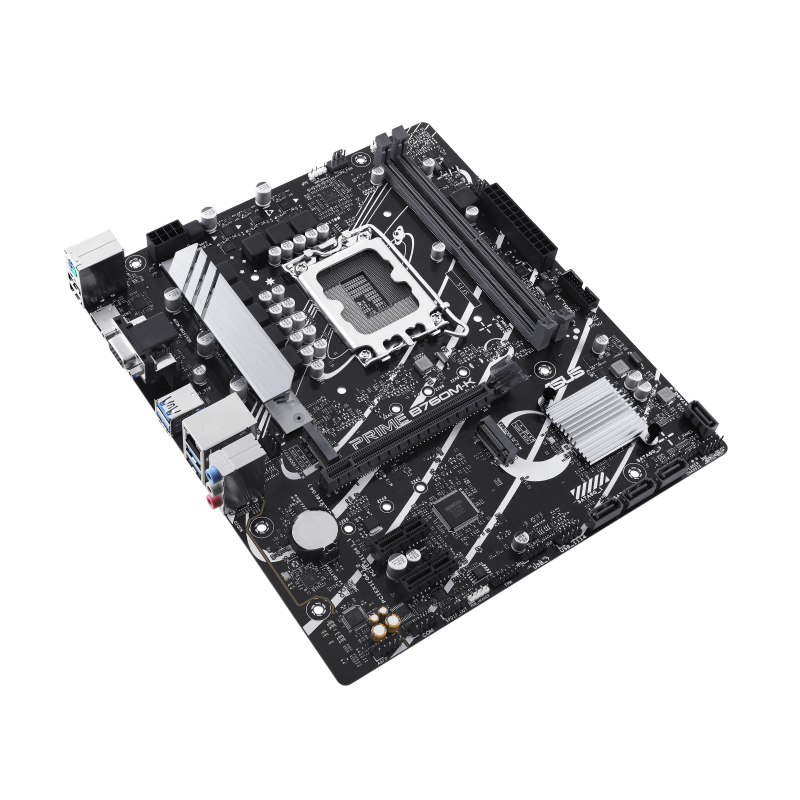

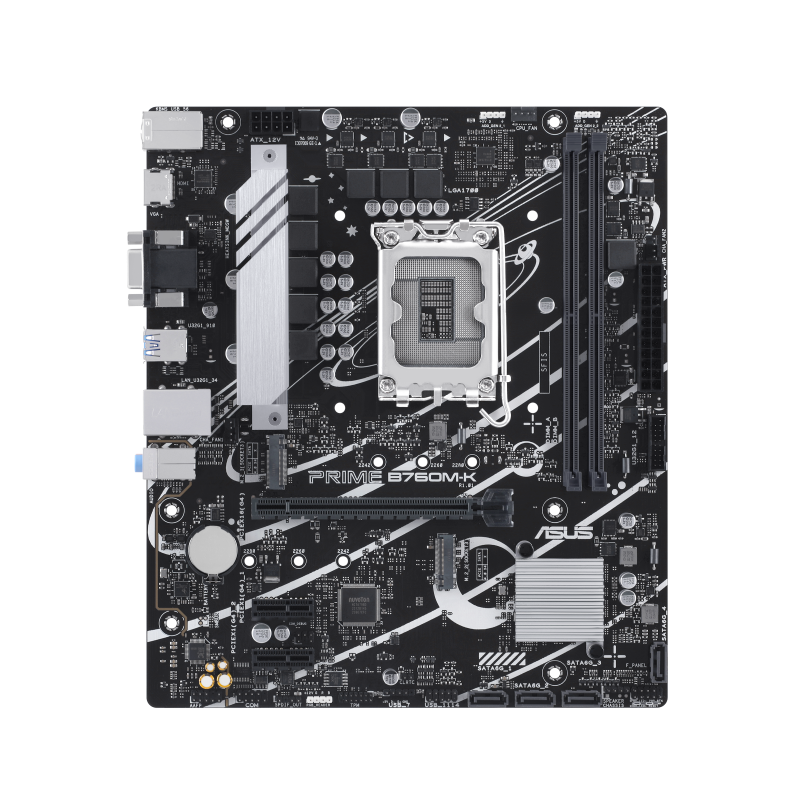

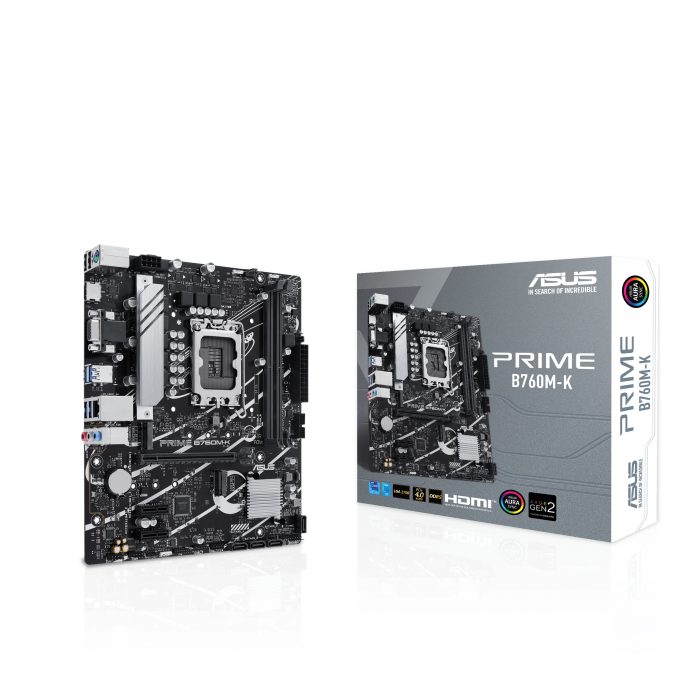

Дънна платка ASUS PRIME B760M-K /LGA1700

ASUS PRIME B760M-K /LGA1700

• Операционна система: Windows® 11, Windows® 10 64-bit
• Аудио:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
• Памет:
  • 2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
• Графика:
  • 1 x VGA port
  • 1 x HDMITM port**
• Слотове за разширение:
  • Intel® 13th & 12th Gen Processors
  • 1 x PCIe 4.0 x16 slot
  • Intel® B760 Chipset
  • 2 x PCIe 4.0 x1 slots
• Форм-фактор:
  • mATX Form Factor
  • 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
• Чипсет: Intel® B760 Chipset
• Съхранение:
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® B760 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports

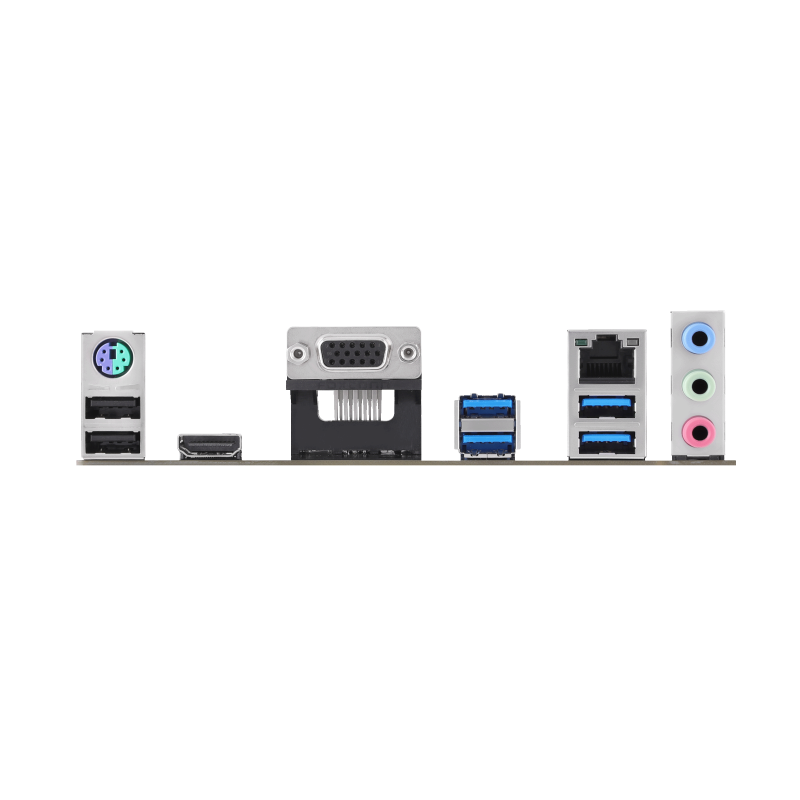

• Портове отзад:
  • 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x VGA port
  • 1 x HDMITM port
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
• Конектори:
  • 1 x 4-pin CPU Fan header
  • 2 x 4-pin Chassis Fan headers
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 3 additional USB 2.0 ports
  • 2 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header
• Мрежа (LAN): 1 x Realtek 2.5Gb Ethernet
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
