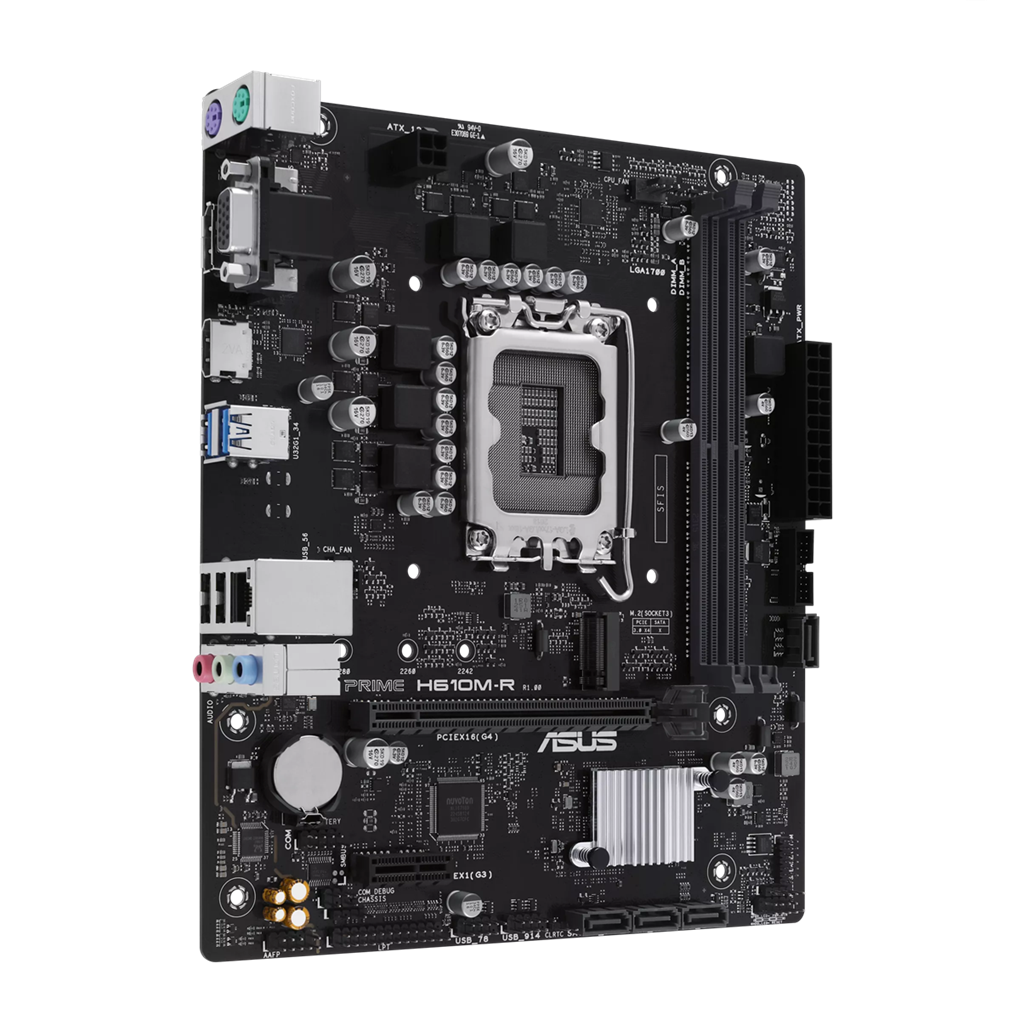

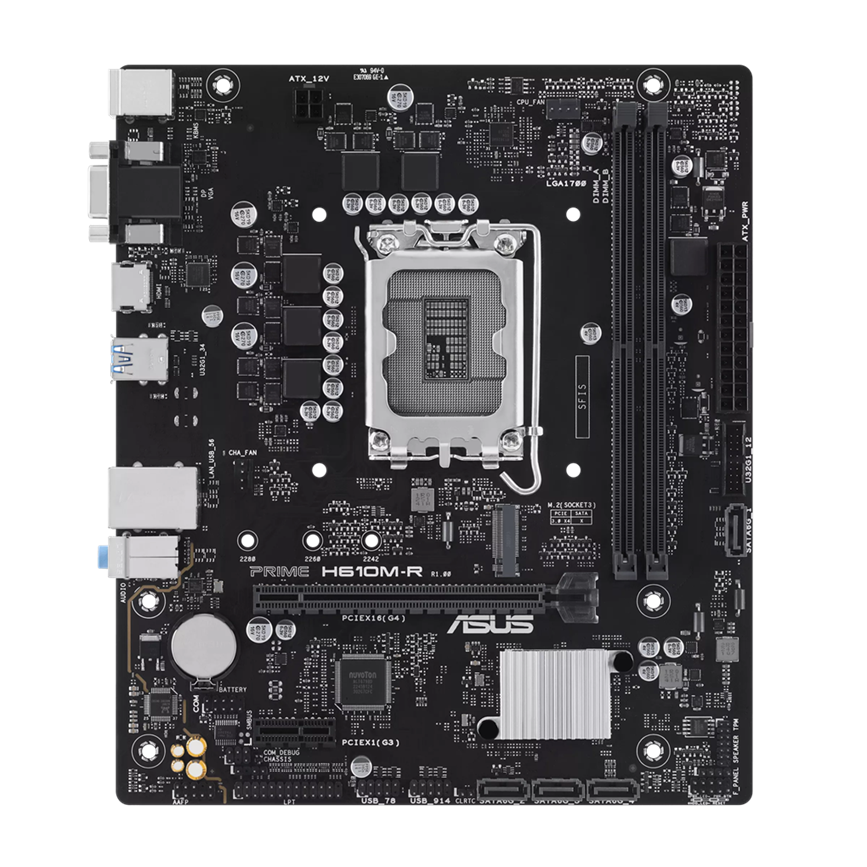

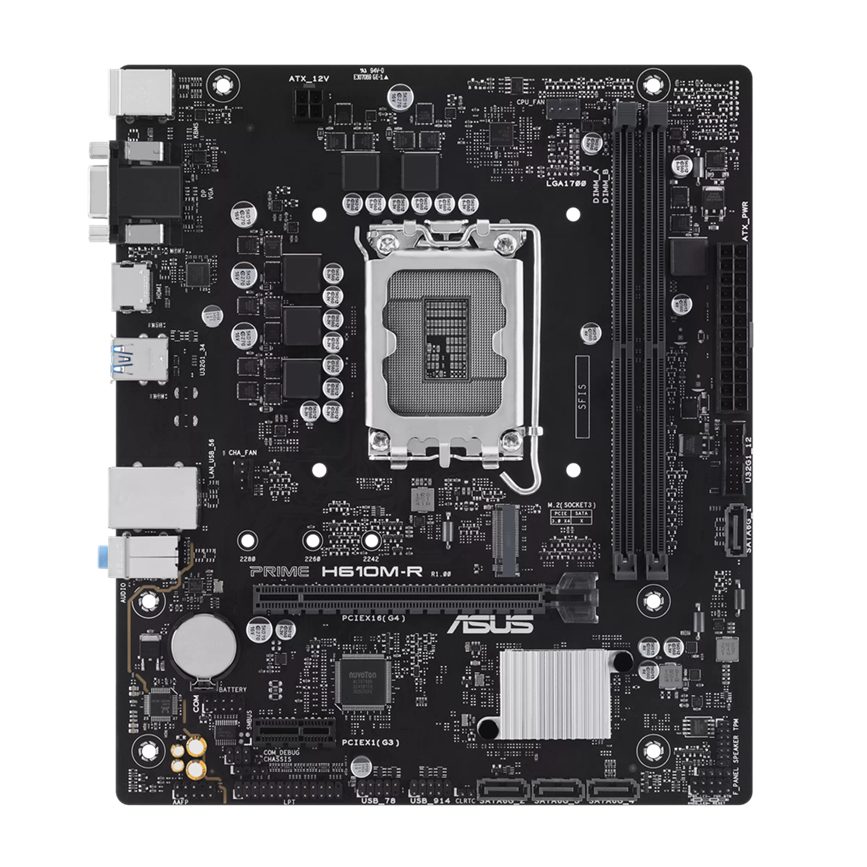

Дънна платка ASUS PRIME H610M-R-SI

ASUS PRIME H610M-R-SI

• Операционна система: Windows® 11 64-bit, Windows® 10 64-bit
• Аудио:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
• Памет:
  • 2 x DIMM, Max. 96GB, DDR5 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
• Графика:
  • 1 x DisplayPort
  • 1 x VGA port
  • 1 x HDMITM port
• Слотове за разширение:
  • Intel® Core™ Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot
  • Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot
• Форм-фактор: mATX Form Factor, 22.6 cm x 19.5 cm
• Поддържани процесори:
  • Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
  • Supports up to Intel® 65W CPU
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Чипсет: Intel® H610 Chipset
• Съхранение:
  • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  • Intel® H610 Chipset
  • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
  • 4 x SATA 6Gb/s ports

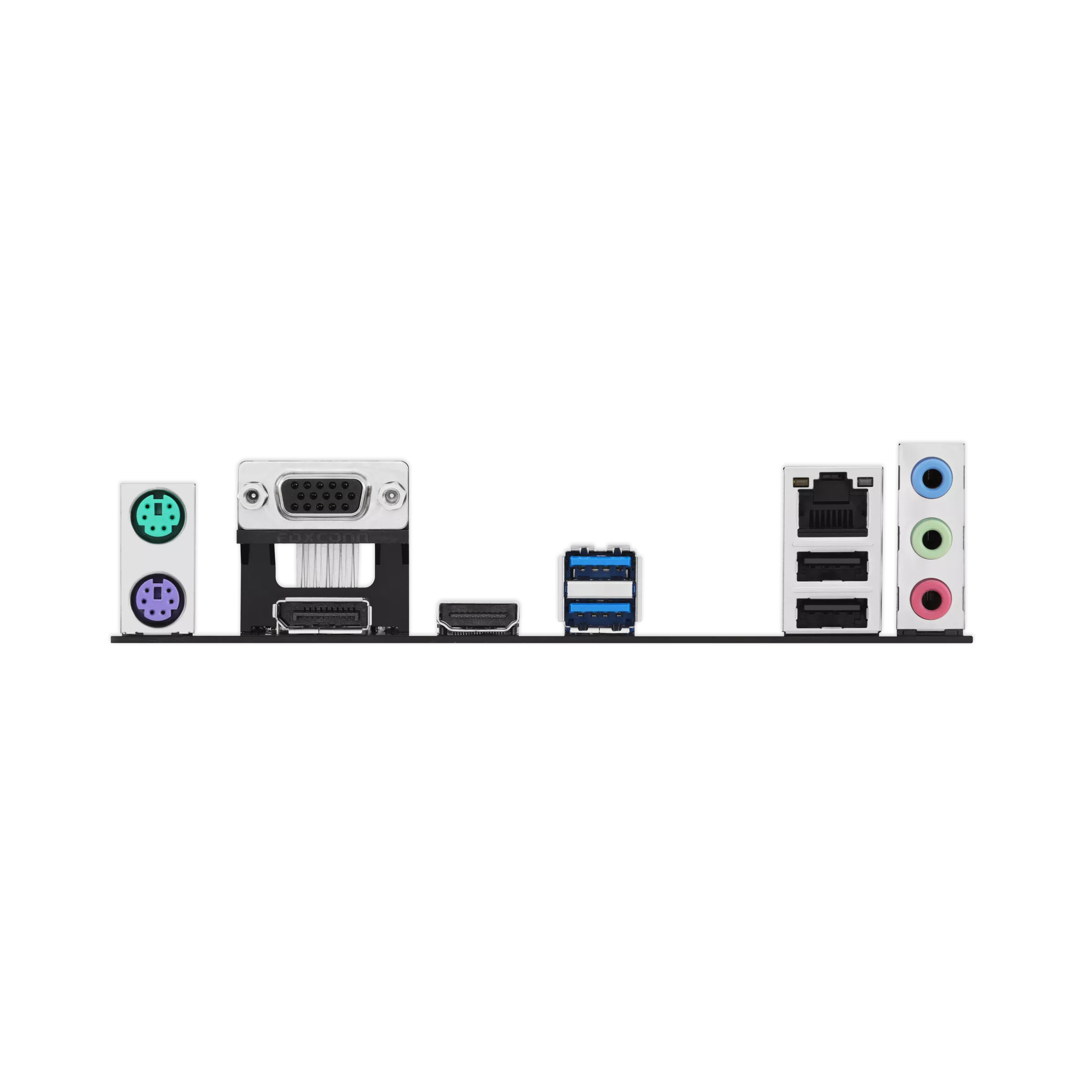

• Портове отзад:
  • 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x VGA port
  • 1 x HDMITM port
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard (purple) port
  • 1 x PS/2 Mouse (green) port
• Конектори:
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin Chassis Fan header
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 1 x M.2 slot (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
  • 1 x Clear CMOS header
  • 1 x Chassis Intrusion header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x LPT header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1 pin)
• Мрежа (LAN): 1 x Realtek 1Gb Ethernet
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• USB:
  • Rear USB (Total 4 ports)
  • 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB (Total 6 ports)
  • 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
