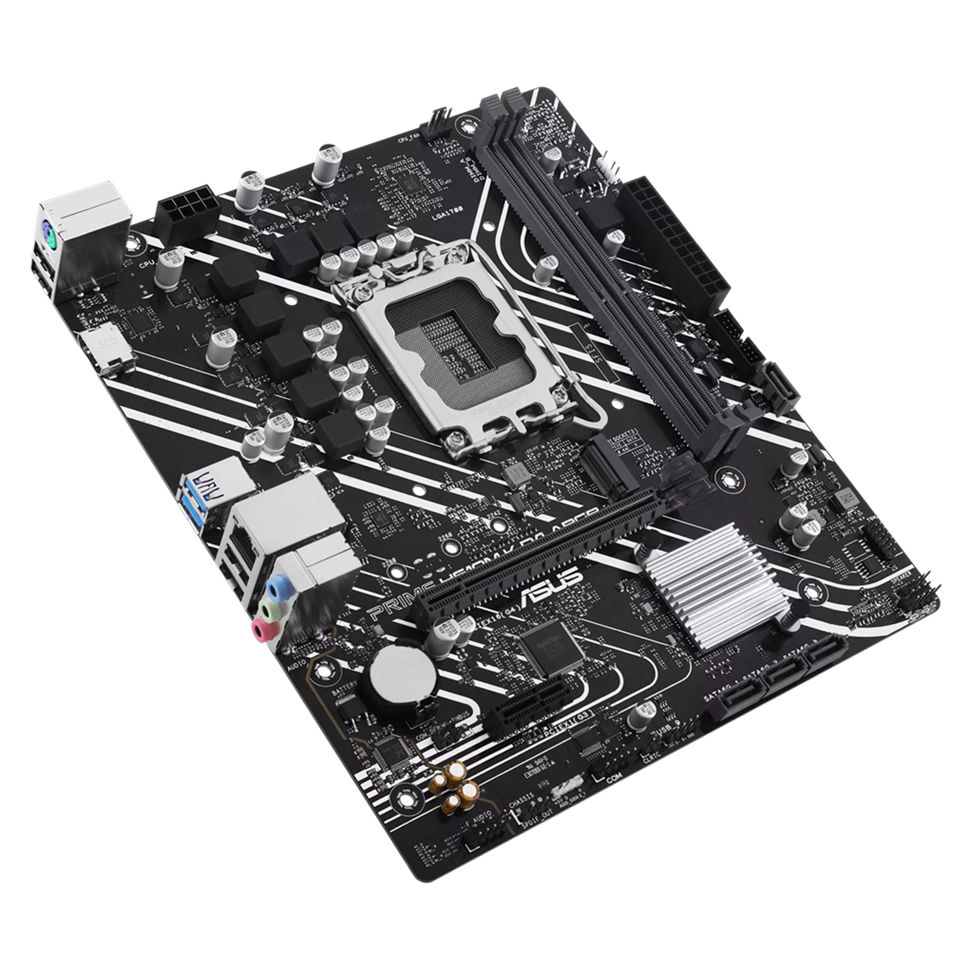

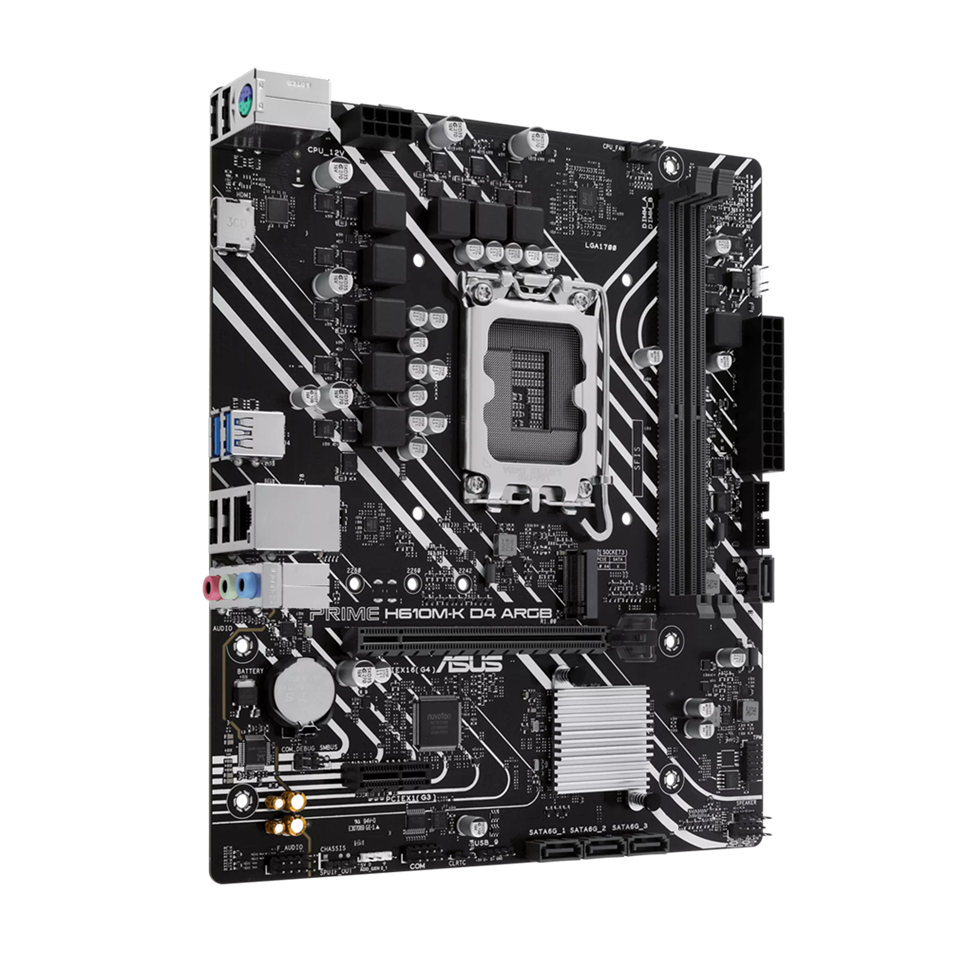

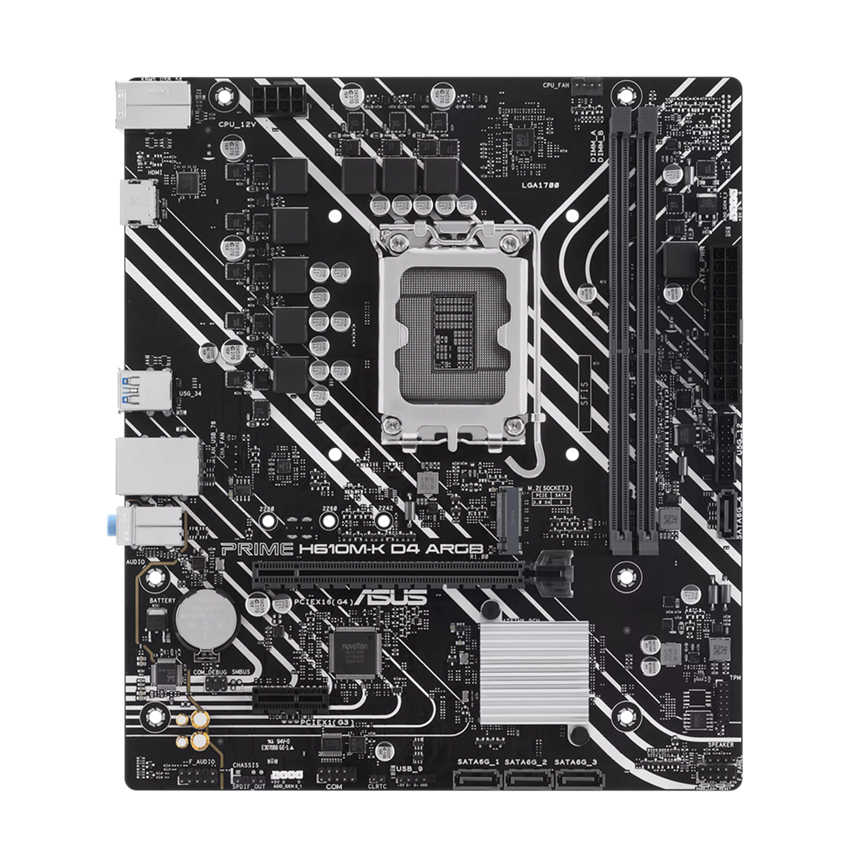

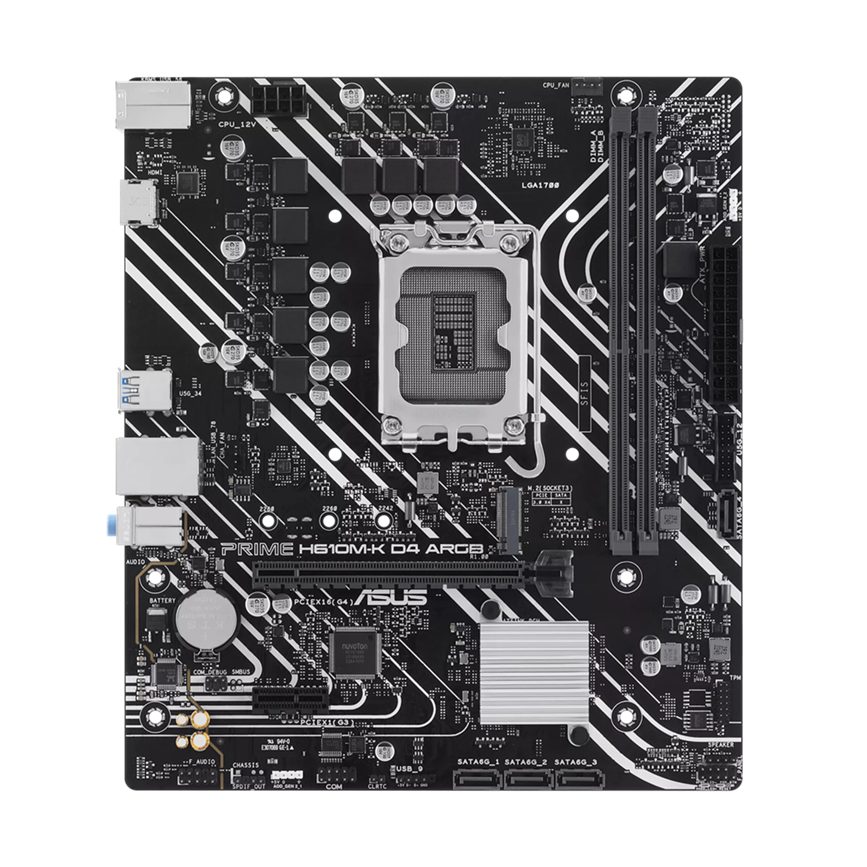

Дънна платка ASUS PRIME H610M-K-D4 ARGB

ASUS PRIME H610M-K-D4 ARGB

• Модел: PRIME H610M-K D4 ARGB
• Операционна система: Windows® 11, Windows® 10 64-bit
• Аудио:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Памет:
  • 2 x DIMM slots, max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual channel memory architecture
  • Supports Intel® Extreme Memory Profile (XMP) memory module
• Графика:
  • 1 x HDMI™ port**
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Supports 4K@60Hz as specified in HDMI 2.1.
• Слотове за разширение:
  • Intel® Core™ Processors (14th & 13th & 12th Gen)
  • 1 x PCIe 4.0 x16 slot (supports x16 mode)
  • Intel® H610 Chipset
  • 1 x PCIe 3.0 x1 slot
  • To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Форм-фактор:
  • micro-ATX Form Factor
  • 23.4 cm x 20.3 cm
• Поддържани процесори:
  • Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Чипсет: Intel® H610
• Съхранение:
  • Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  • Intel® H610 Chipset
  • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
  • 4 x SATA 6Gb/s ports

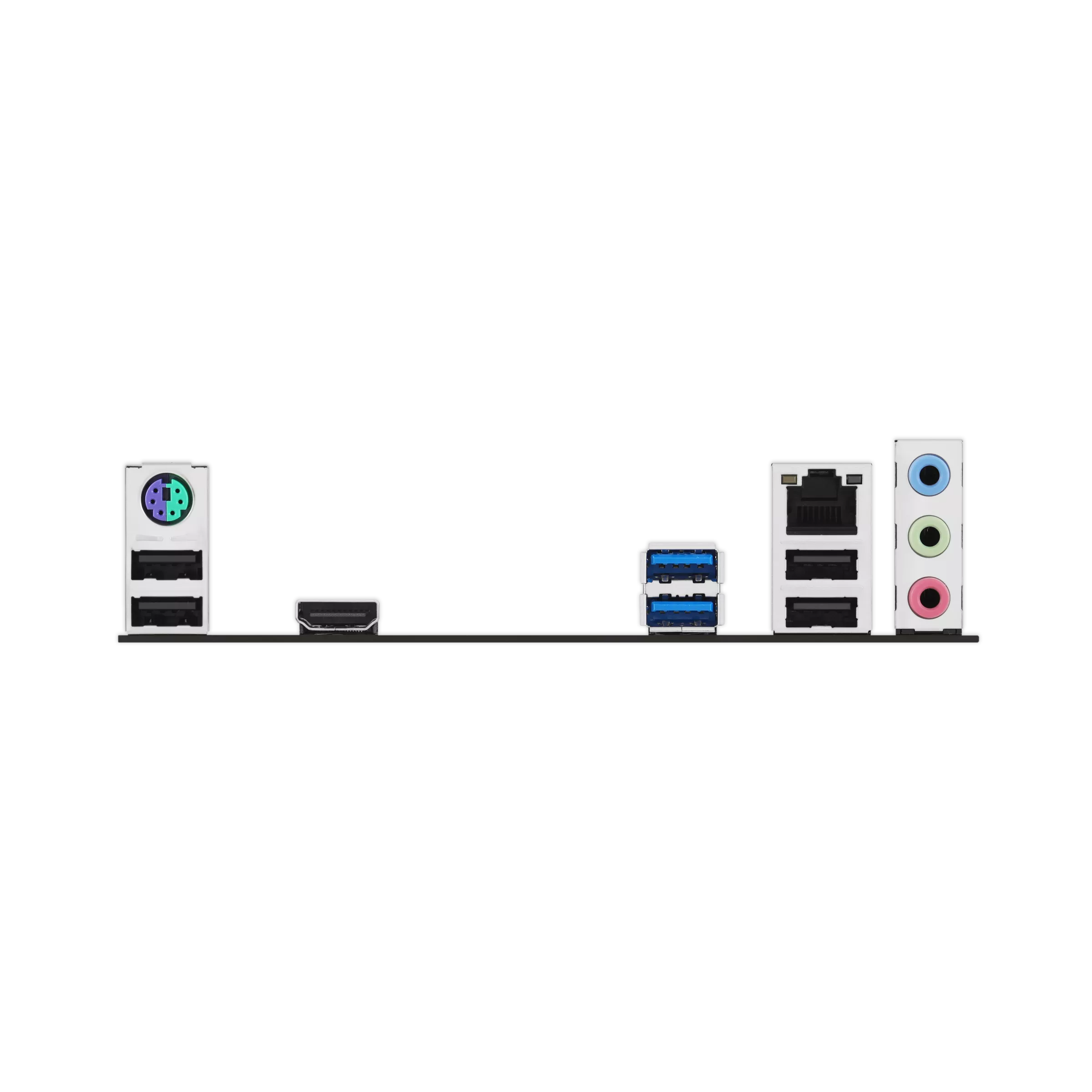

• Портове отзад:
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x HDMI™ port
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 keyboard/mouse combo port
• Конектори:
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin Chassis Fan header
  • Power Related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage Related
  • 1 x M.2 slot (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port
  • Miscellaneous
  • 2 x Addressable Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1 pin)
• Мрежа (LAN): 1 x Realtek 1Gb Ethernet
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• USB:
  • Rear USB (Total 6 ports)
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 3 ports)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port
