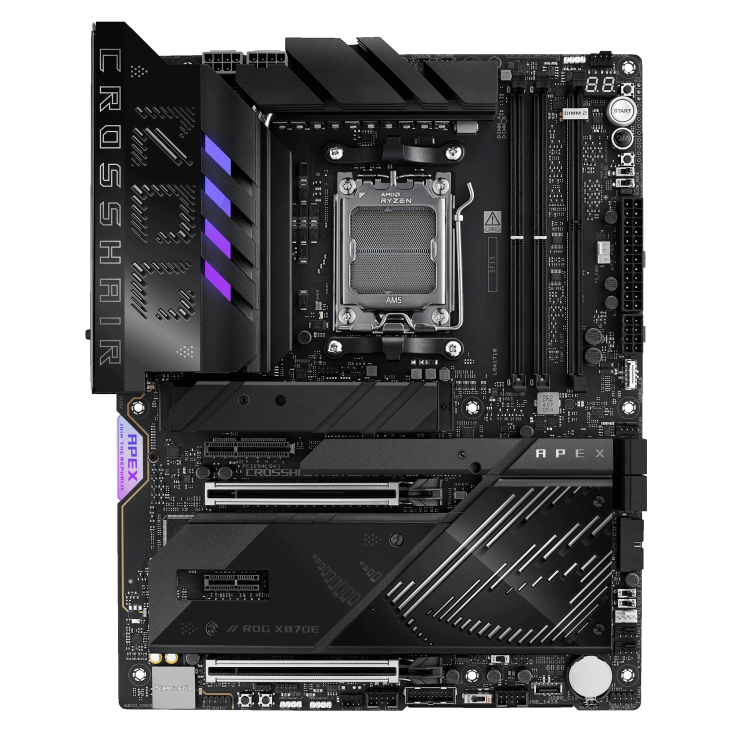

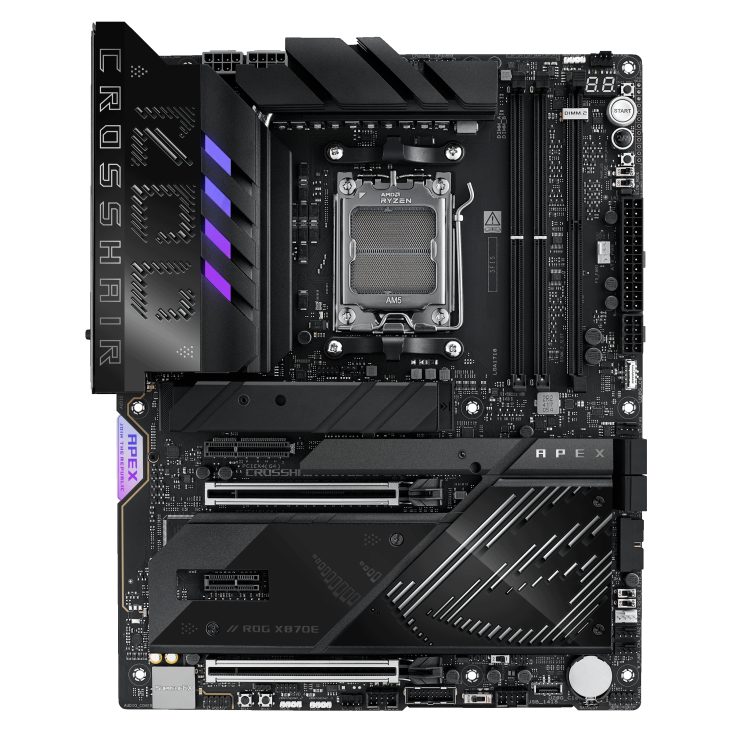

Дънна платка ASUS ROG CROSSHAIR X870E APEX

ASUS ROG CROSSHAIR X870E APEX

• Безжична връзка:
  • Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)
  • 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Supports Wi-Fi 7 320MHz bandwidth
  • Bluetooth® v5.4
• Bluetooth: 5.4
• Операционна система: Windows 11 (22H2 & later)
• Аудио:
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback on front panel"
  • Audio Features
  • SupremeFX Shielding Technology
  • Savitech SV3H712 AMP
  • Gold-plated audio jacks
  • Rear optical S/PDIF out port
  • Premium audio capacitors
  • Audio cover
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Памет:
  • 2 x DIMM slots, max. 128GB, DDR5
  • Supports up to
  • 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
  • 9600+MT/s(OC) with Ryzen™ 8000 Series Processors
  • 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
  • ECC and Non-ECC, Un-buffered Memory*
  • Dual channel memory architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
• Графика:
  • 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*
  • Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  • VGA resolution support depends on processors' or graphic cards' resolution.
  • *Supports max. 4K@60Hz as specified in DisplayPort 1.4a
• Слотове за разширение:
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  • 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
  • ** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8.
  • ***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.
  • **** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.
  • AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
  • 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
  • AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
  • 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)
  • AMD X870E Chipset1 x PCIe 4.0 x4 slot
  • 1 x PCIe 3.0 x1 slot
• Форм-фактор:
  • ATX Form Factor
  • 30.5 cm x 24.4 cm
• Поддържани процесори: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Чипсет: AMD X870E
• Съхранение:
  • Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors***
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
  • M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
  • AMD X870E Chipset
  • DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • ** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.
  • ***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4, M.2_2 will be disabled.
  • AMD RAIDXpert2 Technology
  • Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  • Ryzen™ 8000 Series Processors: RAID 0/1
  • R
• Портове отзад:
  • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
  • 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)
  • 2 x USB 5Gbps ports (2 x Type-A)1 x Wi-Fi module
  • 1 x Realtek 5Gb Ethernet port
  • 1 x PS/2 keyboard/mouse combo port
  • 2 x Gold-plated audio jacks1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
• Конектори:
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header
  • 2 x 4-pin Chassis Fan headers
  • 2 x 4-pin Full Speed Fan headers
  • 1 x W_PUMP+ header
  • 1 x Extra Flow Fan header
  • Power Related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connector
  • 1 x 8-pin PCIe Power connectorStorage Related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 2 x USB 20Gbps connectors (support USB Type-C® )
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 1 x 80 Light Bar jumper
  • 3 x Addressable Gen2 headers
• Мрежа (LAN):
  • 1 x Realtek 5Gb Ethernet
  • ASUS LANGuard
• BIOS: 2 x 256 Mb Flash ROM, UEFI AMI BIOS
• USB:
  • Rear USB (Total 10 ports)
  • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
  • 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A)
  • Front USB (Total 10 ports)
  • 1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+)*
  • 1 x USB 20Gbps connector (supports USB Type-C®)
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • USB Type-C® power delivery output: max. 5V/3A
  • *USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
