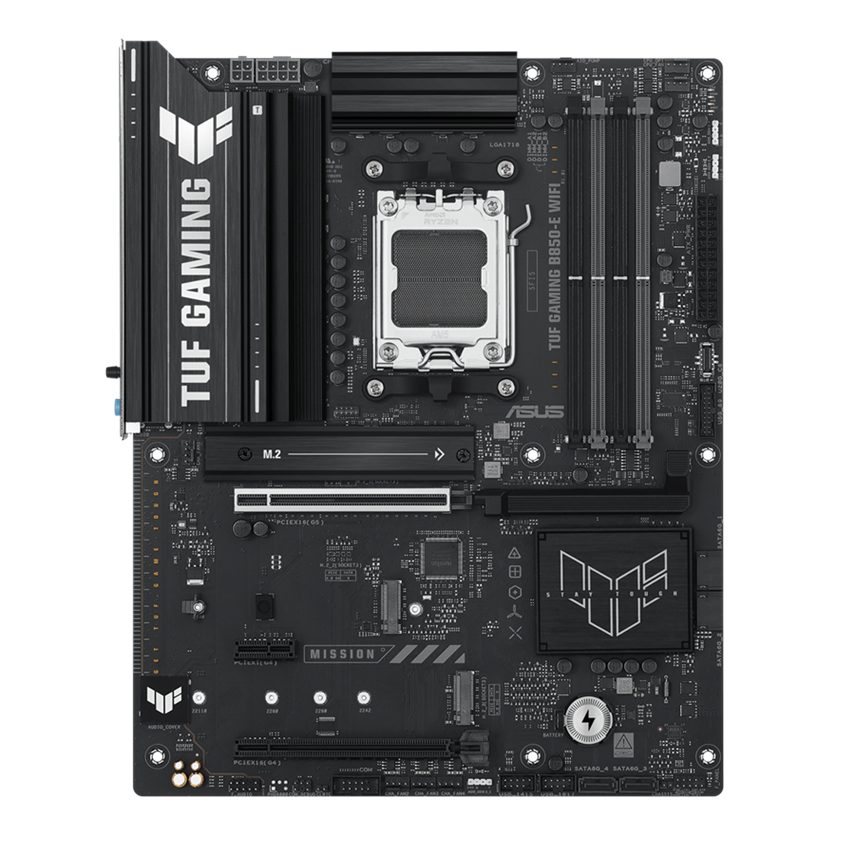

Дънна платка ASUS TUF GAMING B850-E WIFI

ASUS TUF GAMING B850-E WIFI

• Безжична връзка:
  • Wi-Fi 6E
  • 2x2 Wi-Fi 6E (802.11ax)
  • Supports 2.4/5/6GHz frequency band
  • Bluetooth® v5.3
• Bluetooth: 5.3
• Операционна система: Windows 11, Windows 10 64-bit
• Аудио:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • Audio cover
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Памет:
  • 4 x DIMM slots, max. 256GB, DDR5
  • Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
  • Dual channel memory architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
• Графика:
  • 1 x DisplayPort
  • 1 x HDMI™ port
• Слотове за разширение:
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • 1 x PCIe 5.0 x16 slot (supports x16 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
  • AMD B850 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x1 mode)
  • 1 x PCIe 4.0 x1 slot
• Форм-фактор:
  • ATX Form Factor
  • 30.5 cm x 24.4 cm
• Поддържани процесори: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Чипсет: AMD B850 Chipset
• Съхранение:
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
  • AMD B850 Chipset
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • * Specifications vary by CPU types.
  • AMD RAIDXpert2 Technology
  • Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  • Ryzen™ 8000 Series Processors: RAID 0/1
  • Ryzen™ 7000 Series Processors: RAID 0/1/10

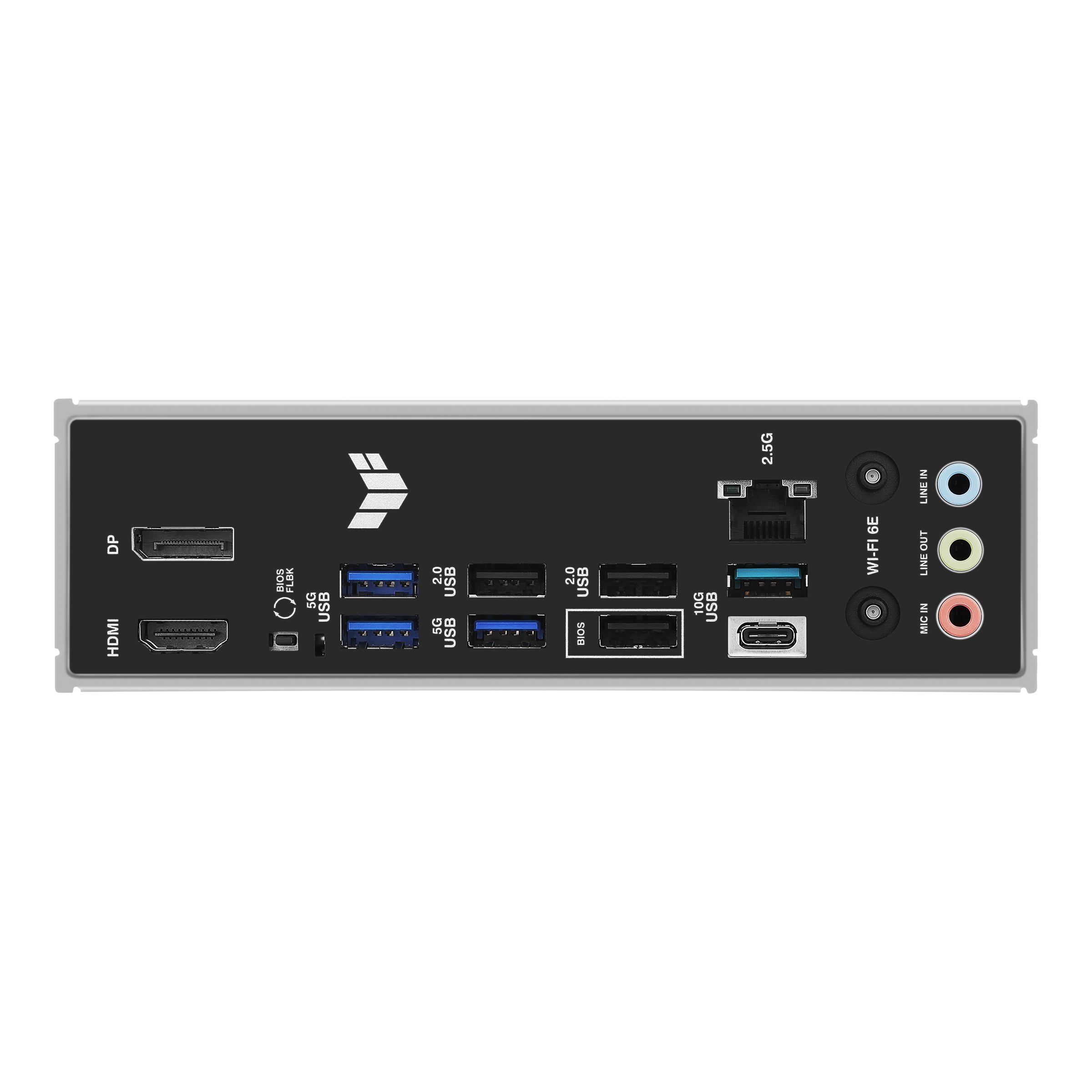

• Портове отзад:
  • 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
  • 3 x USB 5Gbps ports (3 x Type-A)
  • 3 x USB 2.0 ports (3 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Wi-Fi module
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x BIOS FlashBack™ button
• Конектори:
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • Power Related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V CPU Power connector
  • 1 x 4-pin +12V CPU Power connector
  • Storage Related3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 20Gbps connector (supports USB Type-C® )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable RGB Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x Chassis Intrusion header
  • 1 x COM Port header
• Мрежа (LAN):
  • 1 x Realtek 2.5Gb Ethernet
  • TUF LANGuard
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• USB:
  • Rear USB (Total 8 ports)
  • 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
  • 3 x USB 5Gbps ports (3 x Type-A)
  • 3 x USB 2.0 ports (3 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 20Gbps connector (supports USB Type-C®)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • * USB Type-C® power delivery output: max. 5V/3A.
