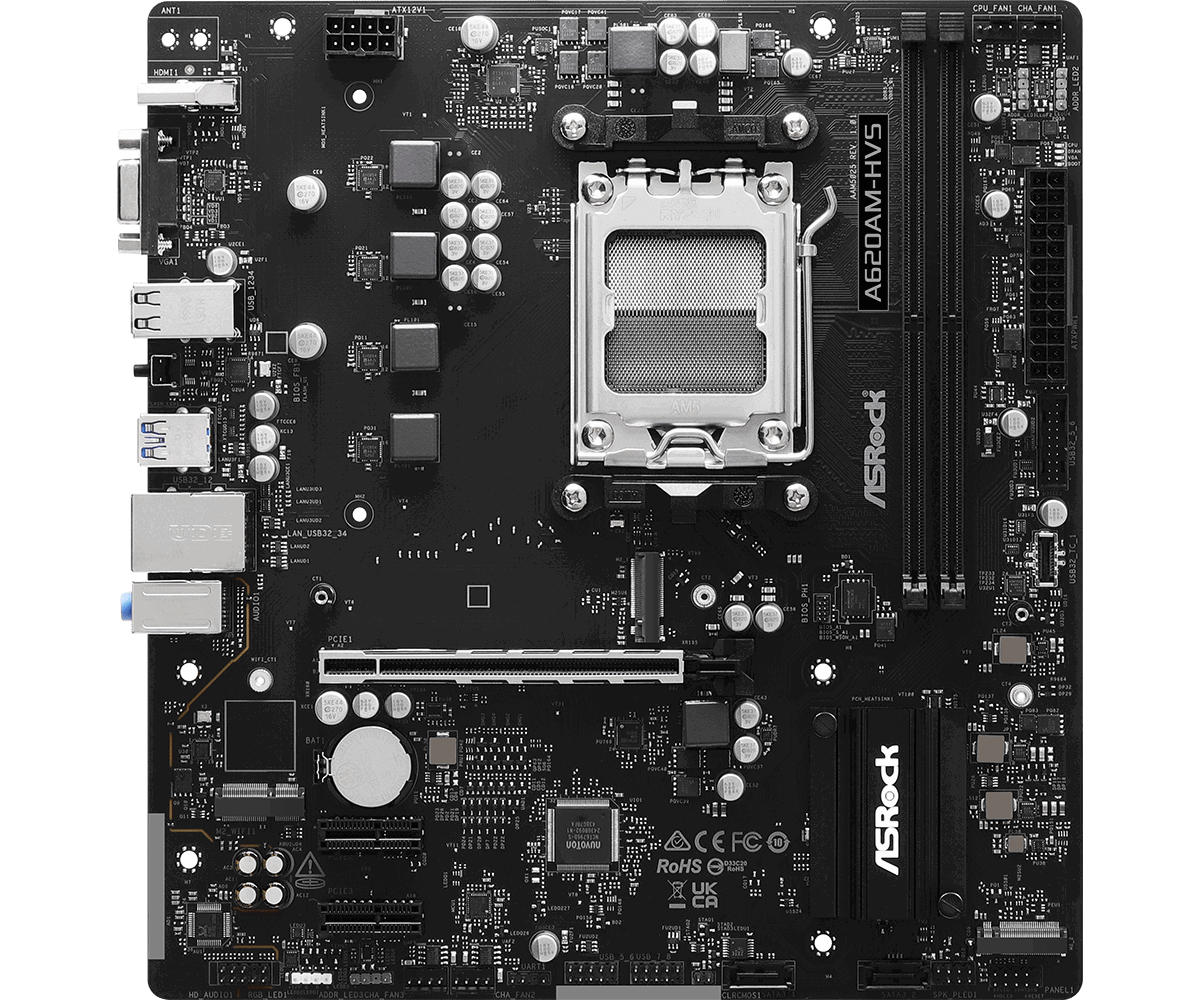

Дънна платка ASROCK A620AM-HVS

ASROCK A620AM-HVS

• Операционна система: Microsoft Windows® 10 64-bit / 11 64-bit
• Аудио: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Памет:
  • Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)
  • Max. capacity of system memory: 128GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• Графика:
  • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
• Слотове за разширение:
  • CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
  • Chipset:
  • 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
• Форм-фактор:
  • Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm
  • 2oz Copper PCB
• Поддържани процесори: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• Чипсет: AMD A620A
• Съхранение:
  • CPU:
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • Chipset:
  • 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
  • 2 x SATA3 6.0 Gb/s Connectors
  • Supports RAID 0 and RAID 1 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

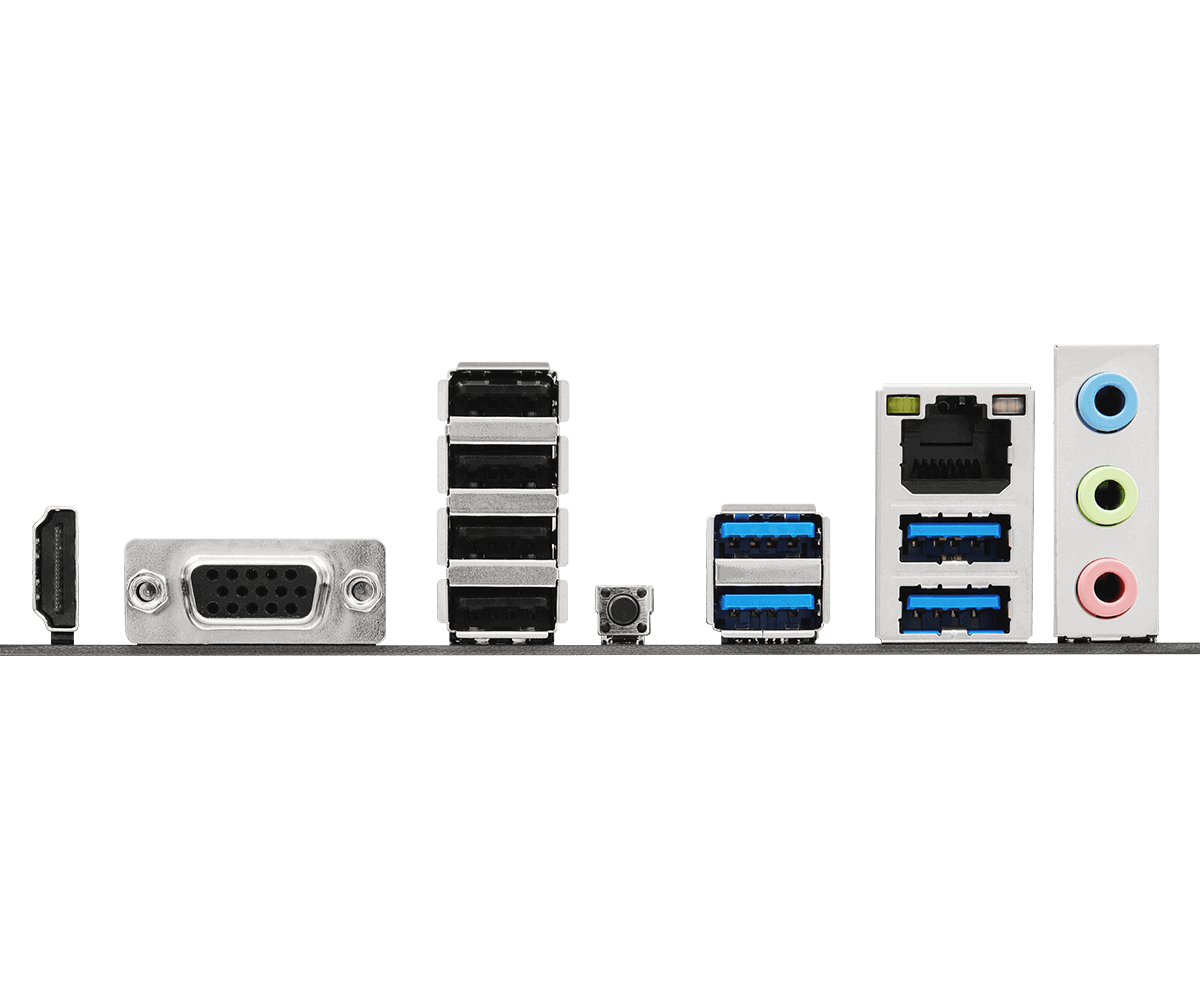

• Портове отзад:
  • 2 x Antenna Mounting Points
  • 1 x D-Sub Port
  • 1 x HDMI Port
  • 4 x USB 3.2 Gen1 Type-A Ports
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Конектори:
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header
  • 3 x Addressable LED Headers
  • 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
  • 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header
• Мрежа (LAN):
  • Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111H
• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
• USB:
  • CPU:
  • 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34))
  • Chipset:
  • 1 x USB 3.2 Gen1 Type-C (Front)
  • 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_1), 2 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)
