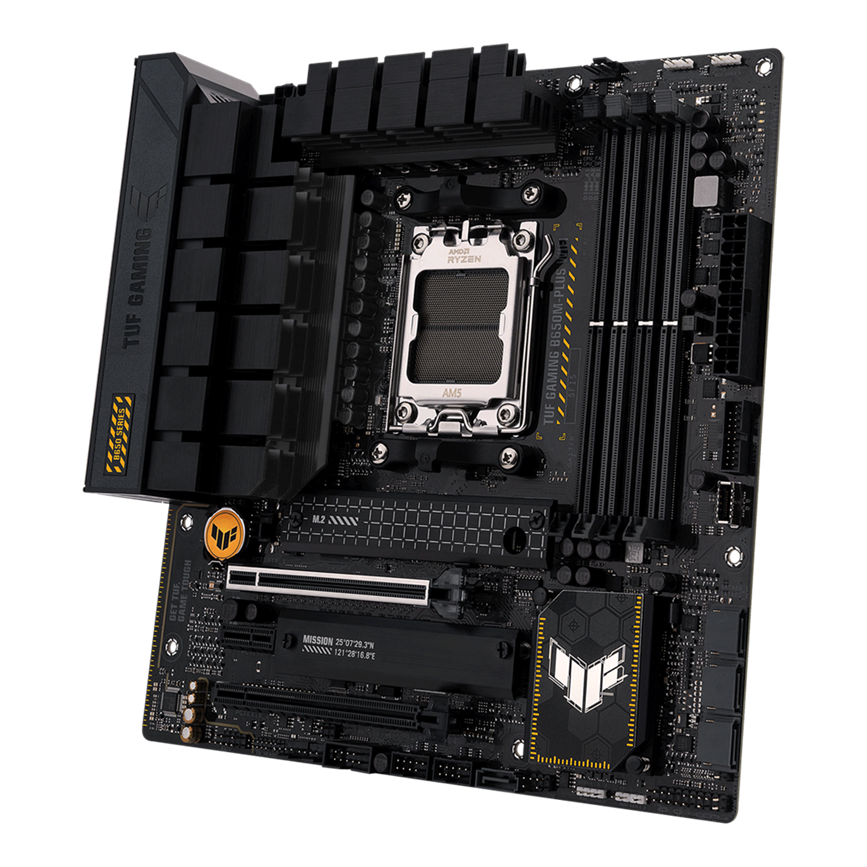

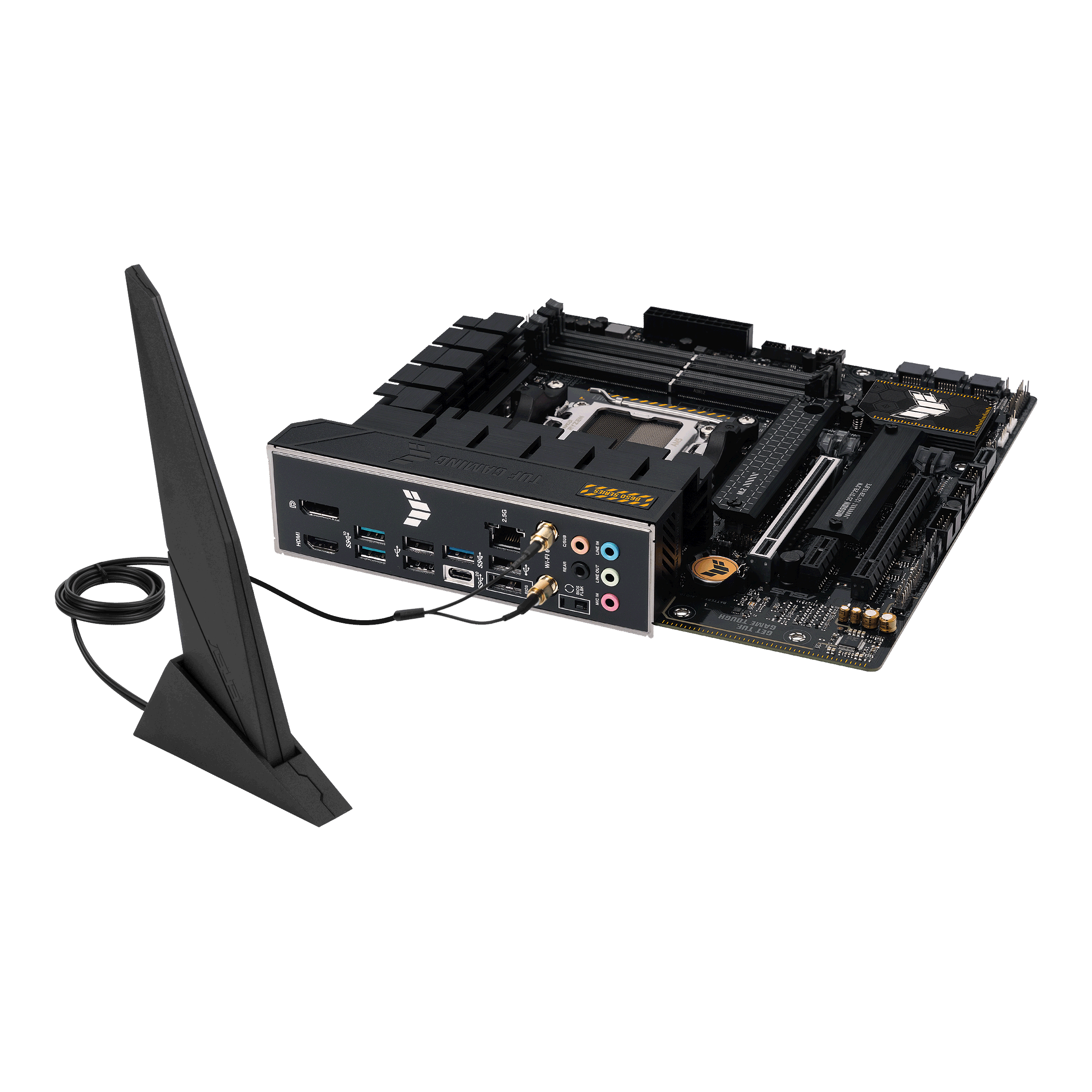

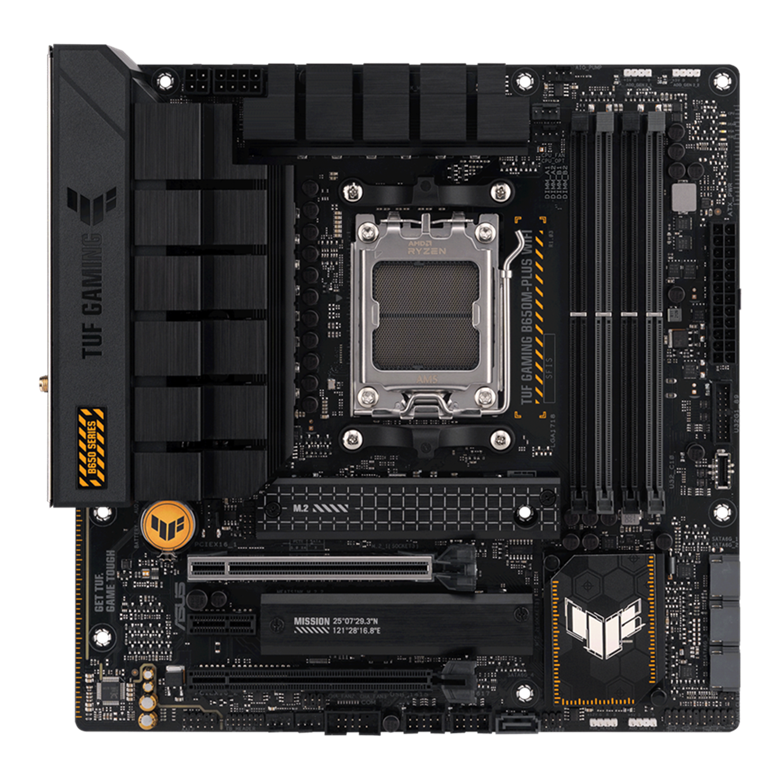

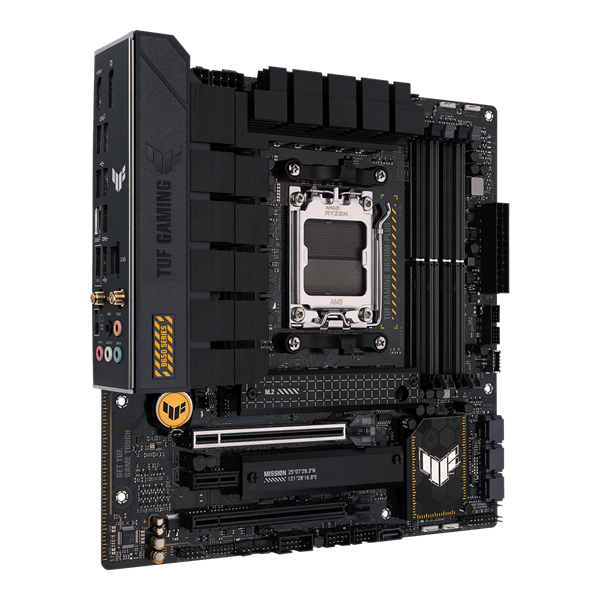

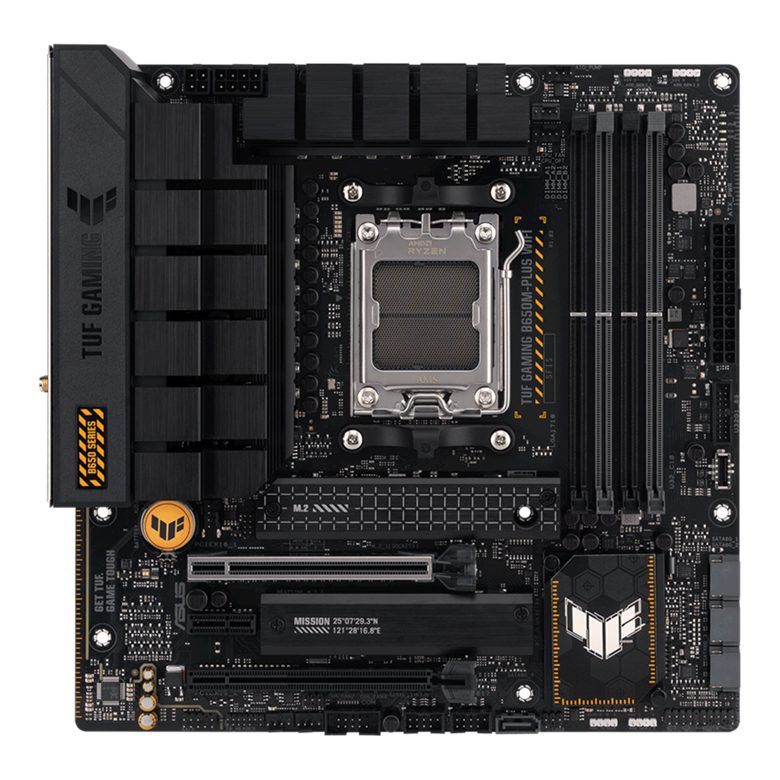

Дънна платка ASUS TUF GAMING B650M-PLUS WIF

ASUS TUF GAMING B650M-PLUS WIF

• Безжична връзка: Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band
• Bluetooth: 5.2
• Операционна система: Windows®11, Windows®10 64-bit
• Аудио:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
• Памет:
  • 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports AMD EXTended Profiles for Overclocking (EXPO™)
  • OptiMem II
• Графика:
  • 1 x DisplayPort
  • 1 x HDMI® port
• Слотове за разширение:
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 slot
  • AMD Ryzen™ 8000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
  • AMD B650 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x1 slot
• Форм-фактор: micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
• Чипсет: AMD B650
• Съхранение:
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
  • AMD B650 Chipset
  • 4 x SATA 6Gb/s ports
• Портове отзад:

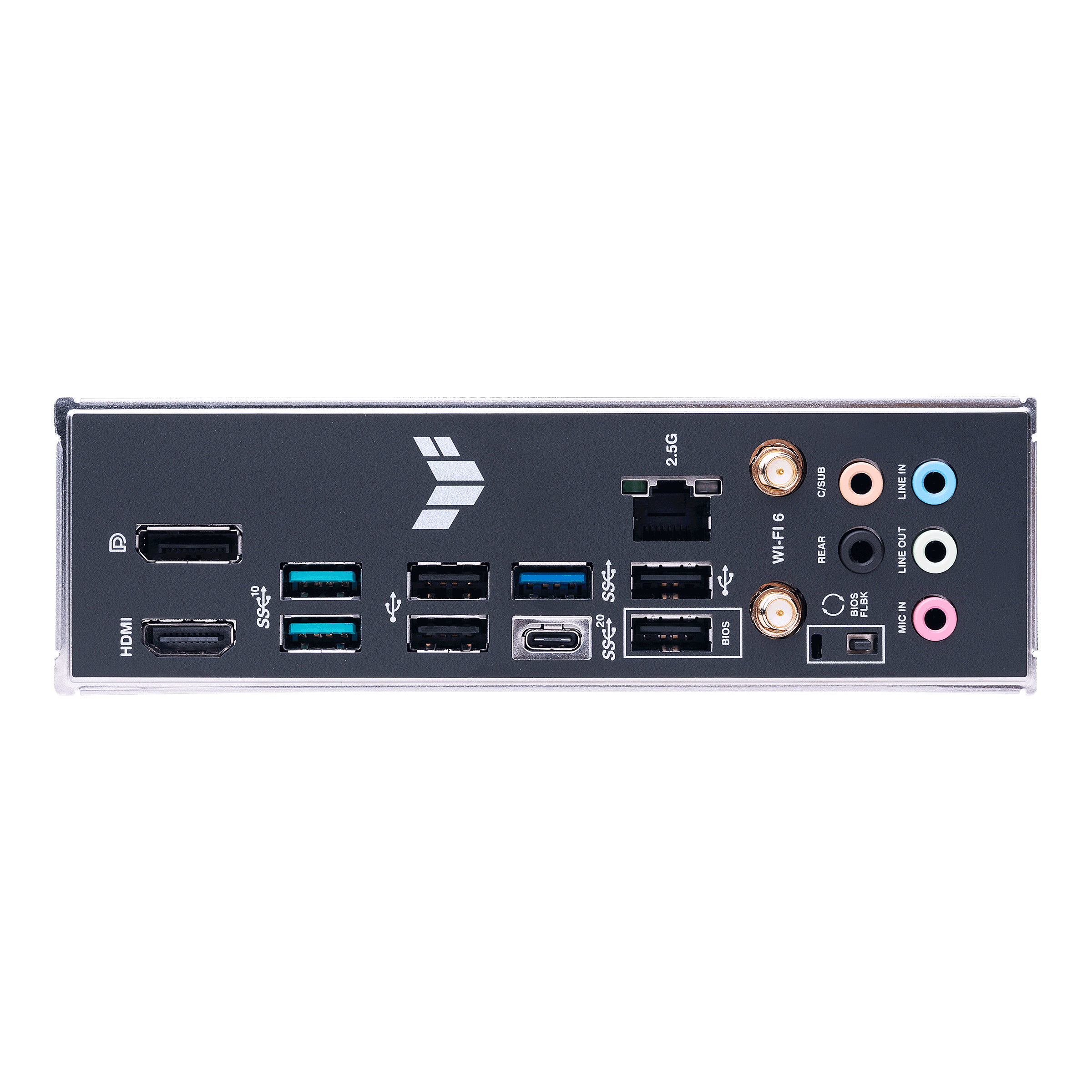

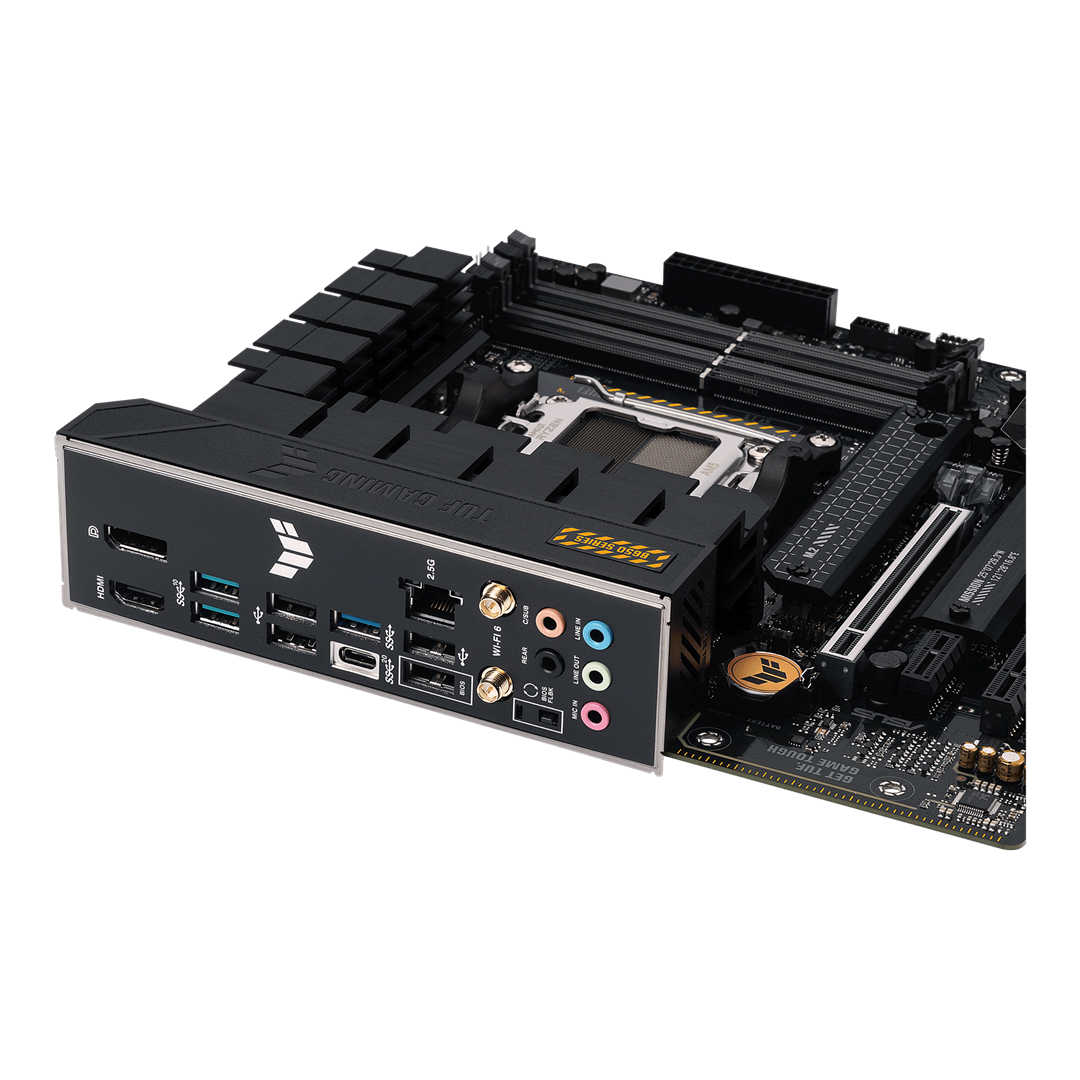

  • Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 1 x USB 3.2 Gen 1 port (1 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI®port
  • 1 x Wi-Fi Modul
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x BIOS FlashBack™ button
• Конектори:
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB Gen 1 connector (supports USB Type-C® )
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
• Мрежа (LAN): 1 x Realtek 2.5Gb Ethernet, TUF LANGuard
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
