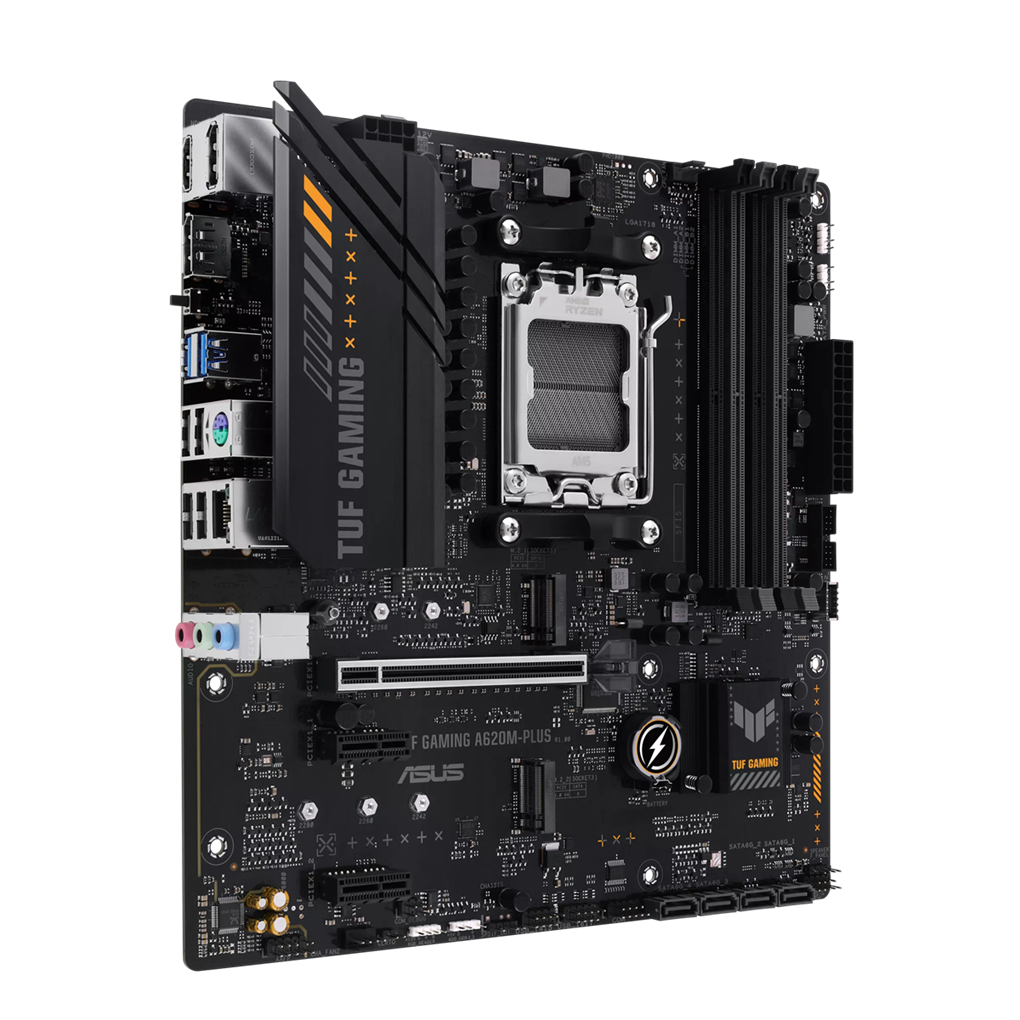

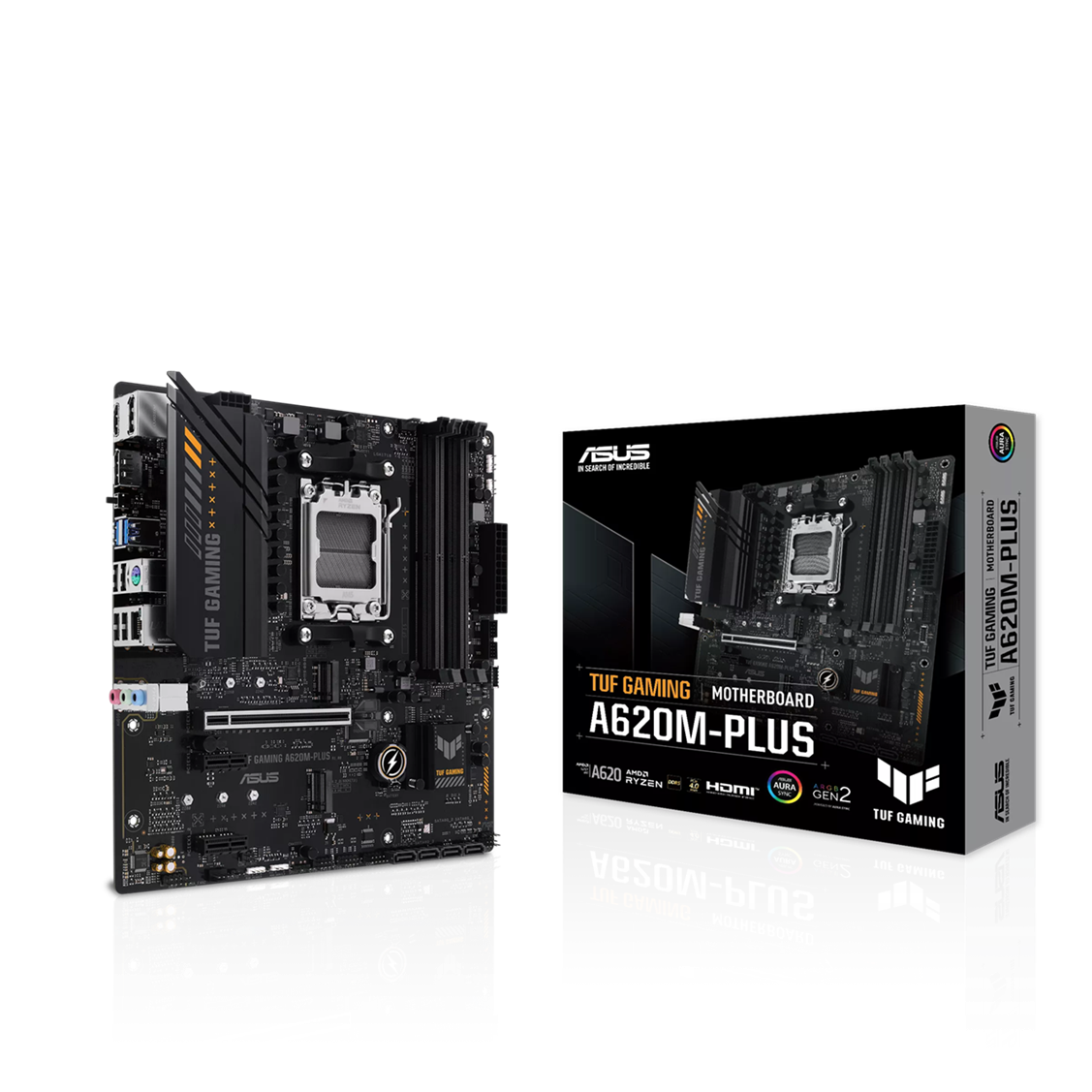

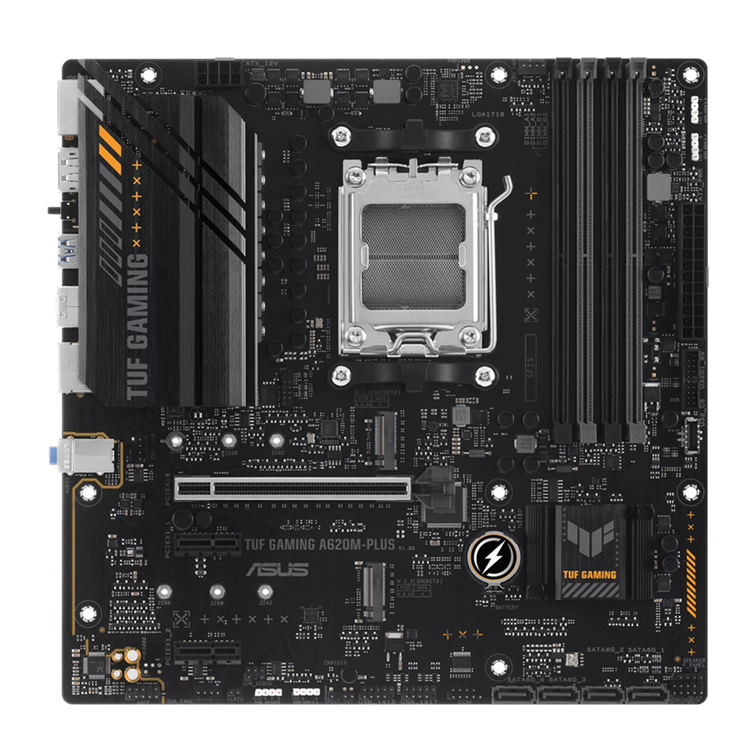

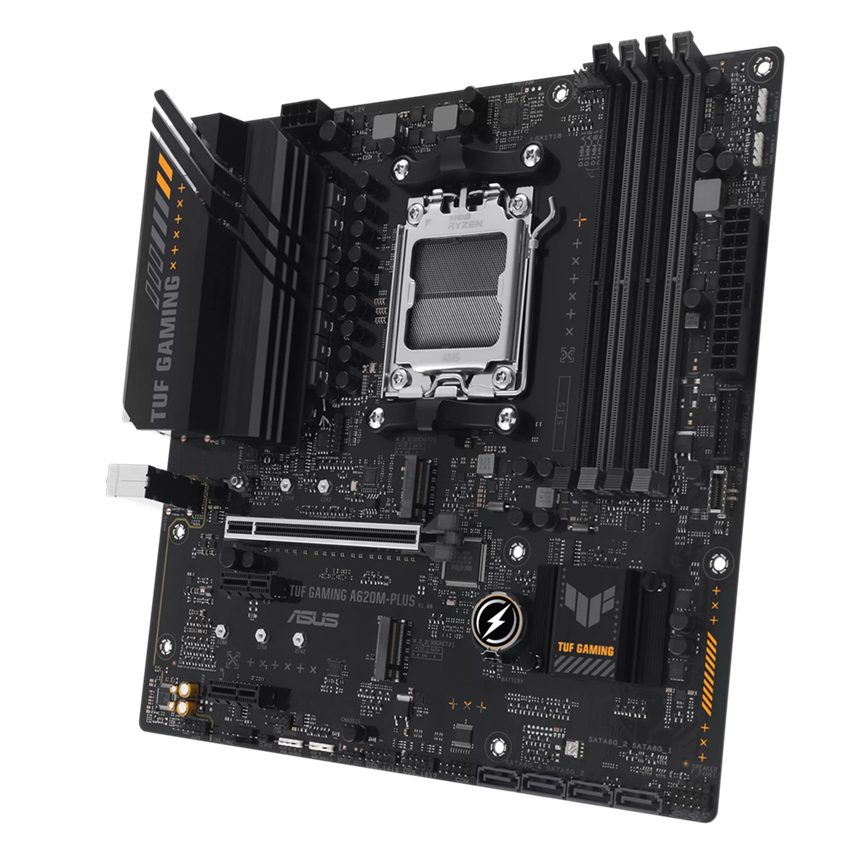

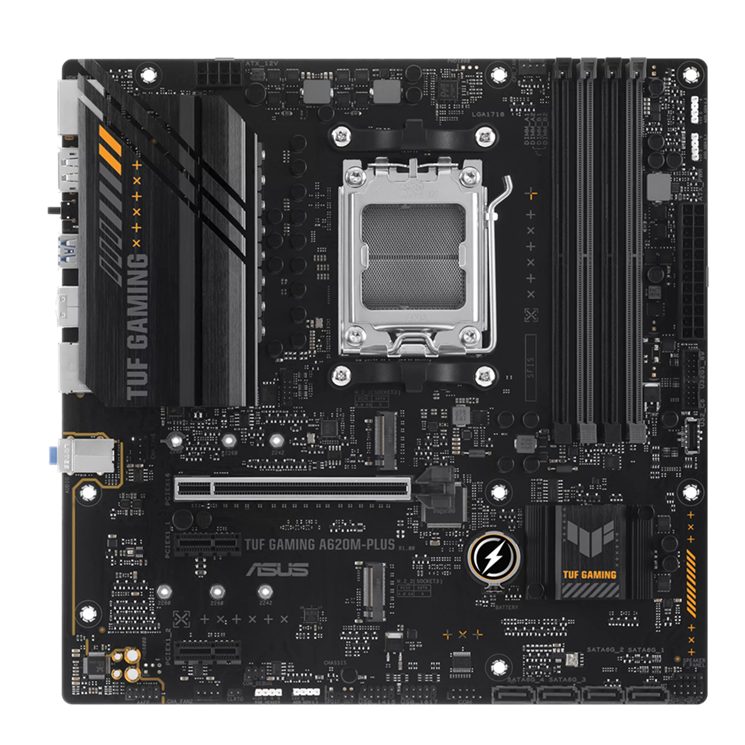

Дънна платка ASUS TUF GAMING A620M-PLUS

ASUS TUF GAMING A620M-PLUS

• Модел: TUF GAMING A620M-PLUS
• Размери: 24.4 cm x 24.4 cm
• Операционна система: Windows 11, Windows 10 64-bit
• Аудио:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Памет:
  • 4 x DIMM slots, max. 192GB, DDR5 ECC and Non-ECC Un-buffered DIMM
  • Supports up to 7600+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
  • Dual channel memory architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
• Графика:
  • 2 x DisplayPort**
  • 1 x HDMI™ port***
  • * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  • ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
• Слотове за разширение:
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 slot (supports x16 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
  • AMD A620A Chipset
  • 1 x PCIe 3.0 x1 slot
• Форм-фактор: micro-ATX Form Factor
• Поддържани процесори:
  • AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
  • Supports up to AMD 170W CPU
• Чипсет: AMD A620A Chipset
• Съхранение:
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
  • AMD A620A Chipset
  • 4 x SATA 6Gb/s ports

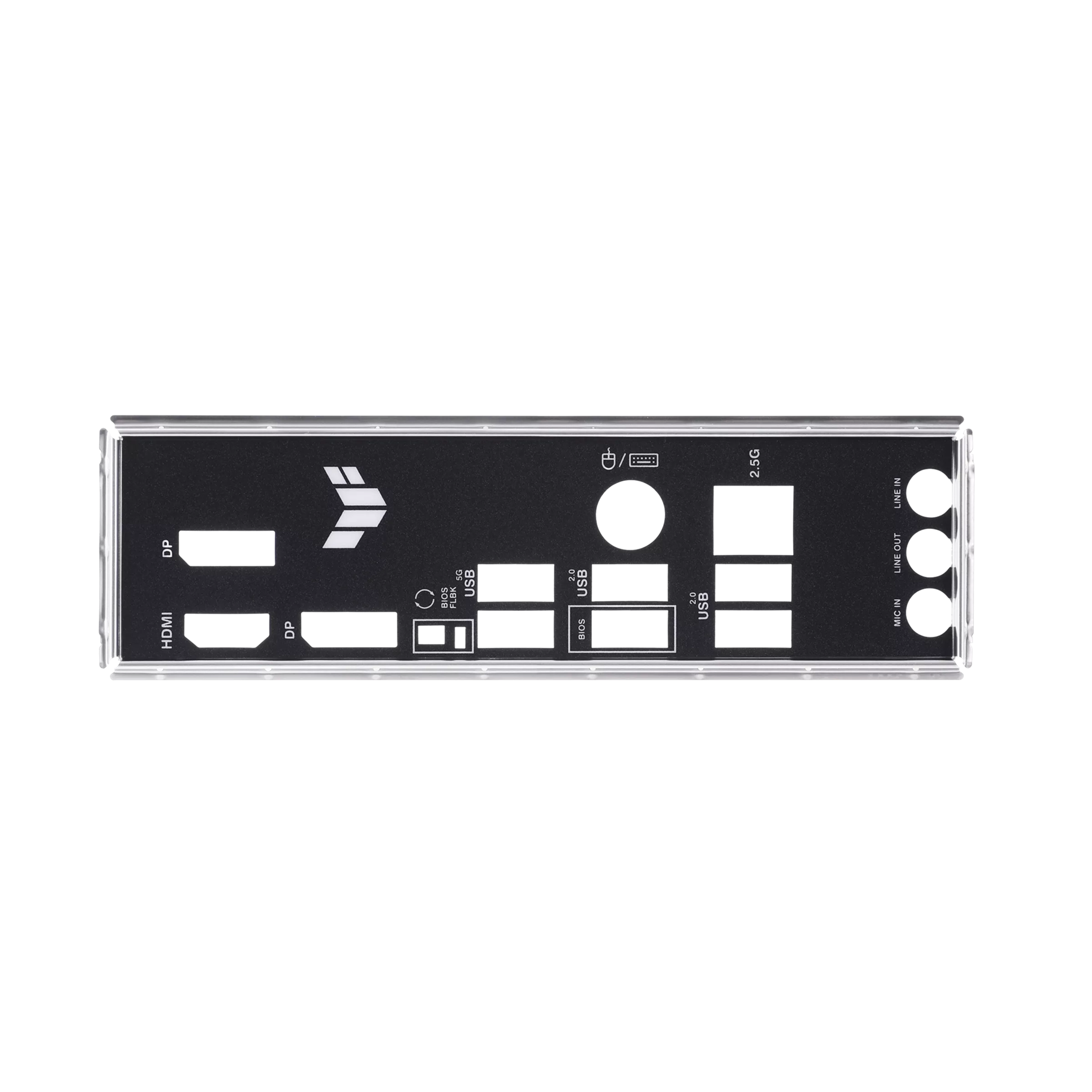

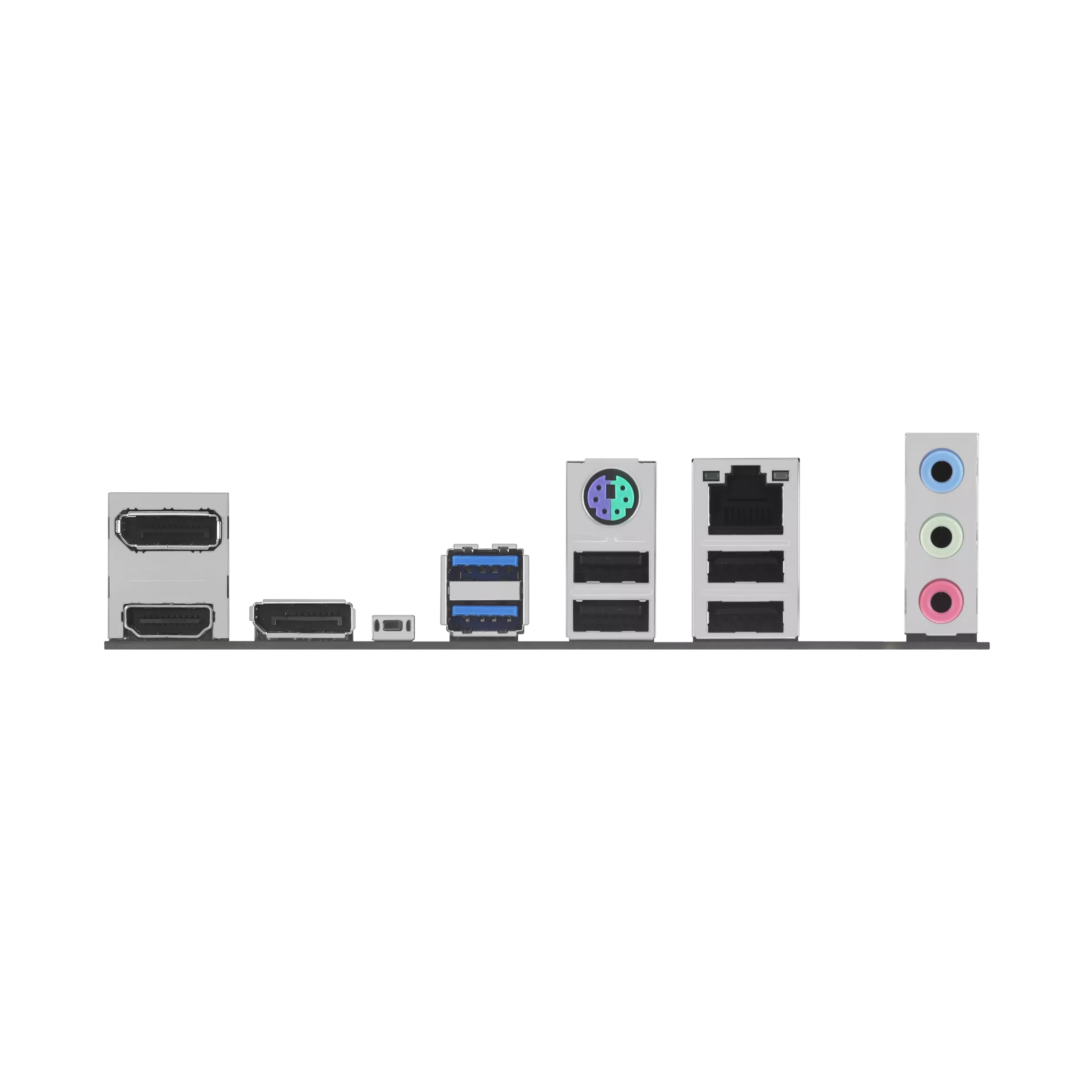

• Портове отзад:
  • 2 x USB 10Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 2 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x BIOS FlashBack™ button
  • 1 x PS/2 keyboard/mouse combo port
• Конектори:
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 2 x 4-pin Chassis Fan headers
  • Power Related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V CPU Power connector
  • Storage Related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 5Gbps connector (supports USB Type-C® )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable RGB Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x S/PDIF Out header
  • 1 x 10-1 pin Front Panel System header
• Мрежа (LAN):
  • 1 x Realtek 2.5Gb Ethernet
  • TUF LANGuard
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• RAID:
  • AMD RAIDXpert2 Technology
  • Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  • Ryzen™ 8000 Series Processors: RAID 0/1
  • Ryzen™ 7000 Series Processors: RAID 0/1/10
• USB:
  • Rear USB (Total 6 ports)
  • 2 x USB 10Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 5Gbps connector (supports USB Type-C®)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • * USB Type-C® power delivery output: max. 5V/3A
