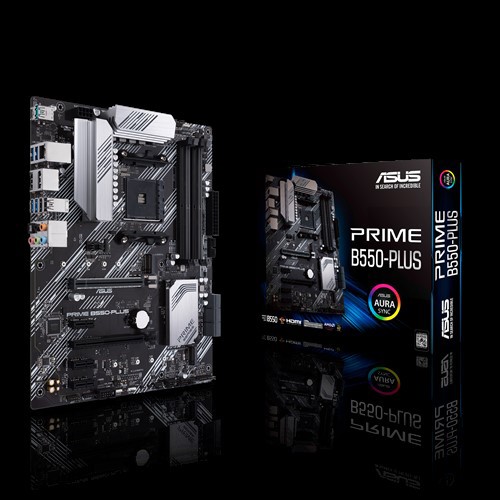

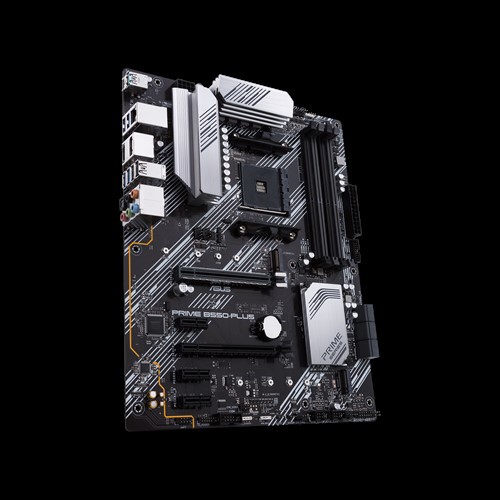

Дънна платка ASUS PRIME B550-PLUS /AM4

ASUS PRIME B550-PLUS /AM4

• Операционна система: Windows® 10 64-bit
• Аудио:
  • Realtek ALC887 7.1-Channel High Definition Audio CODEC
  • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  • Audio Feature : - Optical S/PDIF out port(s) at back panel
  • LED-illuminated design
  • Audio Shielding
  • Dedicated audio PCB layers
  • Premium Japanese audio capacitors
  • Unique de-pop circuit
• Памет:
  • 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * Next Generation AMD Ryzen PRO Processors
  • 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Dual Channel Memory Architecture
• Графика:
  • 1 x DisplayPort 1.2 *
  • 1 x HDMI 2.1(4K@60HZ)
• Слотове за разширение:
  • 3rd Gen AMD Ryzen™ Processors: 1 x PCIe 4.0 x16 (x16 mode)
  • AMD B550 Chipset: 1 x PCIe 3.0 x16 (x4 mode)
  • 3 x PCIe 3.0 x1 *1
• Форм-фактор:
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Чипсет: AMD B550
• Съхранение:
  • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  • 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  • AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
  • 6 x SATA 6Gb/s port(s), *2
  • Support Raid 0, 1, 10

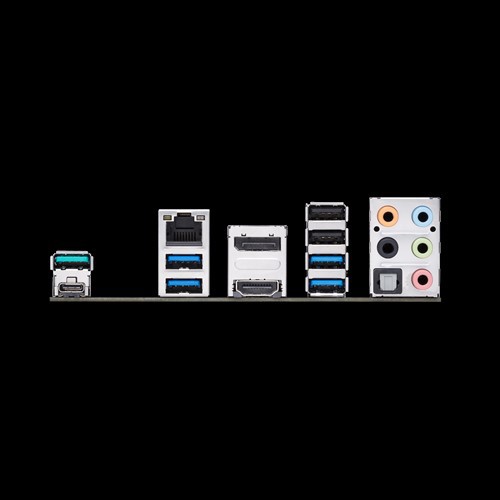

• Портове отзад:
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
  • 4 x USB 3.2 Gen 1 (blue) Type-A
  • 2 x USB 2.0
  • 1 x Optical S/PDIF out
  • 5 x Audio jack(s)
• Конектори:
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 3 x Chassis Fan connector(s)
  • 1 x AIO_PUMP connector
  • 2 x Aura RGB Strip Headers
  • 1 x Addressable Gen 2 header(s)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x SPI TPM header
  • 6 x SATA 6Gb/s connector(s)
  • 1 x Thunderbolt header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Thermal sensor connector(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x System panel connector
  • 1 x COM port header
• Мрежа (LAN):
  • Realtek® RTL8111H
  • ASUS LANGuard
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
