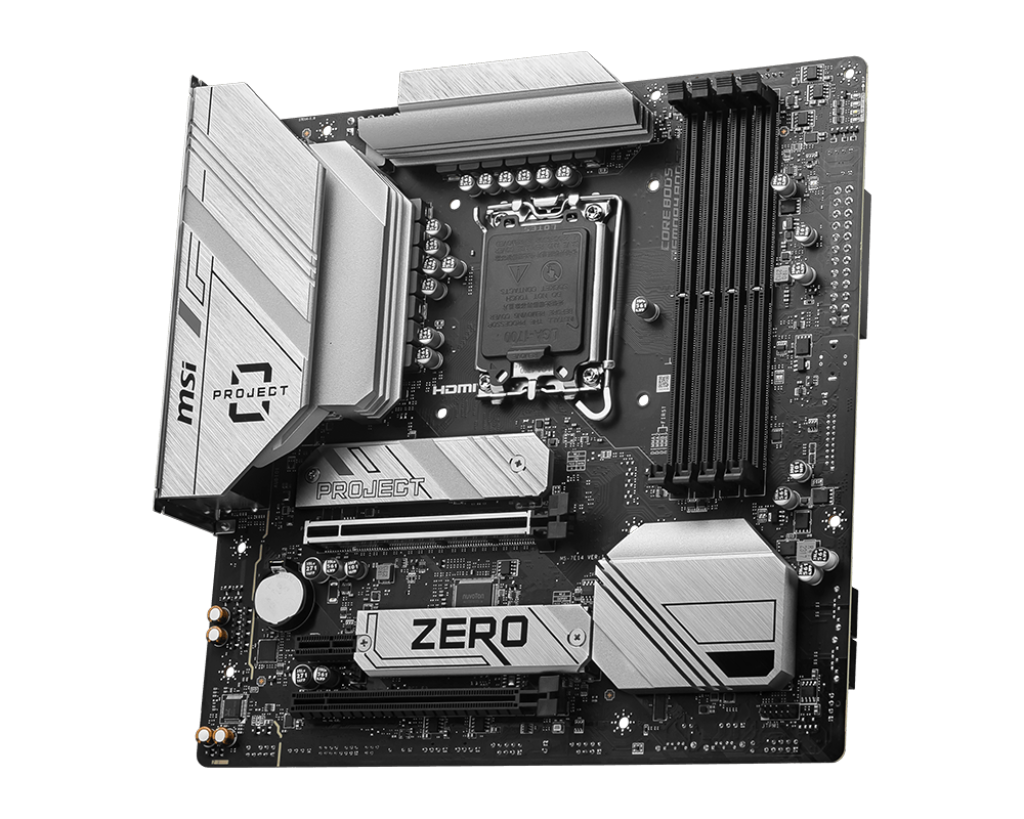

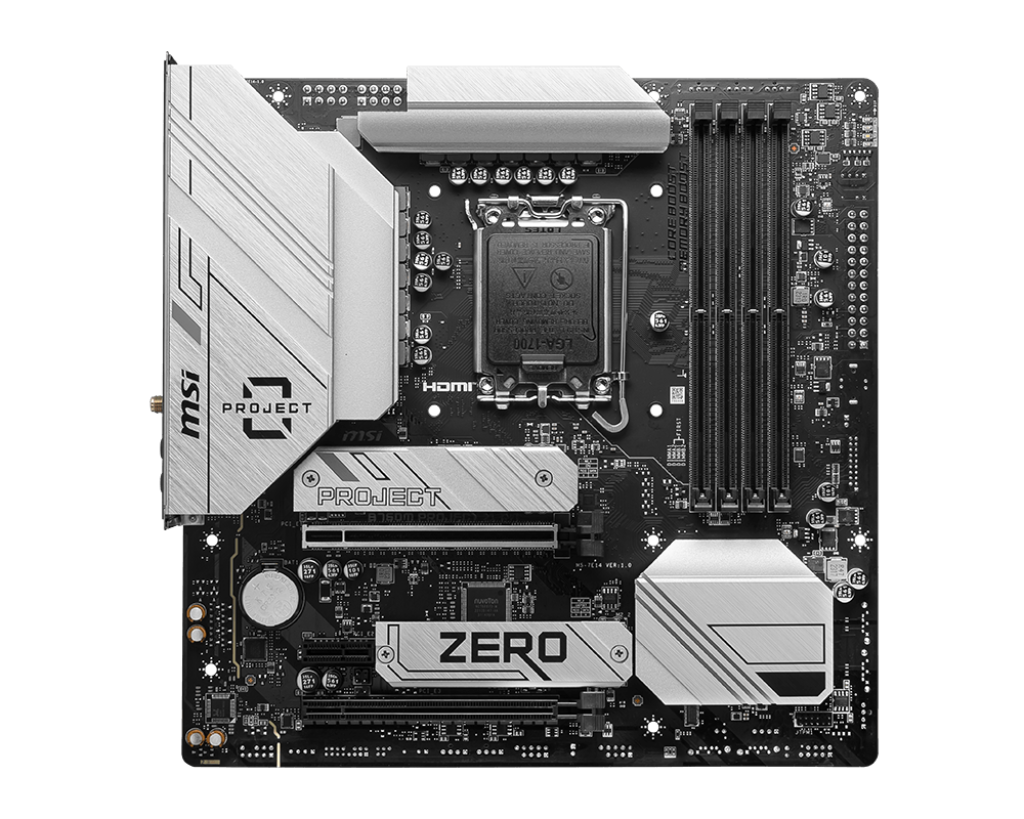

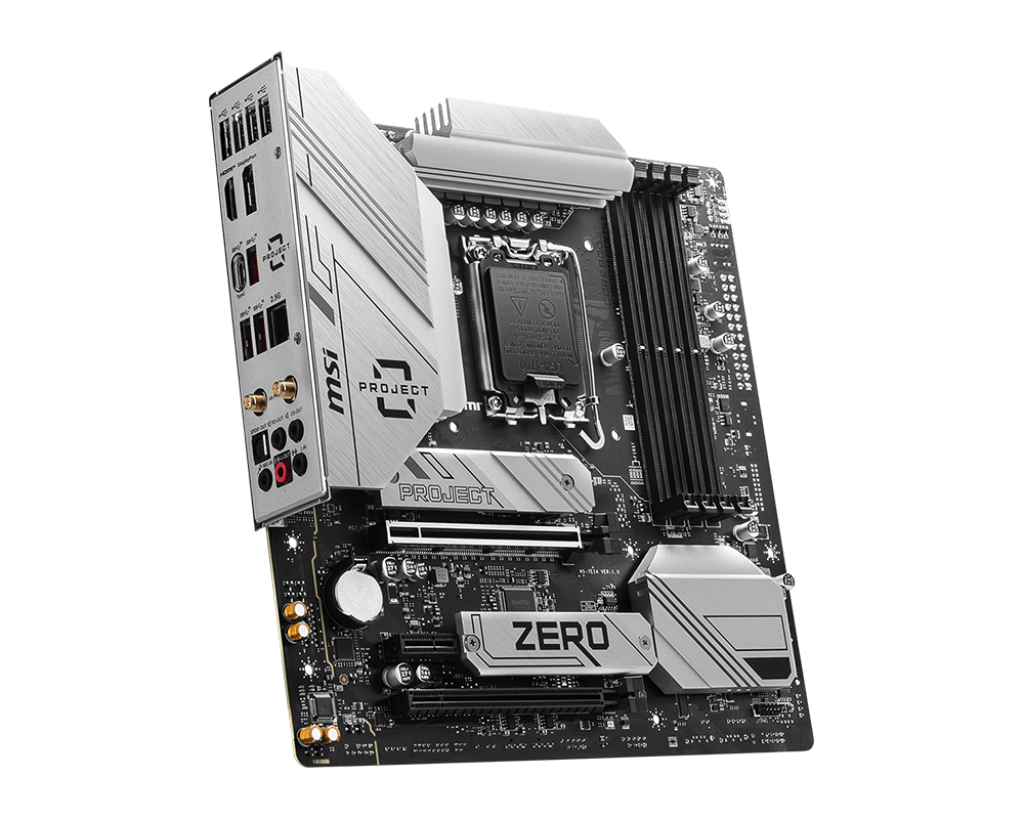

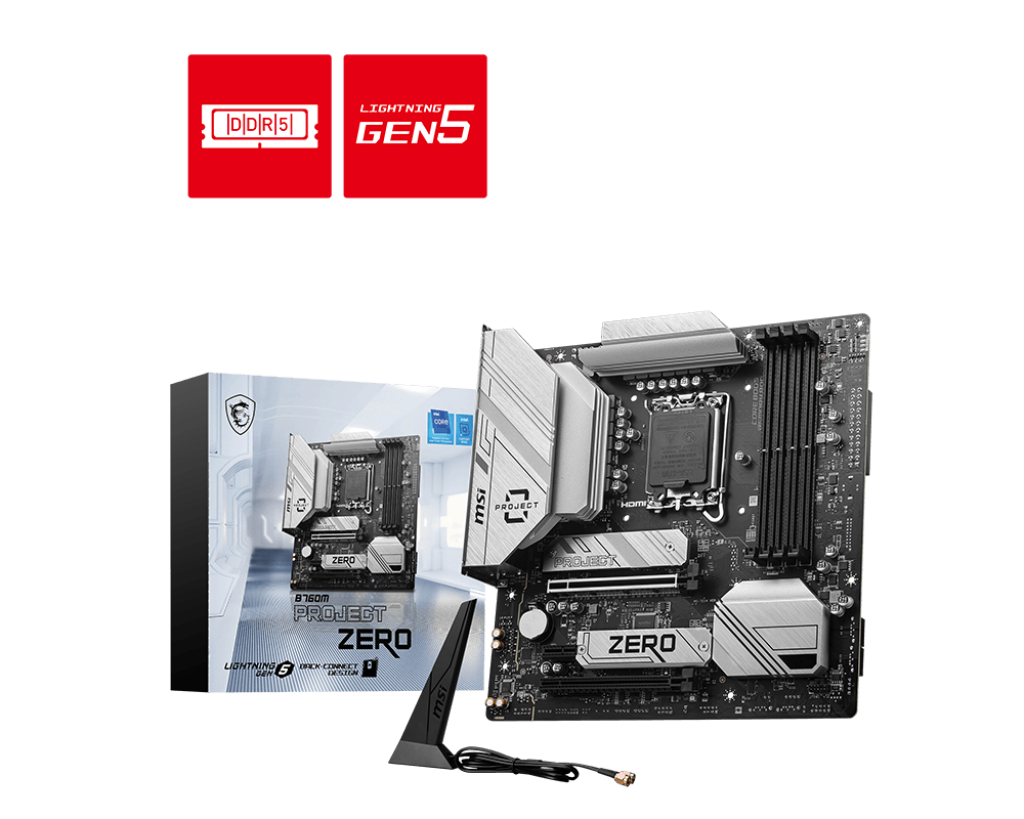

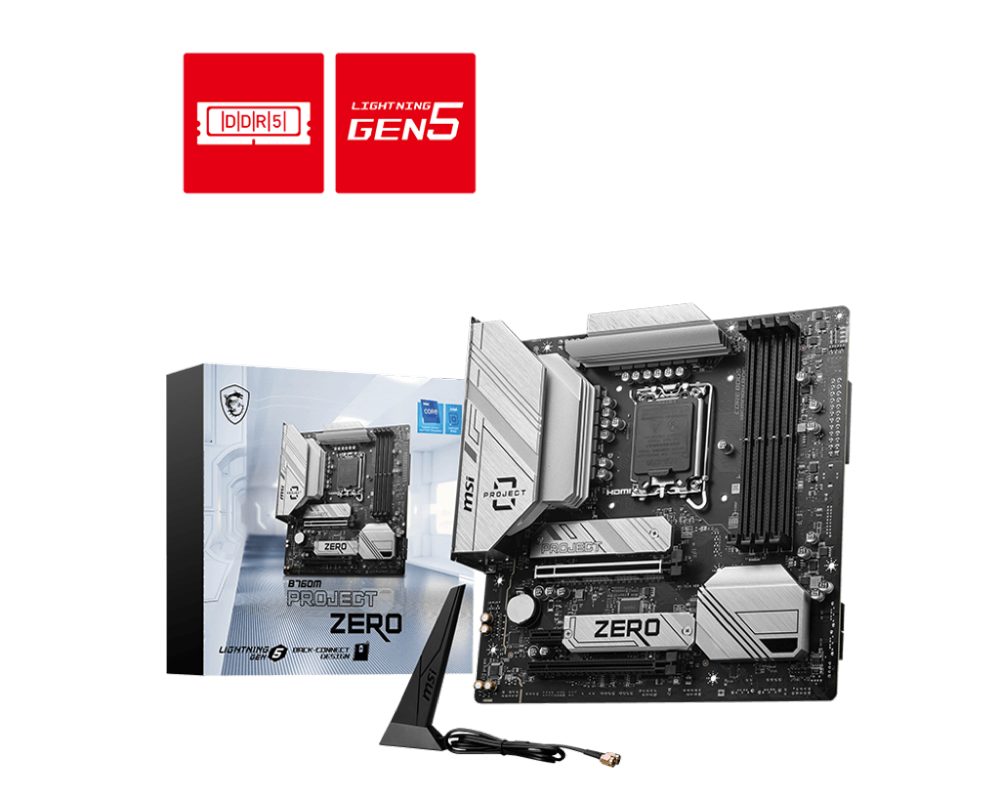

Дънна платка MSI B760M PROJECT ZERO

MSI B760M PROJECT ZERO

• Безжична връзка: Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
• Bluetooth: 5.3
• Операционна система: Support for Windows® 11 64-bit, Windows® 10 64-bit
• Аудио:
  • Realtek® ALC897 Codec
  • 7.1-Channel High Performance Audio
  • Supports S/PDIF output
• Памет:
  • 4x DDR5, Maximum Memory Capacity 256GB
  • Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7800+ MHz
  • 1DPC 2R Max speed up to 6600+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile
• Графика:
  • 1x HDMI™
  • Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
  • 1x DisplayPort
  • Support DP 1.4, maximum resolution of 4K 60Hz
• Слотове за разширение:
  • 2x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• Форм-фактор: mATX 243.84mmx243.84mm
• Поддържани процесори: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700
• Чипсет: INTEL B760
• Съхранение:
  • 2x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G

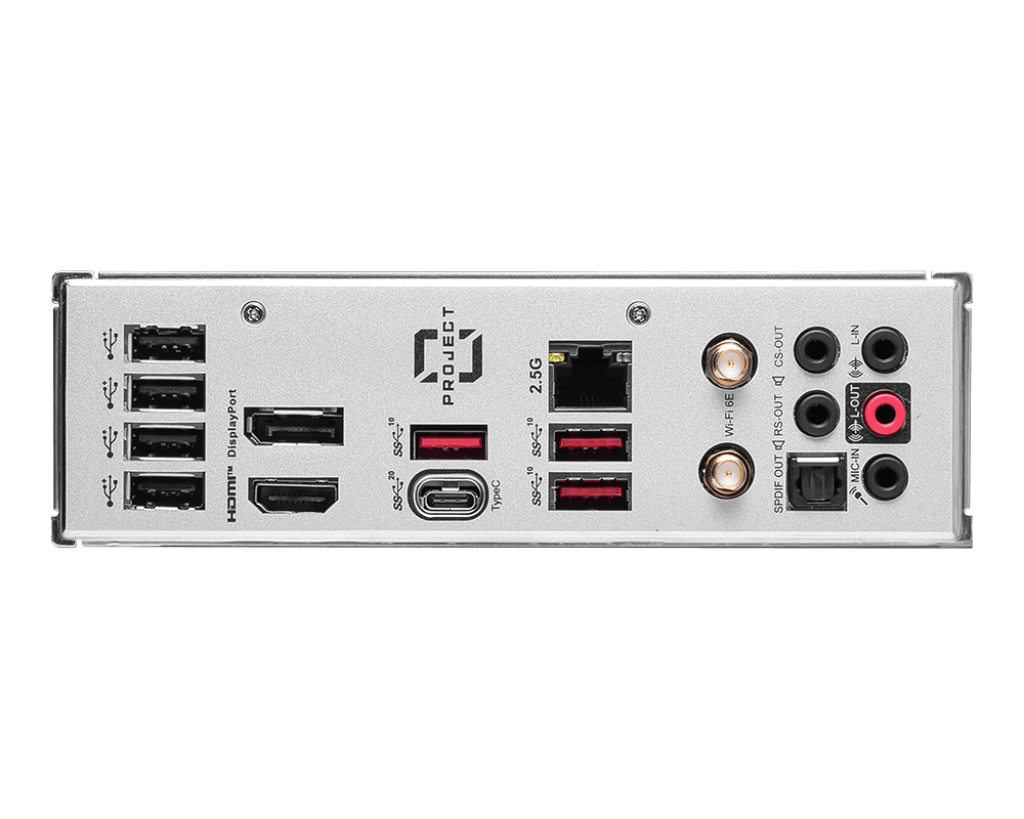

• Портове отзад:
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Front)
  • 3x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Front)
  • 1x USB 20Gbps Type C (Rear)
• Конектори:
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 4x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
• Мрежа (LAN): Realtek® 2.5Gbps LAN
