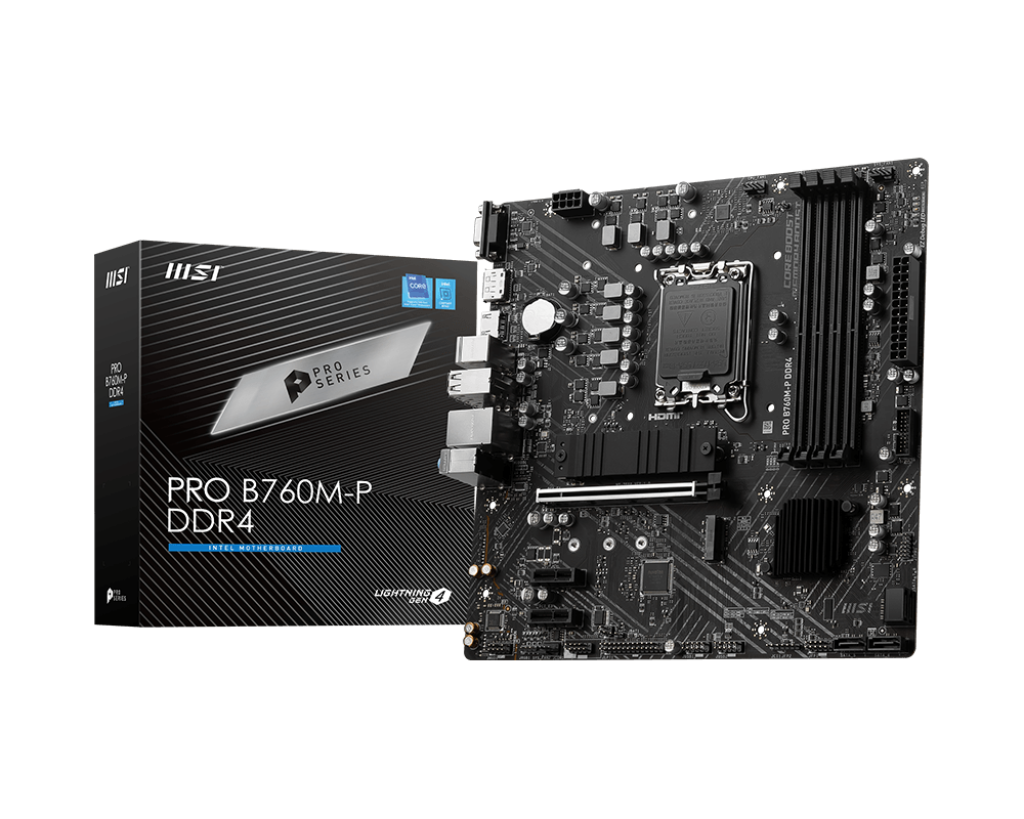

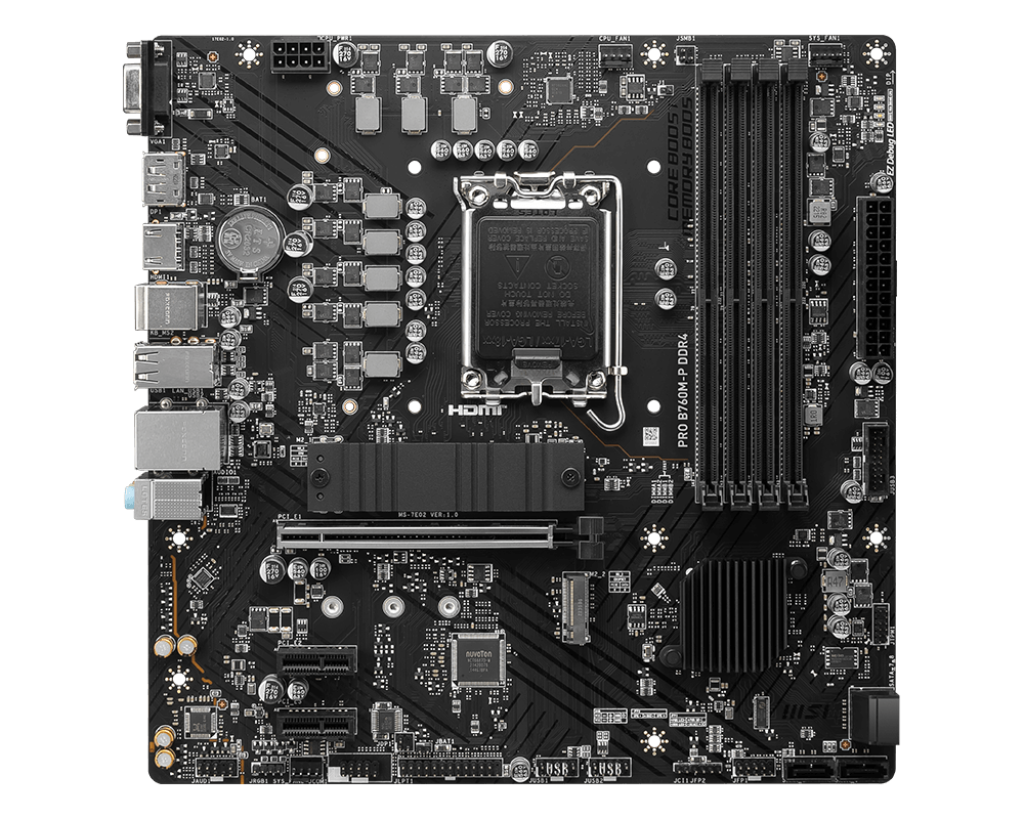

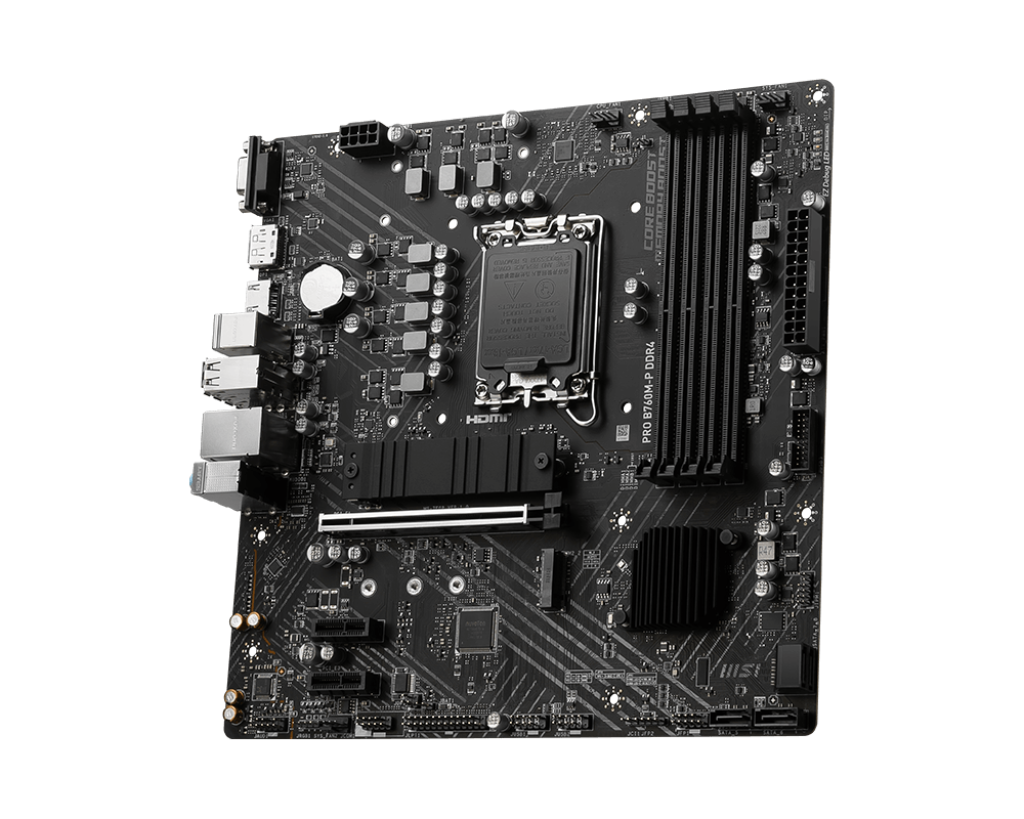

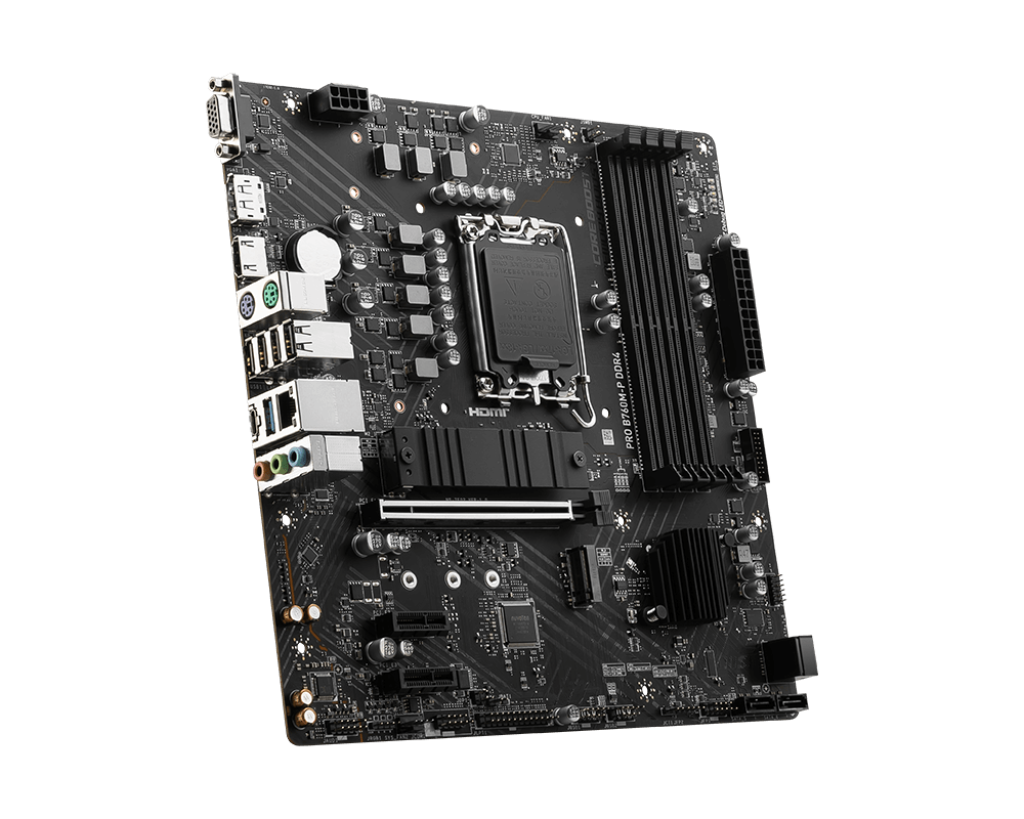

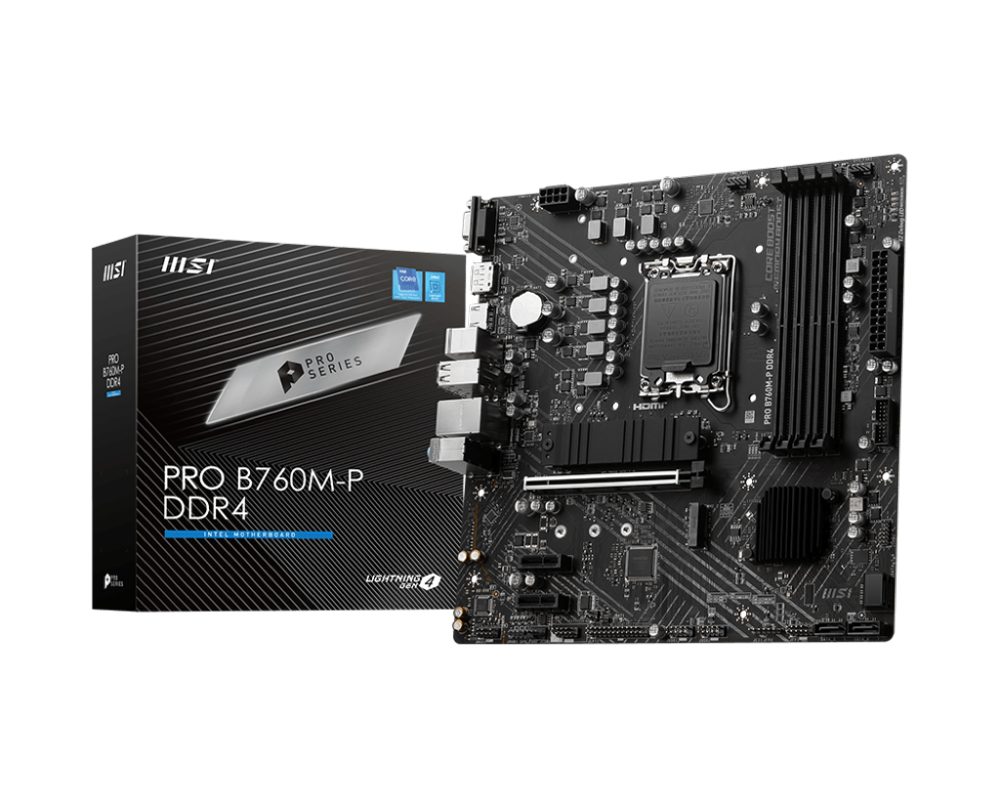

Дънна платка MSI PRO B760M-P DDR4 /LGA1700

MSI PRO B760M-P DDR4 /LGA1700

• Операционна система: Support for Windows® 11 64-bit, Windows® 10 64-bit
• Аудио:
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
• Памет:
  • 4x DDR4, Maximum Memory Capacity 128GB
  • Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
  • Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz
  • 1DPC 2R Max speed up to 4600+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
• Графика:
  • 1x HDMI™
  • 1x DisplayPort
  • 1x VGA
  • Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
  • Support DP 1.4, maximum resolution of 4K 60Hz*
  • Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
• Слотове за разширение:
  • 1x PCI-E x16 slot
  • 2x PCI-E x1 slot
  • PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 PCIe 4.0 supports up to x1 (From Chipset)
  • PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
• Форм-фактор: mATX,243.84mmx243.84mm
• Чипсет: INTEL B760
• Съхранение:
  • 2x M.2 slot
  • M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G port

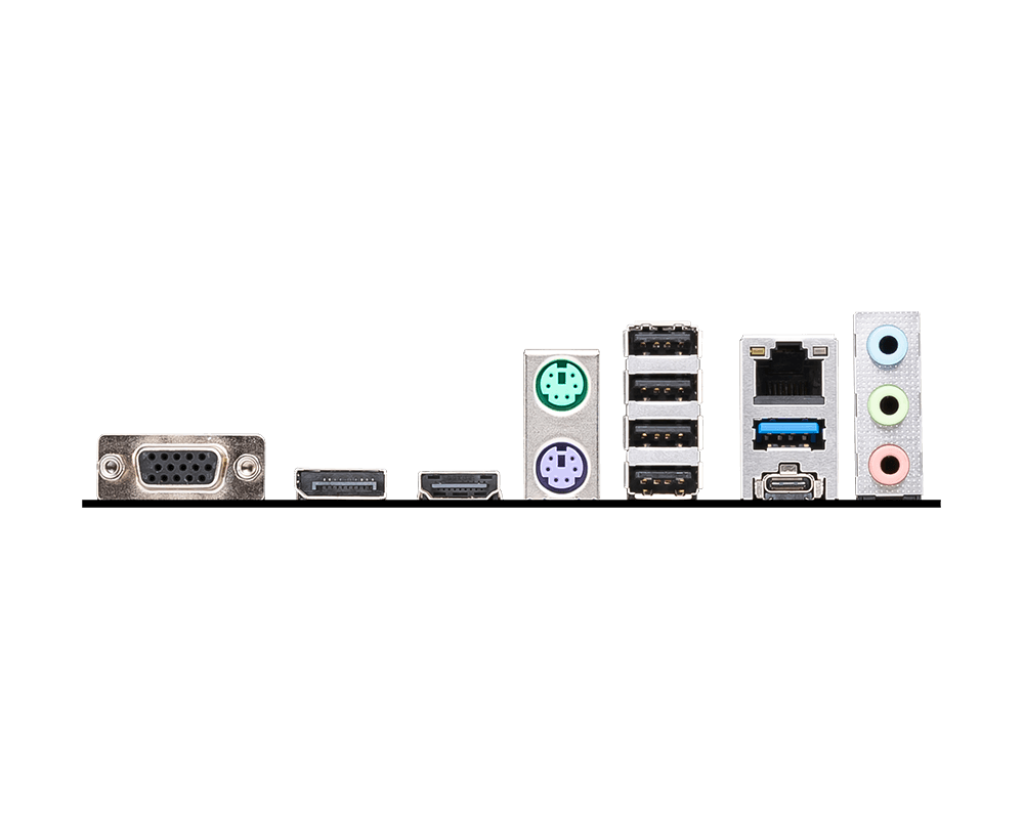

• Портове отзад:
  • VGA
  • DisplayPort
  • HDMI™
  • Keyboard / Mouse
  • USB 2.0
  • LAN port
  • Audio Connectors
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-C)
• Конектори:
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Printer Port (JLPT)
  • 1x Com Port (JCOM)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0
  • 2x USB 3.2 Gen1 Type A
• Мрежа (LAN): Realtek® RTL8111H Gigabit LAN
