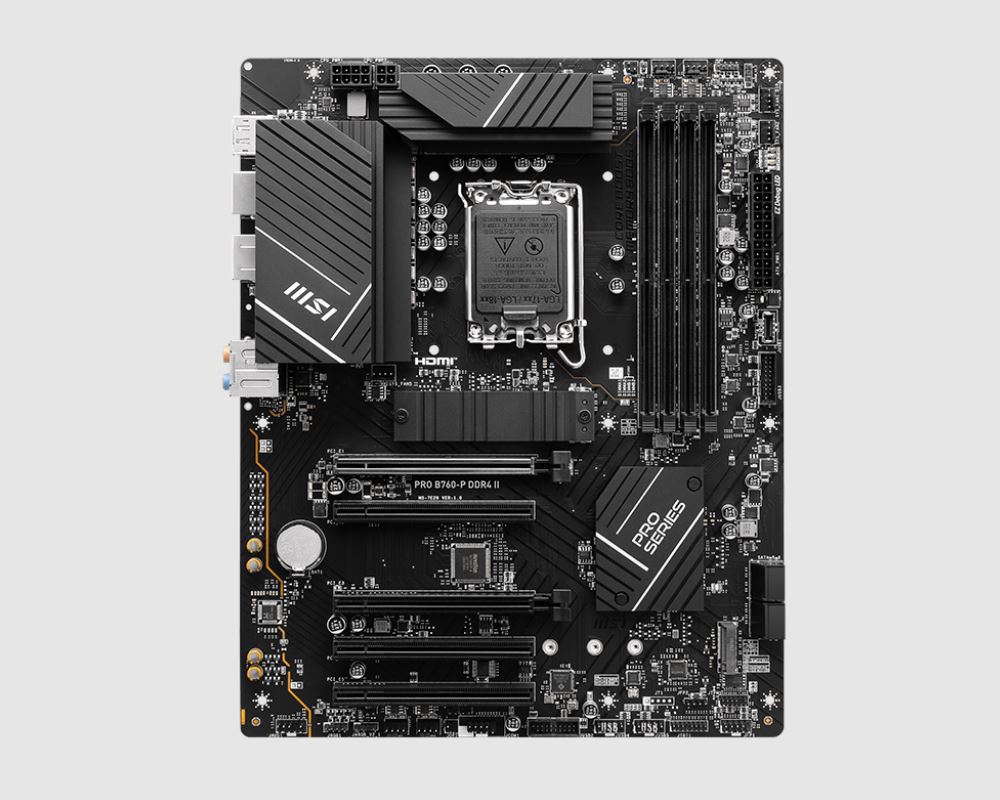

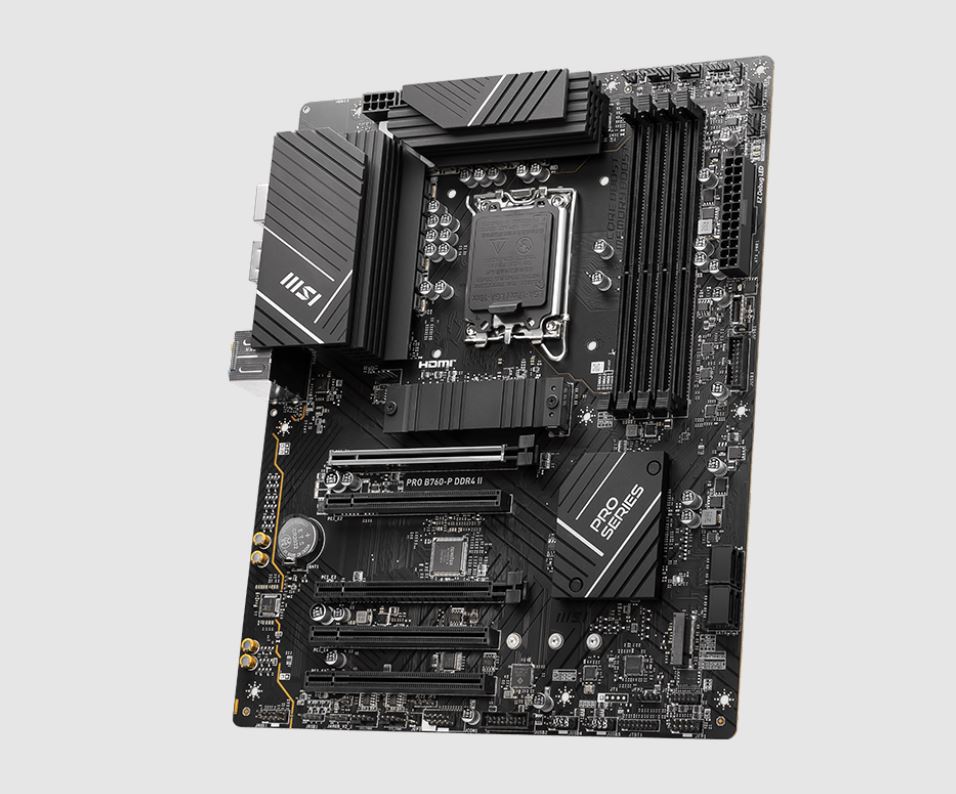

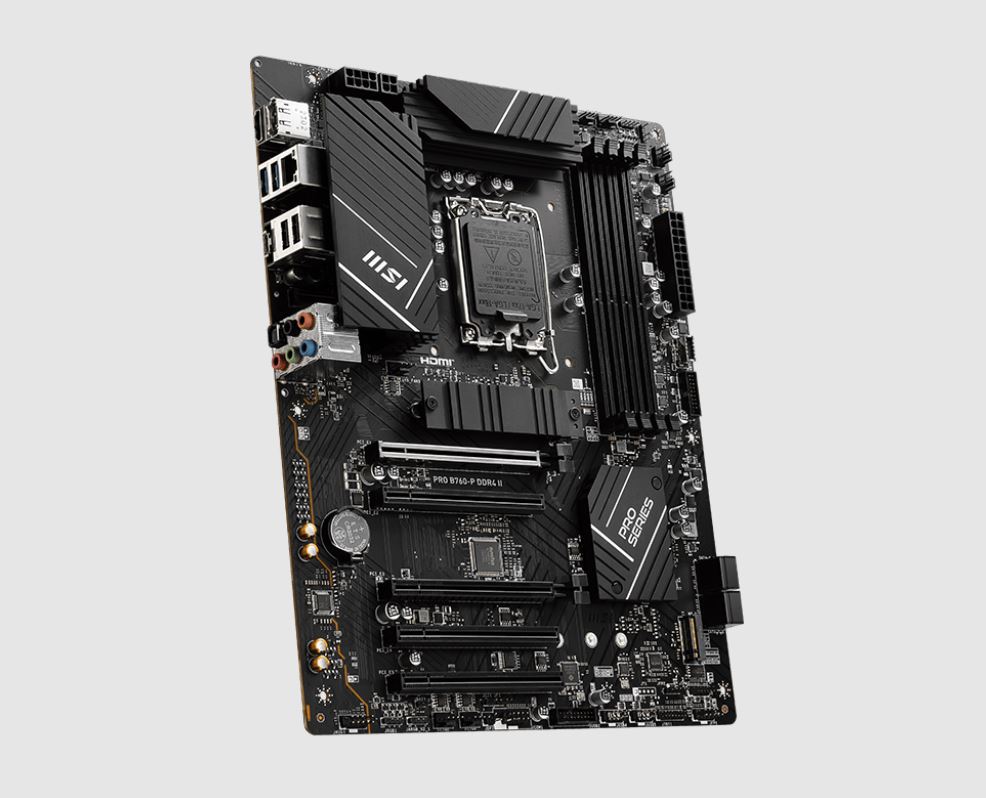

Дънна платка MSI PRO B760-P II

MSI PRO B760-P II

• Модел: PRO B760-P II
• Операционна система: Support for Windows® 11 64-bit, Windows® 10 64-bit
• Аудио:
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
• Памет:
  • 4x DDR5, Maximum Memory Capacity 256GB
  • Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7000+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
  • 2DPC 1R Max speed up to 6000+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
  • Supports Intel® XMP 3.0 OC
  • Supports Dual-Controller Dual-Channel mode
  • Supports non-ECC, un-buffered memory
• Графика:
  • 1x HDMI™
  • Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
  • 1x DisplayPort
  • Support DP 1.4, maximum resolution of 4K 60Hz*
  • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Слотове за разширение:
  • 5x PCI-E x16 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
• Форм-фактор: ATX, 243.84mmx304.8mm
• Поддържани процесори: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• Чипсет: INTEL B760
• Съхранение:
  • 2x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • 4x SATA 6G

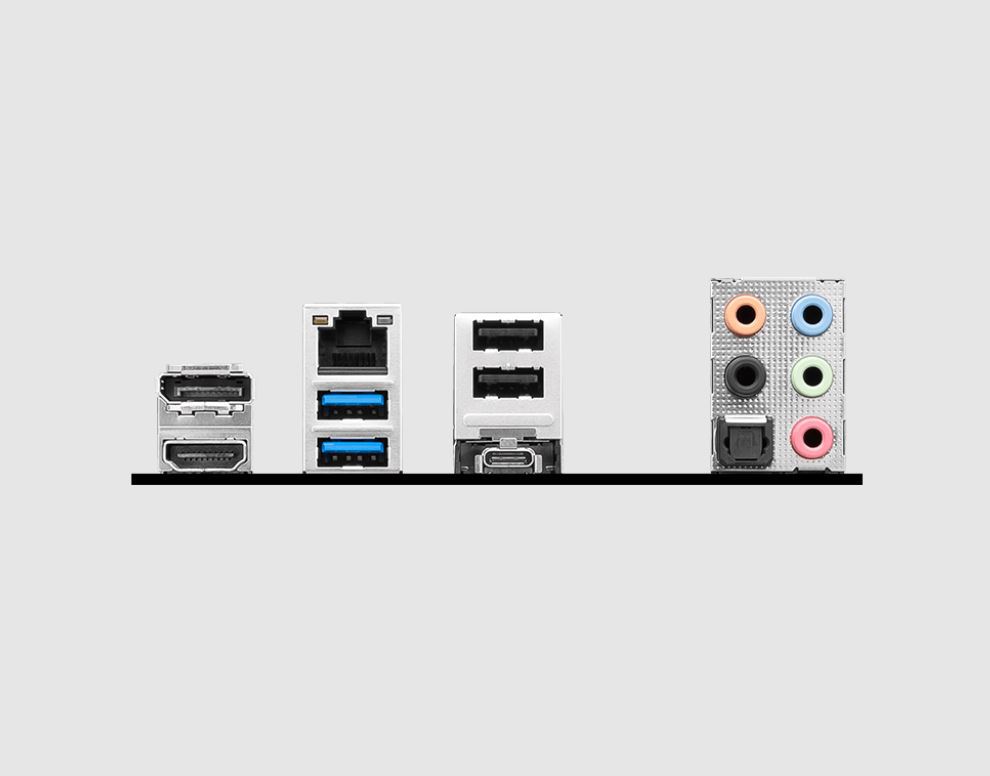

• Портове отзад:
  • DisplayPort
  • 2.5G LAN
  • USB 2.0
  • Audio Connectors
  • HDMI™
  • USB 5Gbps (Type-A)
  • USB 10Gbps (Type-C)
  • S/PDIF-OUT
• Конектори:
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 5x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 4x USB 5Gbps Type A ports
  • 1x USB 5Gbps Type C ports
• Мрежа (LAN): Realtek® RTL8125BG 2.5G LAN
• BIOS: 1x 256 Mb flash •UEFI AMI BIOS •ACPI 6.4, SMBIOS 3.5 •Multi-language
• RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB:
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 4x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
  • 1x USB 10Gbps Type C (Rear)
• Сокет: LGA 1700
