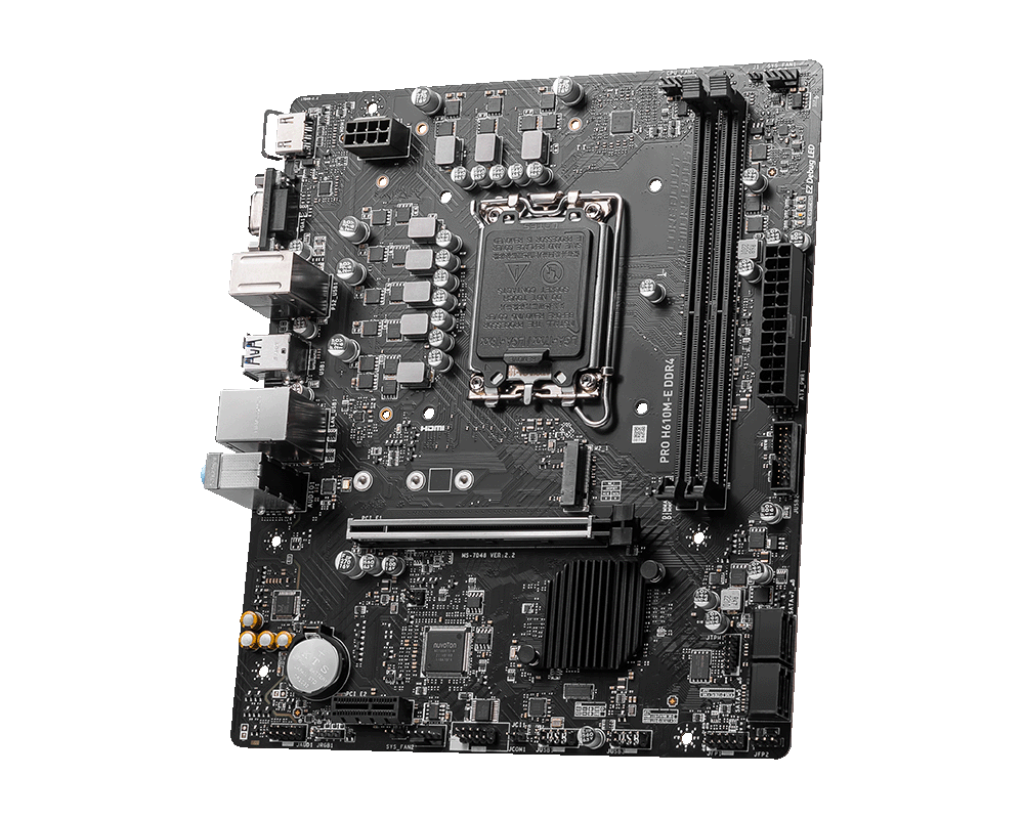

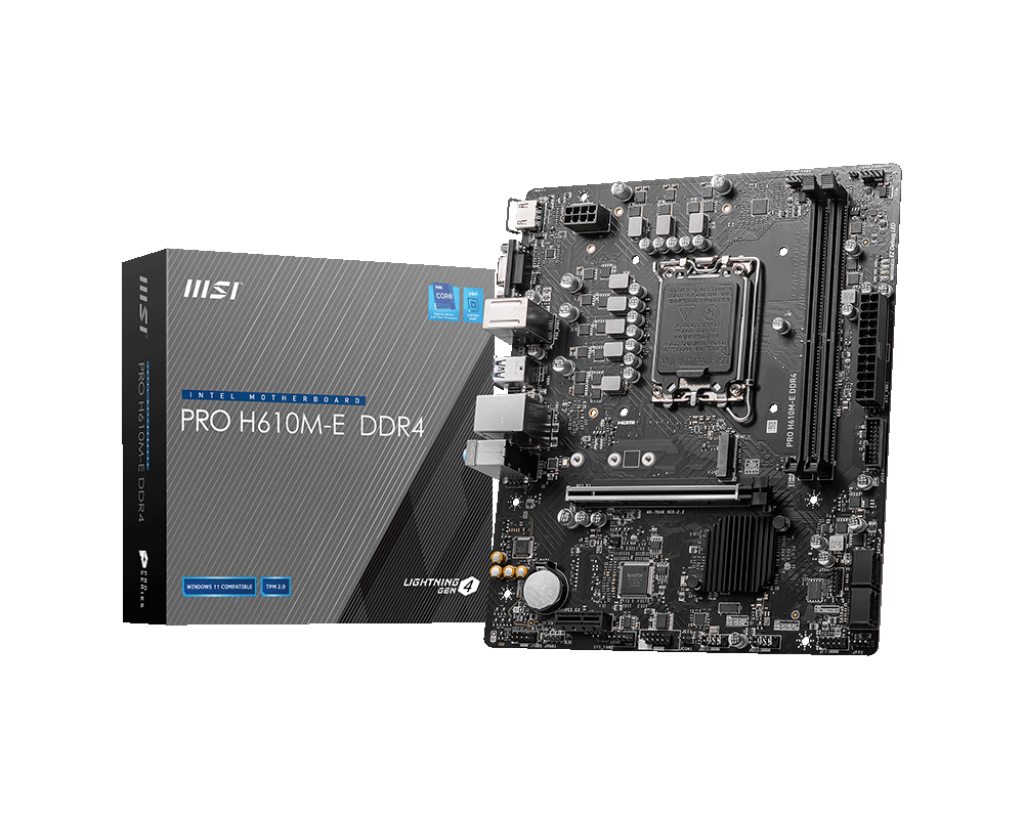

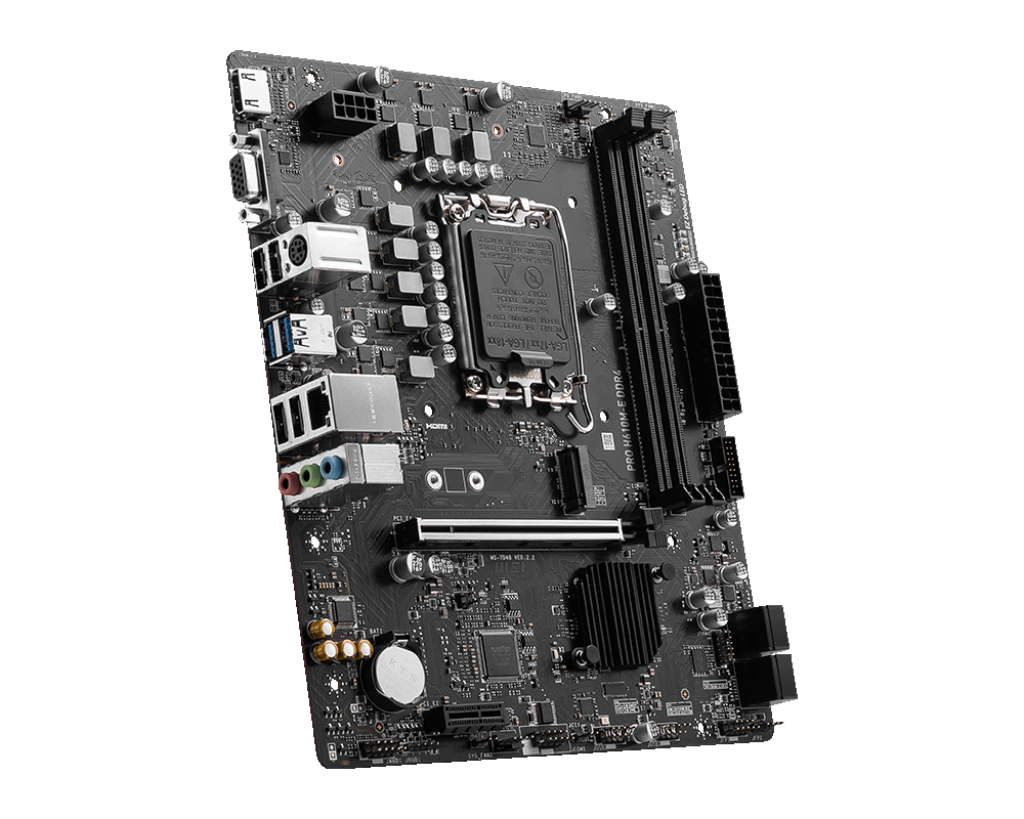

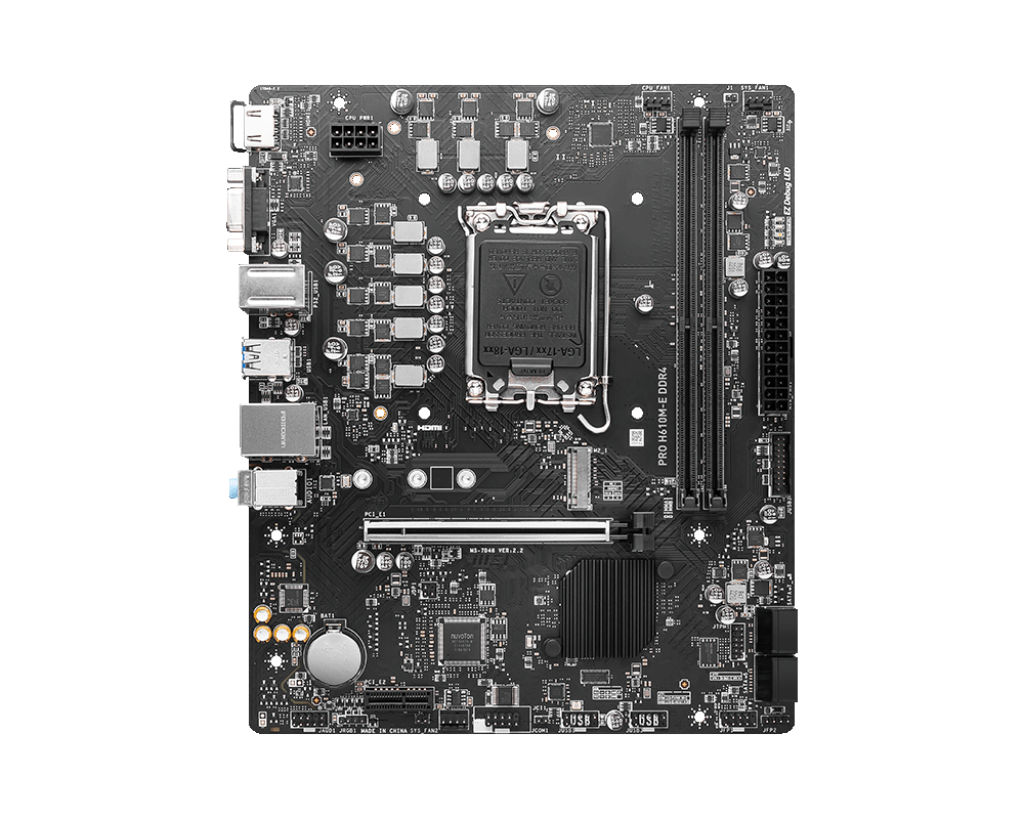

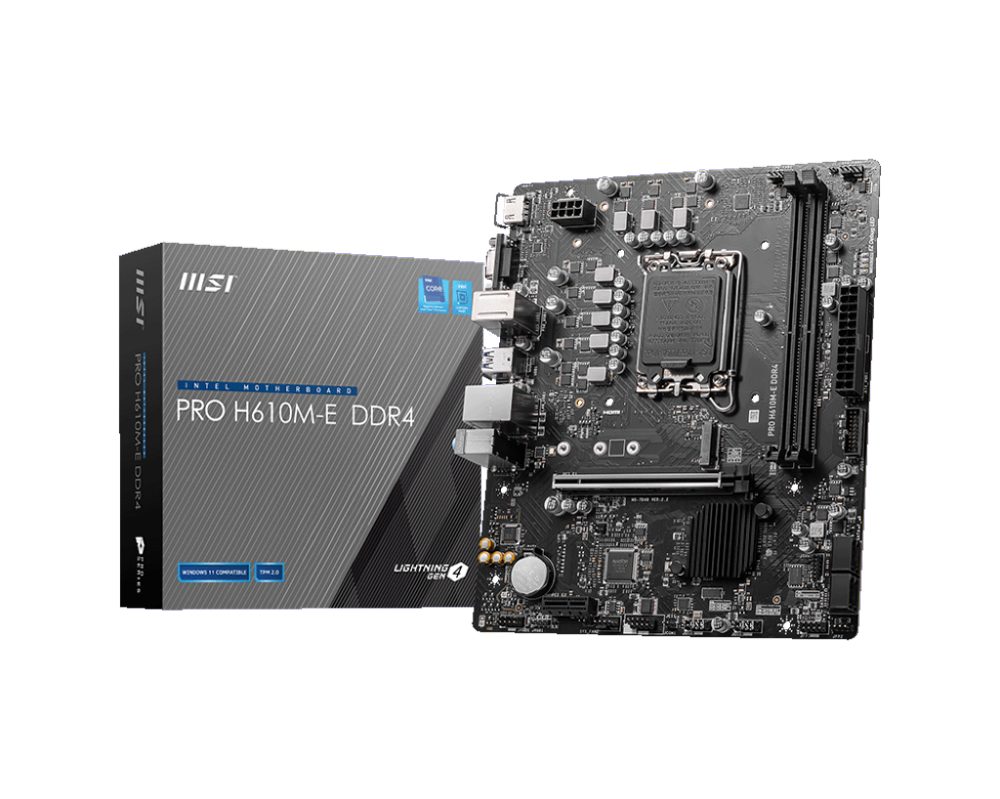

Дънна платка MSI PRO H610M-E DDR4 /LGA1700

MSI PRO H610M-E DDR4 /LGA1700

• Аудио:
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
• Памет:
  • 2x DDR4 memory slots, support up to 64GB 1
  • Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
• Графика:
  • 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2
  • 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
• Слотове за разширение:
  • 1x PCIe x16 slot (From CPU)
  • Supports up to PCIe 4.0 x16
  • 1x PCIe x1 slot (From H610 chipset)
  • Supports PCIe 3.0 x1
• Форм-фактор:
  • M-ATX Form Factor
  • 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
• Чипсет: Intel® H610 Chipset

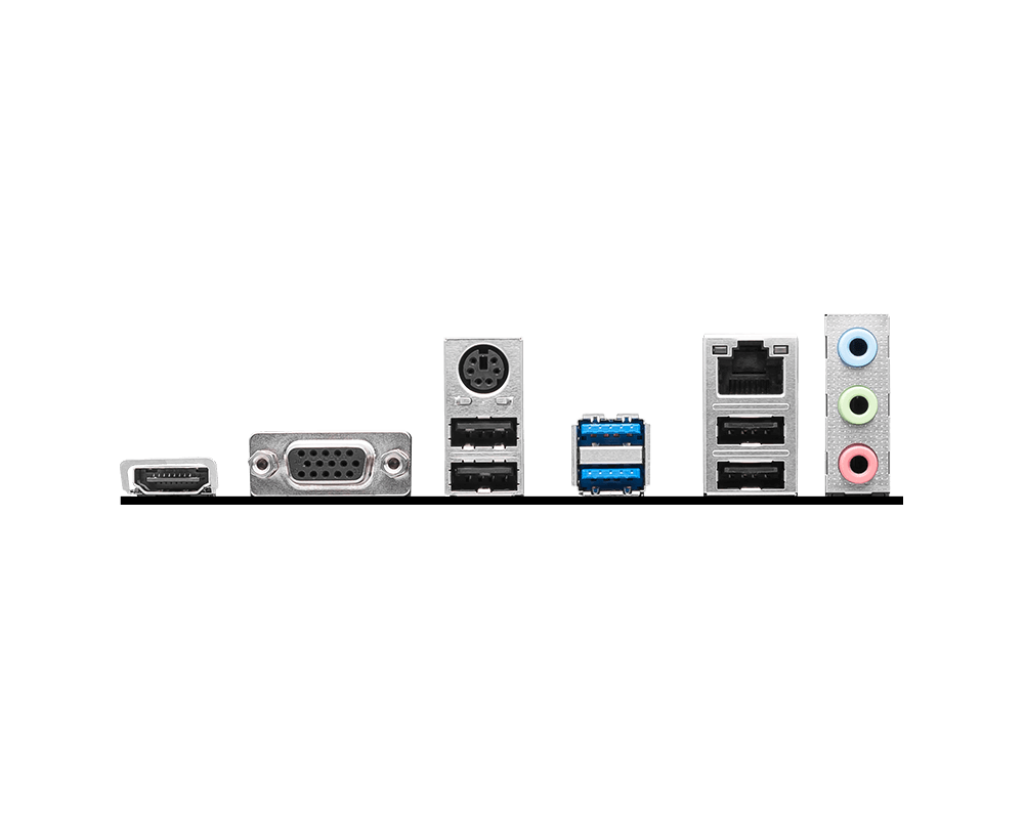

• Портове отзад:
  • HDMI™
  • VGA
  • Keyboard / Mouse
  • USB 3.2 Gen 1 5Gbps Type-A
  • LAN port
  • Audio connector
  • USB 2.0
• Конектори:
  • 4x SATA 6Gb/s ports (From H610 chipset)
  • 1x M.2 slot (Key M) (from CPU)
  • Supports up to PCIe 3.0 x4
  • Supports 2242/ 2260/ 2280 storage devices
  • 1x 24-pin ATX main power connector
  • 1x 8-pin +12V power connector
  • 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
  • Supports additional 2 USB 3.2 Gen 1 5Gbps ports
  • 2x USB 2.0 Type-A connectors (From Hub-GL850G)
  • Supports additional 4 USB 2.0 ports
  • 1x 4-pin CPU fan connector
  • 2x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Clear CMOS jumper
• Мрежа (LAN): 1x Realtek® RTL8111H 1Gbps LAN controller
