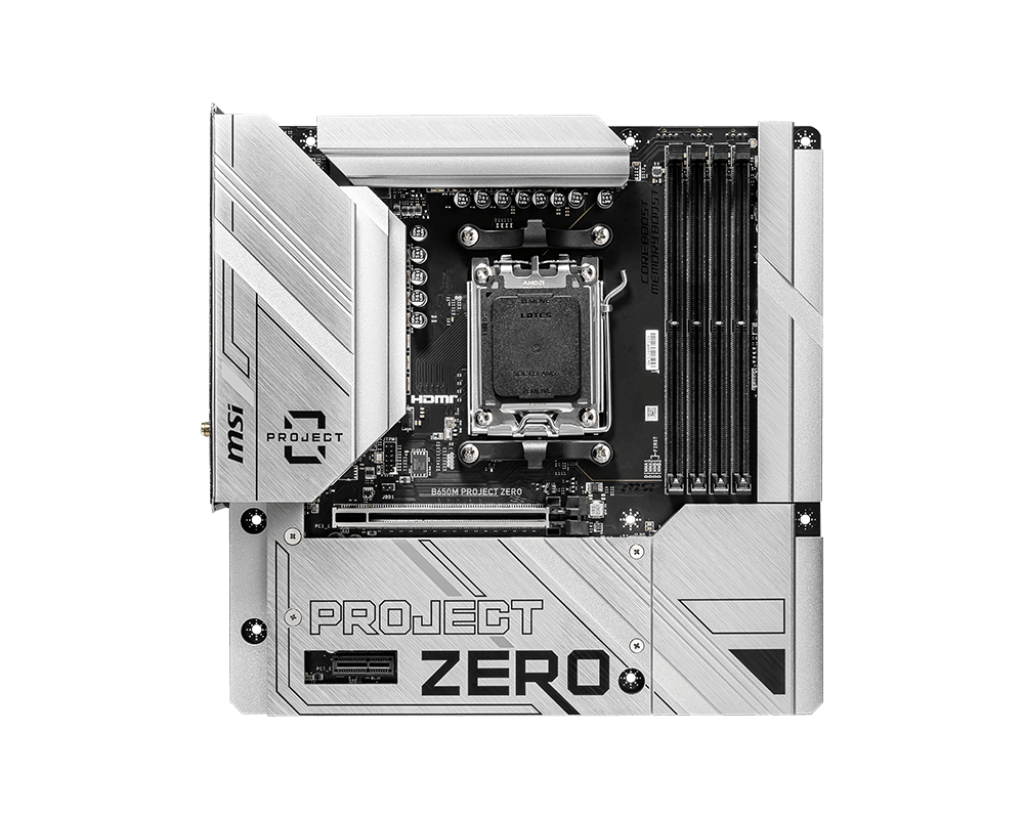

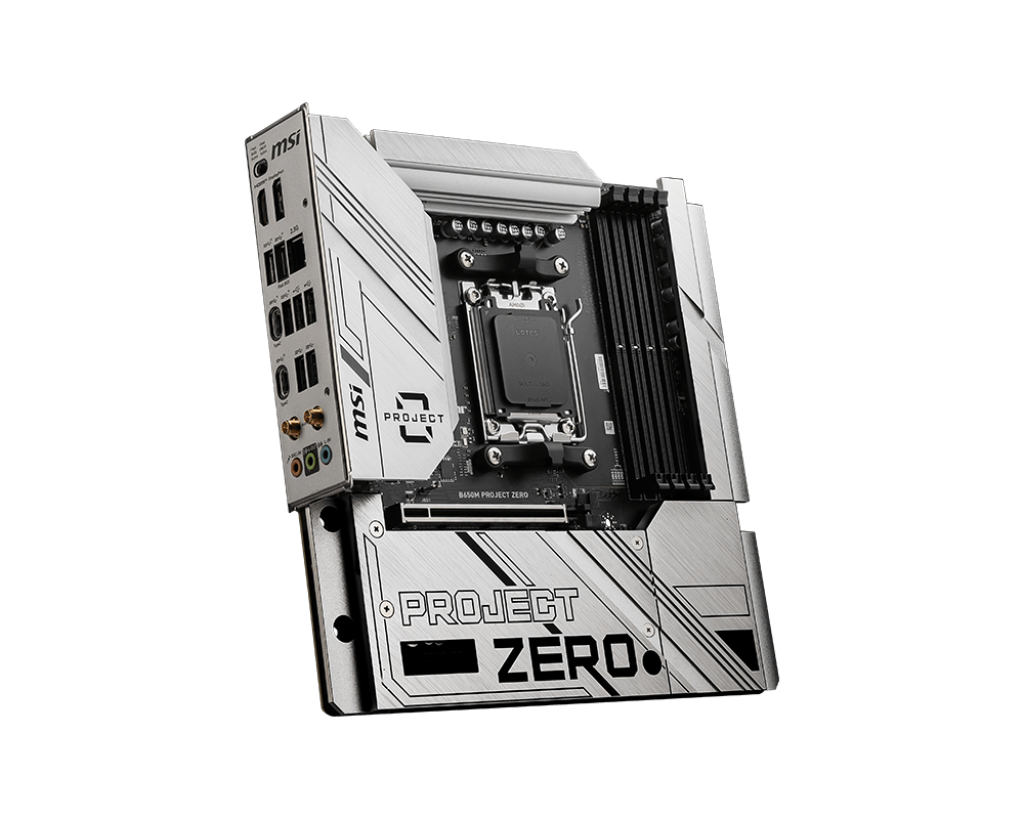

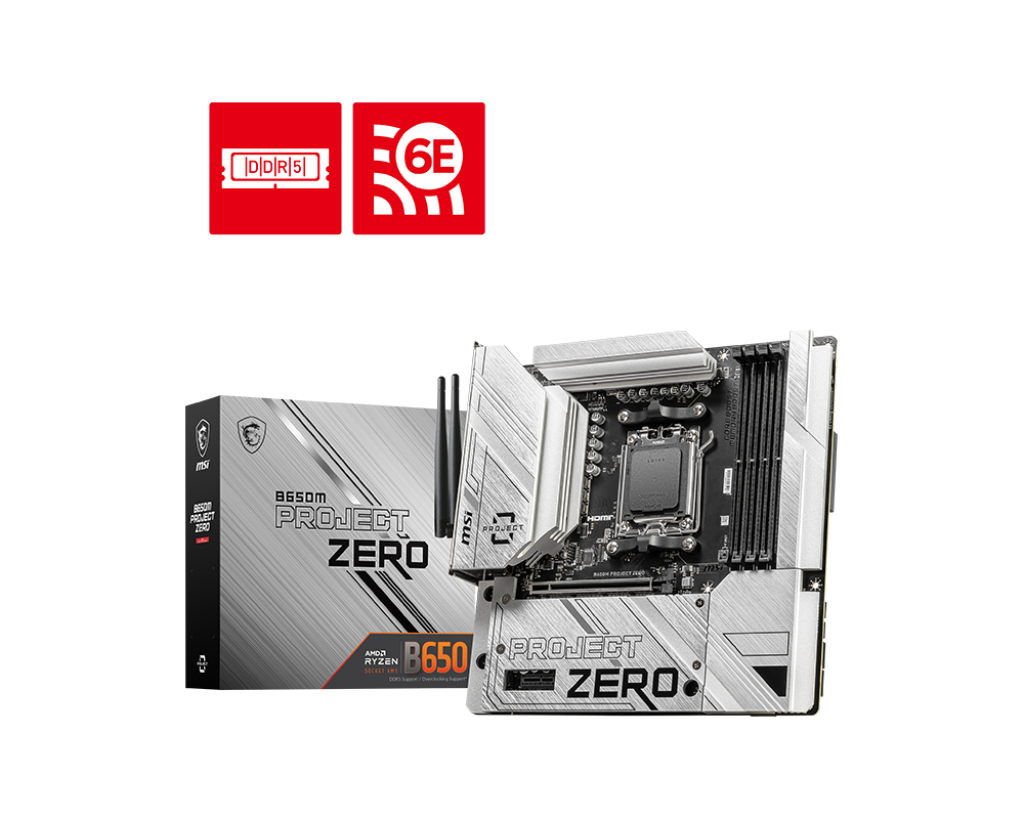

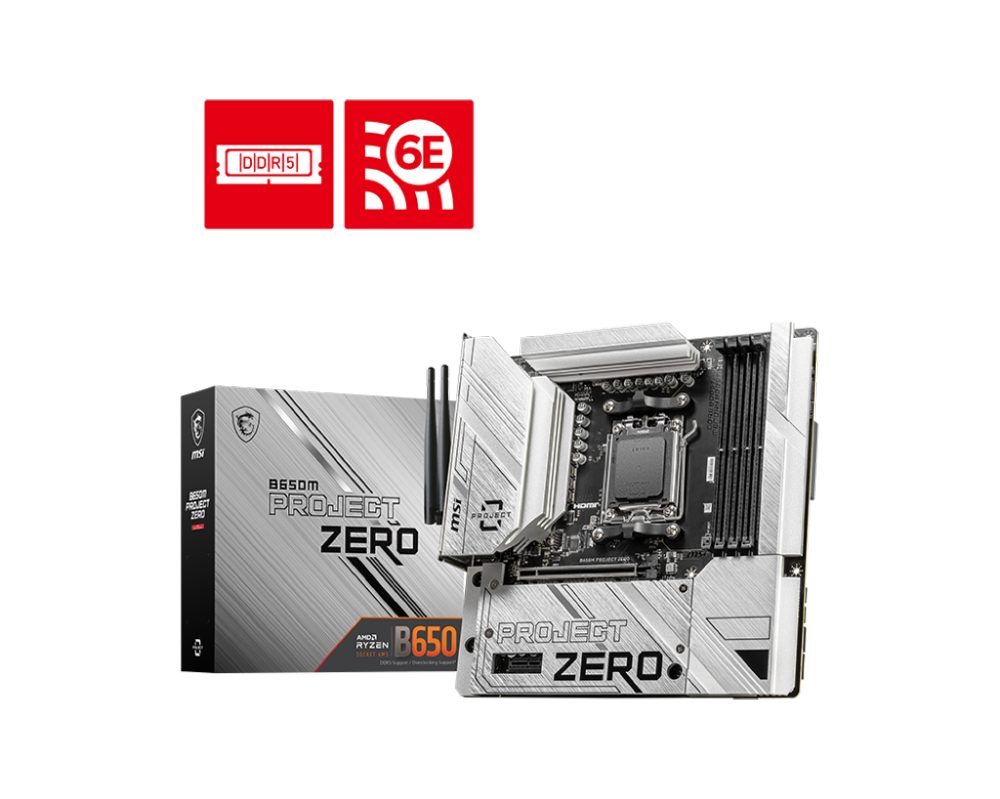

Дънна платка MSI B650M PROJECT ZERO

MSI B650M PROJECT ZERO

• Безжична връзка:
  • AMD Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX
  • Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
• Bluetooth: 5.3
• Операционна система: Support for Windows® 11 64-bit, Windows® 10 64-bit
• Аудио:
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
  • Supports up to 32-Bit/384 kHz playback on front panel
• Памет:
  • 4x DDR5, Maximum Memory Capacity 256GB
  • Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7600+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5400+ MHz
• Графика:
  • 1x HDMI™
  • Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
  • 1x DisplayPort
  • Support DP 1.4, maximum resolution of 4K 60Hz
• Слотове за разширение:
  • 1x PCI-E x16 slot
  • Supports x16 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• Форм-фактор: mATX, 243.84mmx243.84mm
• Съхранение:
  • 2x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 4x SATA 6G
  • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
  • Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

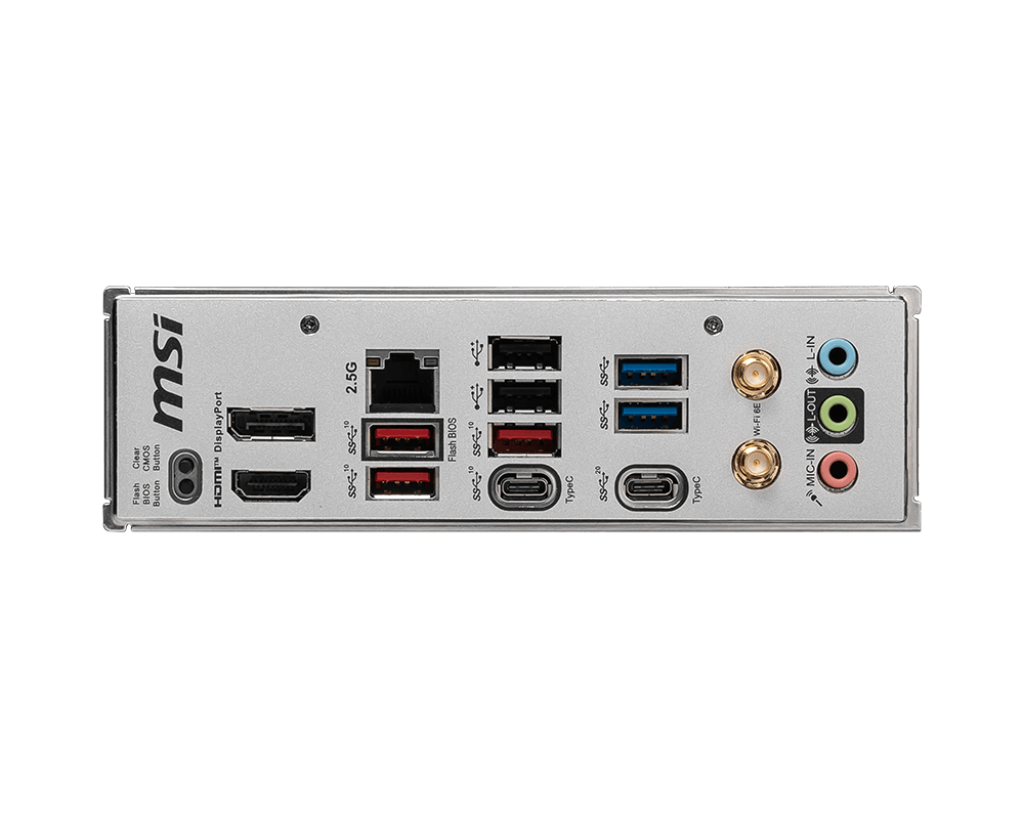

• Портове отзад:
  • DisplayPort
  • 2.5G LAN
  • USB 2.0
  • USB 5Gbps (Type-A)
  • Wi-Fi / Bluetooth
  • Audio connectors
  • Flash BIOS Button
  • Clear CMOS Button
  • HDMI™
  • USB 10Gbps (Type-A)
  • USB 10Gbps (Type-C)
  • USB 20Gbps (Type-C)
• Конектори:
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 3x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
• Мрежа (LAN): Realtek® RTL8125BG 2.5Gbps LAN
• USB:
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 3x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)
  • 1x USB 10Gbps Type C (Front)
  • 1x USB 20Gbps Type C (Rear)
