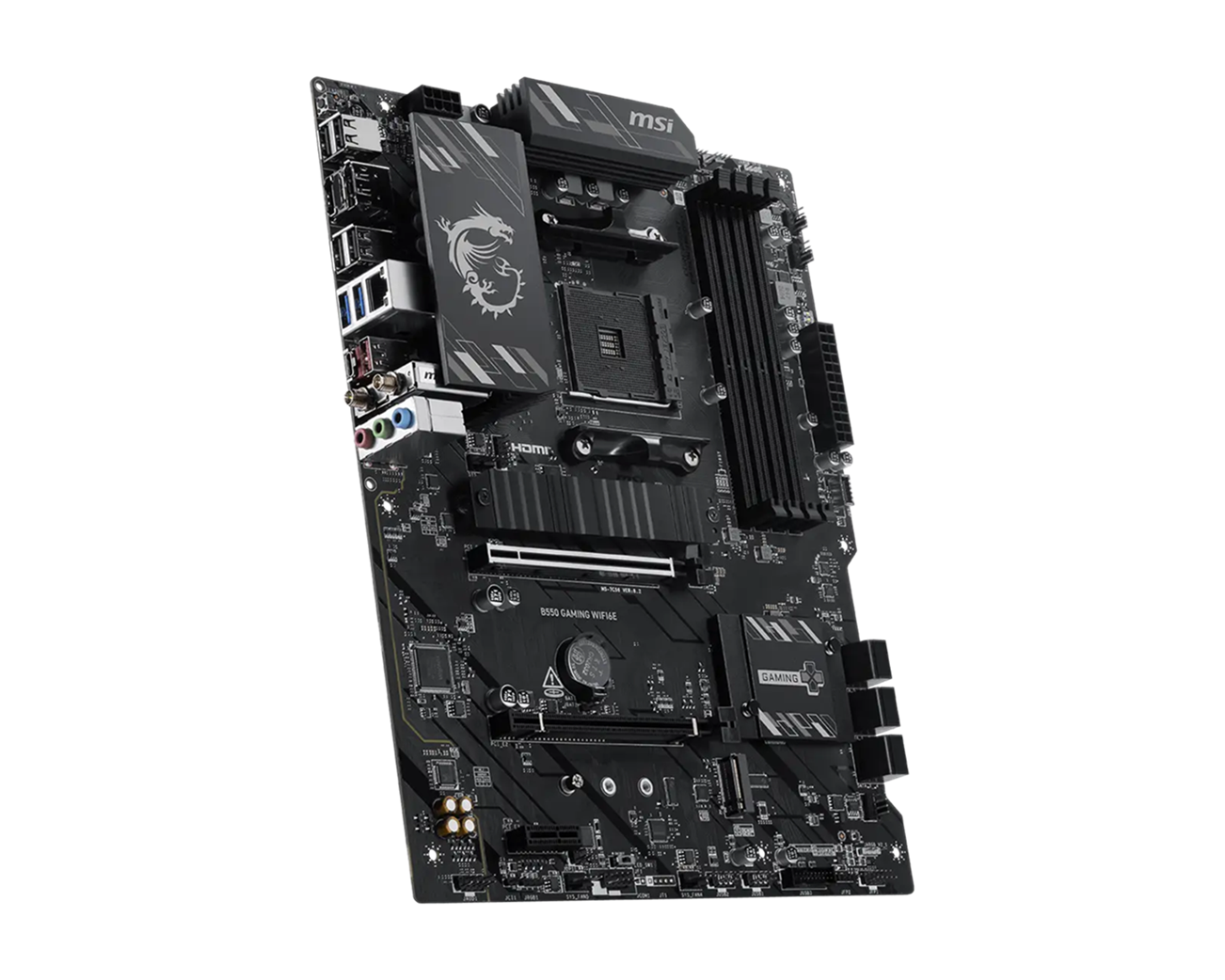

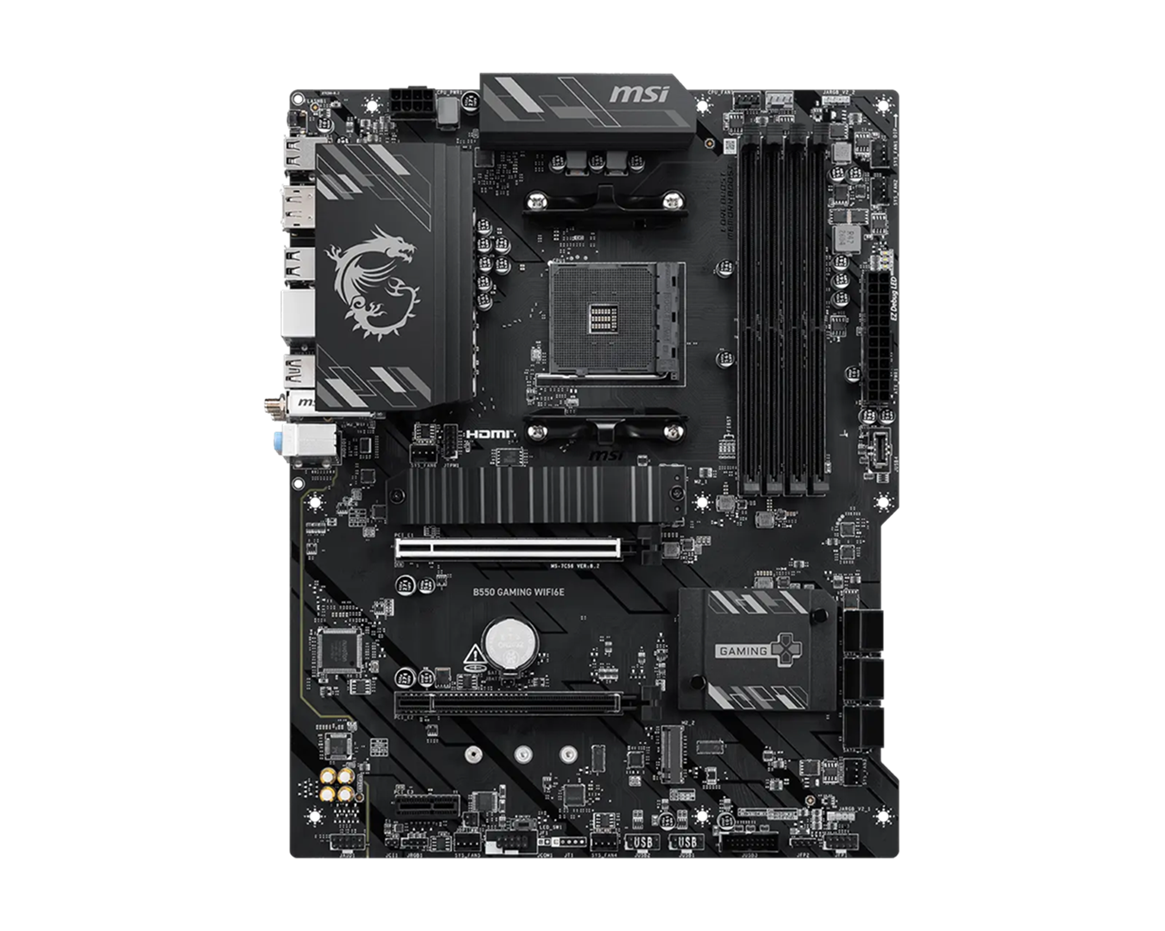

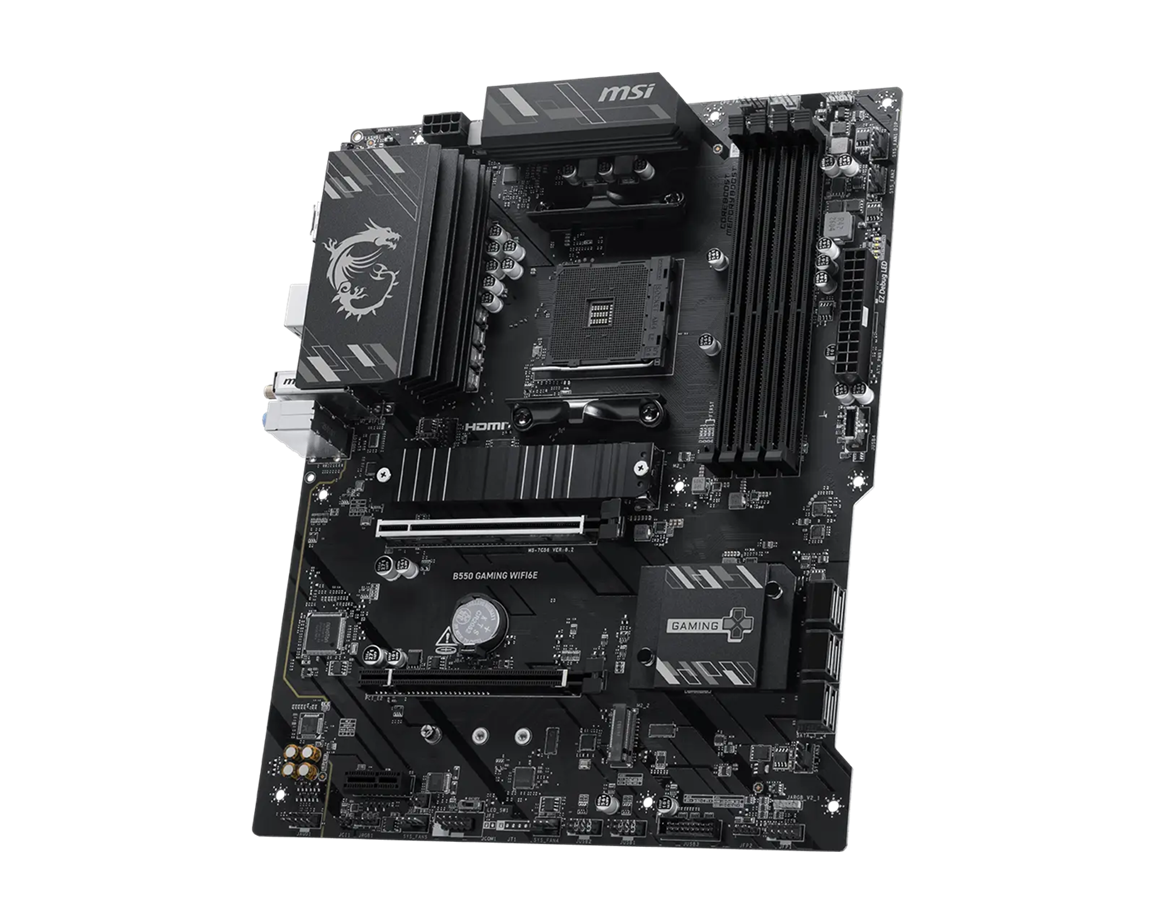

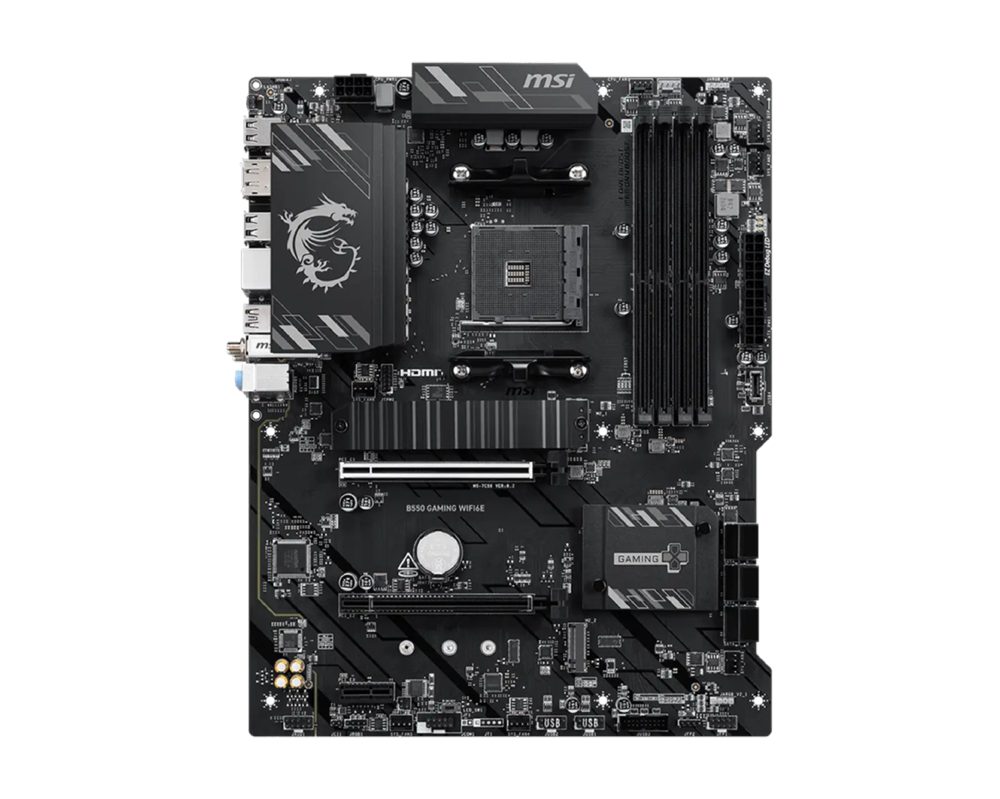

Дънна платка MSI B550 GAMING WIFI6E

MSI B550 GAMING WIFI6E

• Безжична връзка:
  • Wi-Fi 6E Solution
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Dual-band 1T1R mode
  • Supports MU-MIMO RX
  • Supports 2.4GHz/ 5GHz/ 6GHz* frequency band
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.3**
  • * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.
  • ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.
• Операционна система: Support for Windows® 11 64-bit
• Аудио:
  • Realtek® ALC897
  • 7.1-Channel High Definition Audio
• Памет:
  • 4x DDR4, Maximum Memory Capacity 128GB
  • Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 4800+ MHz
  • 1DPC 2R Max speed up to 3866+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 3600+ MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
• Графика:
  • 1x HDMI™
  • Support HDMI™ 1.4, maximum resolution of 4K 30Hz
  • 1x DisplayPort
  • Support DisplayPort 1.2, maximum resolution of 4K 60Hz
• Слотове за разширение:
  • 2x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
  • PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • *The supported specification depends on installed processor.
  • **When installing PCIe SSD in M.2_2 slot, PCI_E2 slot will be unavailable.
• Форм-фактор: ATX 243.84mmx304.8mm
• Поддържани процесори: Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
• Чипсет: AMD B550
• Съхранение:
  • 2x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
  • 6x SATA 6G

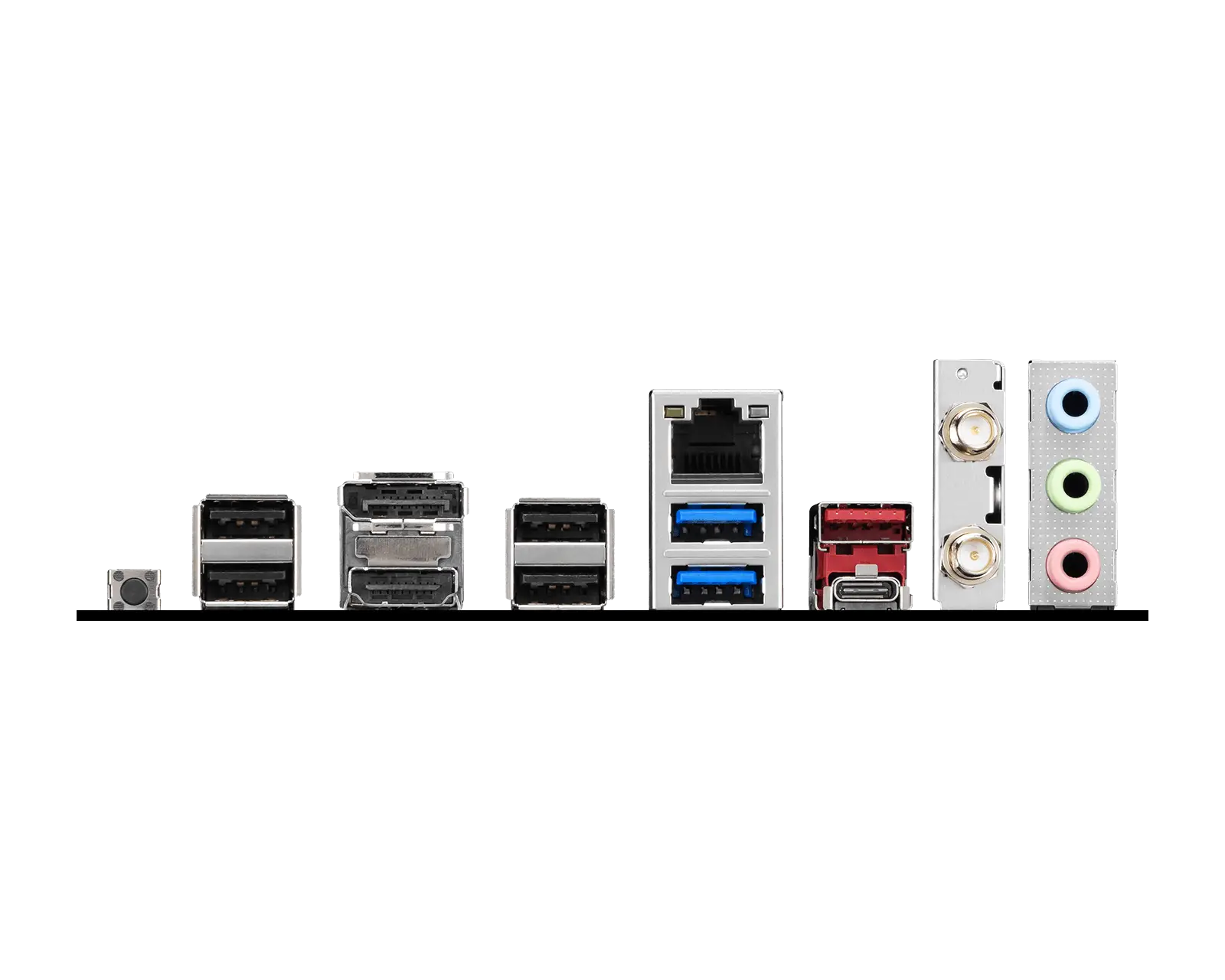

• Портове отзад:
  • USB 2.0
  • DisplayPort 1.2
  • 1G LAN
  • USB 10Gbps (Type-A)
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • Flash BIOS Button
  • HDMI™
  • USB 2.0
  • USB 5Gbps (Type-A)
  • USB 10Gbps (Type-C)
• Конектори:
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Combo Fan (Pump_Sys Fan)
  • 6x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 5Gbps Type C ports
• Мрежа (LAN): Realtek® 8111H 1G LAN
• USB:
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
  • 1x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
• Сокет: Socket AM4
