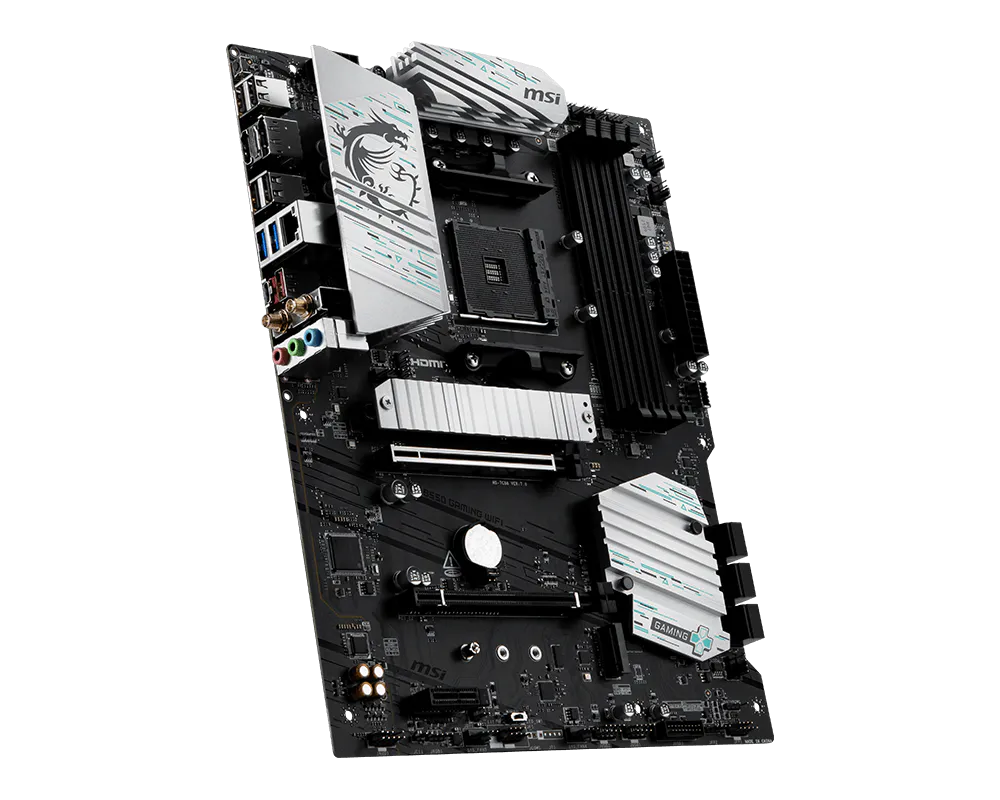

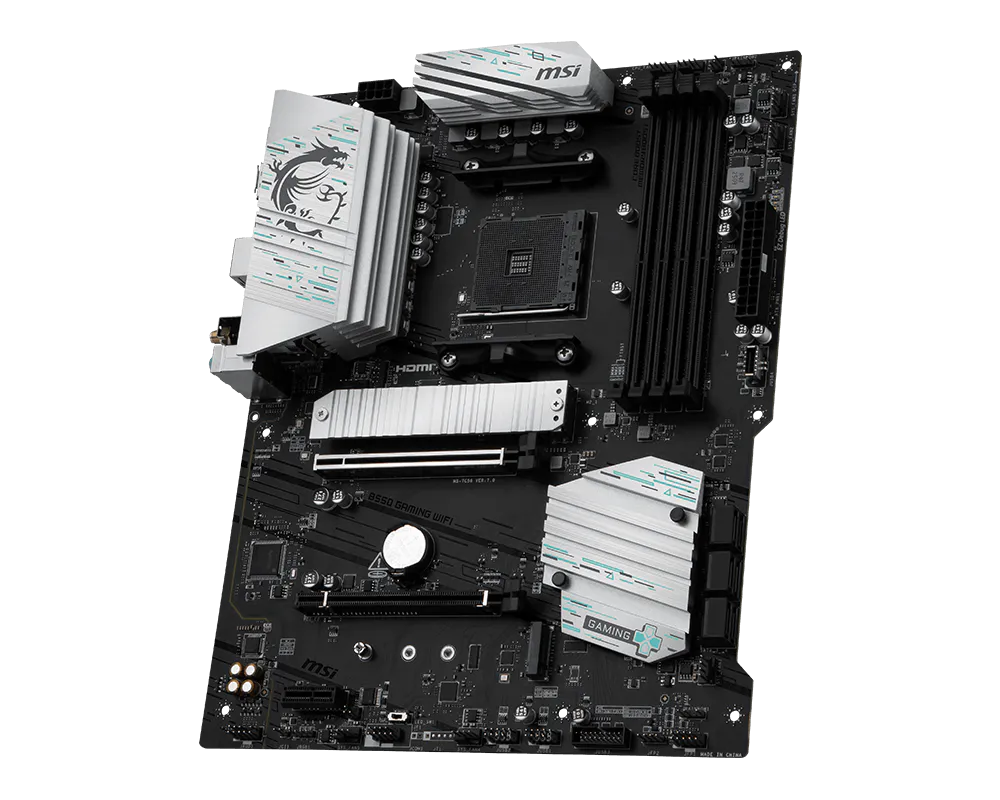

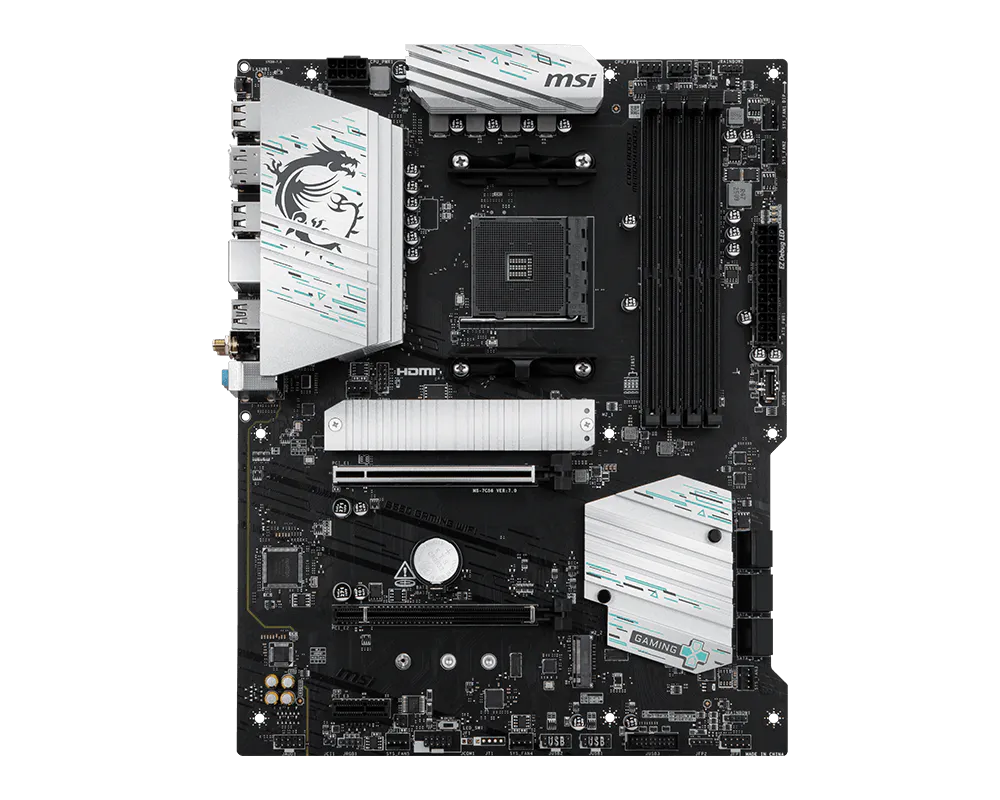

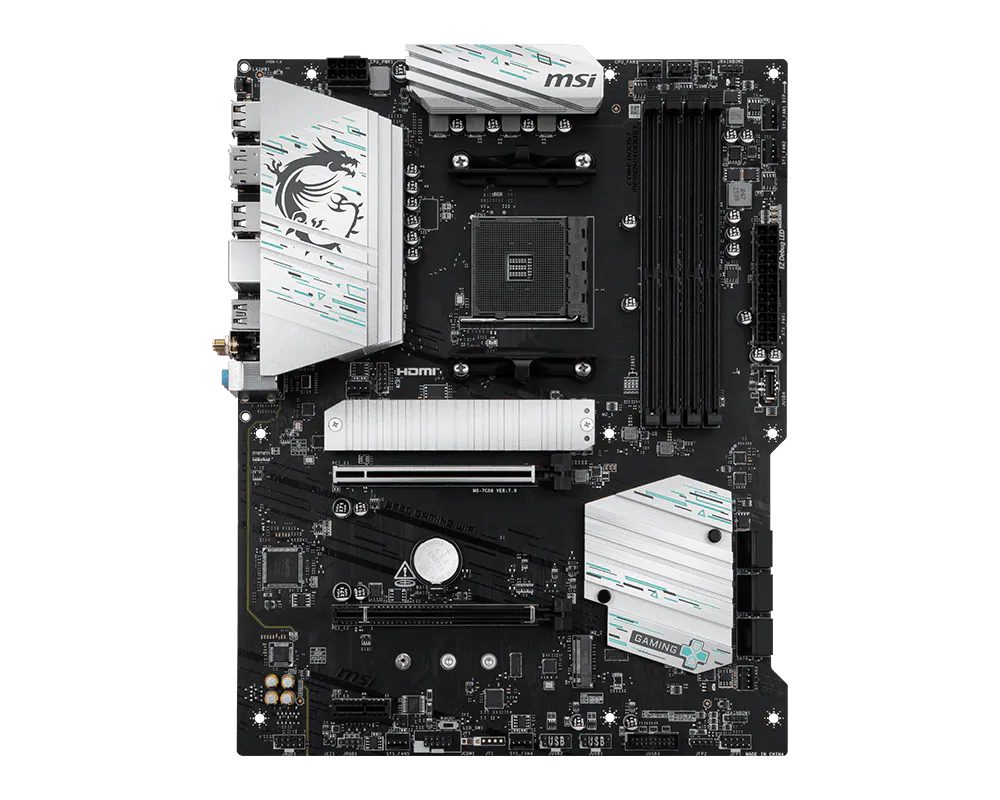

Дънна платка MSI B550 GAMING

MSI B550 GAMING

• Размери:
  • ATX
  • 243.84mmx304.8mm
• Безжична връзка: Wi-Fi 5 Solution
• Bluetooth: Supports Bluetooth® 5.0
• Операционна система: Support for Windows® 11 64-bit
• Аудио:
  • Realtek® ALC897
  • 7.1-Channel High Definition Audio
• Памет:
  • 4x DDR4, Maximum Memory Capacity 128GB
  • Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
  • 1DPC 1R Max speed 4800 MHz
  • 1DPC 2R max speed 3866 MHZ
  • 2DPC 1R max speed 4000 MHZ
  • 2DPC 2R max speed 3600 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
• Графика:
  • 1x HDMI™
  • Support HDMI™ 2.1, maximum resolution of 4K 60Hz
  • 1x DisplayPort
  • Support DisplayPort 1.2, maximum resolution of 4K 60Hz
• Слотове за разширение:
  • 2x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
  • PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
• Поддържани процесори: Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
• Чипсет: AMD B550
• Съхранение:
  • 2x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280 devices
  • 6x SATA 6G

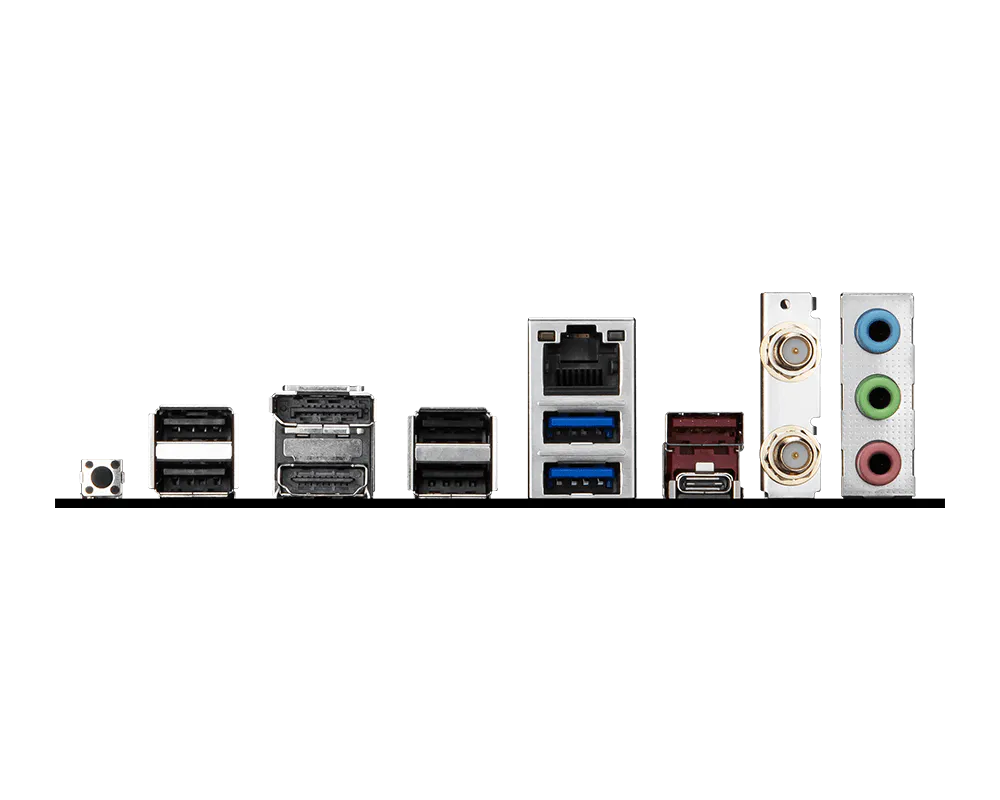

• Портове отзад:
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 6x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 2x Addressable RGB LED connector(JRAINBOW)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 1x USB 5Gbps Type A ports
  • 1x USB 5Gbps Type C ports
• Мрежа (LAN): Realtek® 8111H 1G LAN
• USB:
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
  • 1x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
• Сокет: Socket AM4
