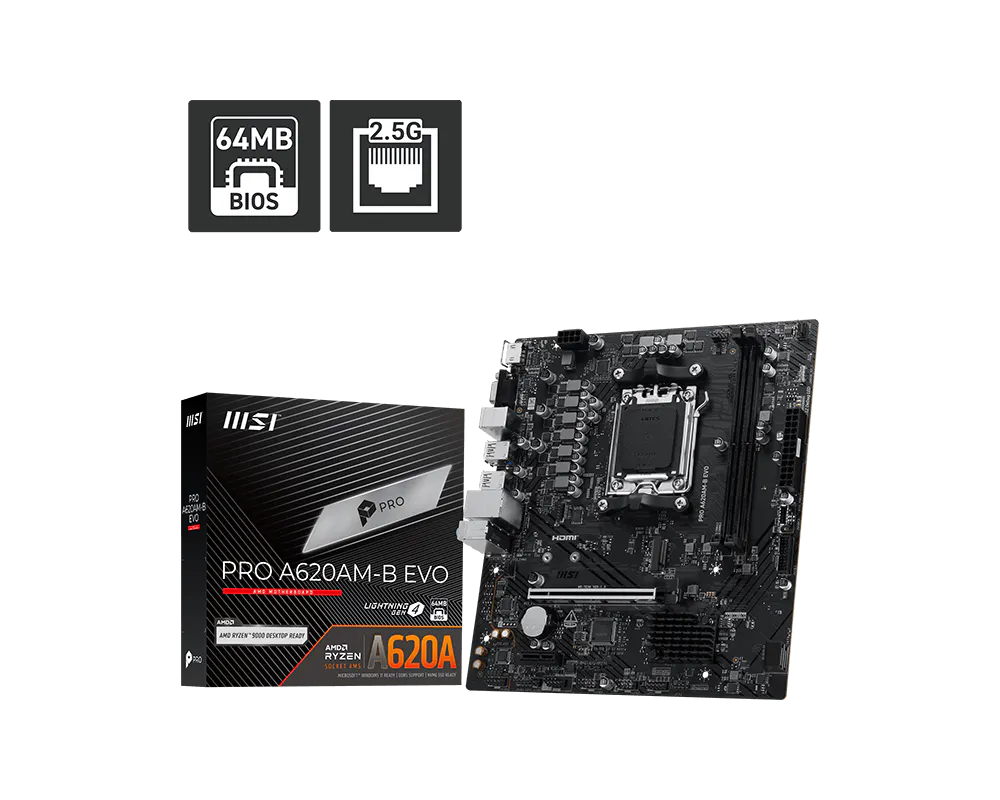

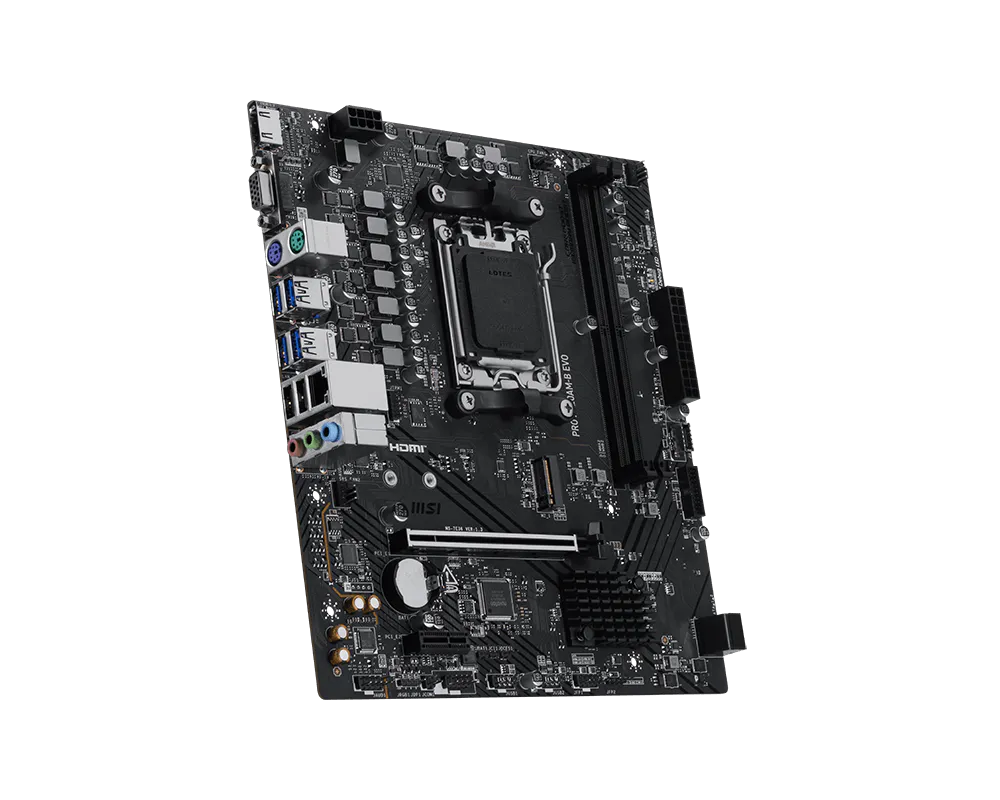

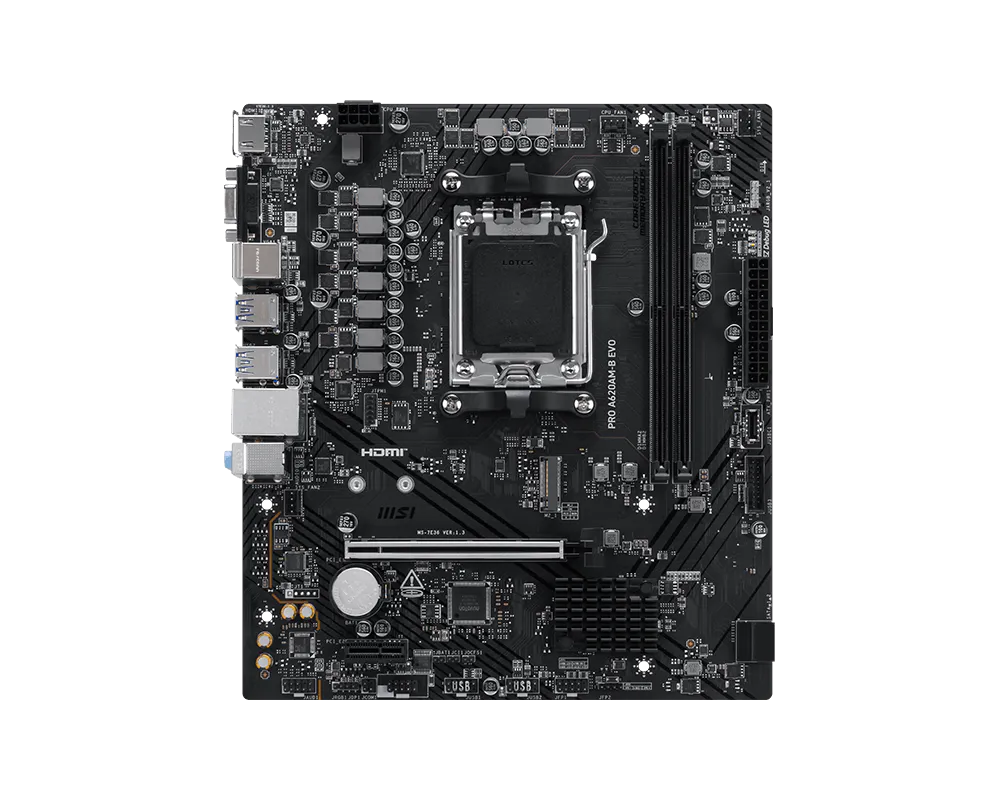

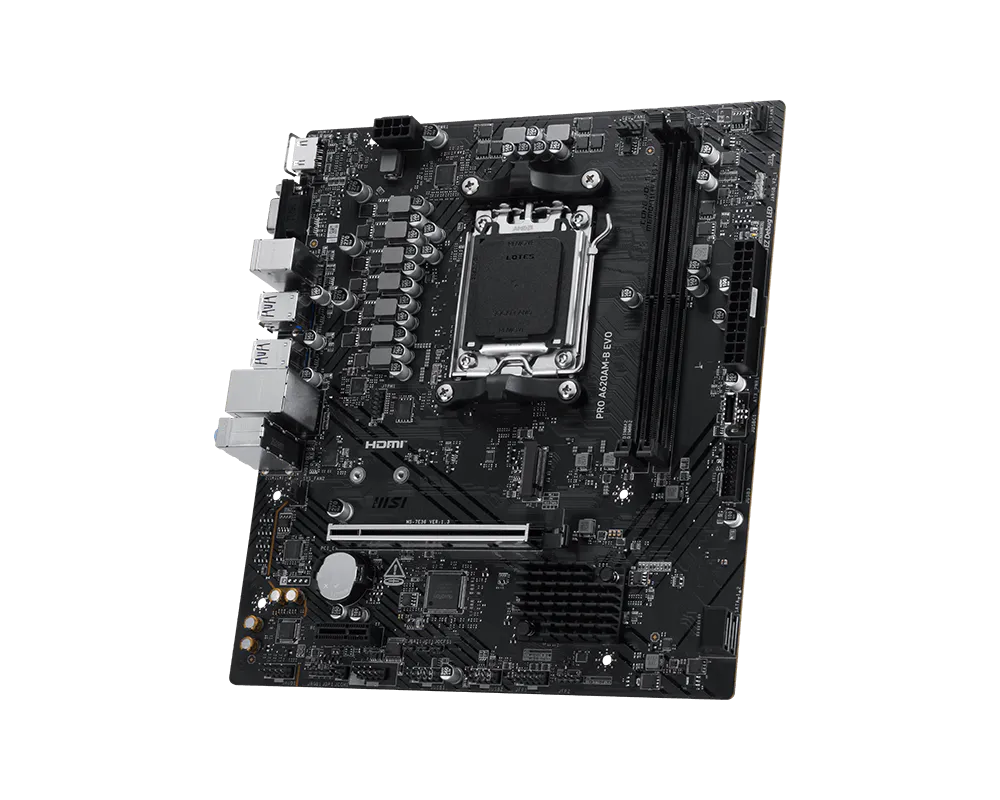

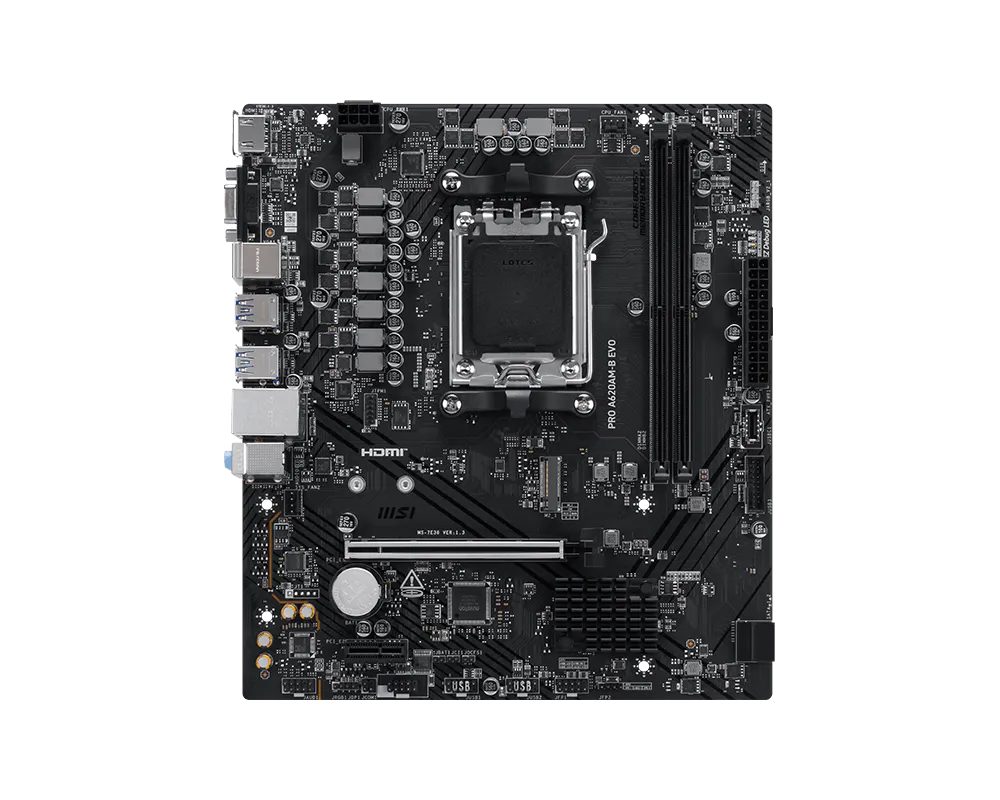

Дънна платка MSI PRO A620AM-B EVO

MSI PRO A620AM-B EVO

• Модел: PRO A620AM-B EVO
• Размери:
  • mATX
  • 218mmx243.84mm
• Операционна система: Support for Windows® 11 64-bit, Windows® 10 64-bit
• Аудио:
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
• Памет:
  • 2x DDR5, Maximum Memory Capacity 128GB
  • Memory Support DDR5 6800 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 6800+ MT/s
  • 1DPC 2R Max speed up to 6000+ MT/s
  • Supports AMD POR Speed and JEDEC Speed
  • Supports Memory Overclocking and AMD EXPO™
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports CUDIMM, Clock Driver bypass mode only
• Графика:
  • 1x HDMI™
  • Support HDMITM 2.1, maximum resolution of 4K 60Hz
  • 1x VGA
  • Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
• Слотове за разширение:
  • 1x PCI-E x16 slot
  • Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
  • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• Поддържани процесори: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Чипсет: AMD A620A
• Съхранение:
  • 1x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 2x SATA 6G
  • M2_1 slot
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
  • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

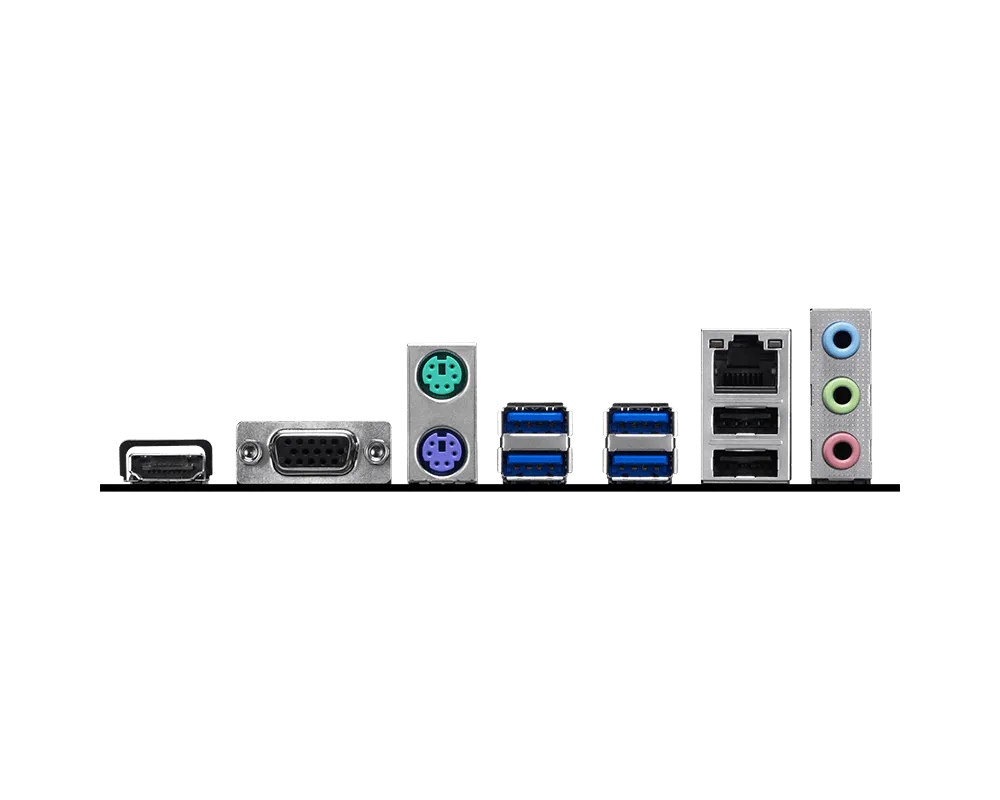

• Портове отзад:
  • HDMI™
  • VGA
  • Keyboard/Mouse
  • USB 5Gbps Type-A
  • LAN port
  • Audio connectors
  • USB 2.0
• Конектори:
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 5Gbps Type C ports
• Мрежа (LAN): Realtek® RTL8125 2.5G LAN
• RAID: Supports RAID 0 and RAID 1 for SATA storage devices
• USB:
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
• Сокет: Socket AM5
• Други:
  • 4x EZ Debug LED
  • 1x EZ Memory Detection LED
