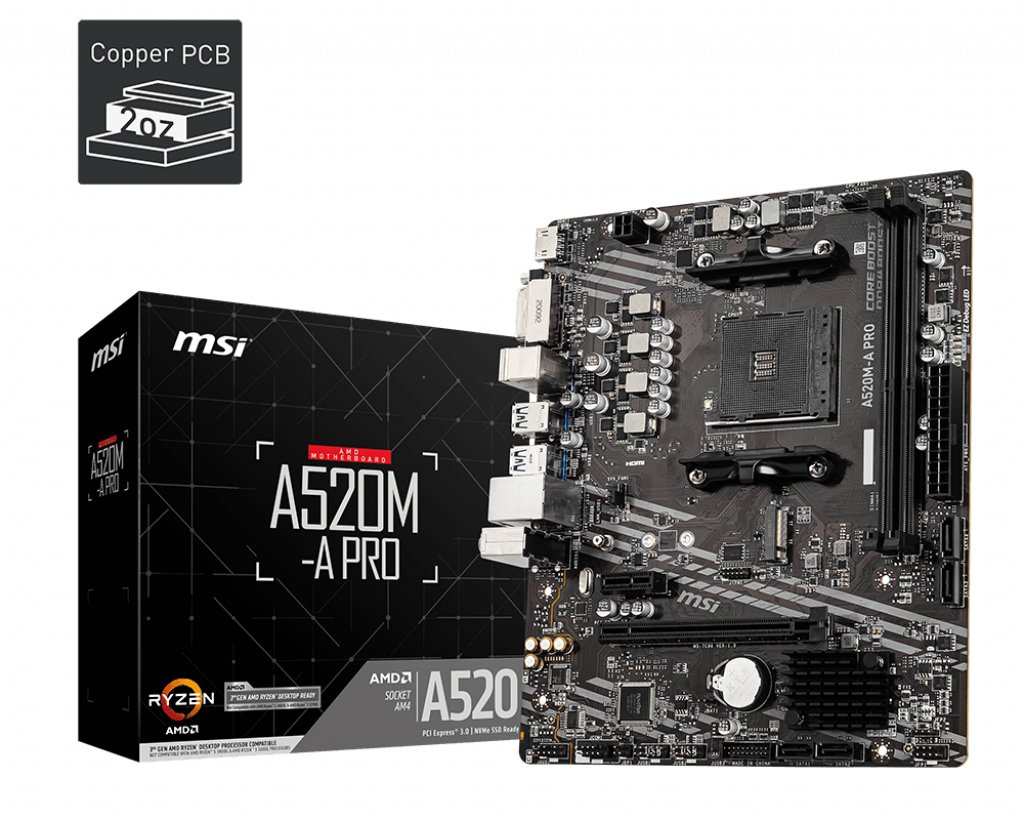

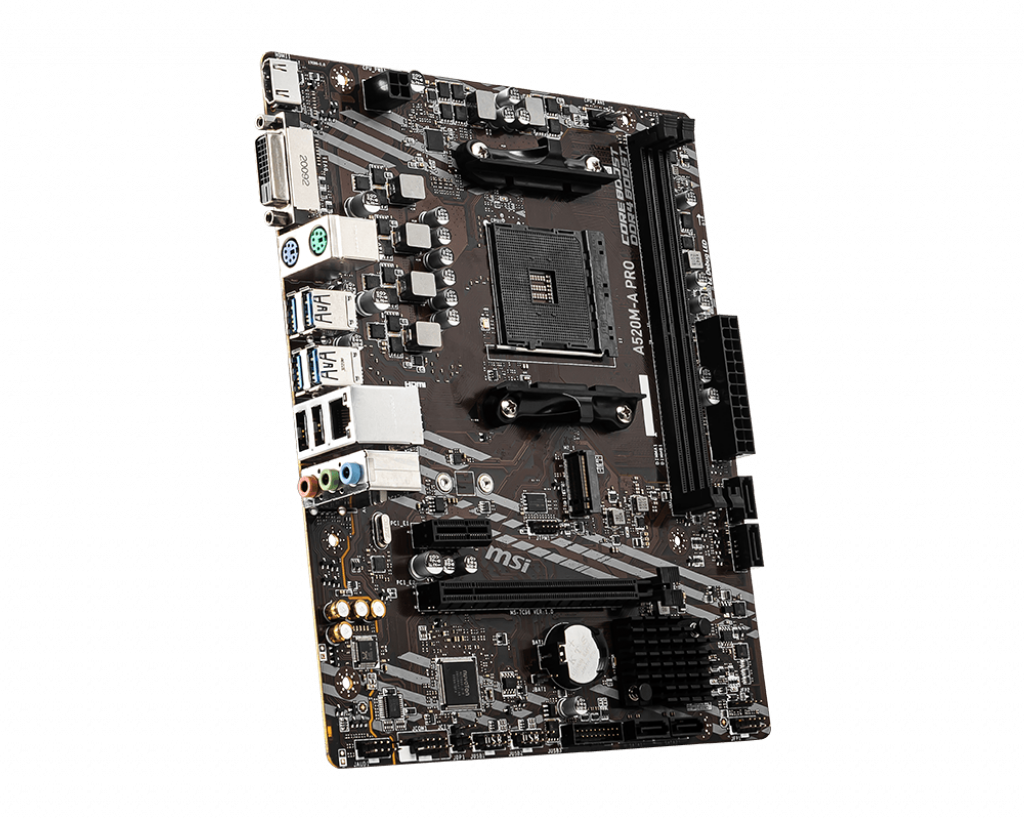

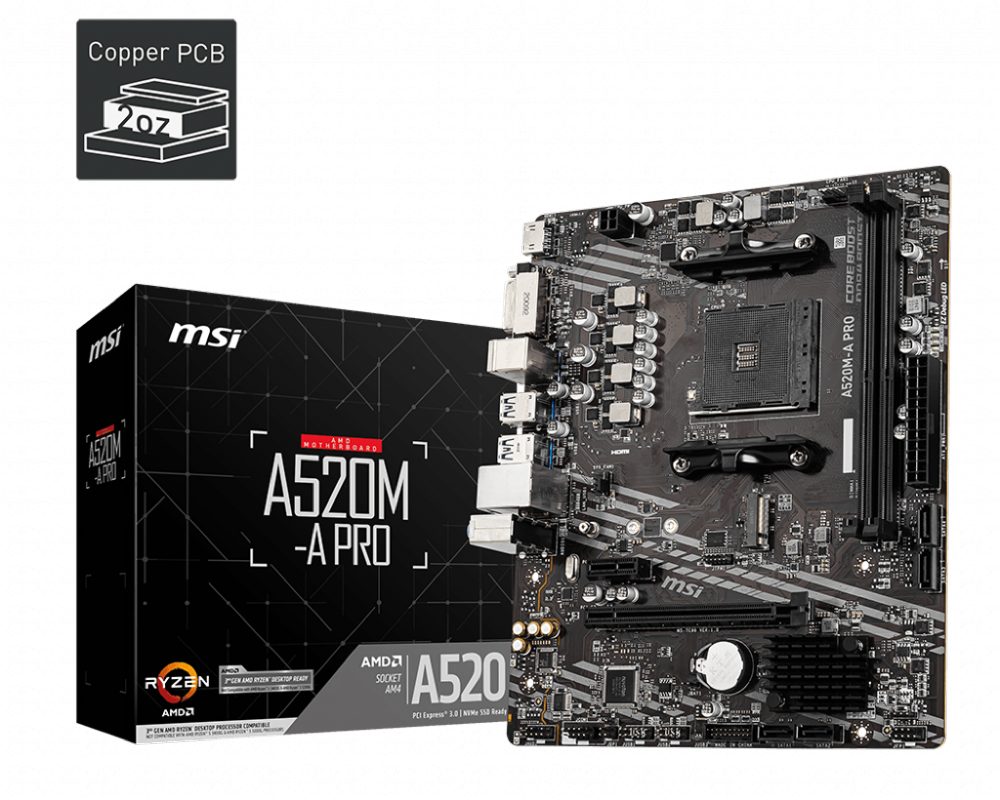

Дънна платка MSI A520M-A PRO /AM4

MSI A520M-A PRO /AM4

• Аудио:
  • Realtek® ALC892/ALC897 Codec
  • 7.1-Channel High Definition Audio
• Памет:
  • 2x DDR4 memory slots, support up to 64GB 1
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
  • 1DPC 1R max speed 4600 MHz
  • 1DPC 2R max speed 3866 MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
• Графика:
  • 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12
  • 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
  • Maximum shared memory of 16 GB
• Слотове за разширение:
  • 1x PCIe 3.0 x1 slot 1
  • 1x PCIe x16 slot
• Форм-фактор:
  • Micro-ATX Form Factor
  • 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
• Чипсет: AMD A520 Chipset
• Съхранение:
  • AMD A520 Chipset
  • 4x SATA 6Gb/s ports
  • 1x M.2 slot (Key M) (from AMD Processor)
  • Supports PCIe 3.0 1
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices

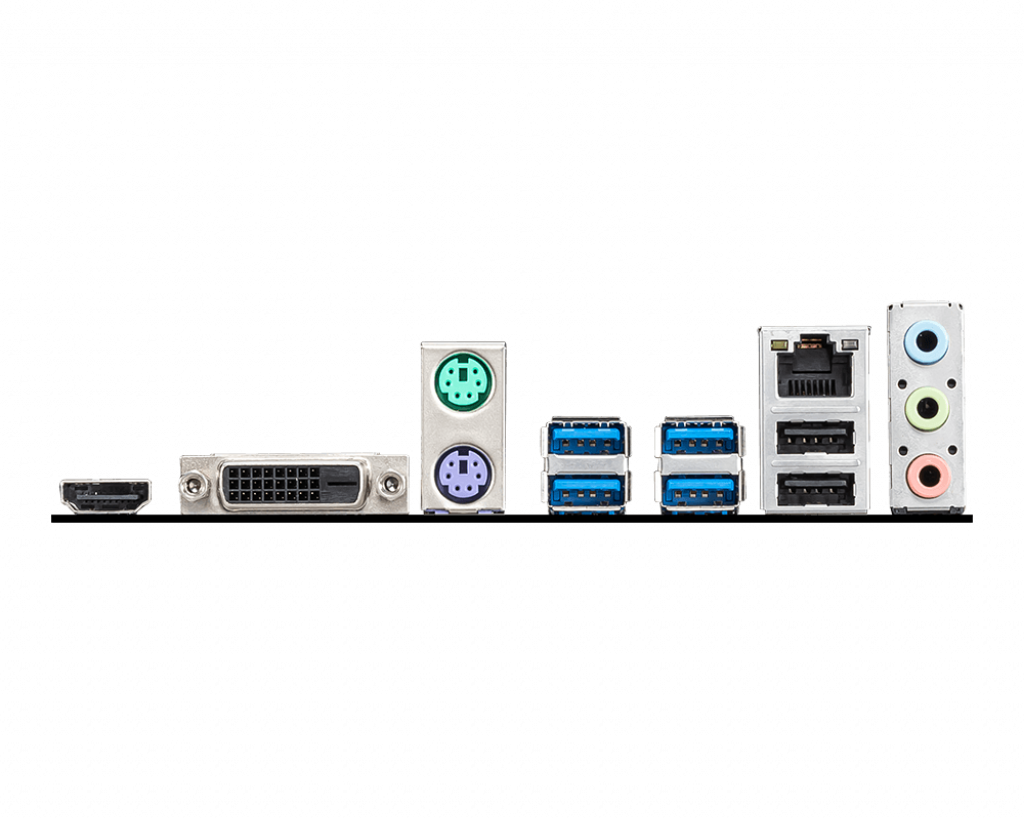

• Портове отзад:
  • LAN port
  • HDMI
  • DVI-D
  • Keyboard / Mouse
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 2.0 Ports
  • Audio Connectors
• Конектори:
  • 1x 24-pin ATX main power connector
  • 1x 4-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1xTPM module connector
  • 1x Clear CMOS jumper
• Мрежа (LAN): 1x Realtek® RTL8111H Gigabit LAN controller
