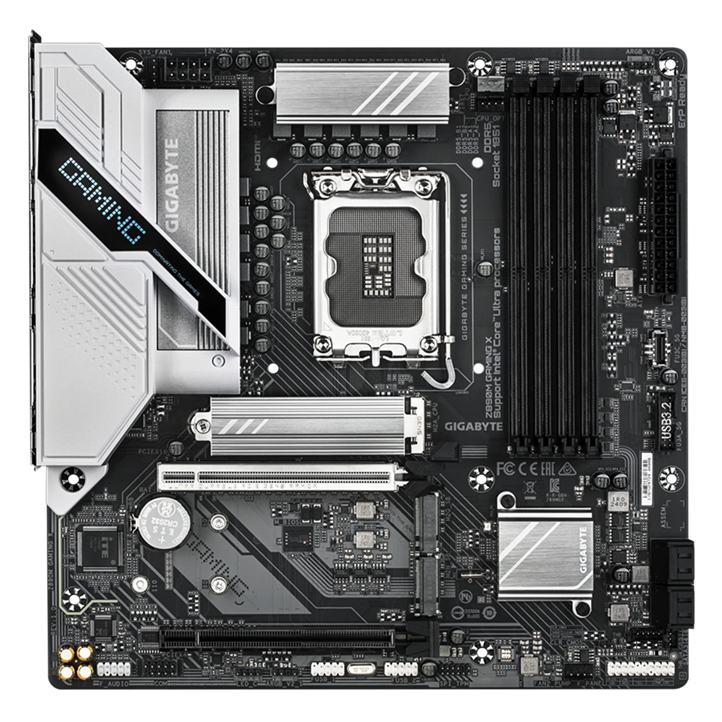

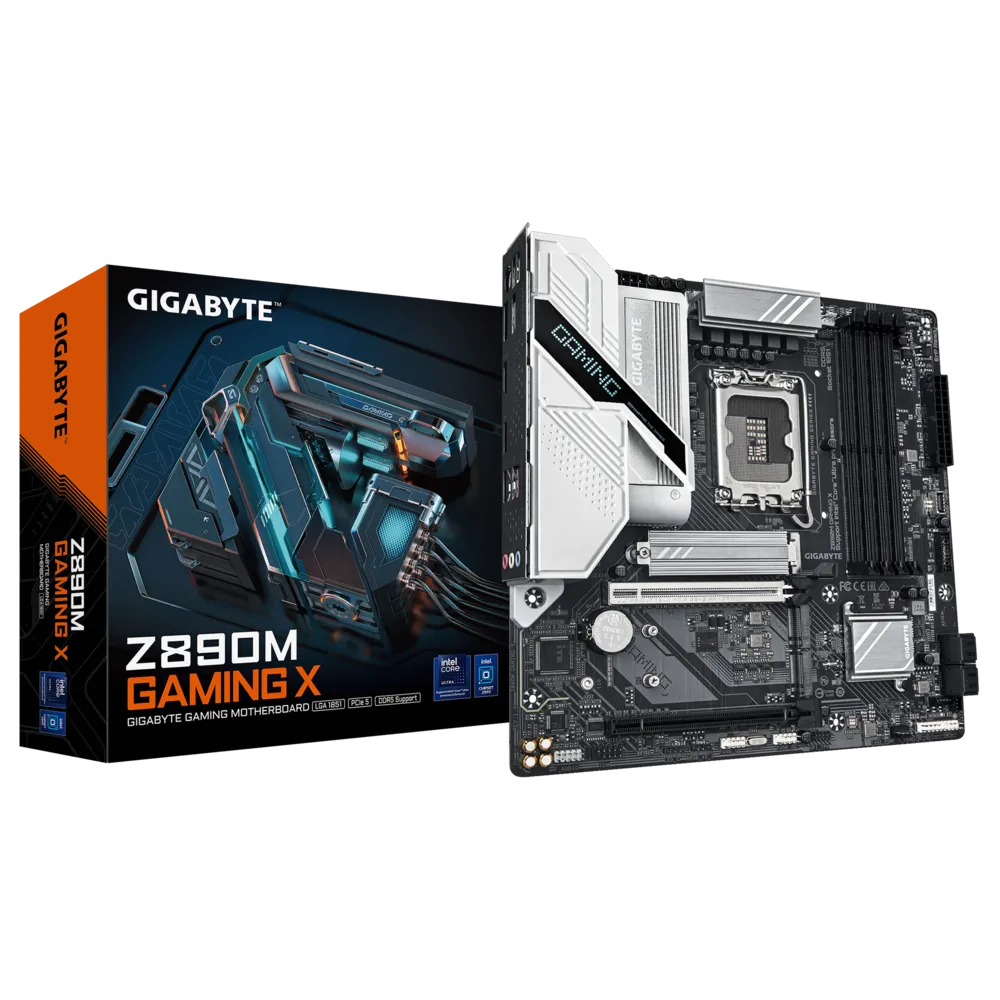

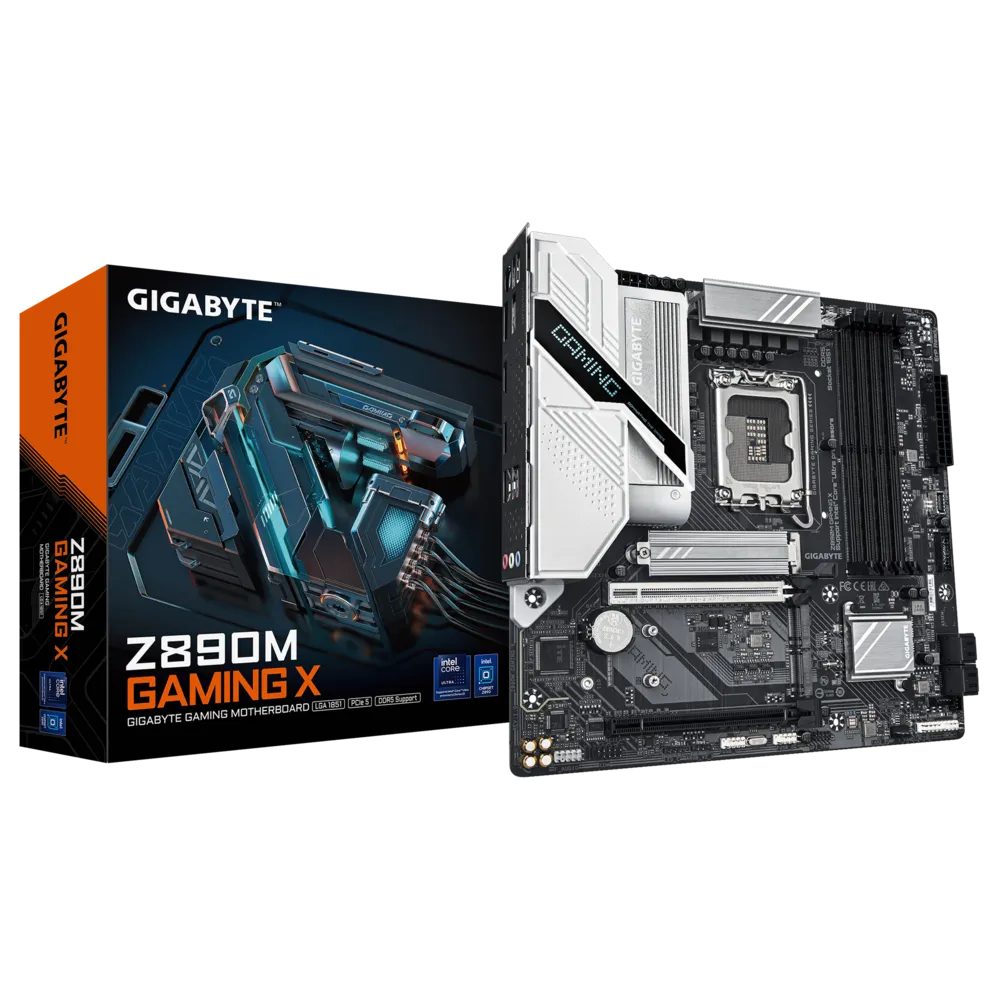

Дънна платка GB Z890M GAMING X /LGA1851

GB Z890M GAMING X /LGA1851

• Операционна система:
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
• Аудио:
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings
• Памет:
  • Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • Support CUDIMM memory module
  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
• Графика:
  • Integrated Graphics Processor-Intel® HD Graphics support
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version and HDCP 2.3.
  • ** Support for native HDMI 2.1 TMDS compatible ports.
  • 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
  • * Support for DisplayPort 2.1 version.
  • (Graphics specifications may vary depending on CPU support.)
  • Support for up to triple-display at the same time
• Слотове за разширение:
  • CPU
  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  • * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
• Форм-фактор:
  • \t Micro ATX Form Factor
  • 24.4cm x 24.4cm
• Чипсет: Intel® Z890 Express Chipset
• Съхранение:
  • CPU
  • 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  • Chipset
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
  • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

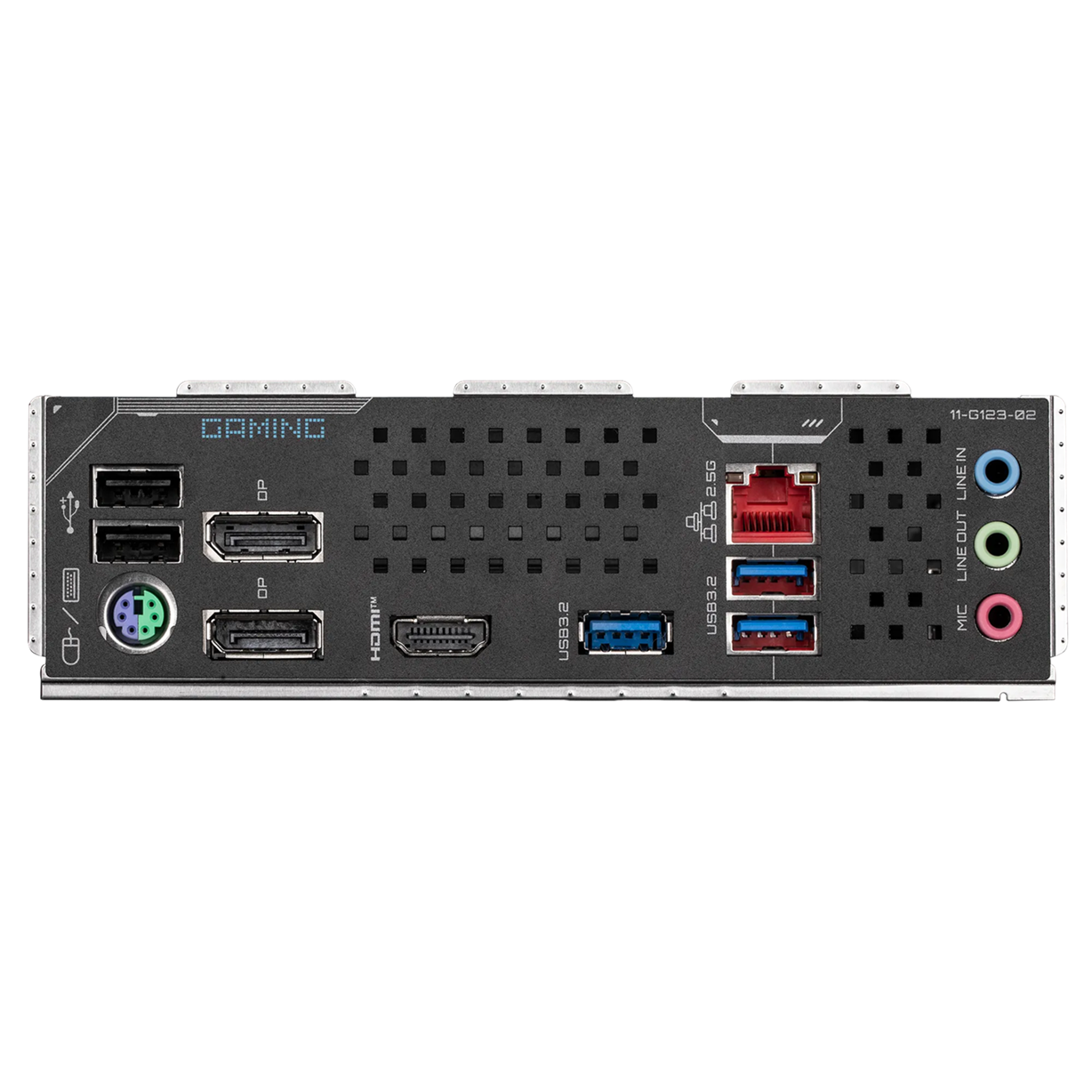

• Портове отзад:
  • Chipset
  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  • 2 x USB 2.0/1.1 ports on the back panel
  • Chipset+2 USB 2.0 Hubs
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
• Конектори:
  • iTE® I/O Controller Chip
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 1 x system fan header
  • 1 x system fan/water cooling pump header
  • 2 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 3 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 2 x Thunderbolt™ add-in card connectors
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper
• Мрежа (LAN): Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• BIOS:
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
