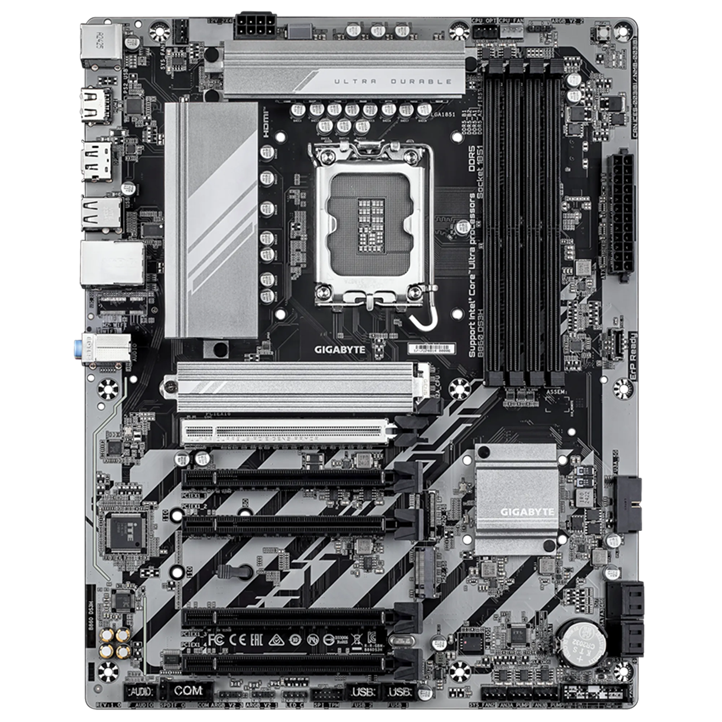

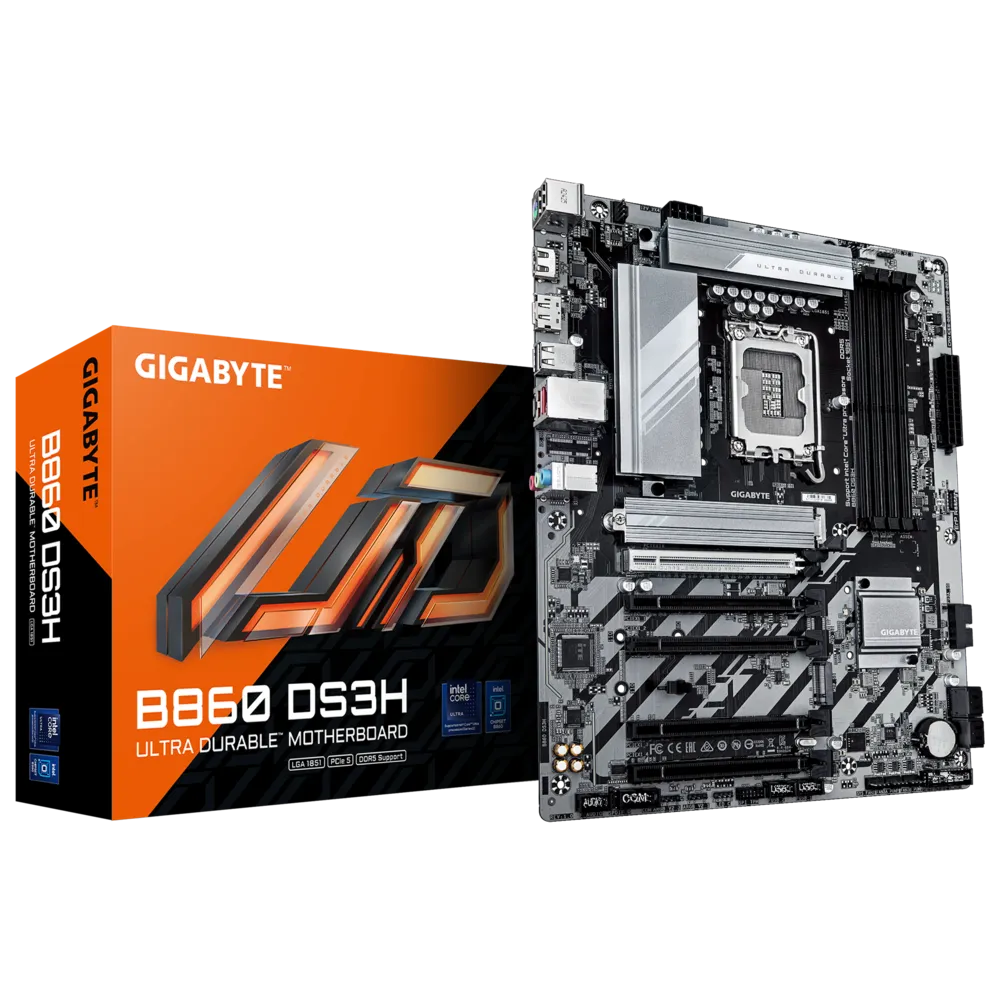

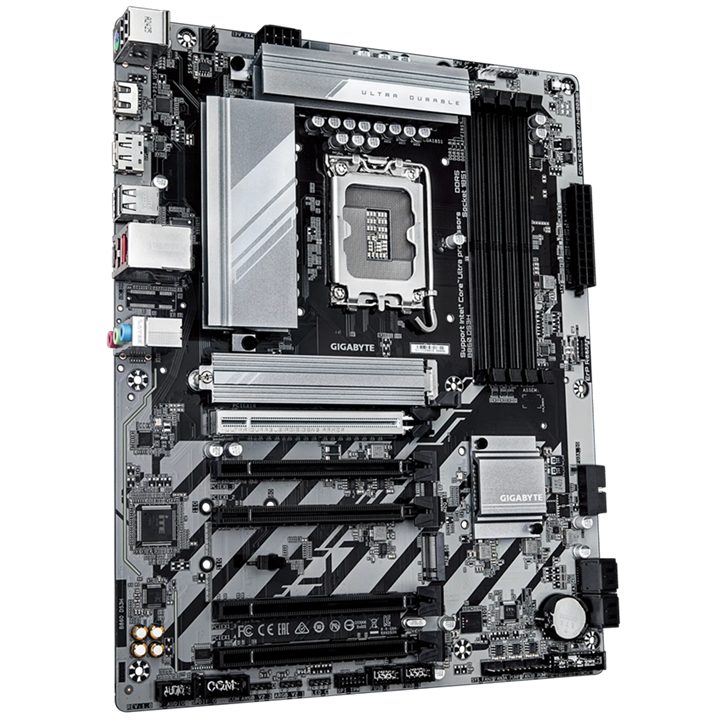

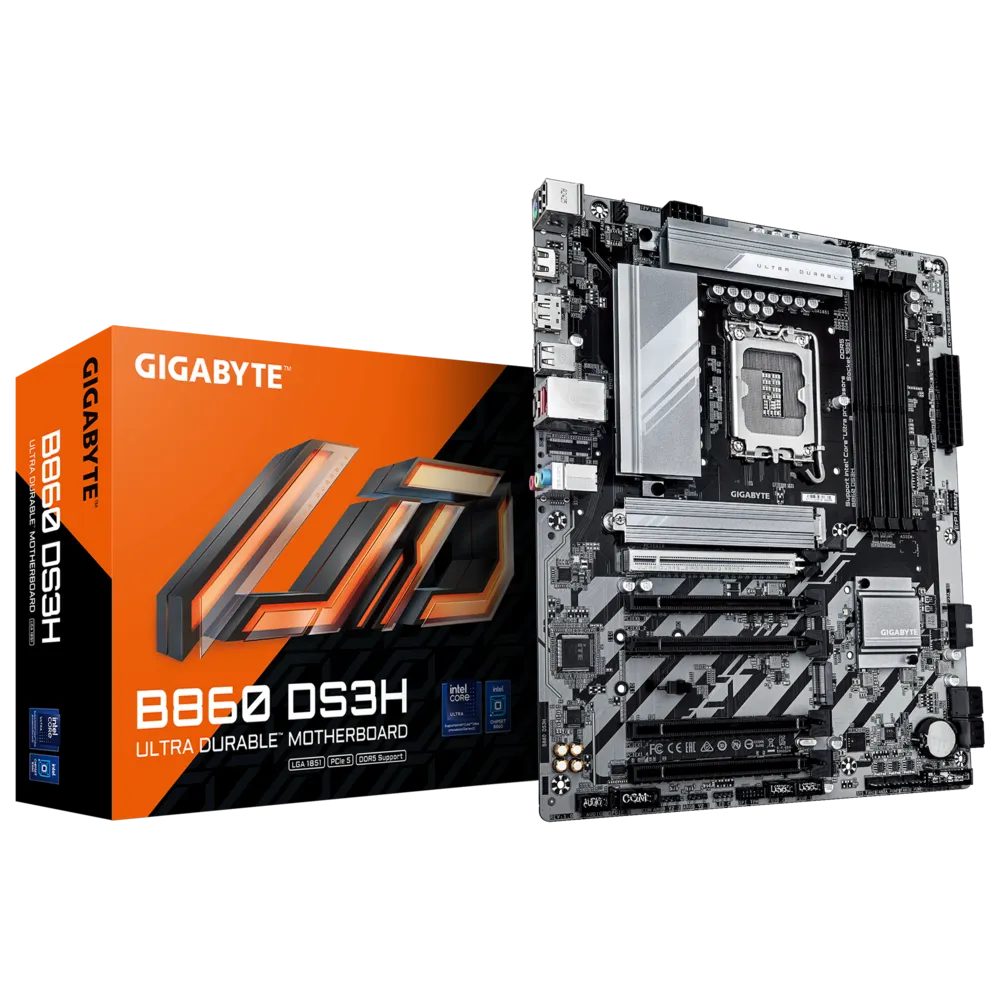

Дънна платка GB B860 DS3H /LGA1851

GB B860 DS3H /LGA1851

• Операционна система:
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
  • * The Intel® NPU driver is only supported on Windows 11
  • Software: Norton® Internet Security (OEM version)
  • LAN bandwidth management software
• Аудио:
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • Support for S/PDIF Out
• Памет:
  • Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
• Графика:
  • Integrated Graphics Processor-Intel® HD Graphics support
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version and HDCP 2.3.
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  • * Support for DisplayPort 2.1 version.
• Слотове за разширение:
  • CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  • * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset:
  • 4 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1~PCIEX1_4)
• Форм-фактор:
  • ATX Form Factor
  • 30.5cm x 24.4cm
• Поддържани процесори:
  • LGA1851 socket: Support for Intel® Core™ Ultra Processors
  • L3 cache varies with CPU
• Чипсет: Intel® B860 Express Chipset
• Съхранение:
  • CPU:
  • 1 x M.2 connector (Socket 3, M key, type 25110/ 22110/ 2580/ 2280 PCIe 5.0 x4/ x2 SSD support) (M2A_CPU)
  • Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 25110/ 22110/ 2580/ 2280 PCIe 4.0 x4/ x2 SSD support) (M2P_SB)
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

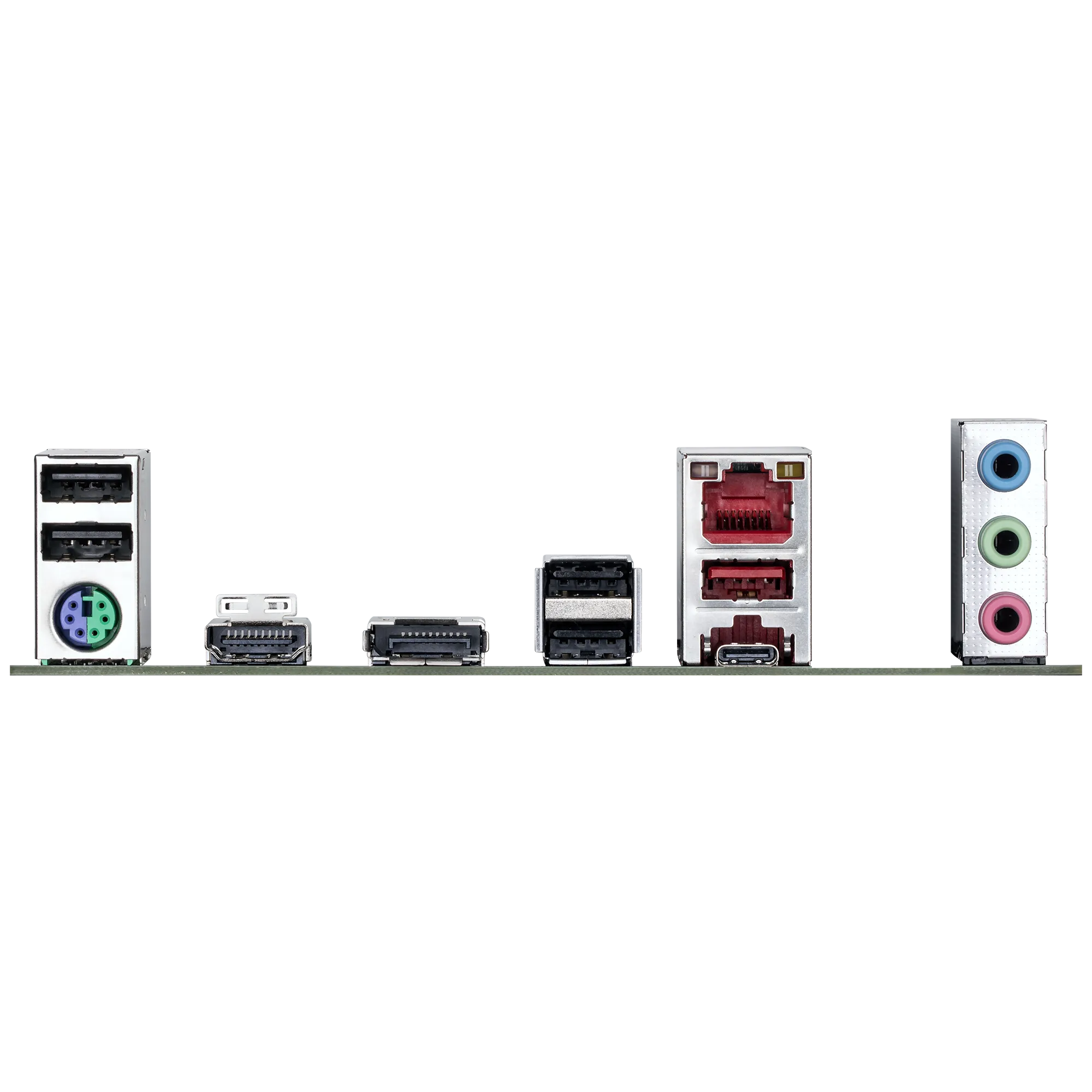

• Портове отзад: iTE® I/O Controller Chip
• Конектори:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 2 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel heade
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x serial port header
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
• Мрежа (LAN): Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• BIOS:
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• USB:
  • Chipset:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 4 x USB 2.0/1.1 ports on the back panel
  • Chipset+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
