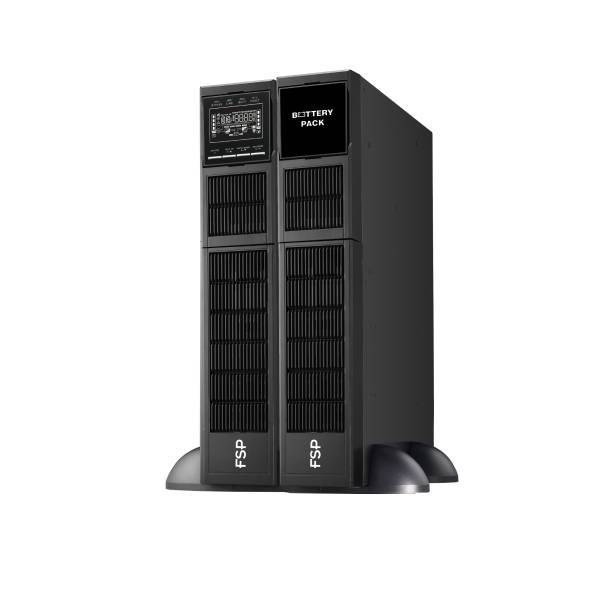

UPS FORTRON CLIPPERS RT 1K ON-LINE

FORTRON CLIPPERS RT 1K ON-LINE

• Капацитет: 1000 VA / 1000W
• Input:
  • Input Voltage Range:160-300 VAC ±5%
  • Input Frequency:40Hz ~ 70Hz
  • Power Factor:? 0.99 @ Nominal Voltage (100% load)
• Output:
  • Output Voltage:± 1% (Batt. Mode)
  • Output Frequency:Range\t46 Hz ~ 54 Hz or 56Hz ~ 64 Hz (Synchronized Range) 50 Hz or 60 Hz ±0.1 Hz (Batt. Mode)
  • Current Crest Ratio:3:1
  • Harmonic Distortion:? 2 % THD (Linear Load),? 4 % THD (Non-linear Load)
  • Output Transfer Time (Typical):Zero (AC to DC),4ms (Inverter to Bypass)
  • Output Waveform (Batt. Mode):Pure Sinewave
• Батерия:
  • Battery Type & Number:12V / 9Ah x 2
  • EMC/ Safety:EMC EN62040-2 C2 for CE models
  • Typical Recharge Time (up to 90% capacity):3 hours
  • Indicators / AC Mode-YES
  • Indicators / Battery Mode-YES
  • Indicators / Battery level-YES
  • Indicators / Load level-YES
  • Indicators / Bypass mode-YES
  • Indicators / Fault-YES
  • Alarm / Battery Mode:Sounding every 4 seconds
  • Alarm / Low Battery:Sounding every second (Batt. Mode)
• Alarms:
  • Alarm / Overload:Sounding twice per second
  • Alarm / Fault:Continuously sounding
• Environment:
  • Backup Time:Full load up to 33 minutes (with 2 external battery pack)
  • Operating Environment / Humidity:20-90 % RH @ 0- 40°C (non-condensing)
  • Operating Environment / Noise Level:50dB @ 1 Meter
• Размери: 438 x 88 x 410 mm
• Тегло: 11.60 kg
• Други:
  • Supports Windows® 98/XP/2000/Vista/7/8/10, Windows® Server 2000/2003/2008/2012/2016, Linux, and MAC
  • Optional SNMP\t:Power management from SNMP manager and web browser
