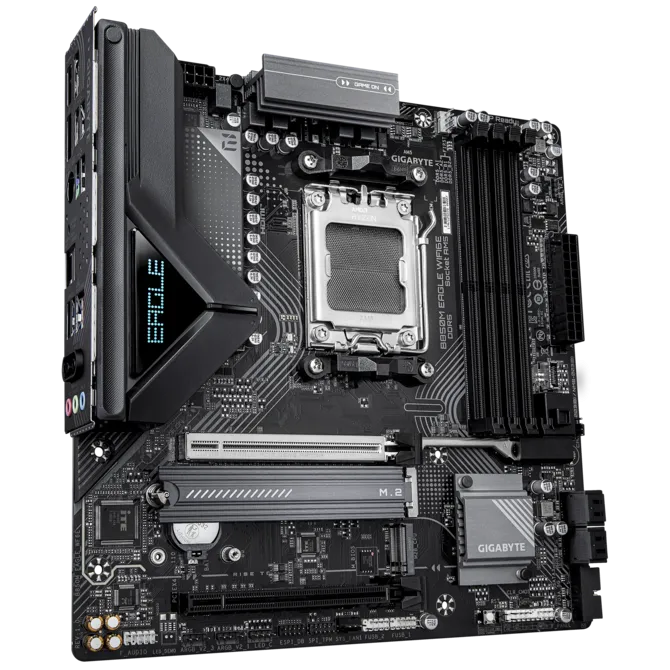

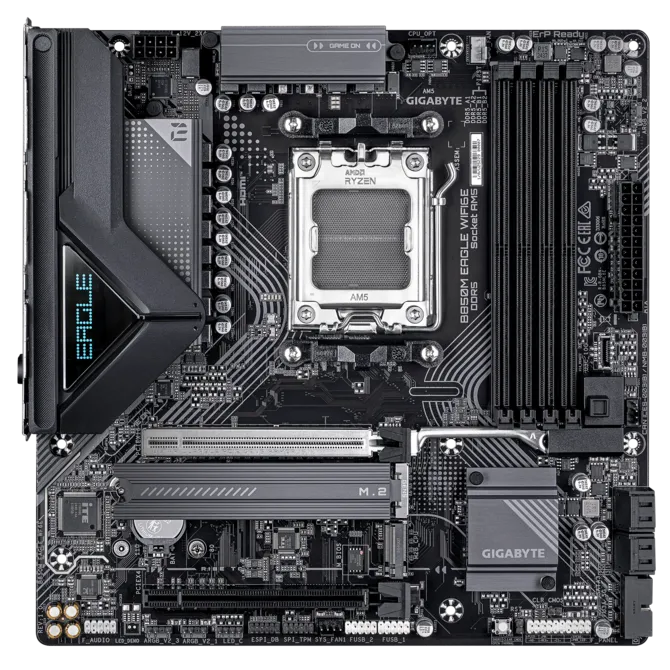

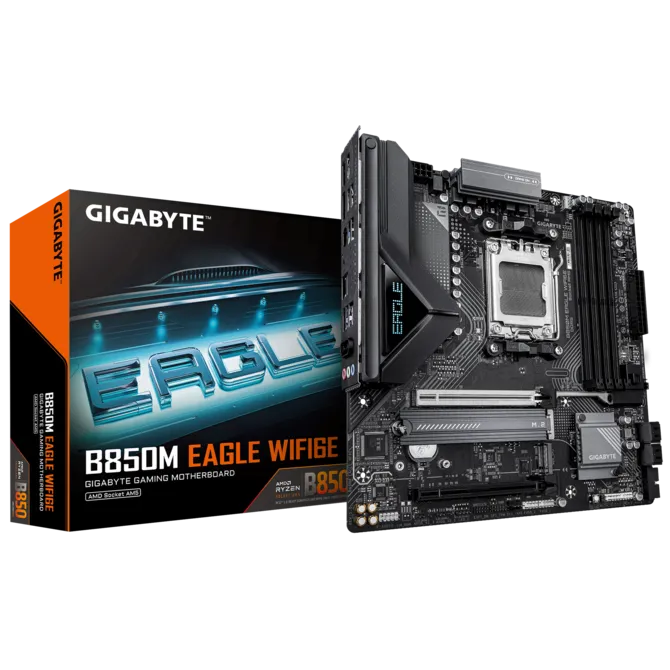

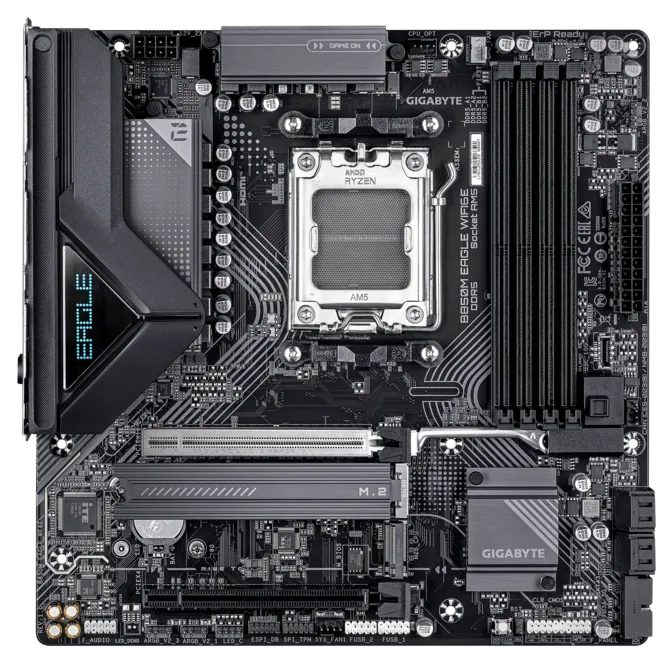

Дънна платка GB B850M EAGLE WF6E

GB B850M EAGLE WF6E

• Безжична връзка:
  • Realtek® Wi-Fi 6E RTL8852CE
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard
• Bluetooth: 5.3
• Операционна система:
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
• Аудио:
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
• Памет:
  • Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
• Графика:
  • Integrated Graphics Processor with AMD Radeon™ Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version and HDCP 2.3, and HDR.
  • ** Support for native HDMI 2.1 TMDS compatible ports.
  • 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
  • * Support for DisplayPort 1.4 version.
  • (Graphics specifications may vary depending on CPU support.)
  • Support for up to triple-display at the same time
• Слотове за разширение:
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  • * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset:
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
• Форм-фактор:
  • Micro ATX Form Factor
  • 24.4cm x 24.4cm
• Поддържани процесори:
  • AMD Socket AM5, support for:
  • AMD Ryzen™ 9000 Series Processors/
  • AMD Ryzen™ 8000 Series Processors/
  • AMD Ryzen™ 7000 Series Processors
• Чипсет: AMD B850
• Съхранение:
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  • 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  • * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• Портове отзад: iTE® I/O Controller Chip
• Конектори:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 1 x system fan header
  • 1 x system fan/water cooling pump header
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 4 x SATA 6Gb/s connectors
  • 2 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

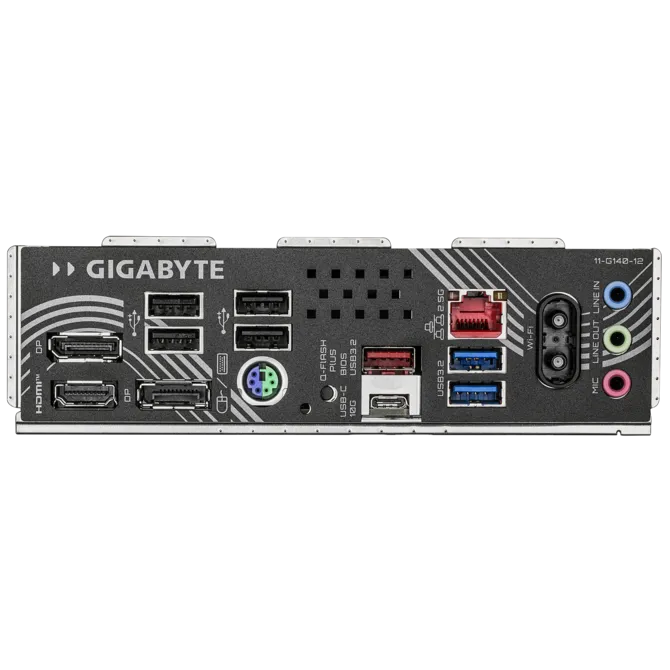

  • Back Panel Connectors
• Мрежа (LAN): Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• BIOS:
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• USB:
  • CPU:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • CPU+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports on the back panel
  • Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
