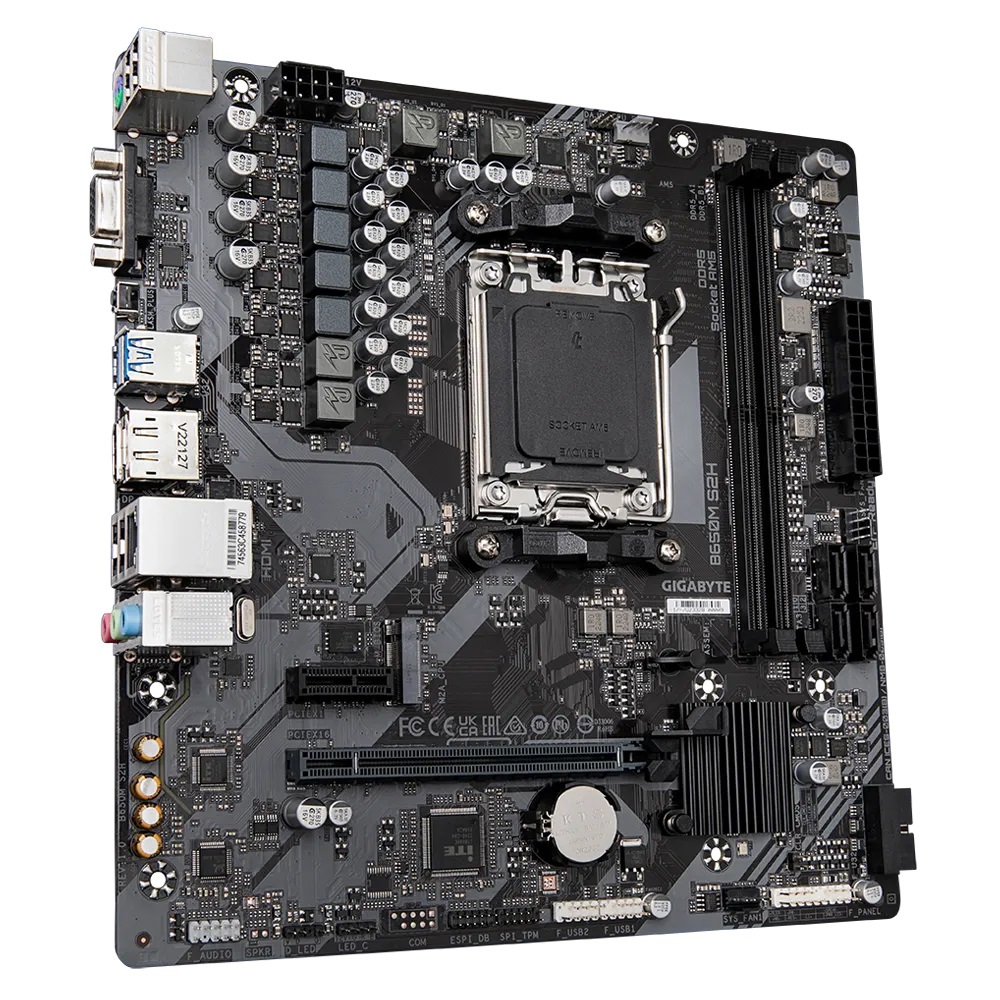

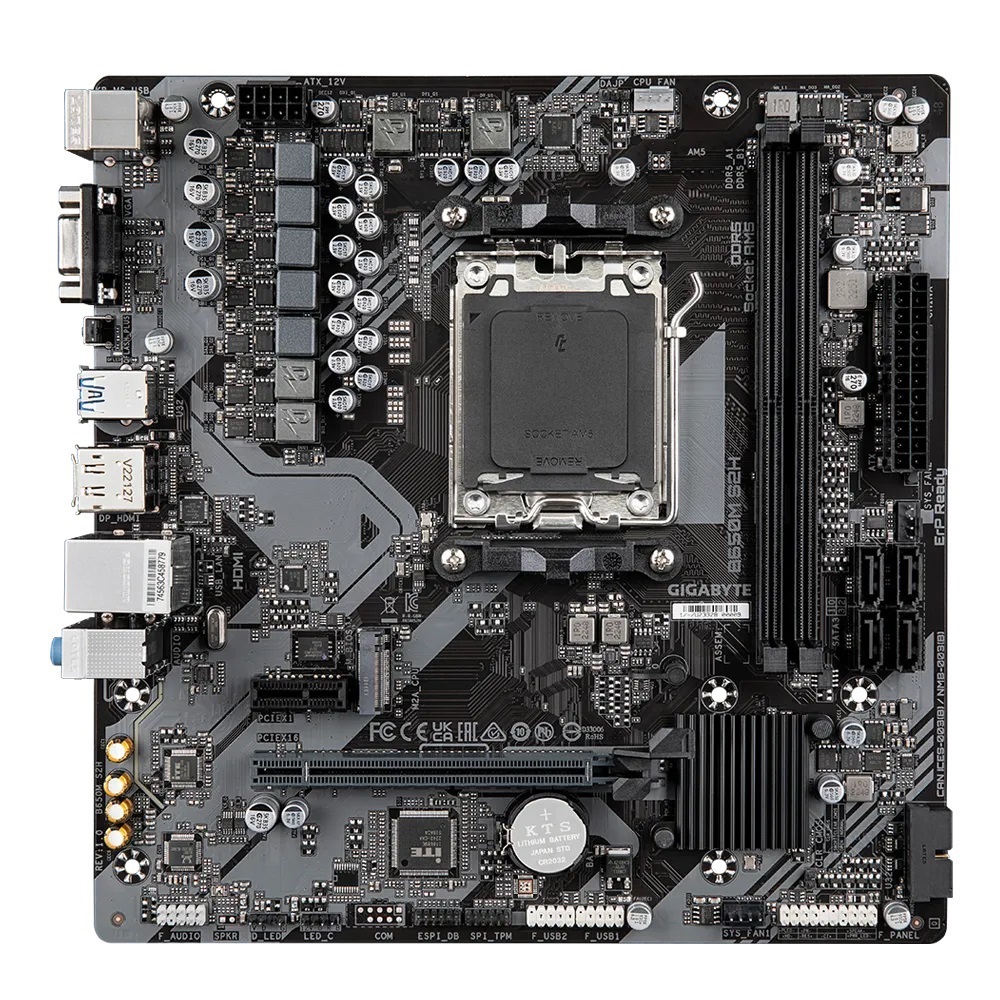

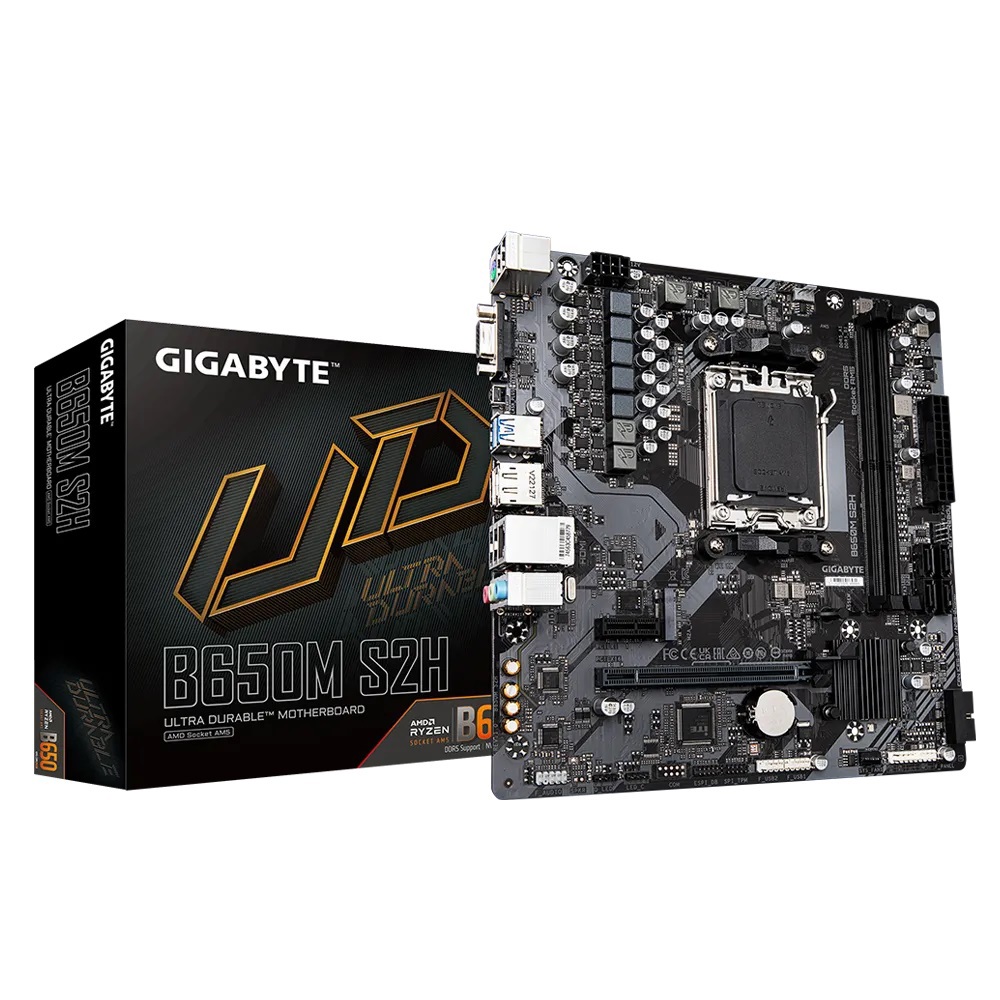

Дънна платка GB B650M S2H /AM5

GB B650M S2H /AM5

• Операционна система:
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
• Аудио:
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
• Памет:
  • Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  • 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE`s website for more information.)
• Графика:
  • Integrated Graphics Processor: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  • * Support for DisplayPort 1.4 version.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version and HDCP 2.3.
  • ** Support for native HDMI 2.1 TMDS compatible ports.
  • (Graphics specifications may vary depending on CPU support.)
  • Support for up to 3 displays at the same time
• Слотове за разширение:
  • CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  • Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Форм-фактор:
  • Micro ATX Form Factor
  • 23.0cm x 22.5cm
• Чипсет: AMD B650
• Съхранение:
  • CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
  • Chipset: - 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices

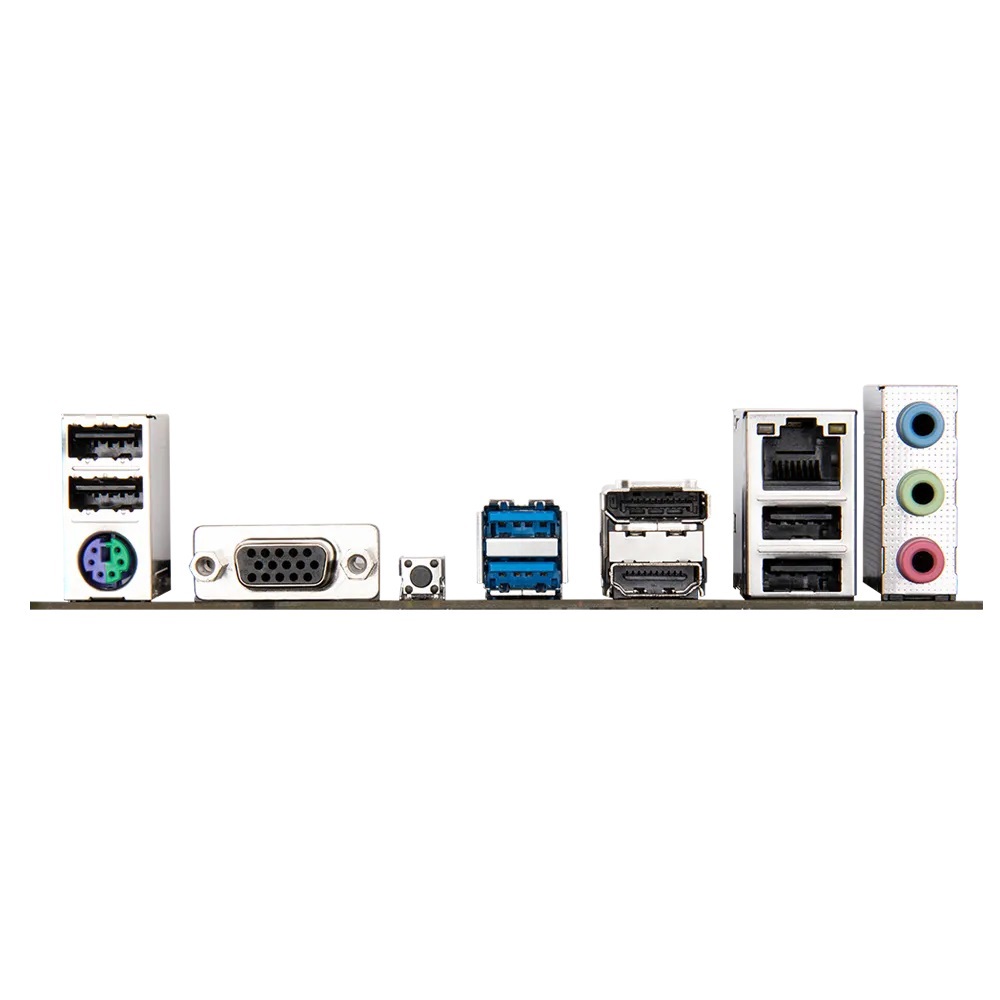

• Портове отзад:
  • 4 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x Q-Flash Plus button
  • 2 x USB 3.2 Gen 1 ports
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x RJ-45 port
  • 3 x audio jacks
• Конектори:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x addressable LED strip header
  • 1 x RGB LED strip header
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
  • 1 x Clear CMOS jumper
• Мрежа (LAN): Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• BIOS:
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
