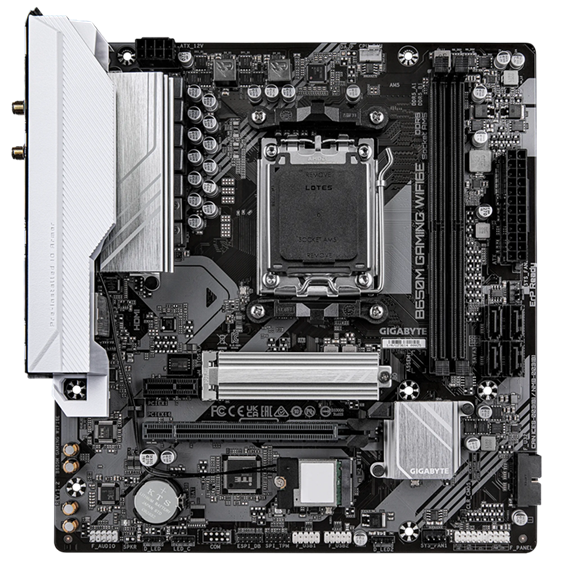

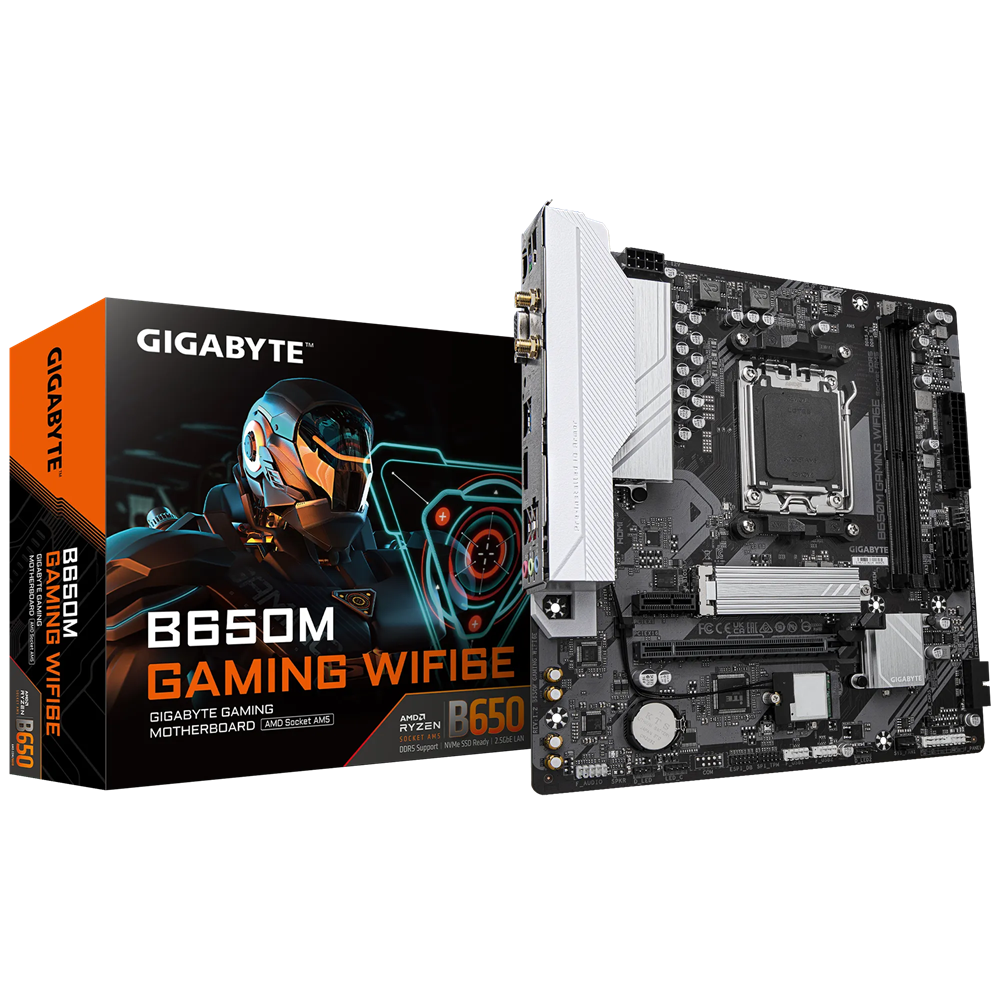

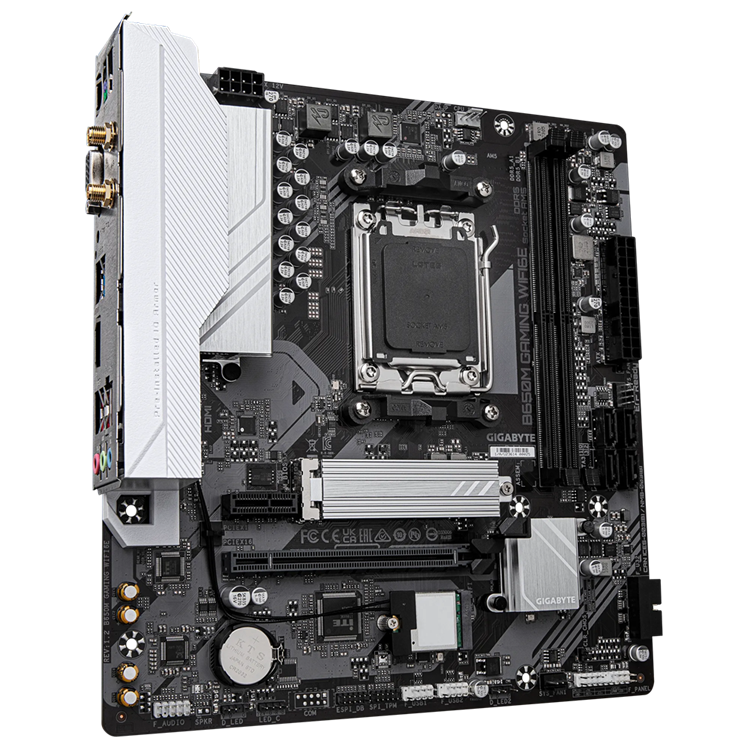

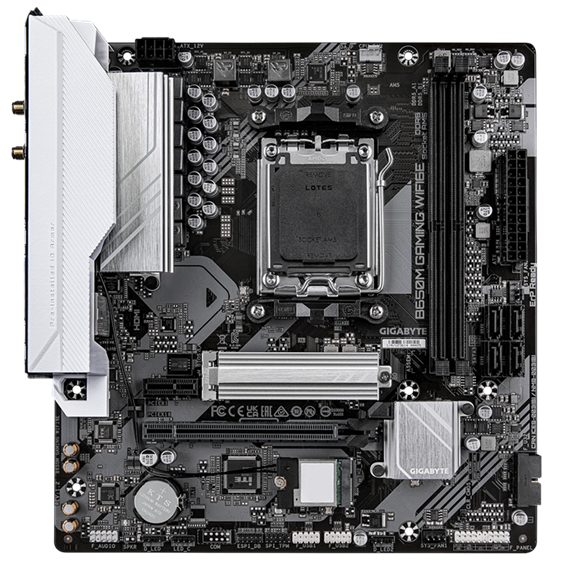

Дънна платка GB B650M GAMING WIFI6E / AM5

GB B650M GAMING WIFI6E / AM5

• Безжична връзка:
  • Realtek® Wi-Fi 6E RTL8852CE
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless
• Bluetooth: 5.3
• Операционна система:
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
• Аудио:
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
• Памет:
  • Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  • 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
  • Memory Profile (XMP) memory modules
• Графика:
  • Integrated Graphics Processor with AMD Radeon™ Graphics support
  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• Слотове за разширение:
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset:
  • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Форм-фактор:
  • Micro ATX Form Factor
  • 24.0cm x 22.5cm
• Поддържани процесори:
  • AMD Socket AM5, support for:
  • AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
• Чипсет: AMD B650
• Съхранение:
  • 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• Портове отзад: iTE® I/O Controller Chip
• Конектори:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 2 x addressable LED strip headers
  • 1 x RGB LED strip header
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x Clear CMOS jumper

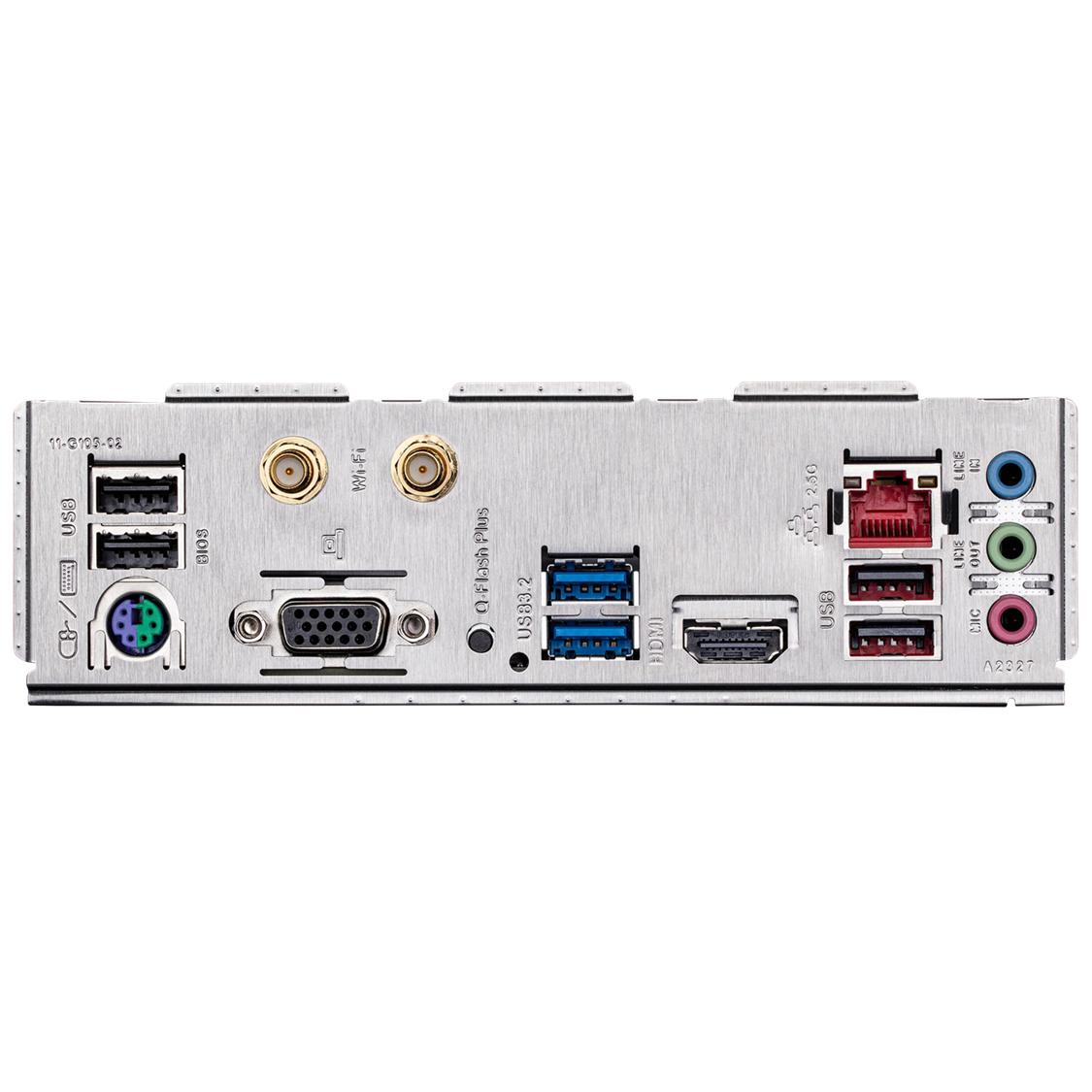

  • Back Panel Connectors
  • 4 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x Q-Flash Plus button
  • 2 x USB 3.2 Gen 1 ports
• Мрежа (LAN): Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• BIOS:
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• USB:
  • CPU:
  • 2 x USB 3.2 Gen 1 ports on the back panel
  • 1 x USB 2.0/1.1 port on the back panel
  • Chipset:
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  • Chipset+USB 2.0 Hub:
  • 2 x USB 2.0/1.1 ports available through the internal USB header
