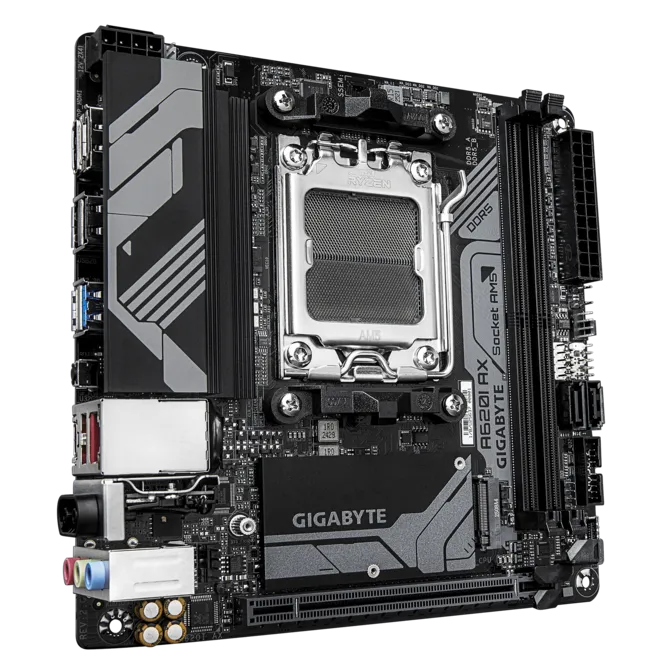

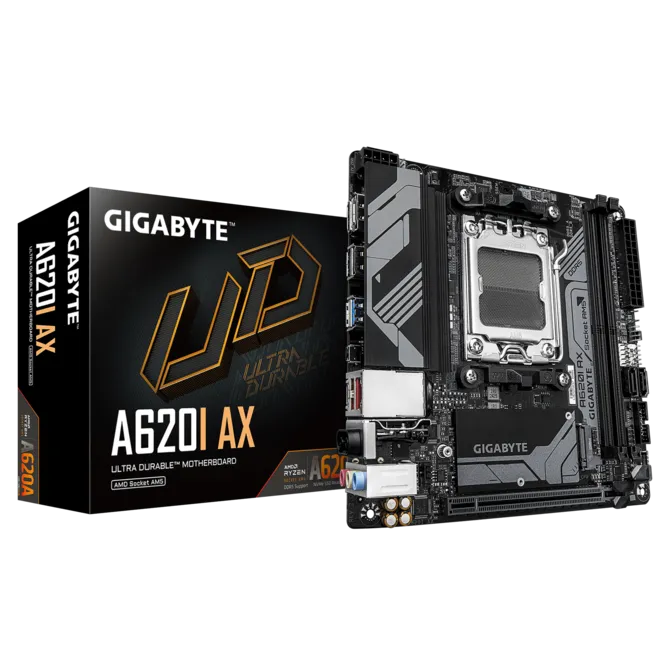

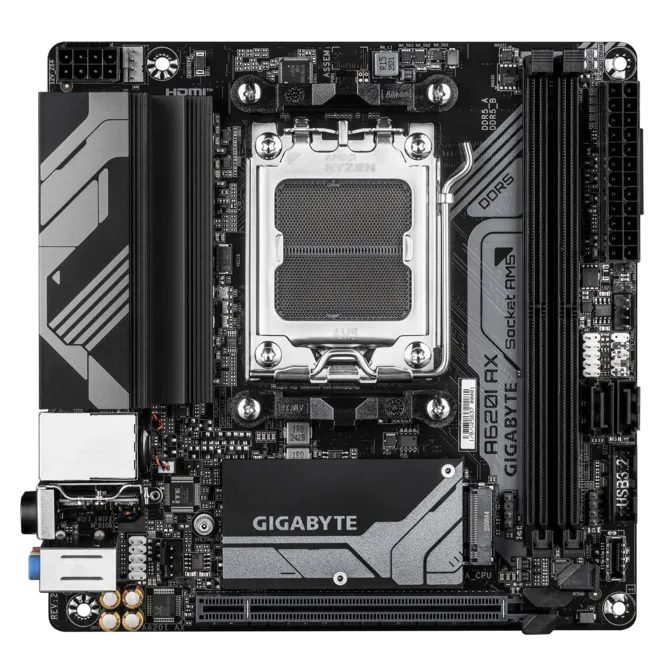

Дънна платка GB A620I AX / AM5

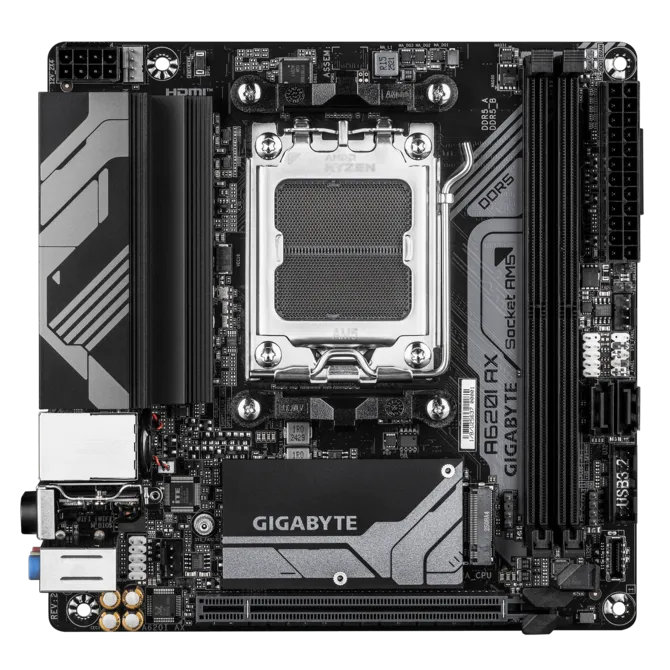

GB A620I AX / AM5

• Безжична връзка:
  • Realtek® Wi-Fi 6E RTL8852CE
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.4
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  • (Actual data rate may vary depending on environment and equipment.)
  • * Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
• Bluetooth: 5.4
• Операционна система:
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
• Аудио:
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
• Памет:
  • Support for DDR5 8000(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
  • 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
• Графика:
  • Integrated Graphics Processor with AMD Radeon™ Graphics support:
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  • * Support for DisplayPort 1.4 version.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version and HDCP 2.3.
  • ** Support for native HDMI 2.1 TMDS compatible ports.
  • (Graphics specifications may vary depending on CPU support.)
• Слотове за разширение:
  • 1 x PCI Express x16 slot, integrated in the CPU:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  • * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
• Форм-фактор:
  • Mini-ITX Form Factor
  • 17.0cm x 17.0cm
• Поддържани процесори:
  • AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
  • (Go to GIGABYTE's website for the latest CPU support list.)
• Чипсет: AMD A620A
• Съхранение:
  • 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  • 2 x SATA 6Gb/s connectors
• Портове отзад: iTE® I/O Controller Chip
• Конектори:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x addressable RGB Gen2 LED strip header
  • 1 x RGB LED strip header
  • 1 x M.2 Socket 3 connector
  • 2 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x speaker header
  • 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
  • 1 x chassis intrusion header

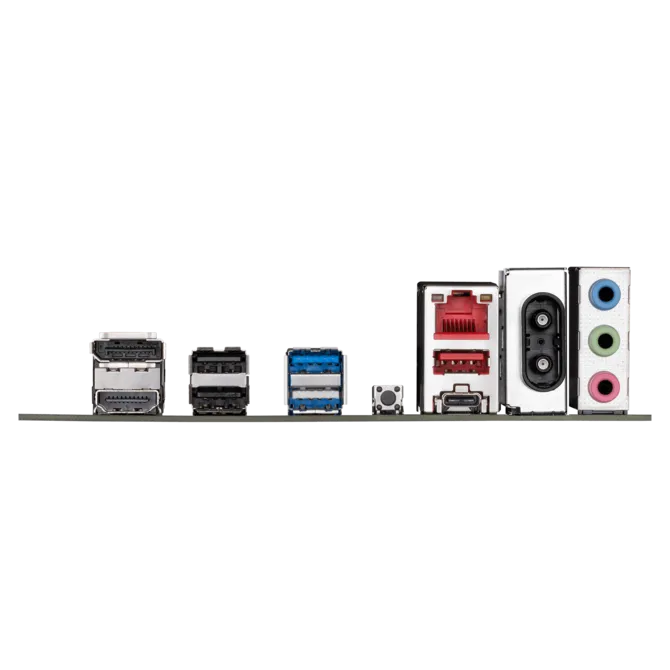

  • Back Panel Connectors:
  • 1 x DisplayPort (Note)
  • 1 x HDMI port (Note)
• Мрежа (LAN): Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• BIOS:
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• RAID:
  • RAID 0 and RAID 1 support for NVMe SSD storage devices
  • RAID 0 and RAID 1 support for SATA storage devices
• USB:
  • CPU:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 1 x USB 2.0/1.1 port on the back panel
  • Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
