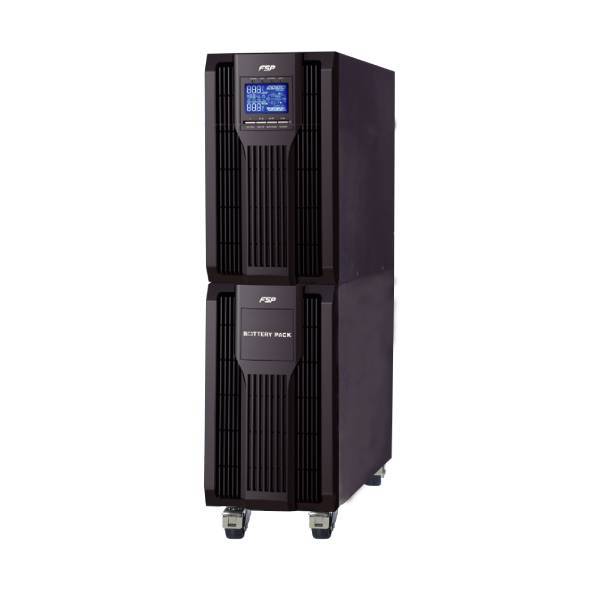

UPS FORTRON CHAMP 10K TOWER ONLINE

FORTRON CHAMP 10K TOWER ONLINE

• Модел: Champ TW 10K
• Капацитет: 10000 VA / 9000W
• Input:
  • Input Voltage Range 110-300 VAC (50% load), 176-300VAC (100% load)
  • Input Frequency 46Hz ~ 54Hz or 56Hz ~ 64Hz
  • Power Factor ≥ 0.99 @ Nominal Voltage (100% load)
• Output:
  • Output Voltage 208/220/230/240 VAC
  • AC Voltage Regulation ±1%
  • Output Frequency Range 46Hz ~ 54Hz or 56Hz ~ 64Hz
  • Current Crest Ratio 3:1
  • Harmonic Distortion ≤ 3 % THD (Linear Load), ≤ 5 % THD (Non-linear Load)
  • Output Transfer Time (Typical) Zero (AC to DC), Zero (Inverter to Bypass)
  • Output Waveform (Batt. Mode) Pure Sinewave
• Батерия:
  • Battery Type 9Ah / 10Ah
  • Numbers 16 – 20pcs(Adjustable)
  • Charging Current (max) 1A, 2A, 4A, 6A (Adjustable,6A only for 16pcs baterries)
  • Charging Voltage 218.4V ±1%(based on 16pcs batteries)
• Alarms:
  • Battery Mode Sounding every 4 seconds
  • Low Battery Sounding every second
  • Overload Sounding twice per second
  • Fault Continuously sounding
• Стандарти: Safety / EMC IEC 62040-1(Safety) / IEC 62040-2 (EMC) / CE
• Environment:
  • Humidity 0-95 % RH @ 0- 40°C (non-condensing)
  • Noise Level Less than 58dB @ 1 Meter
• Размери: 442 x 190 x 318mm (DxWxH)
• Други: Management Supports Windows® 98/XP/2000/Vista/7/8/10, Windows® Server 2000/ 2003/ 2008/ 2012/ 2016, Linux, and MAC
