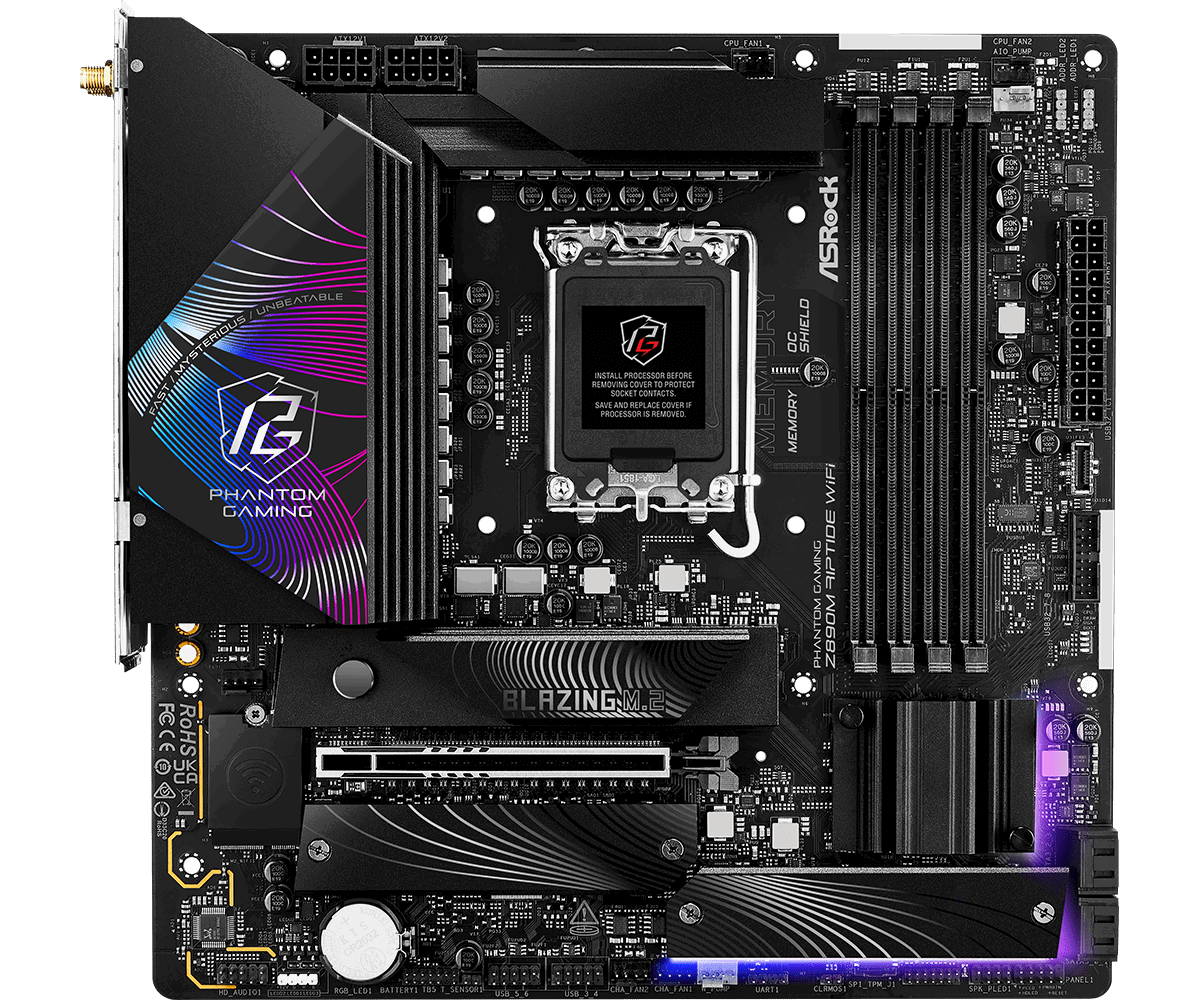

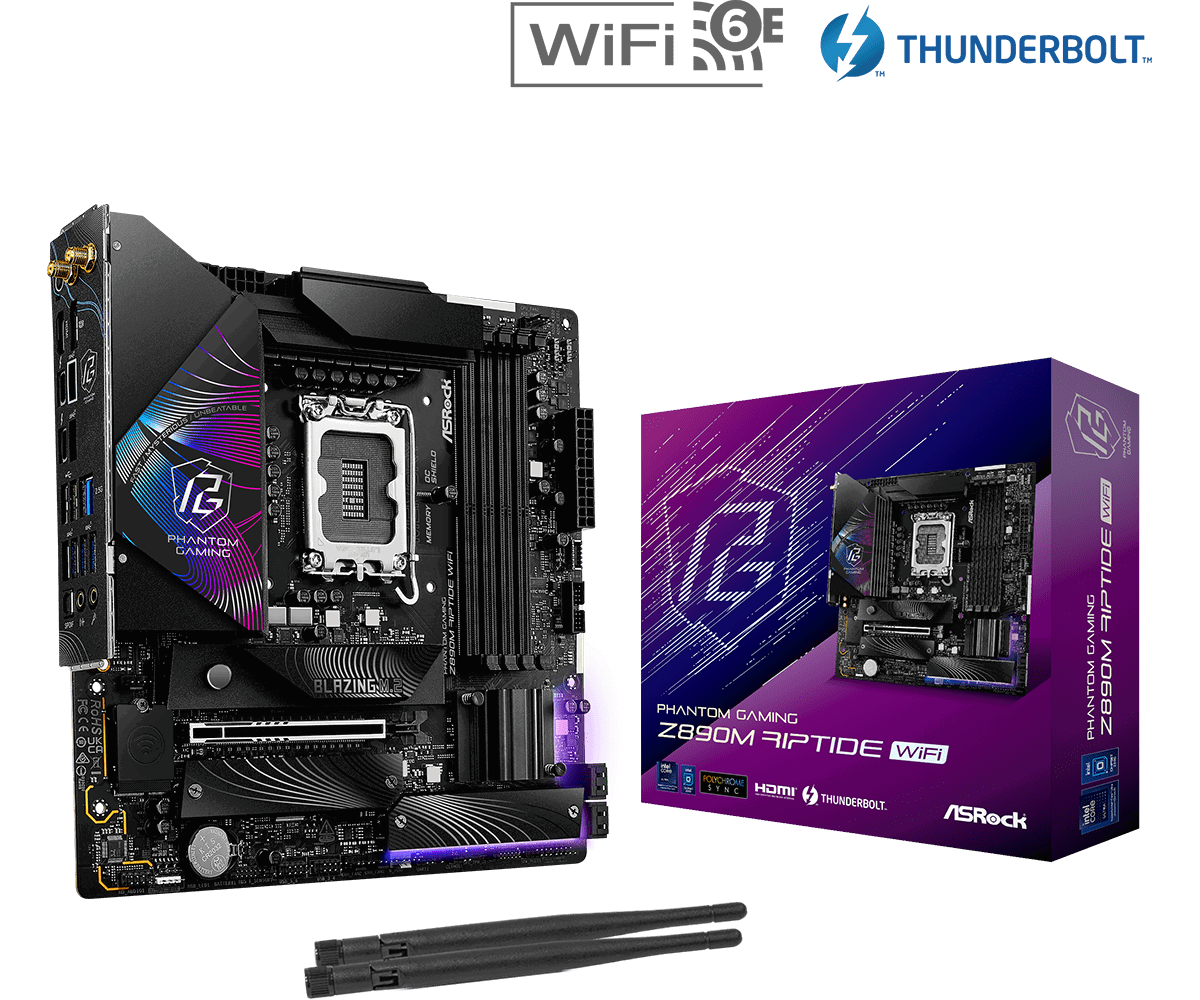

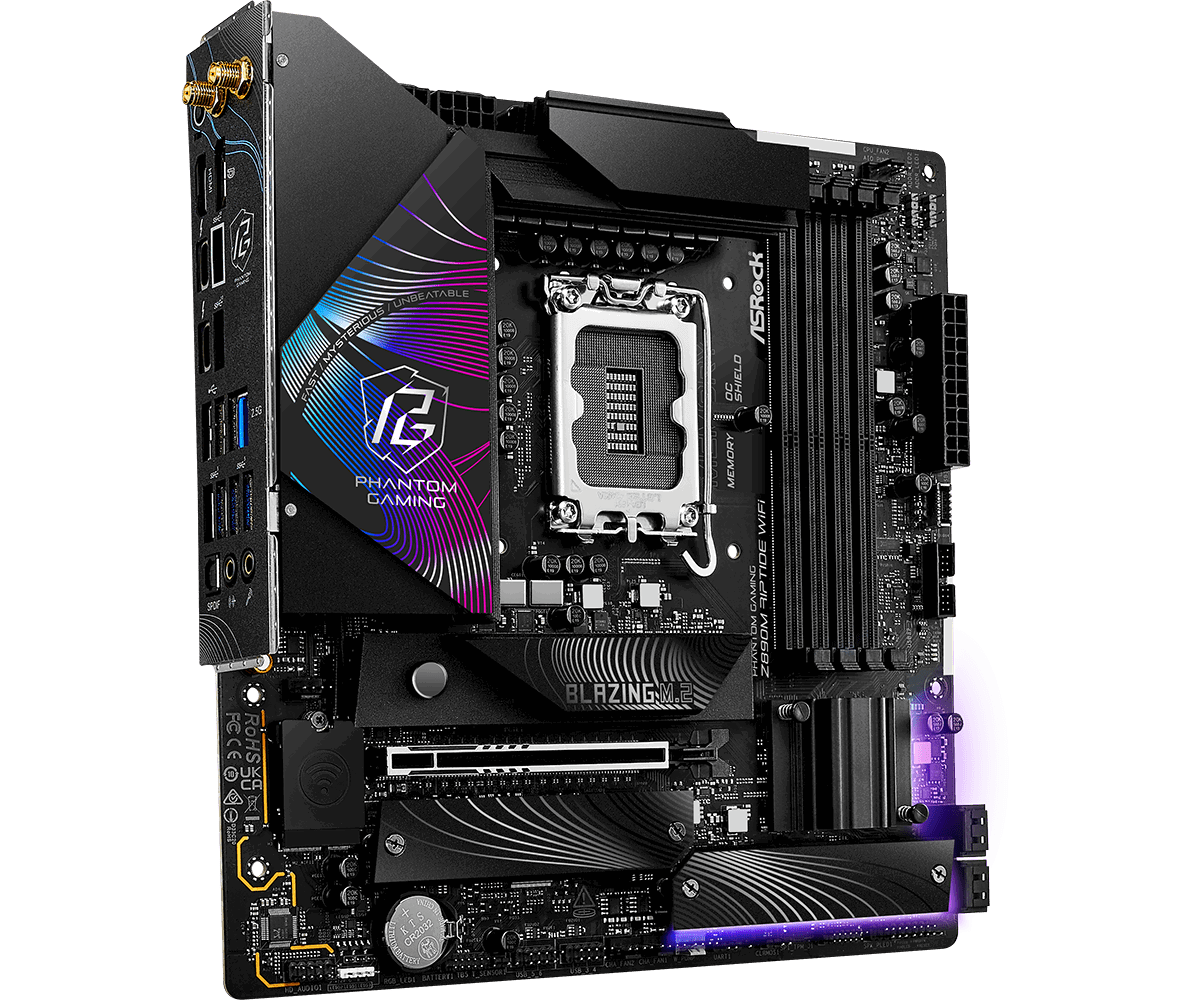

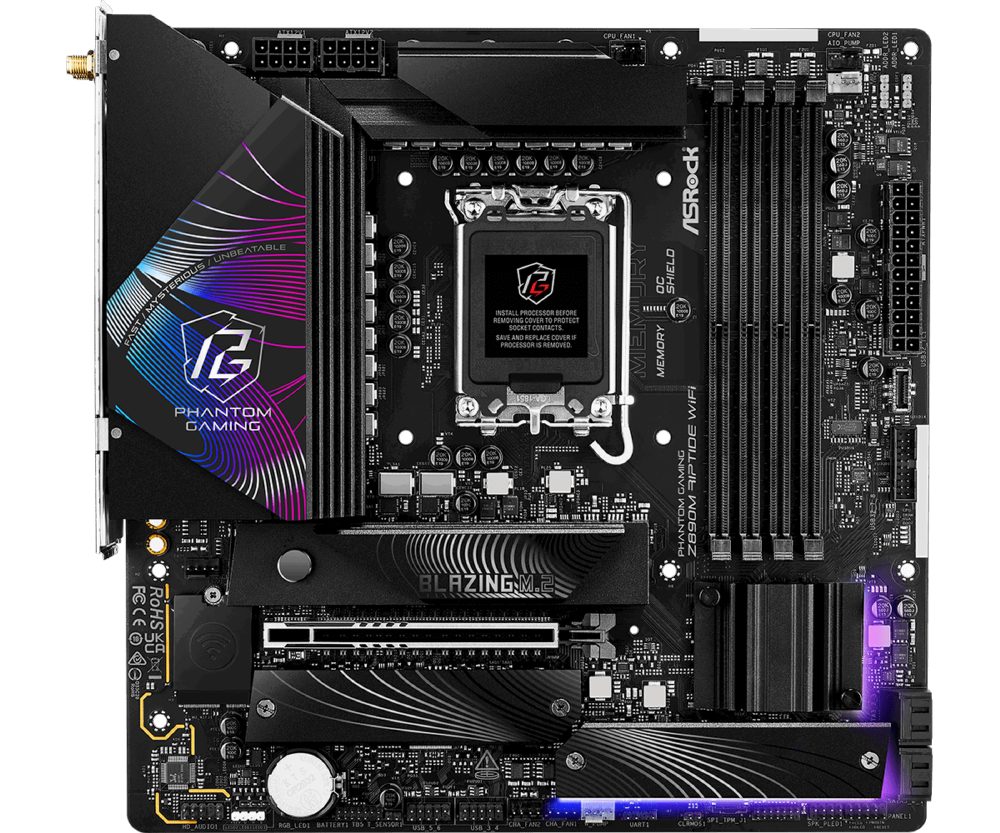

Дънна платка ASROCK Z890M RIPTIDE WIFI

ASROCK Z890M RIPTIDE WIFI

• Безжична връзка:
  • 802.11axe Wi-Fi 6E Module
  • Supports IEEE 802.11a/b/g/n/ac/ax/axe
  • Supports Dual-Band 2x2 160MHz with extended 6GHz band support
  • 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  • Supports Bluetooth 5.3
  • Supports MU-MIMO
  • Supports Killer LAN Software
  • Supports Killer DoubleShot™ Pro
• Bluetooth: 5.3
• Операционна система: Microsoft Windows® 11 64-bit
• Аудио:
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
• Памет:
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)
  • Supports Clocked Unbuffered DIMM (CUDIMM)
  • Max. capacity of system memory: 256GB
  • Supports Intel® Extreme Memory Profile (XMP) 3.0x
• Графика:
  • Intel® Xe LPG Graphics Architecture
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
  • 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• Слотове за разширение:
  • CPU:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
  • Chipset:
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
• Форм-фактор:
  • Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  • 2oz Copper PCB
• Поддържани процесори:
  • Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
  • Supports Intel® Hybrid Technology
  • Supports Intel® Turbo Boost Max 3.0 Technology
  • Supports Intel® Thermal Velocity Boost (TVB)
  • Supports Intel® Adaptive Boost Technology (ABT)
  • Integrated NPU for dedicated AI acceleration
• Чипсет: Intel® Z890
• Съхранение:
  • CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • Chipset:
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
  • 4 x SATA3 6.0 Gb/s Connectors
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

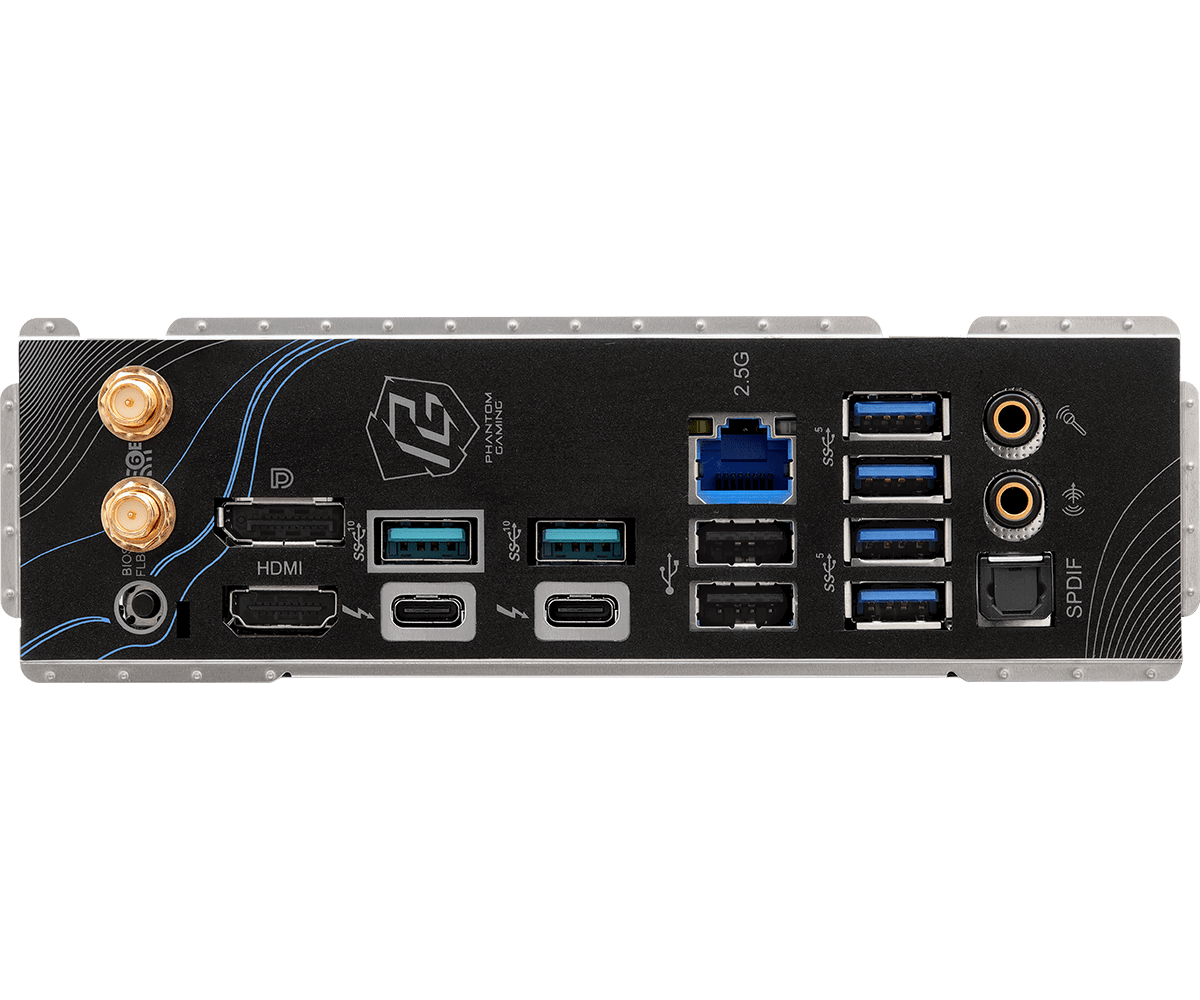

• Портове отзад:
  • 2 x Antenna Ports
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x Optical SPDIF Out Port
  • 2 x Thunderbolt™ 4/USB4 Type-C Ports (40 Gb/s)
  • 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
  • 4 x USB 3.2 Gen1 Ports
  • 2 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • 1 x Line Out Jack (Gold Audio Jack)
  • 1 x Microphone Input Jack (Gold Audio Jack)
• Конектори:
  • 1 x Thermistor Cable Header
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header
  • 2 x Addressable LED Headers
  • 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
• Мрежа (LAN):
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Killer E3100G
  • Supports Killer LAN Software
  • Supports Killer DoubleShot™ Pro
• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
• USB:
  • CPU:
  • 2 x Thunderbolt™ 4/USB4 Type-C (Rear)
  • Chipset:
  • 1 x USB 3.2 Gen2x2 Type-C (Front)
  • 2 x USB 3.2 Gen2 Type-A (Rear)
  • 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
  • 6 x USB 2.0 (2 Rear, 4 Front)
