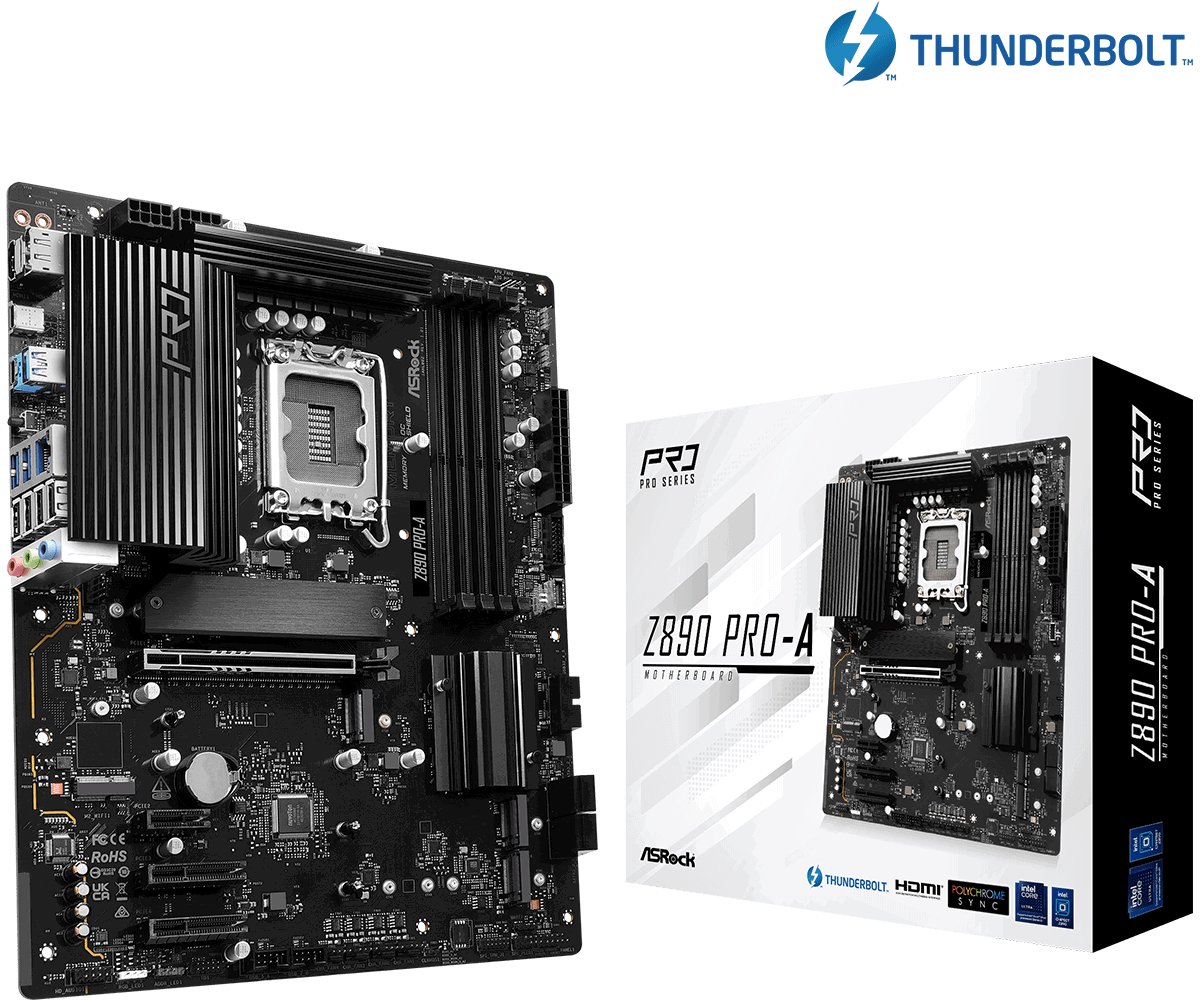

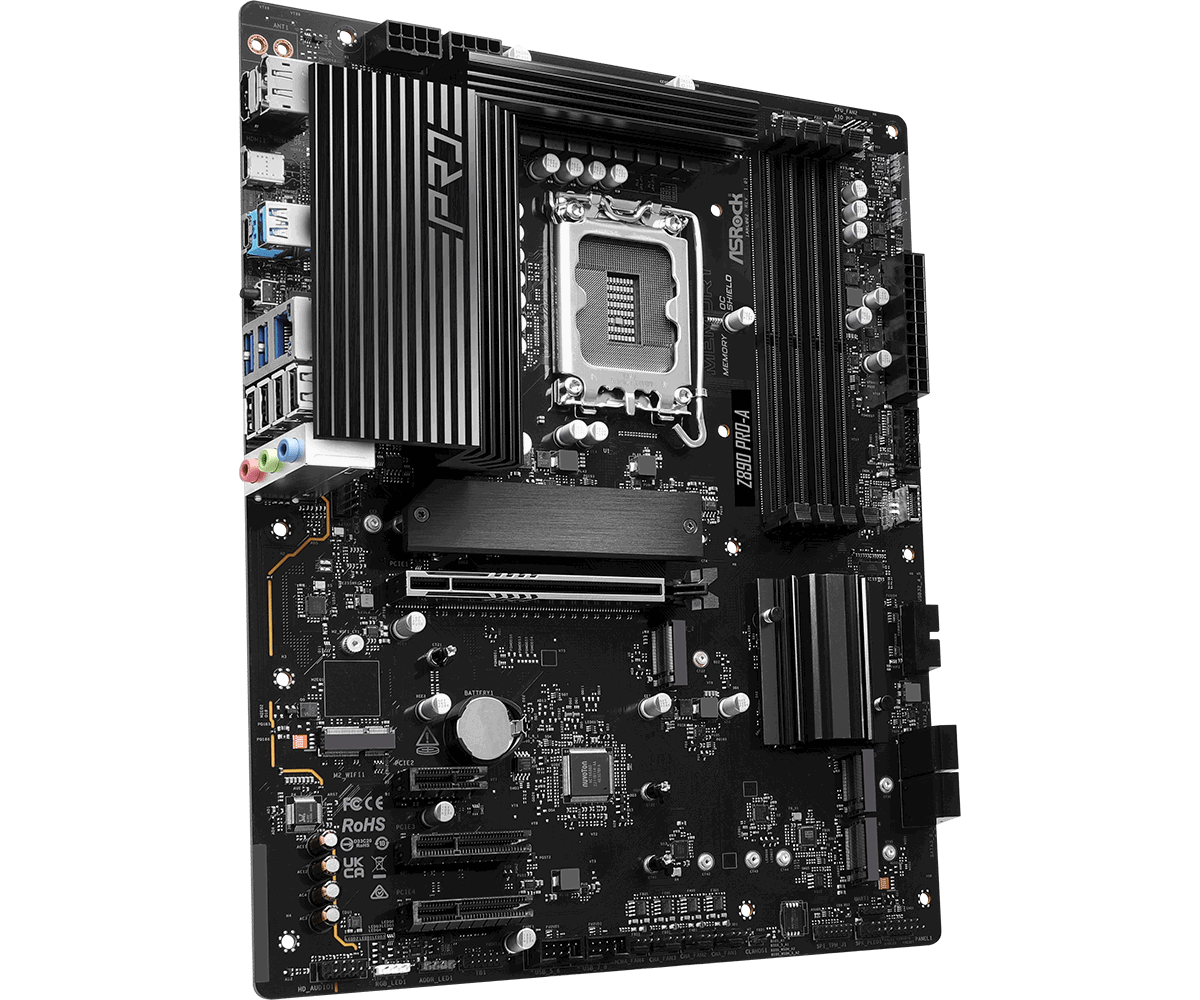

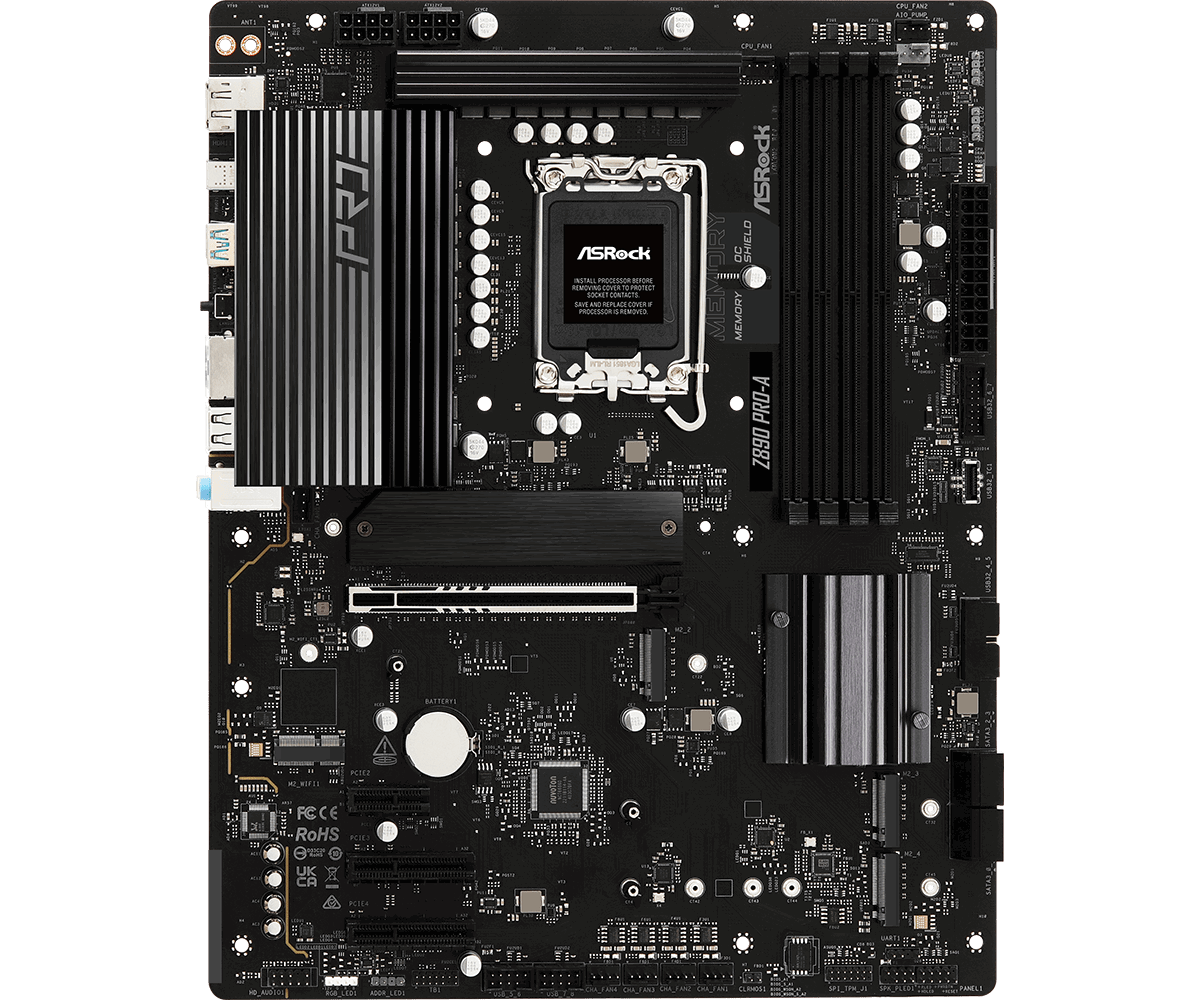

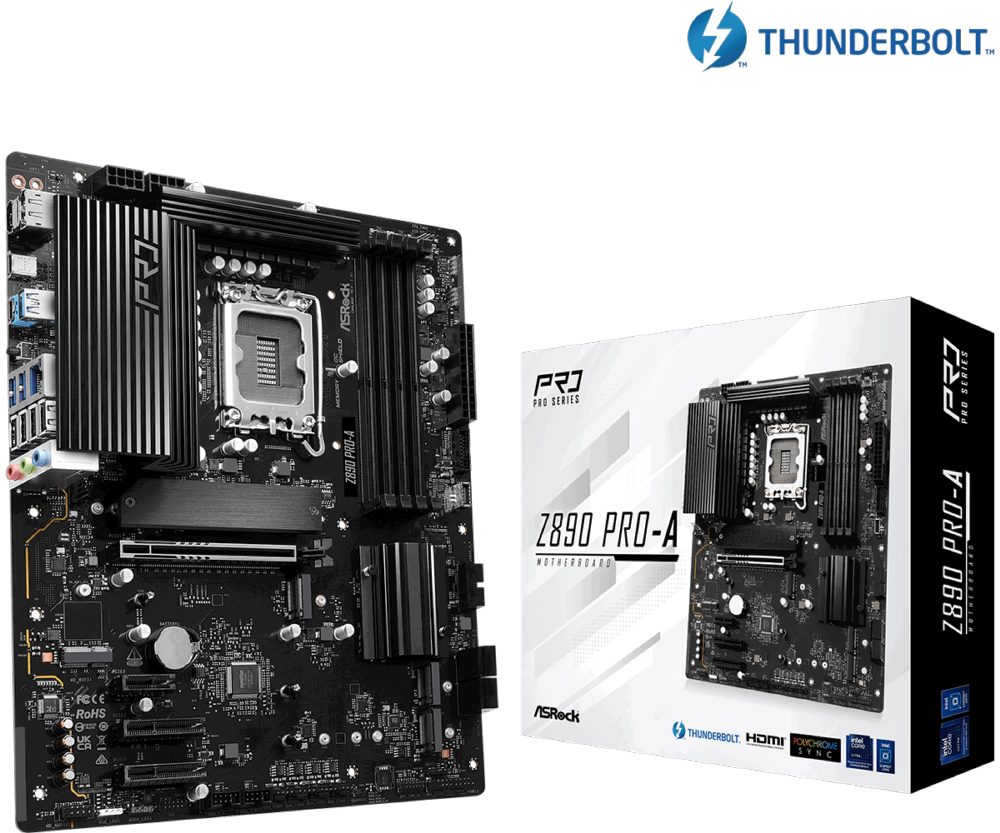

Дънна платка ASROCK Z890 PRO-A

ASROCK Z890 PRO-A

• Операционна система:
  • Microsoft Windows® 11 64-bit
  • Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC
  • UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
• Аудио: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Памет:
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)*
  • Supports Clocked Unbuffered DIMM (CUDIMM)
  • Max. capacity of system memory: 256GB
  • Supports Intel® Extreme Memory Profile (XMP) 3.0x
• Графика:
  • Intel® Xe LPG Graphics Architecture
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
  • 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• Слотове за разширение:
  • CPU
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
  • Chipset
  • 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode
  • 1 x PCIe 4.0 x1 Slot (PCIE2)
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
• Форм-фактор:
  • ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  • 2oz Copper PCB
• Чипсет: Intel® Z890
• Съхранение:
  • CPU
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • Chipset
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
  • 4 x SATA3 6.0 Gb/s Connectors
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

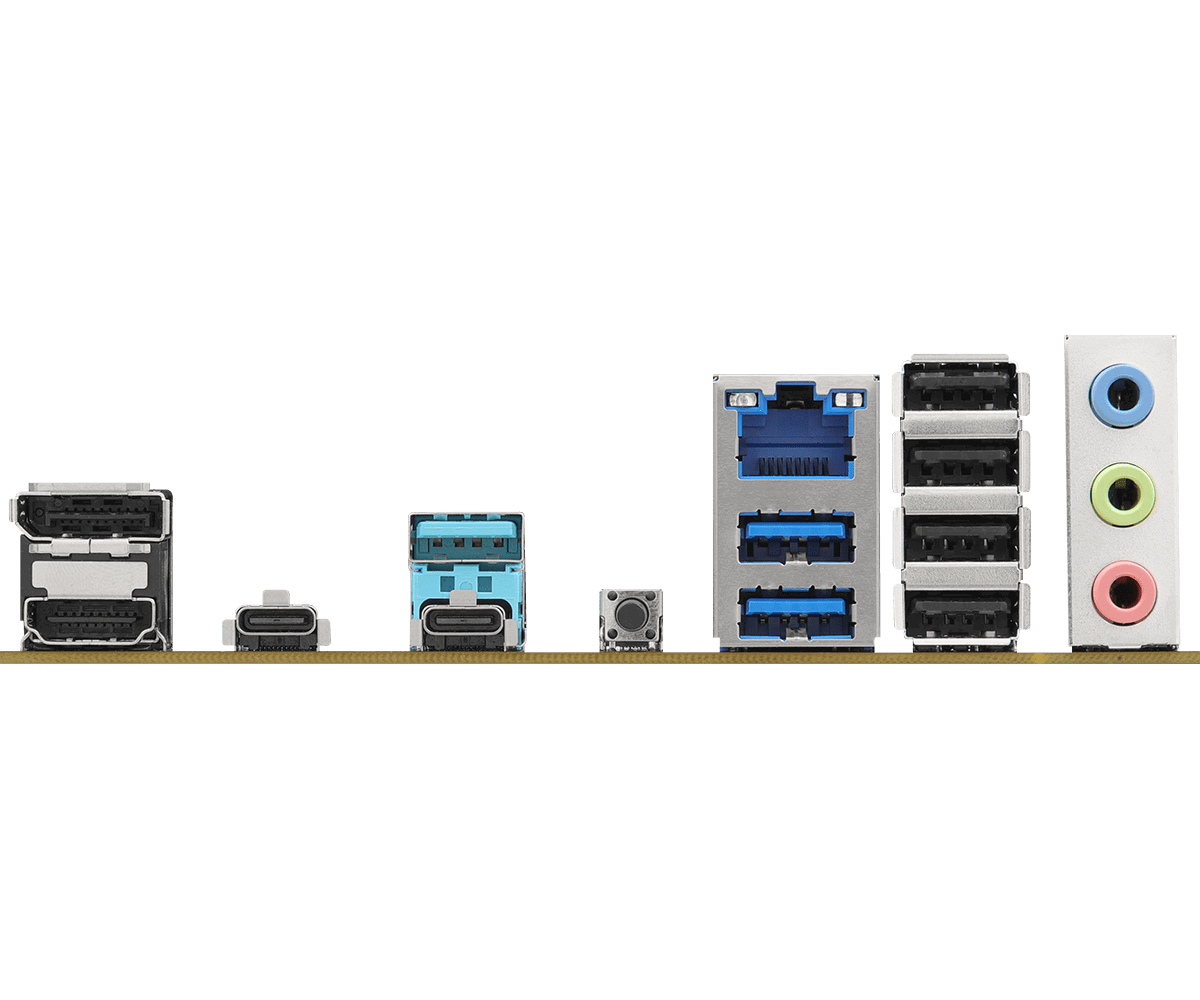

• Портове отзад:
  • CPU
  • 1 x Thunderbolt™ 4 Type-C (Rear)
  • 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset:
  • 1 x USB 3.2 Gen2x2 Type-C (Front)
  • 1 x USB 3.2 Gen2 Type-A (Rear)
  • 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)
  • 2 x Antenna Mounting Points
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol
  • 40Gb/s for Thunderbolt™ protocol)*
  • 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  • 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
  • 2 x USB 3.2 Gen1 Ports
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Конектори:
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header
  • 3 x Addressable LED Headers
  • 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
• Мрежа (LAN):
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control
• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
