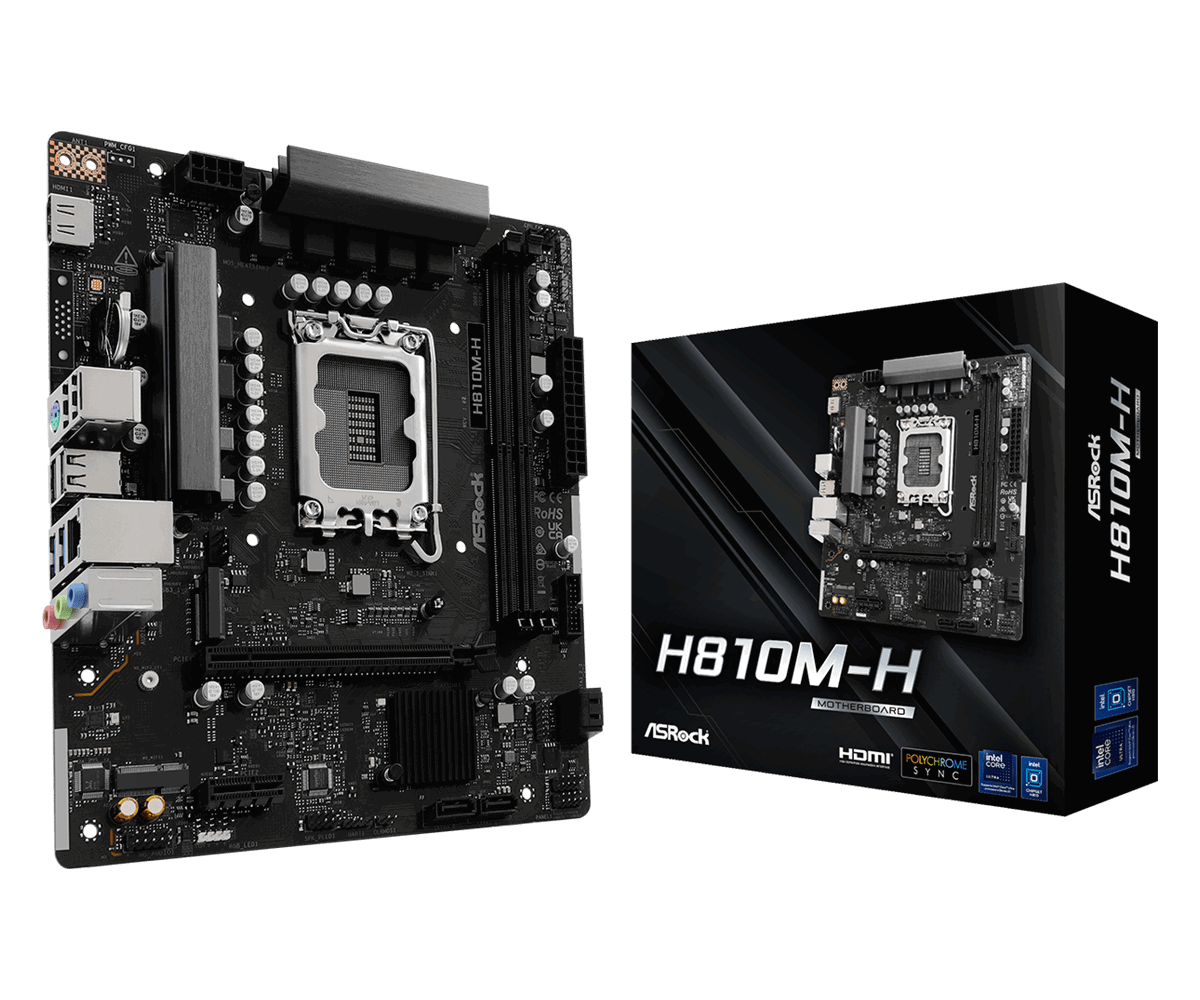

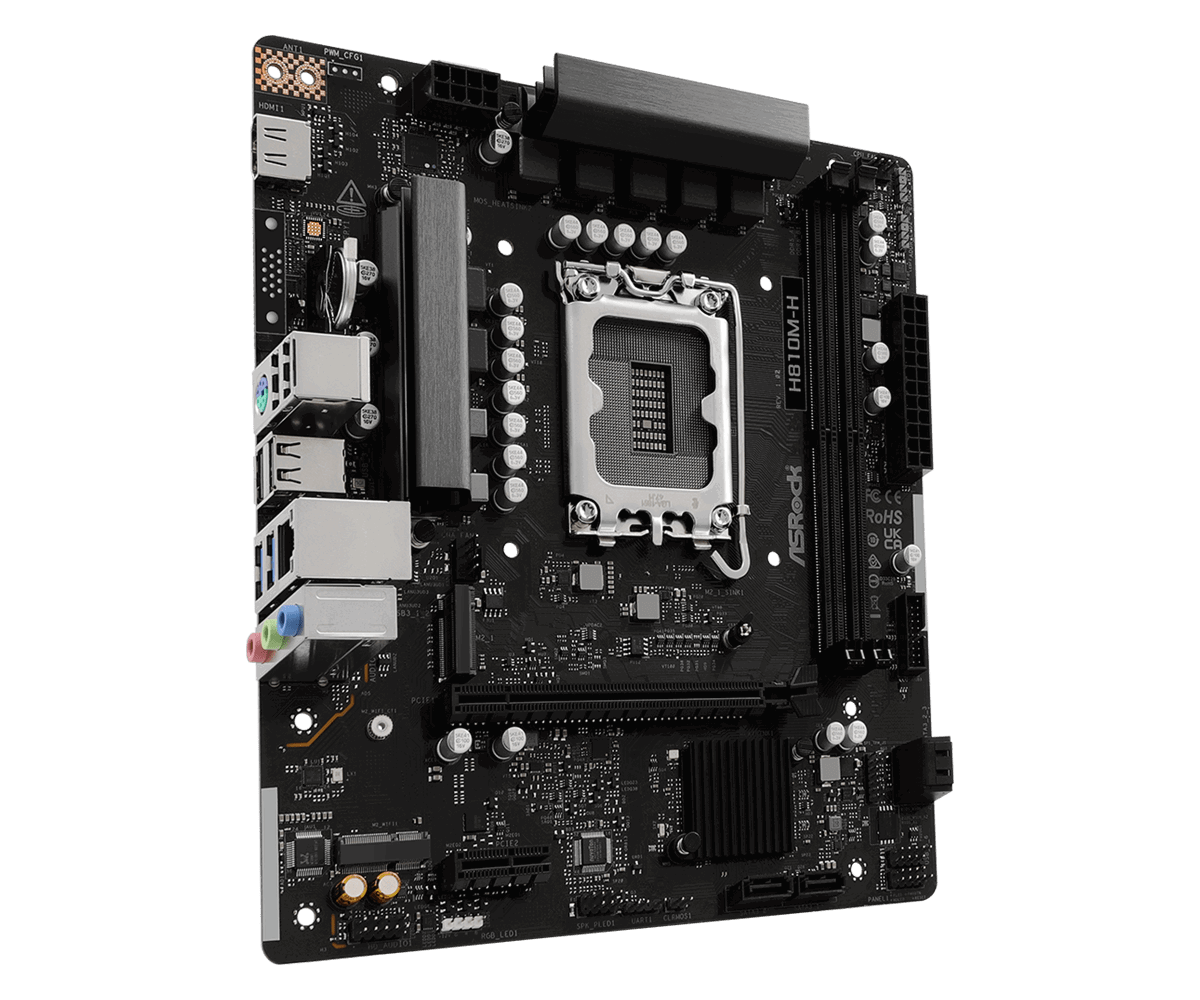

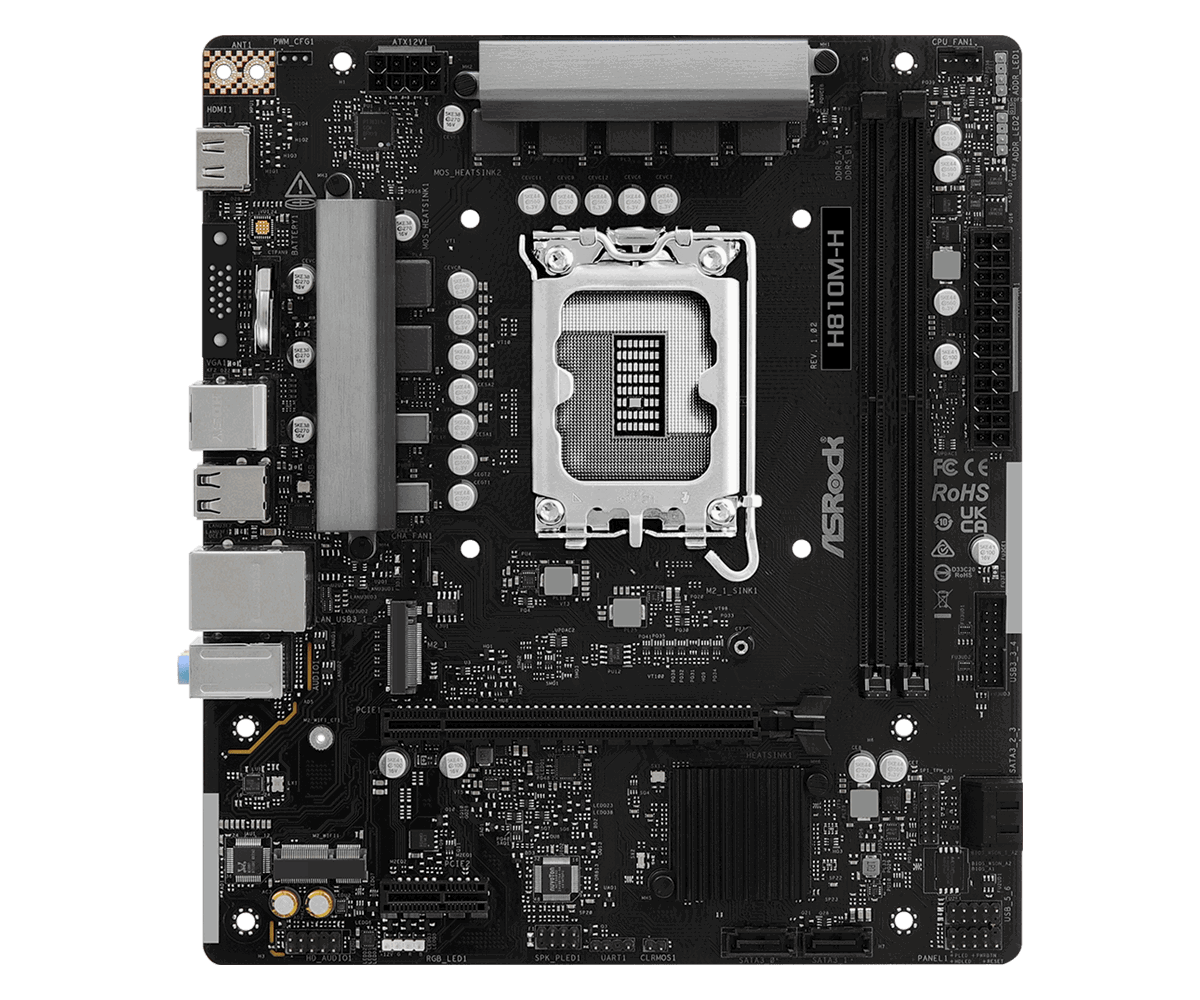

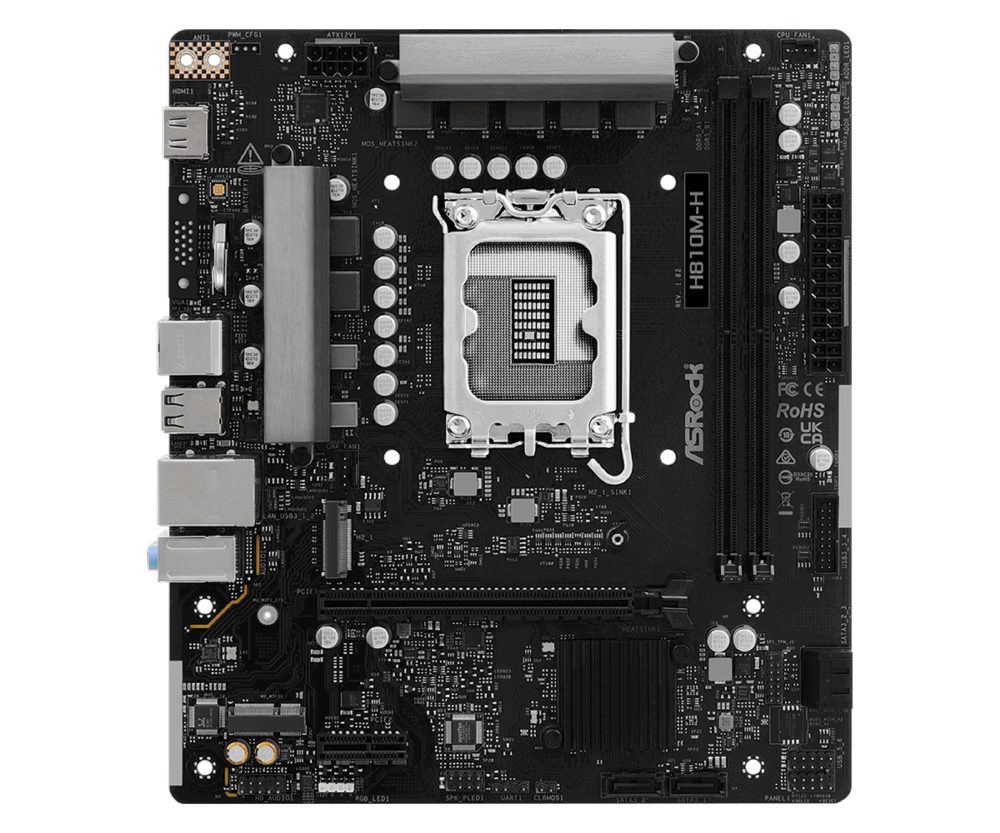

Дънна платка ASROCK H810M-H

ASROCK H810M-H

• Операционна система: Microsoft Windows® 11 64-bit
• Аудио: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Памет:
  • Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 6400
  • Supports Clocked Unbuffered DIMM (CUDIMM)
  • Max. capacity of system memory: 128GB
  • Supports Intel® Extreme Memory Profile (XMP) 3.0x
• Графика:
  • Intel® Xe LPG Graphics Architecture
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• Слотове за разширение:
  • CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
  • Chipset:
  • 1 x PCIe 4.0 x1 Slot (PCIE2)
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• Форм-фактор: Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
• Поддържани процесори:
  • Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
  • Supports Intel® Hybrid Technology
  • Supports Intel® Turbo Boost Max 3.0 Technology
  • Supports Intel® Thermal Velocity Boost (TVB)
  • Supports Intel® Adaptive Boost Technology (ABT)
  • Integrated NPU for dedicated AI acceleration
• Чипсет: Intel® H810
• Съхранение:
  • Chipset:
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • 4 x SATA3 6.0 Gb/s Connectors

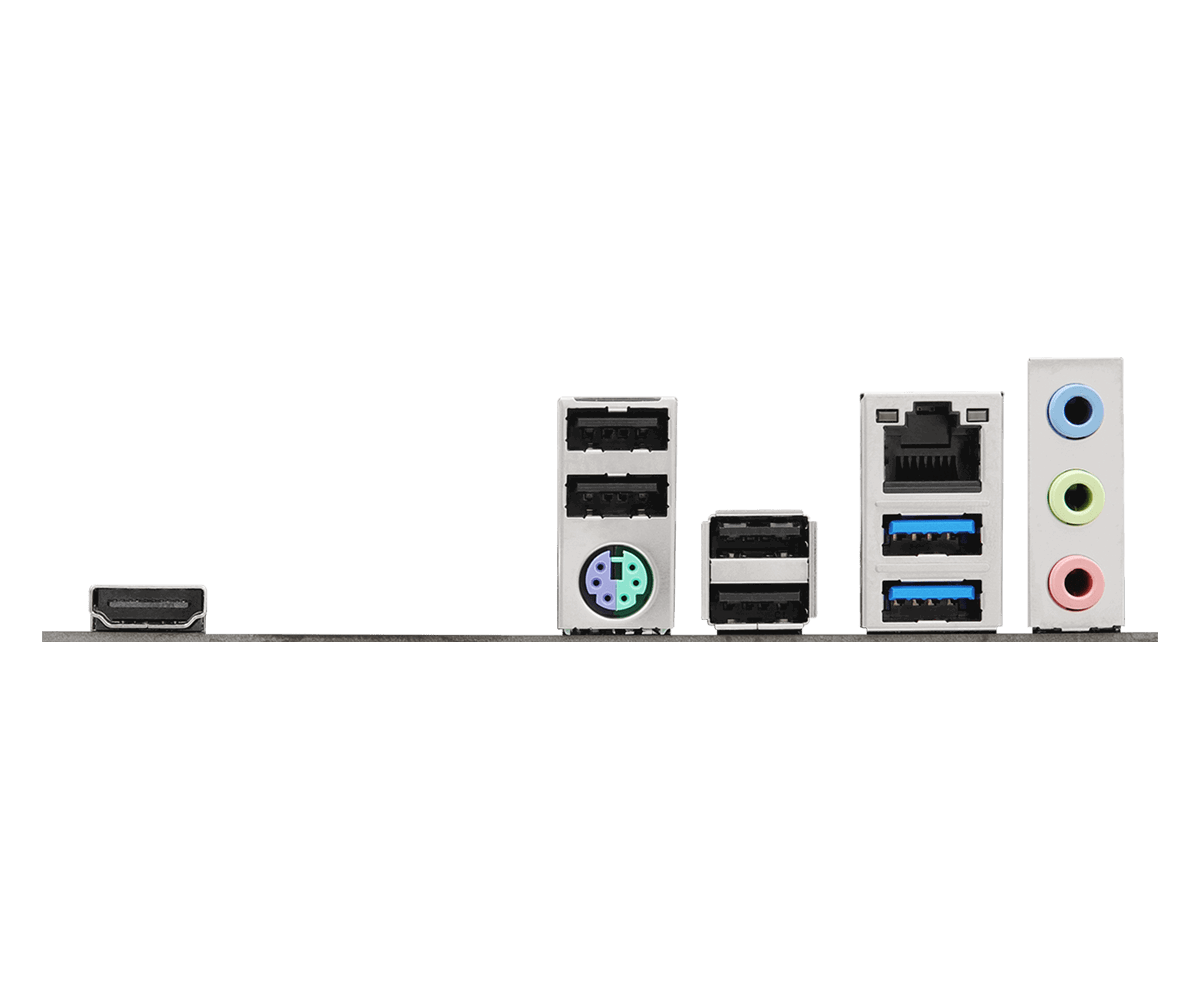

• Портове отзад:
  • 2 x Antenna Mounting Points
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 2 x USB 3.2 Gen1 Ports
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Конектори:
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header
  • 2 x Addressable LED Headers
  • 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
  • 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• Мрежа (LAN):
  • Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111H
• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
• USB:
  • Chipset:
  • 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
  • 6 x USB 2.0 (4 Rear, 2 Front)
• Други:
  • Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Polychrome SYNC
  • UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
