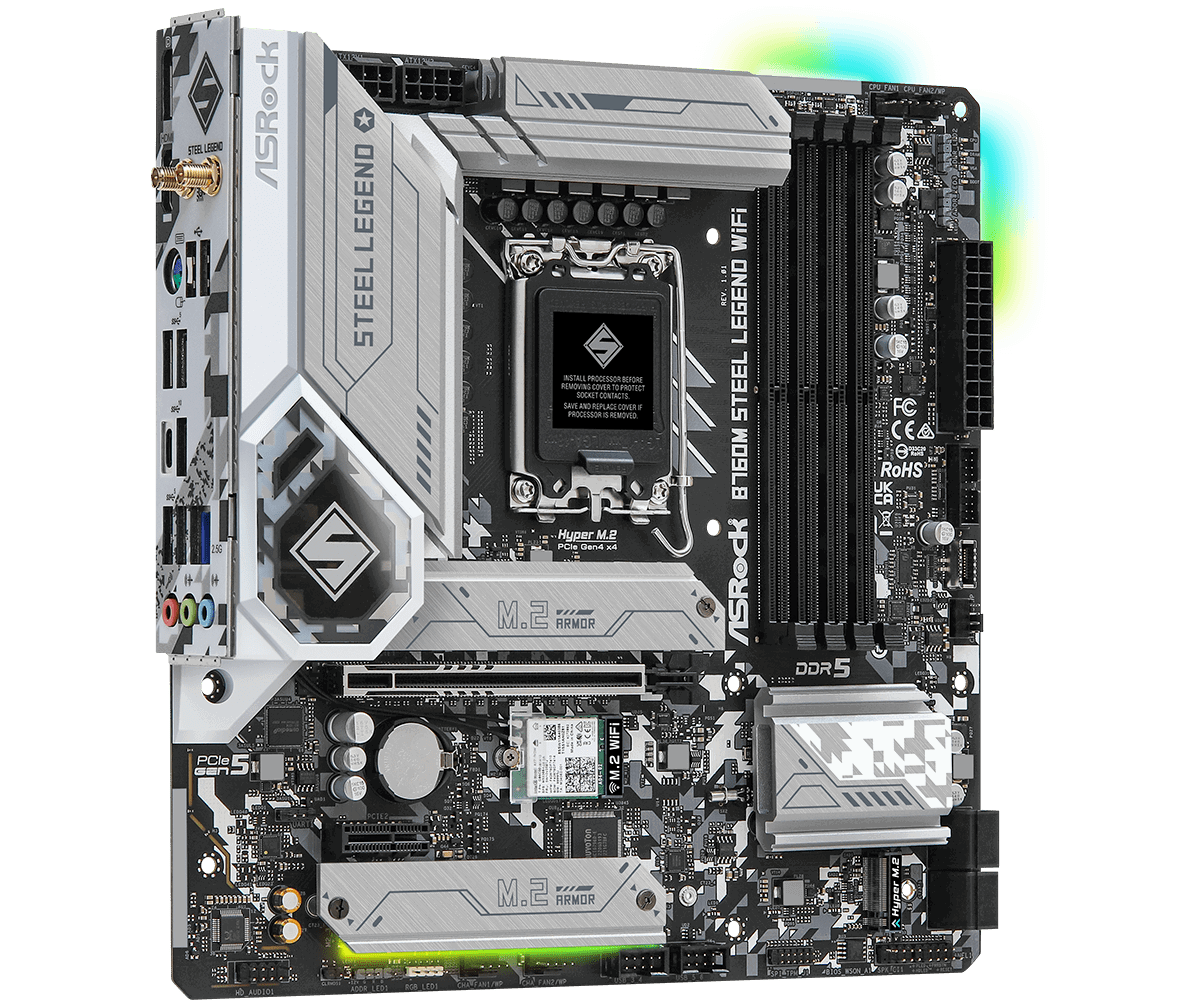

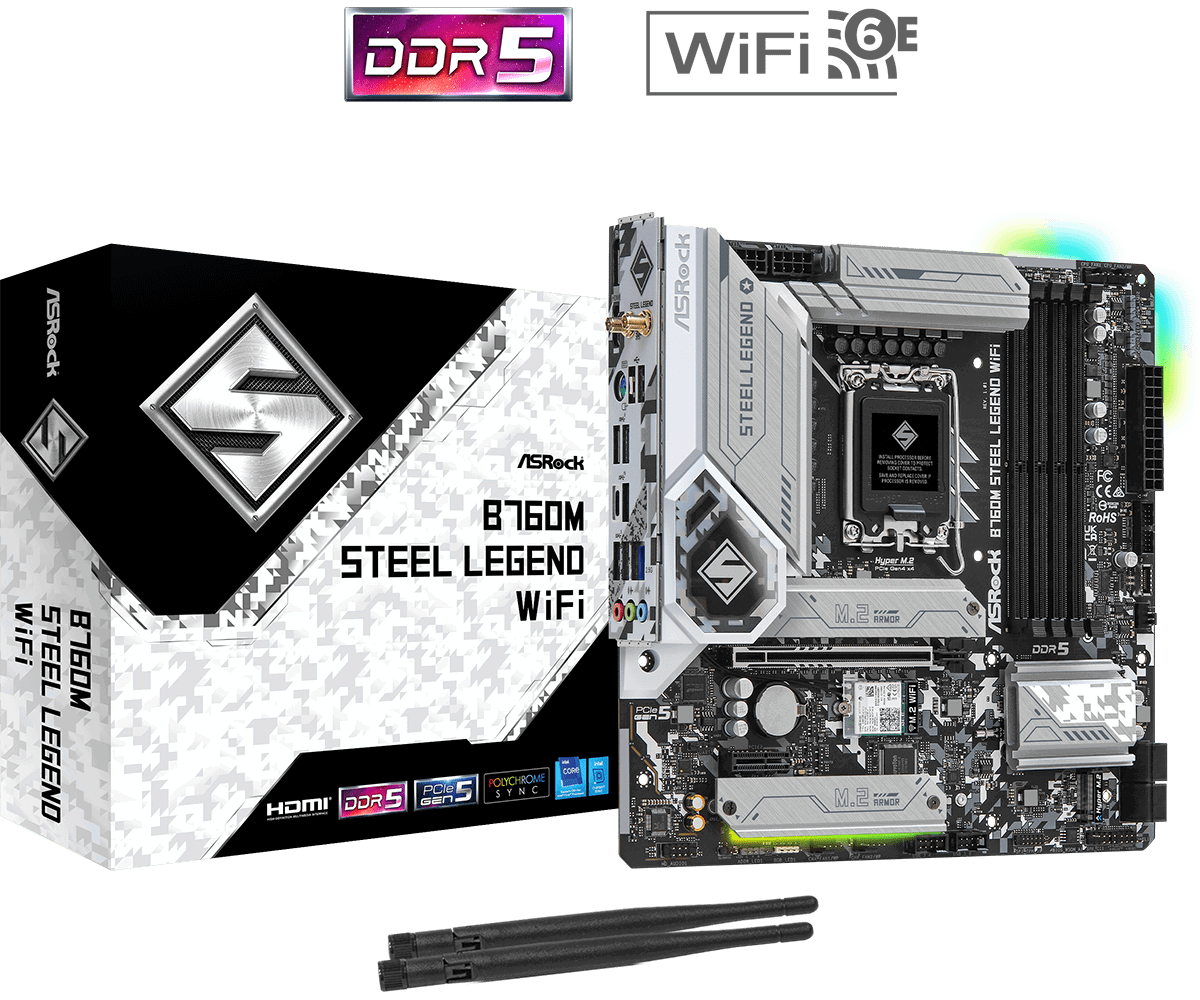

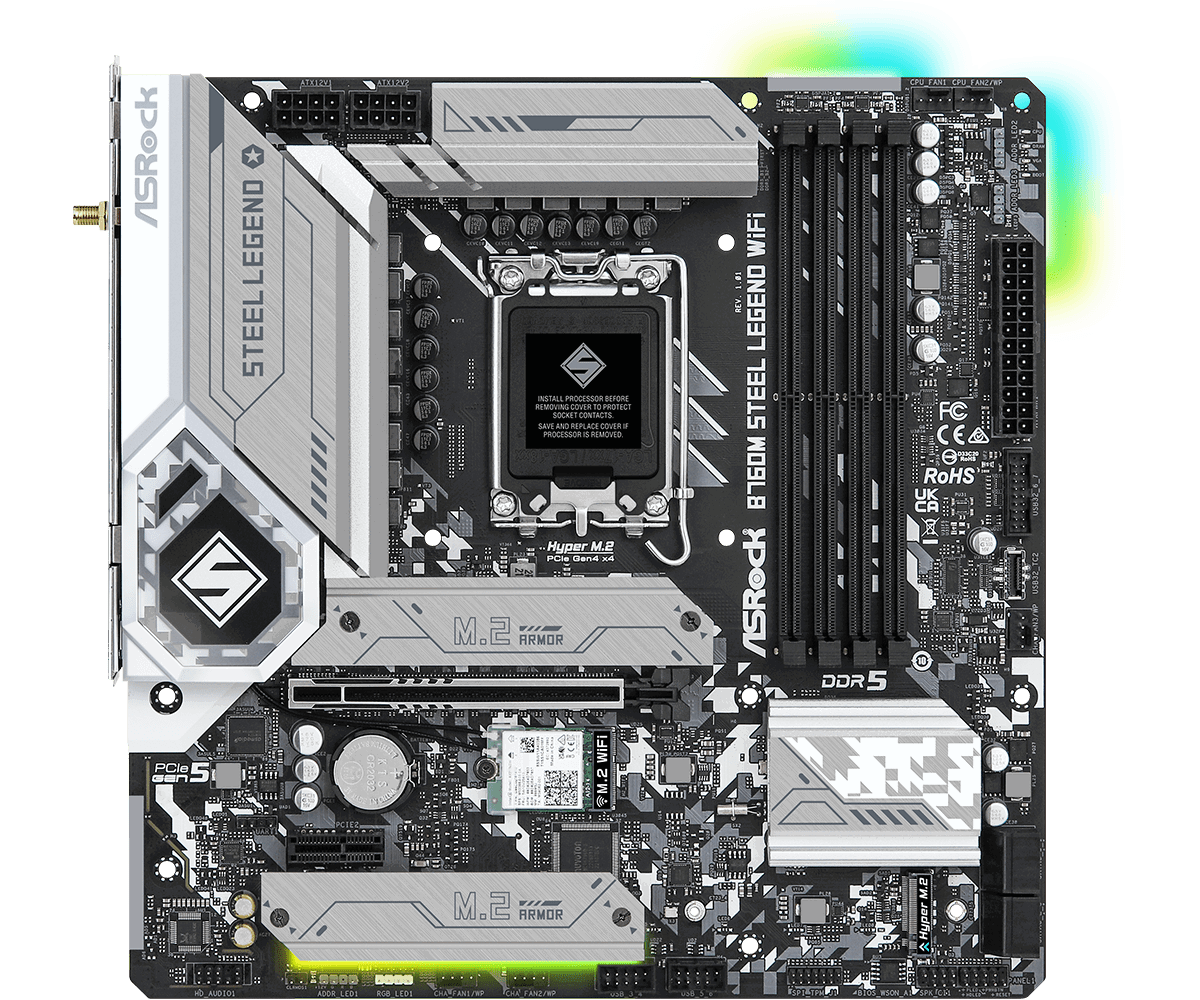

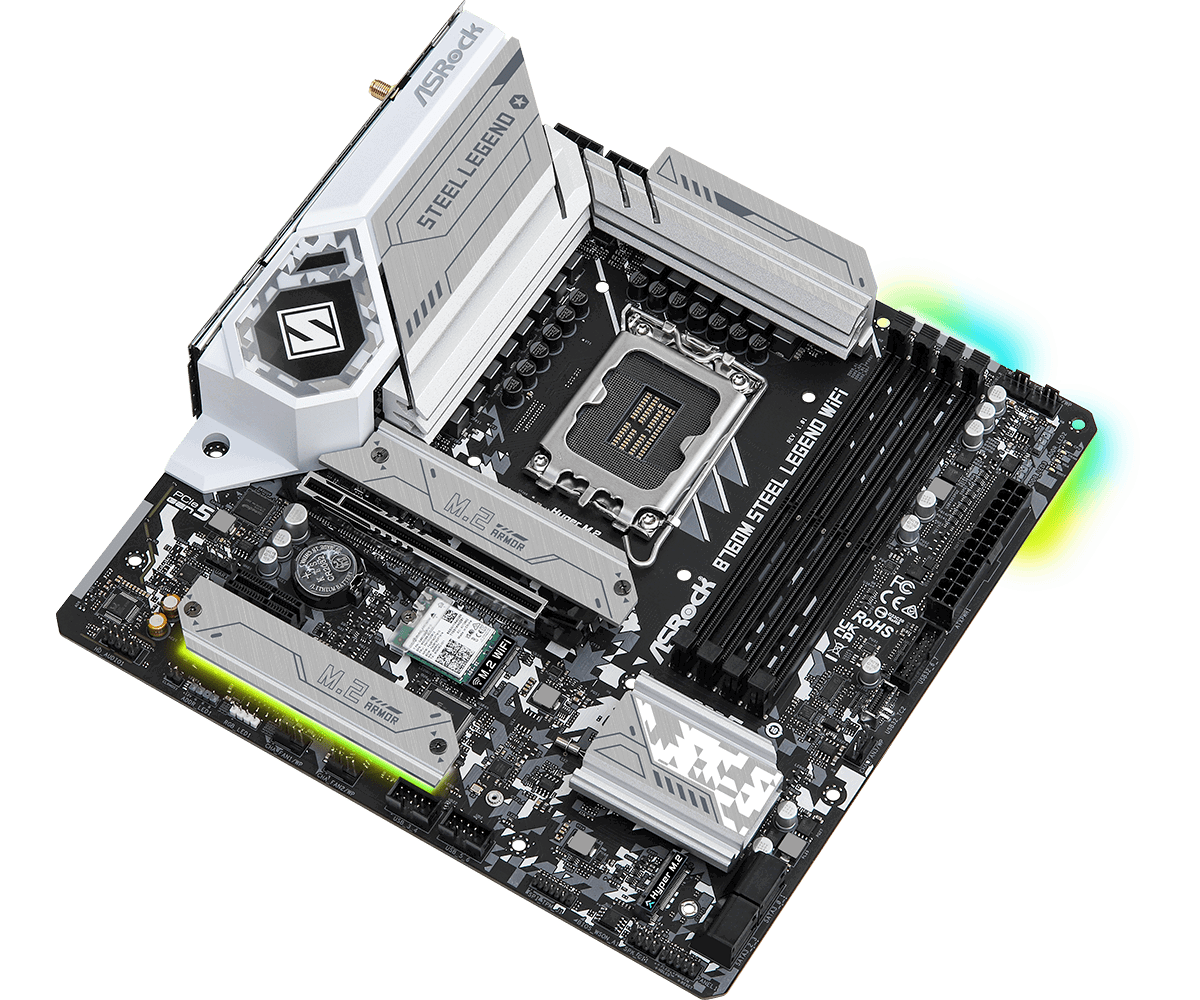

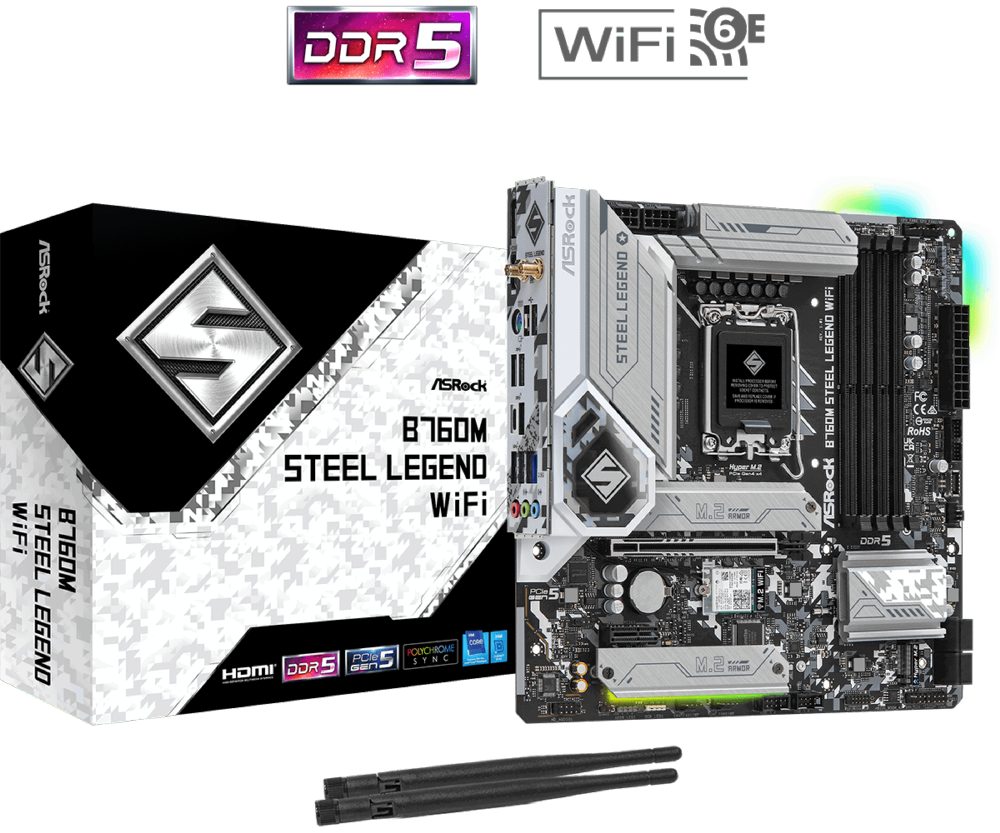

Дънна платка ASROCK B760M STEEL LEGEND WIFI

ASROCK B760M STEEL LEGEND WIFI

• Операционна система: Microsoft® Windows® 10 64-bit / 11 64-bit
• Аудио:
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
• Памет:
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
  • Max. capacity of system memory: 128GB
  • Supports Intel® Extreme Memory Profile (XMP) 3.0
• Графика:
  • Intel® Xe Graphics Architecture (Gen 12)
  • 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
  • 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• Слотове за разширение:
  • CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
  • Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)*
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
  • 15? Gold Contact in VGA PCIe Slot (PCIE1)
• Форм-фактор:
  • Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  • 2oz Copper PCB
• Чипсет: Intel® B760
• Съхранение:
  • CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors

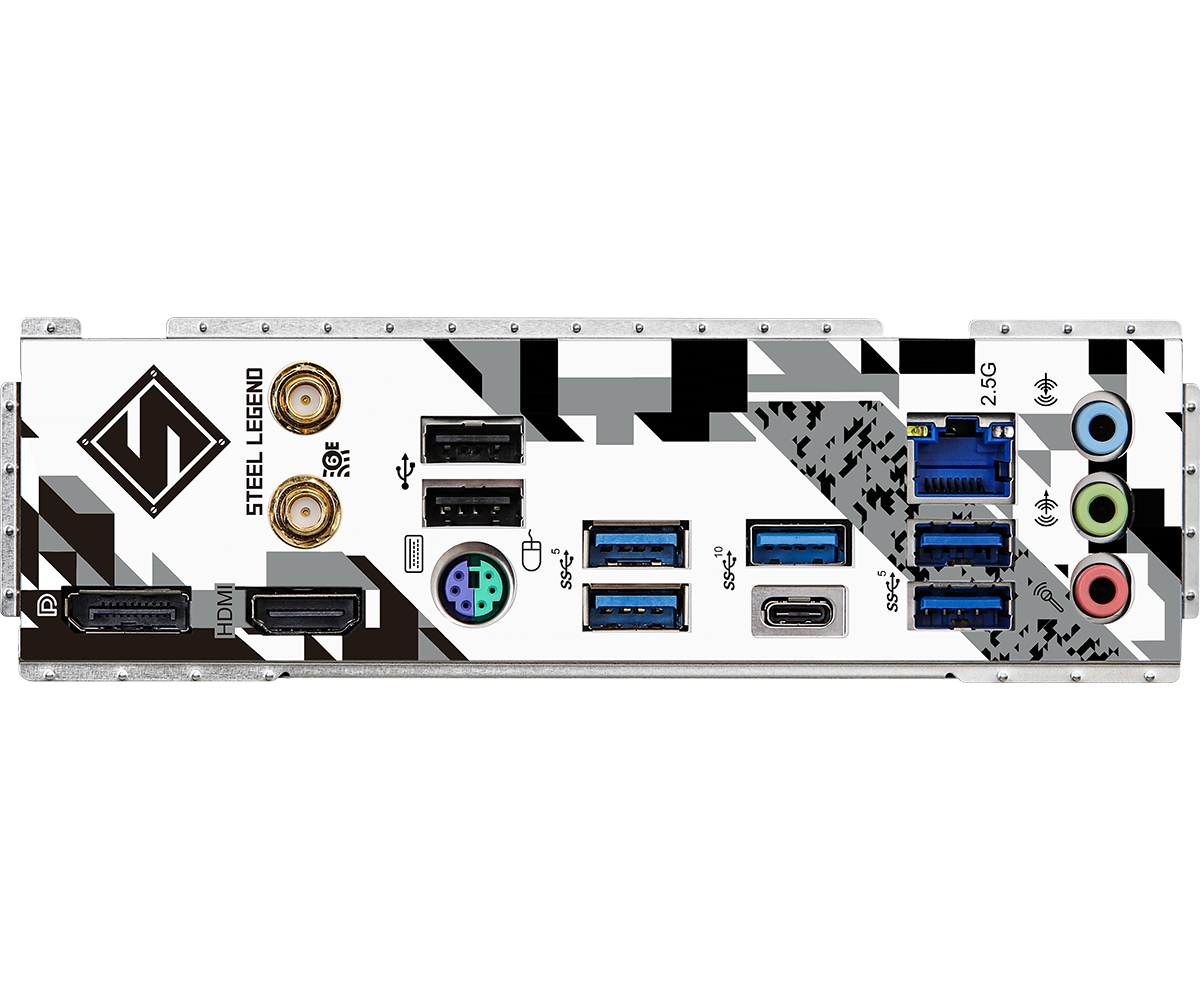

• Портове отзад:
  • 2 x Antenna Ports
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
  • 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
  • 4 x USB 3.2 Gen1 Ports
  • 2 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Конектори:
  • 1 x eDP Signal Connector
  • 1 x SPI TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x RGB LED Header*
  • 3 x Addressable LED Headers**
  • 1 x CPU Fan Connector (4-pin)***
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  • 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
• Мрежа (LAN):
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control
• BIOS: 128Mb AMI UEFI Legal BIOS with GUI support
• Други:
  • 802.11ax Wi-Fi 6E Module
  • Supports IEEE 802.11a/b/g/n/ac/ax
  • Supports Dual-Band 2x2 with extended 6GHz band support*
  • 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  • Supports Bluetooth 5.3 + High speed class II
  • Supports MU-MIMO
