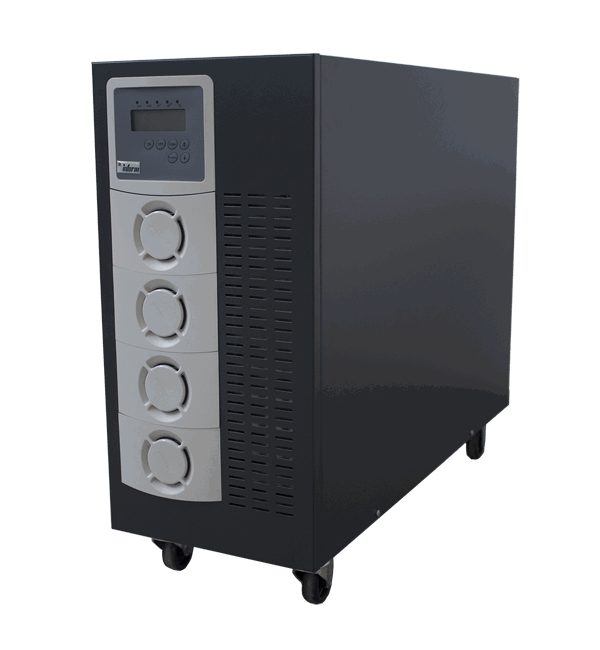

UPS DSP FLEXPOWER 3KVA W/BATT

DSP FLEXPOWER 3KVA W/BATT

• Input:
  • Phase Configuration 1Ph + N + PE
  • Nominal Voltage 220V/230/240V
  • Minimum Voltage 160 V
  • Maximum Voltage 288 V
  • Frequency ± 5 Hz
  • Power Factor 0.99
• Output:
  • Power Factor 0.8
  • Phase Configuration 1Ph + N + PE
  • Nominal Voltage 220V / 230 / 240V (adjustable)
  • Wave Form Pure Sine Wave
  • Total Harmonic Distortion at 100% linear load <3%
  • Frequency 50Hz or 60Hz (adjustable)
  • Frequency Tolerance (free running) ±0.2 %
  • Static Voltage Regulation (0%-100% load) <1%
  • Crest Factor 3:1
  • Transfer Time 0 sec
  • Overload 30 sec @ (106%-120%), 10 sec @ (120%-150%)
  • Total Efficiency ?90%
• Батерия:
  • Type Maintenance-free lead acid batteries
  • Recharge Time (for Internal Battery) 4-6h up to 90%
  • Quantity per String 6pcs 12V Batteries
  • Voltage 72 VDC
  • Internal Batteries (Optional) 7Ah, 9Ah
  • Cold Start Present
• Display:
  • LED + LCD Display Line Mode, Back up Mode, Eco Mode, Bypass Supply, Battery Low, Battery Bad/Disconnect, Overload, UPS Fault, Interruption during transfer
  • LCD Display Input Voltage, Input Frequency, Output Voltage, Output Frequency, Load%, Battery Voltage, Internal Temperature
  • Self Diagnostics Upon Power On, Front Panel Setting and Through Software Control, 24h routine Check
• Стандарти:
  • EN62040-1-1 (Safety)
  • EN62040-2 (EMC)
• Environment:
  • Operating Temperature 0 ?C.... + 40?C
  • Proposed Temp. to extend battery life 20 - 25 ?C
  • Humidity 0 - 95% (non-condensing)
  • Audible Noise at 1 m
  • Protection Class IP 20
• Размери: 449x226x454mm
• Communication: Interface (Communication ports) Standard RS232 port and optional RS485, Internal SNMP, Dry Contact Cards
• Тегло: 19kg
