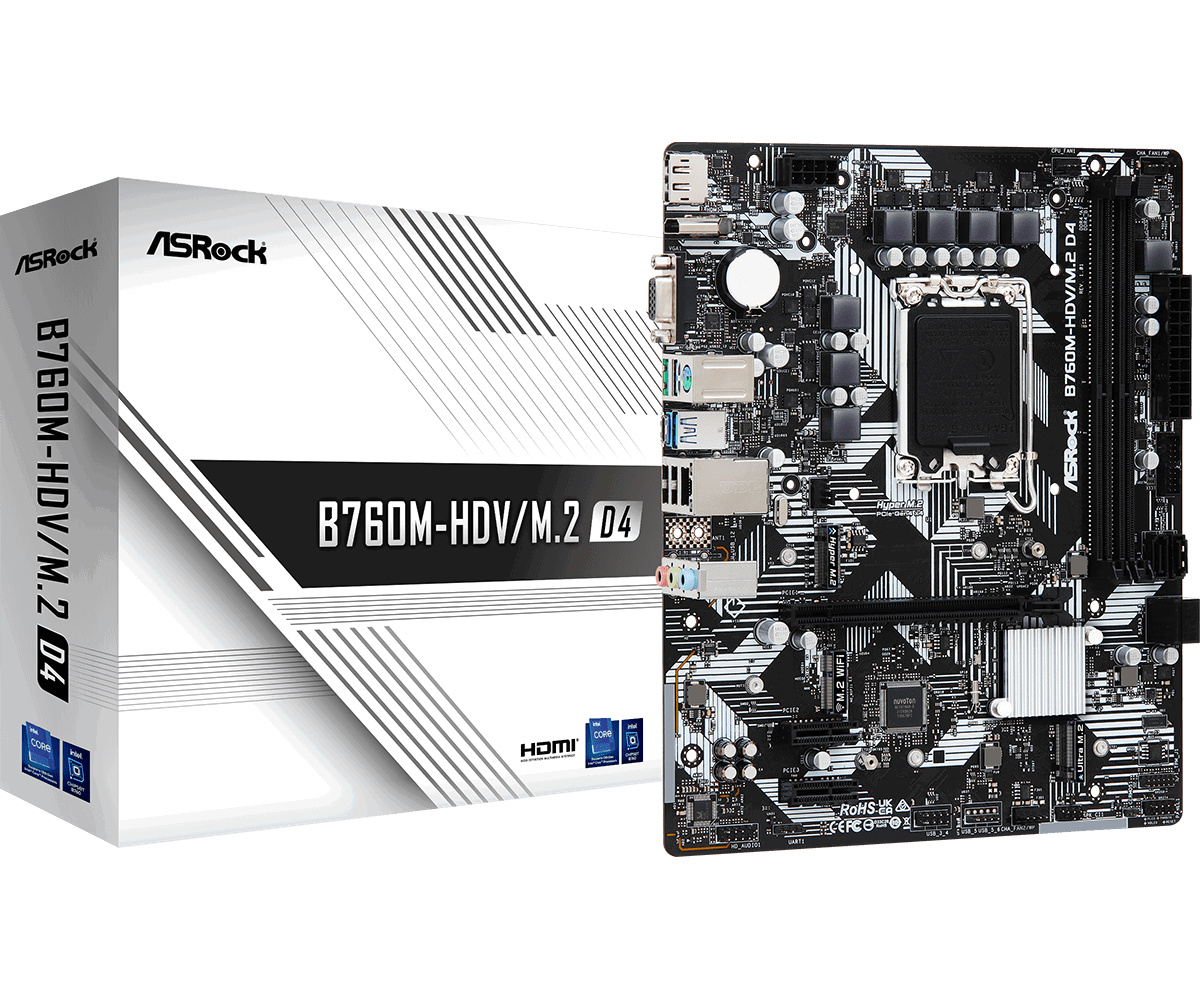

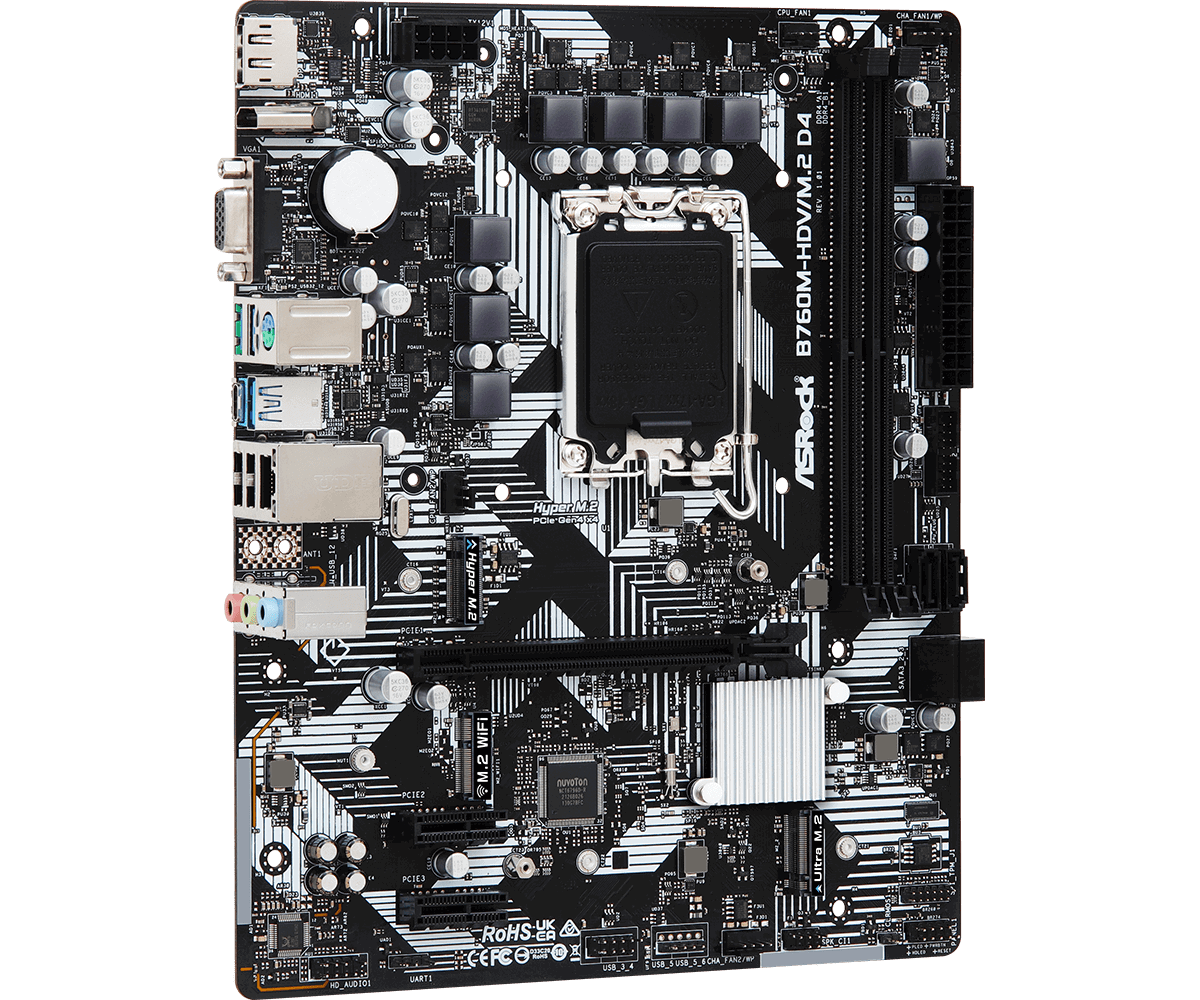

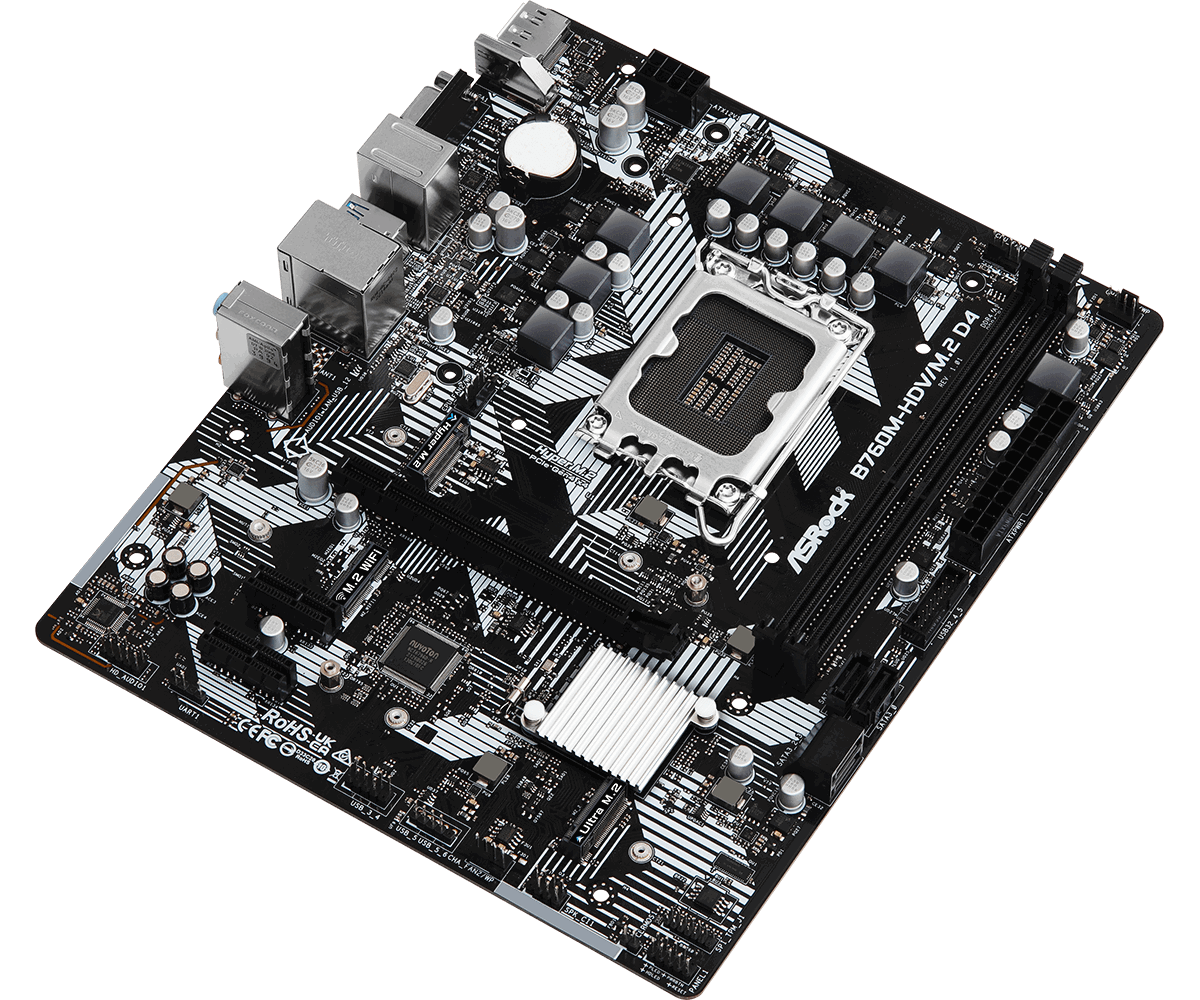

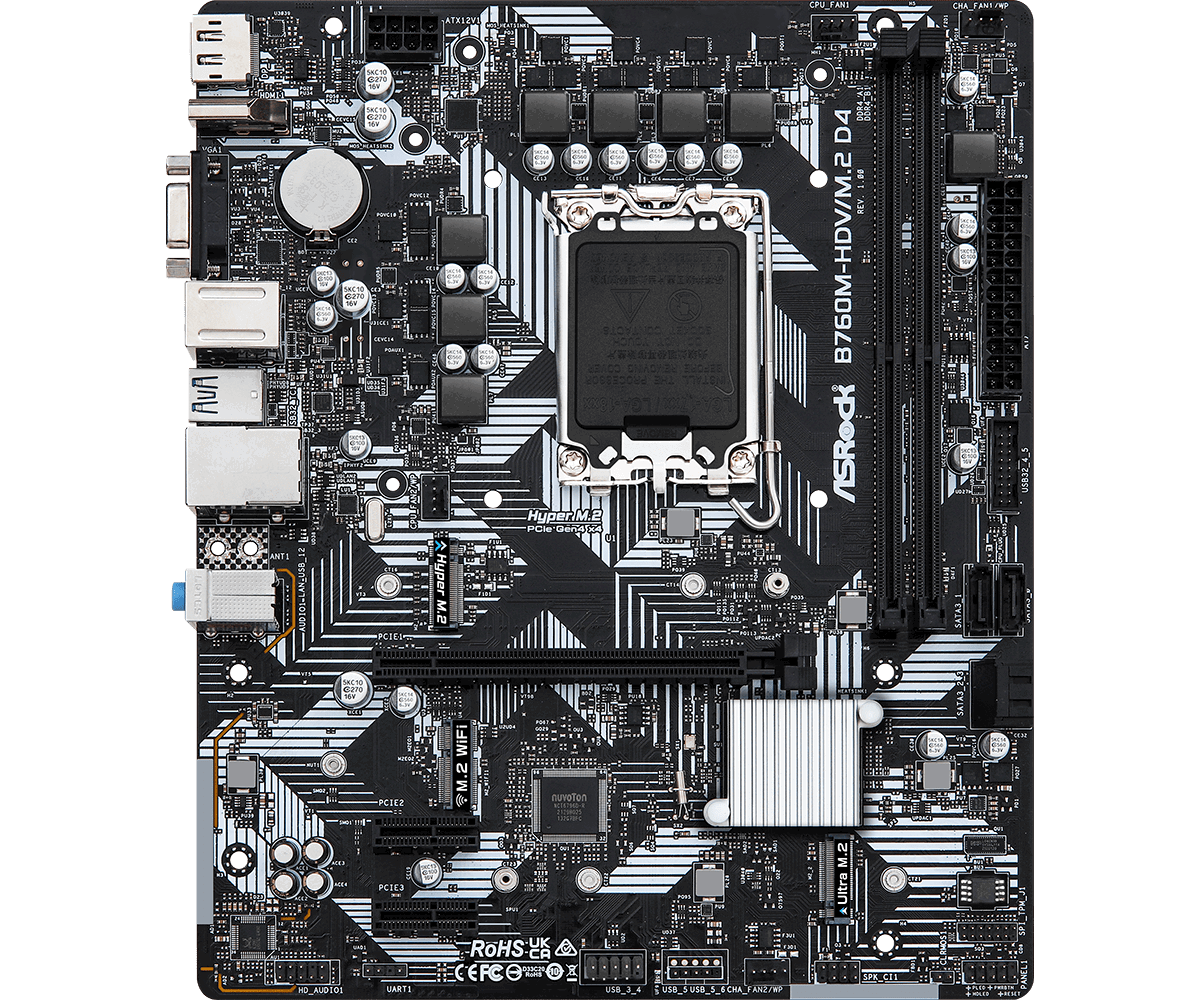

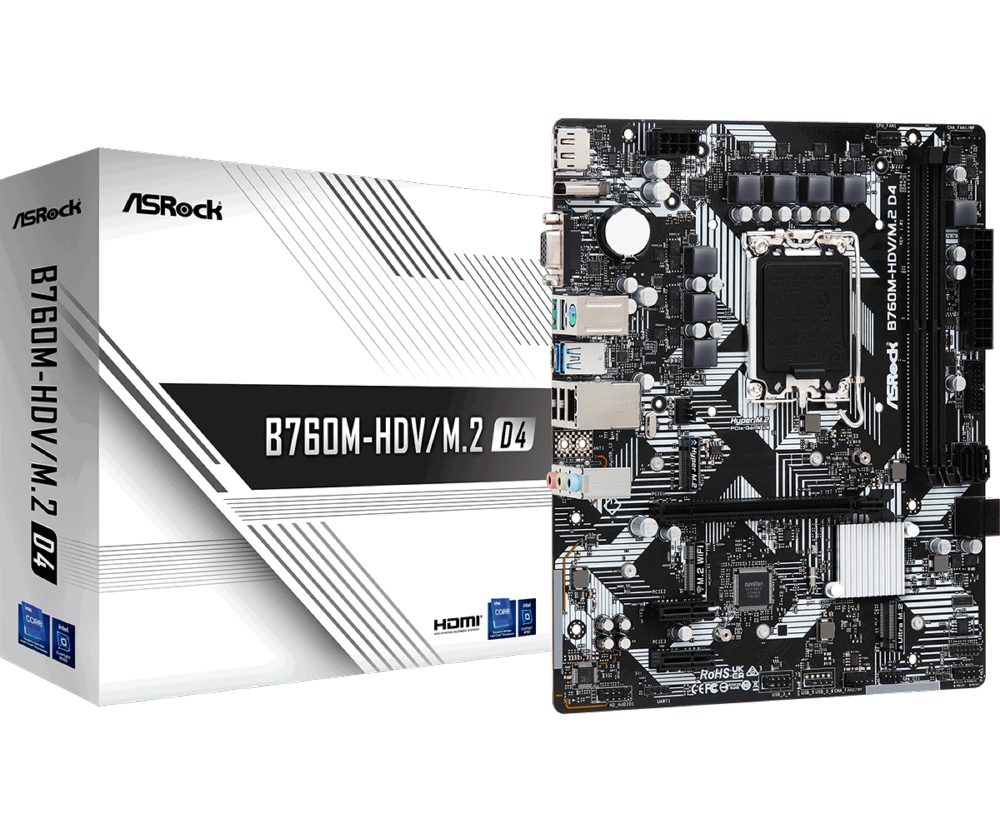

Дънна платка ASROCK B760M-HDV/M.2 D4

ASROCK B760M-HDV/M.2 D4

• Операционна система: Microsoft® Windows® 10 64-bit / 11 64-bit
• Аудио: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
• Памет:
  • Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
  • Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Max. capacity of system memory: 64GB*
  • Supports Intel® Extreme Memory Profile (XMP) 2.0
• Графика:
  • Intel® Xe Graphics Architecture (Gen 12)
  • 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
  • 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
• Слотове за разширение:
  • CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  • Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• Форм-фактор: Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
• Чипсет: Intel® B760
• Съхранение:
  • CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
  • 4 x SATA3 6.0 Gb/s Connectors**

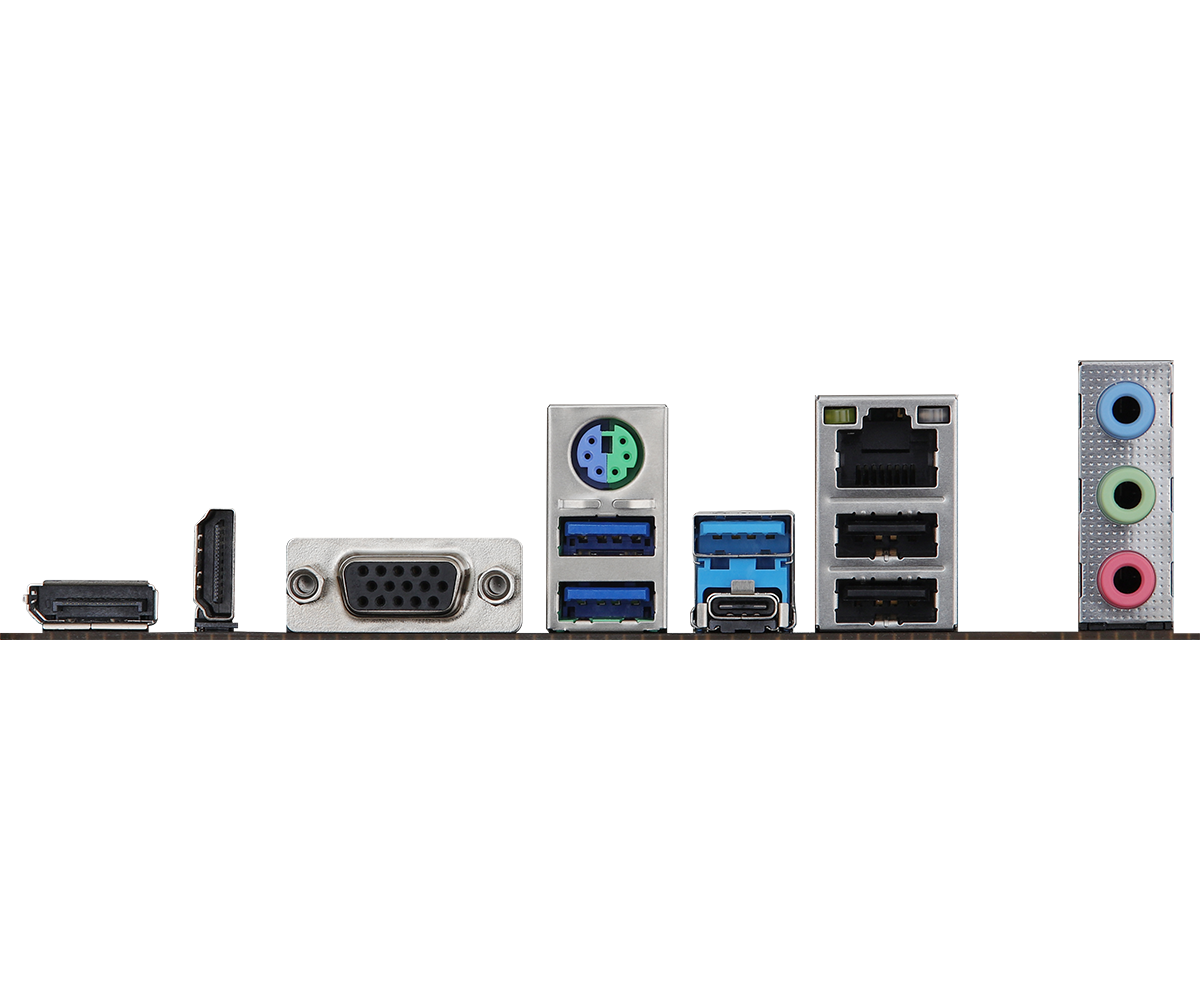

• Портове отзад:
  • 2 x Antenna Mounting Points
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x D-Sub Port
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen1 Type-C Port
  • 3 x USB 3.2 Gen1 Type-A Ports
  • 2 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Конектори:
  • 1 x SPI TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (4-pin)*
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  • 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• Мрежа (LAN):
  • Gigabit LAN 10/100/1000 Mb/s
  • Realtek 8111H
• BIOS: 128Mb AMI UEFI Legal BIOS with GUI support
