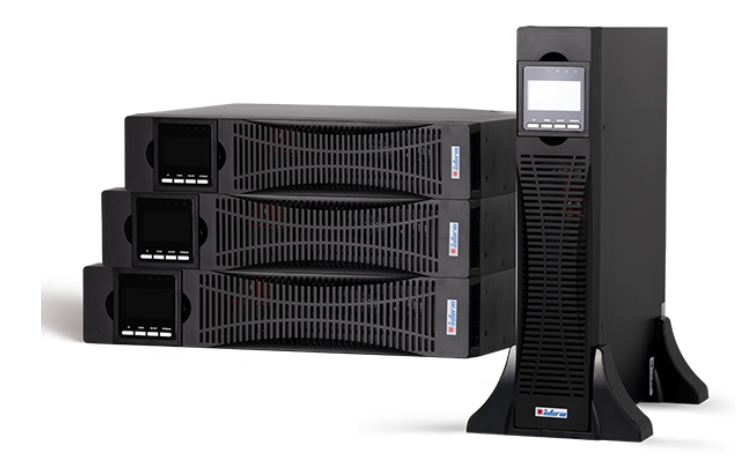

UPS SINUS PRO RT 1KVA ON-LINE

SINUS PRO RT 1KVA ON-LINE

• Капацитет: 1000VA / 1000W
• Input:
  • Input Voltage Range: 110VAC - 300VAC
  • Nominal Voltage: 220/230/240Vac
  • Frequency: 50/60 Hz ±%10 (Auto-sensing), 40-70Hz ( @generator mode )
  • Phase: 1Ph - N – PE
  • Power Factor: ≥0,99
• Output:
  • Power Factor: 1
  • Output Voltage: 220/230/240Vac
  • Voltage Regulation: ±%1
  • Frequency: 50/60 Hz
  • Output Voltage Harmonic (THDv): ≤%3 (linear load)
  • ≤%5 (non-linear load)
  • Transfer Time: Online Mode - Battery Mode: 0ms, İnverter - Bypass: 4ms (typical)
  • Crest Factor: 3:1
  • Overload:
  • Online mode: 105%~125%: 1 min. 125%~130%: 30 sec.
  • Battery mode: 105%~125%: 1 min. 125%~130%: 10 sec.
  • Bypass mode: >130% switch to bypass immediately
  • Efficiency: > %89
  • Outputs: 2xC13 + 1xGerman Std. Socket
• Батерия:
  • Battery Type: Maintenance-free lead acid batteries
  • Charge Time (Built-in batteries): 6-8 hour 90% capacity (typical)
  • Charge Current: 2A (max.)
  • Voltage: 24VDC
  • QTY: 2 x 12V / 9Ah
• Display:
  • LED Display: Online Mode, Battery Mode, Eco Mode, Bypass Mode, Battery Low, Battery Bad, Overload & UPS Failure
  • LCD Display: Input / Output Voltage and Frequency, Load %, Battery Voltage, Internal Temperature, Remaining Back up Time
• Environment:
  • Operating Temperature: 0°C ~ +40°C / -25OC ~ +55OC
  • Humidity: % 0-95 (non-condensing)
  • Altitude: 0 - 1500 m
  • Noise Level (1m distance): < 55 dBA
  • Protection Level: IP20
• Размери: 440x325x86.5 mm
