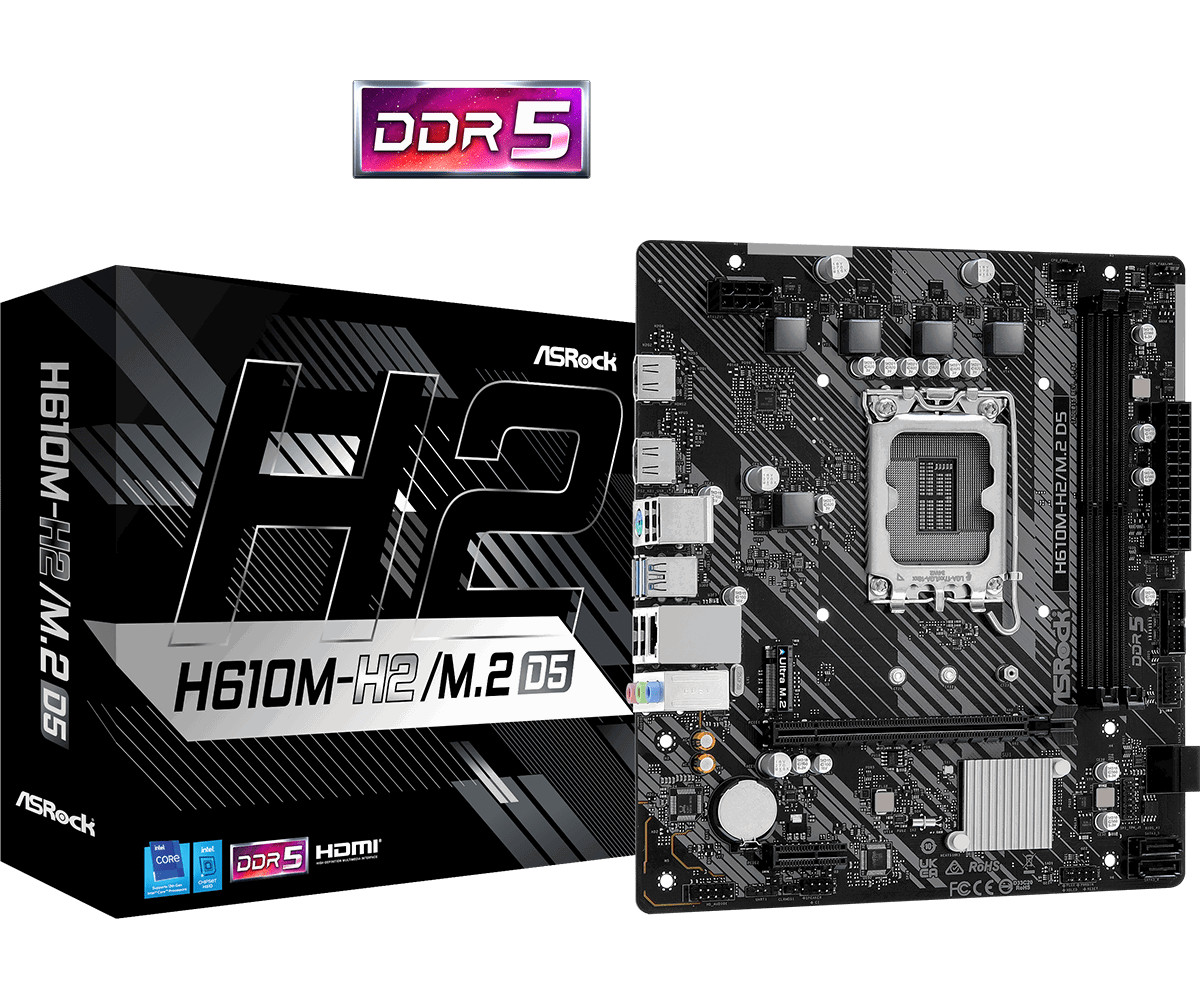

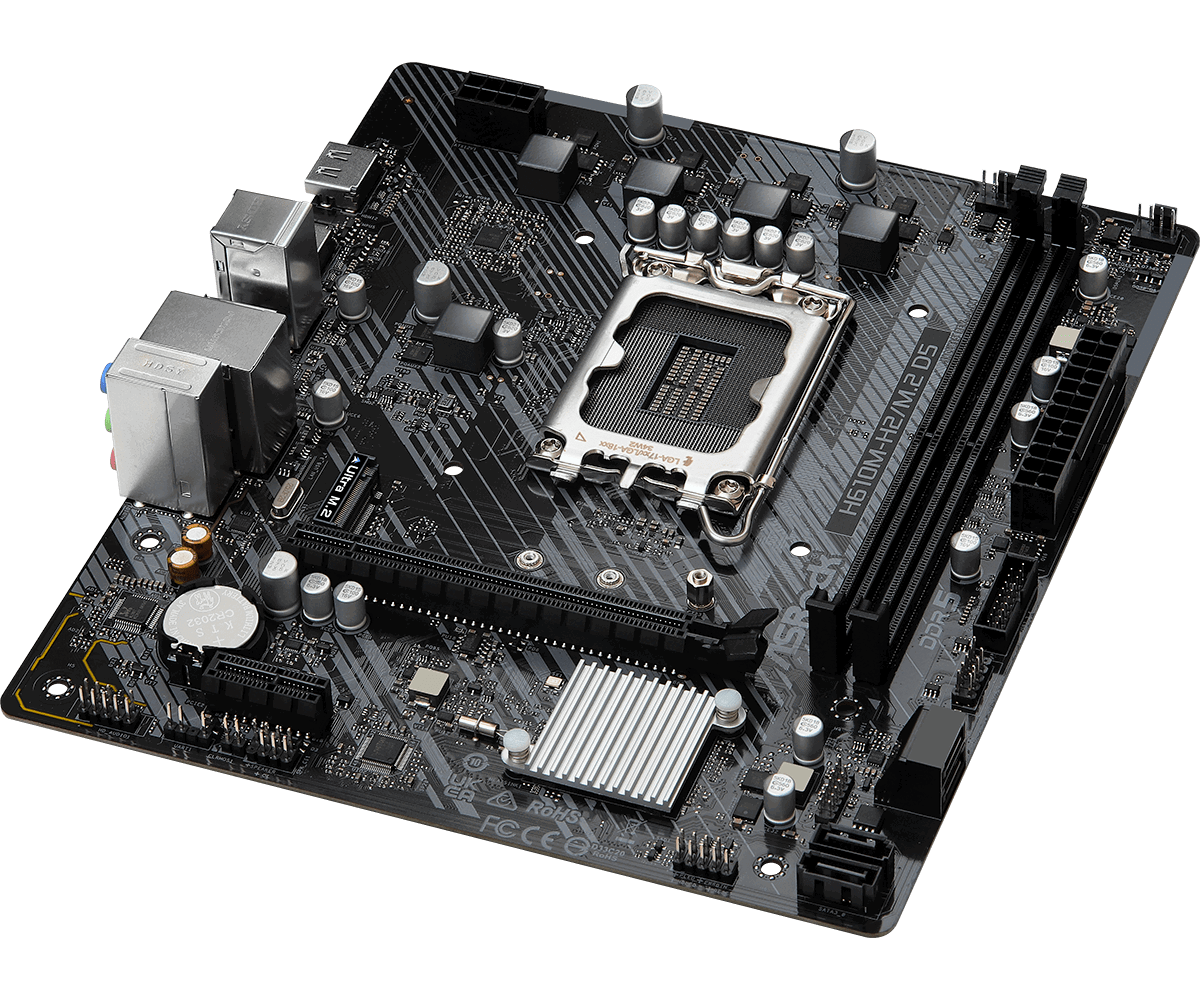

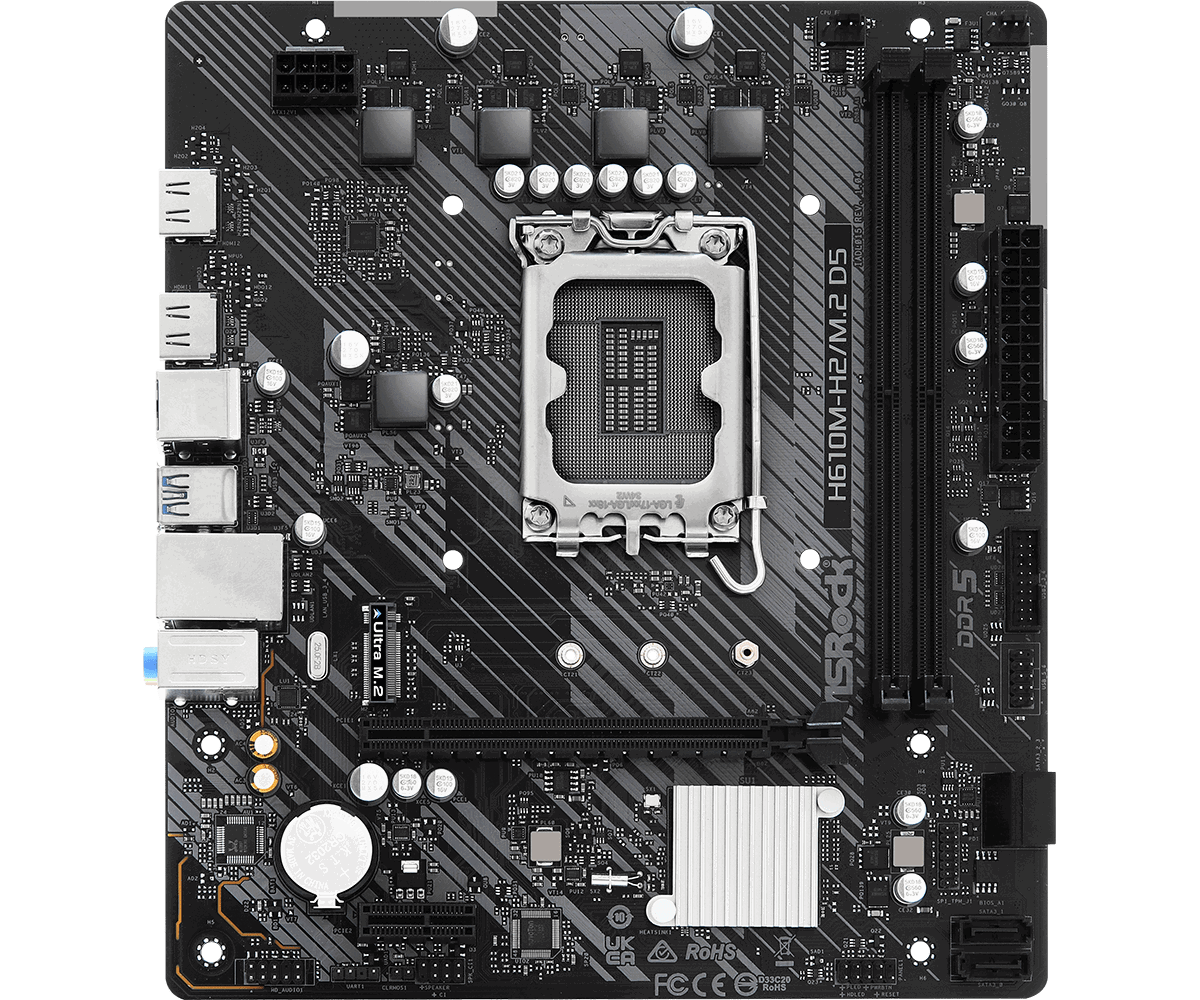

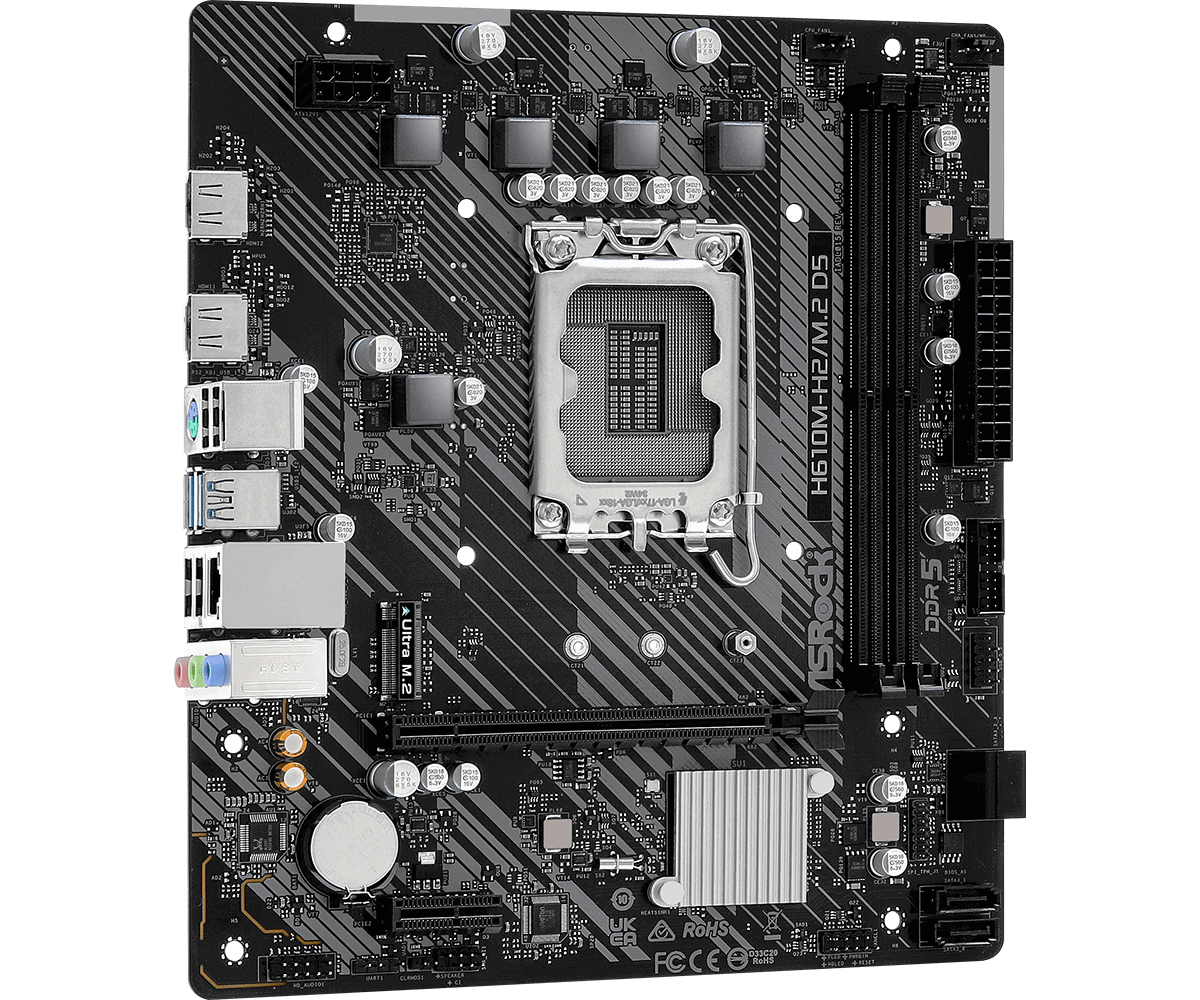

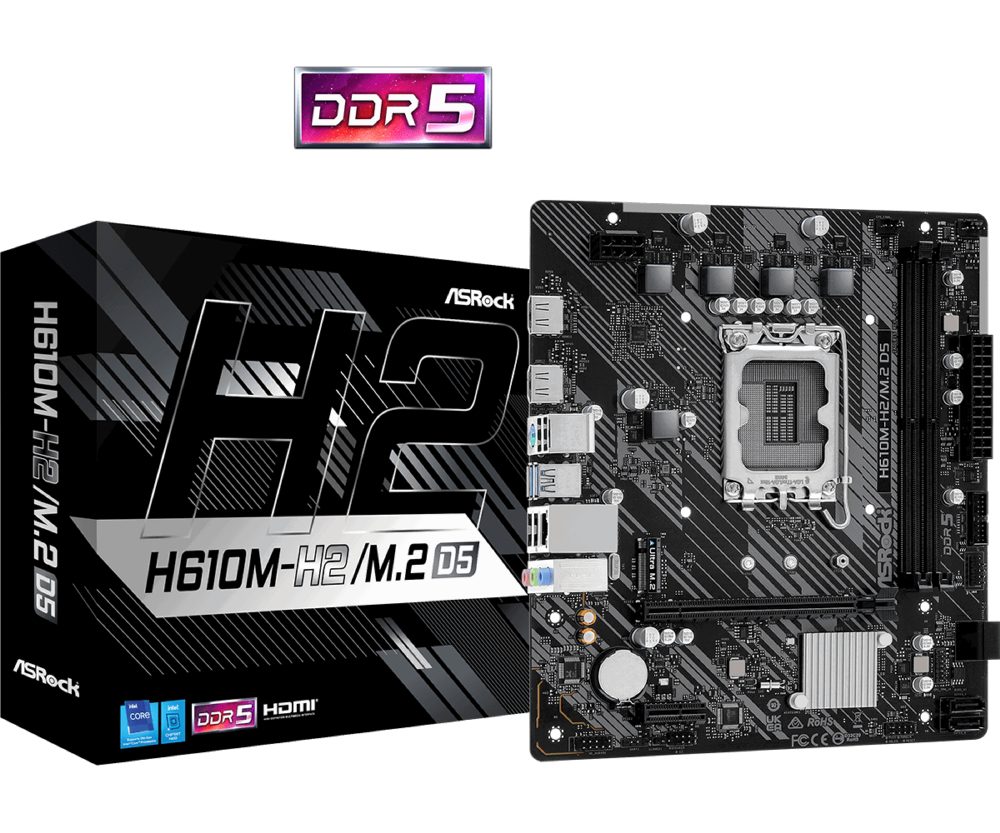

Дънна платка ASROCK H610M-H2/M.2 D5

ASROCK H610M-H2/M.2 D5

• Операционна система: Microsoft Windows® 10 64-bit / 11 64-bit
• Аудио: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Памет:
  • Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*
  • 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*
  • Max. capacity of system memory: 96GB
  • Supports Intel® Extreme Memory Profile (XMP) 3.0
• Графика:
  • Intel® Xe Graphics Architecture (Gen 12)
  • 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz
• Слотове за разширение:
  • CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  • Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)*
• Форм-фактор: Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
• Чипсет: Intel® H610
• Съхранение:
  • Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors

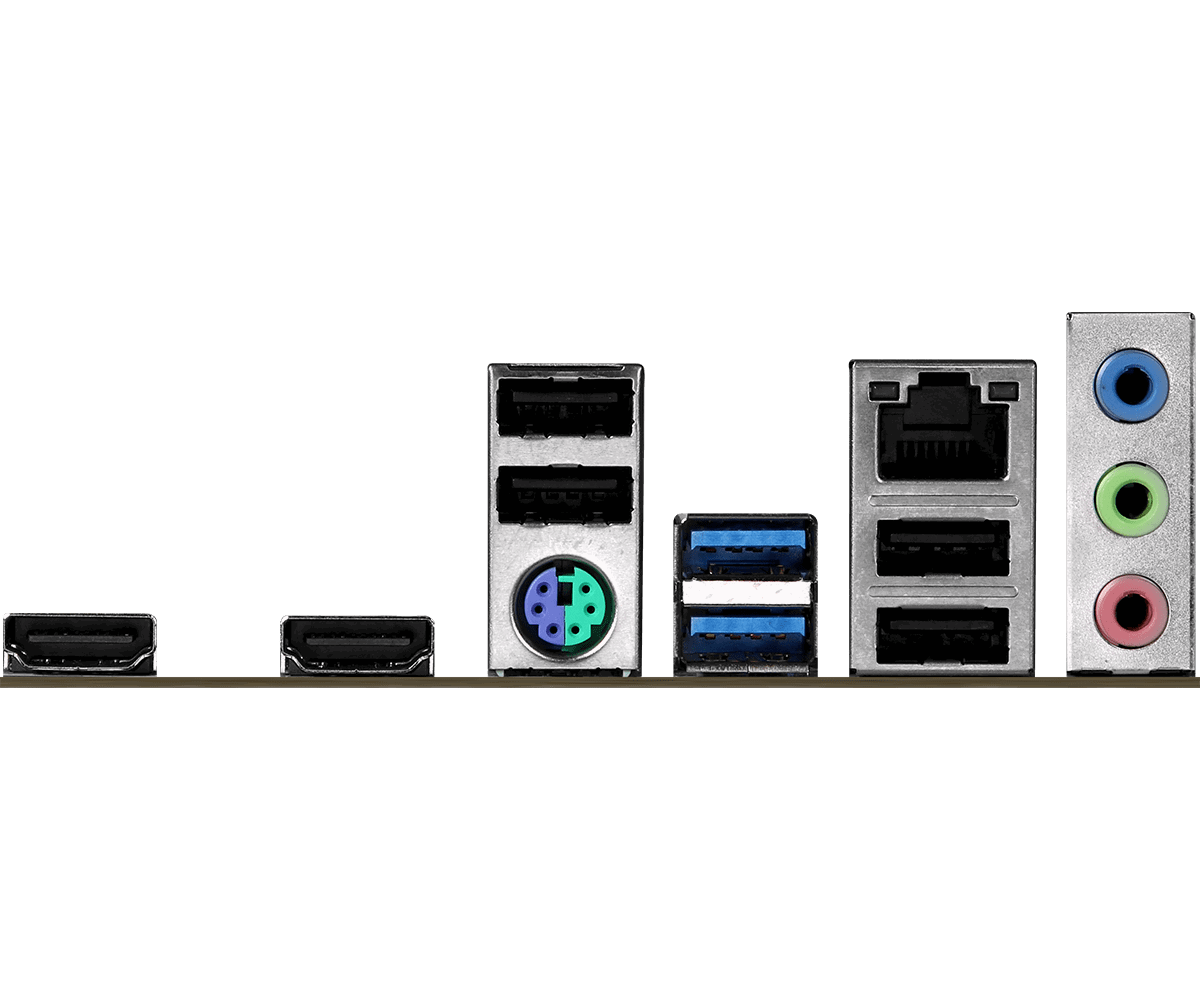

• Портове отзад:
  • 1 x PS/2 Mouse/Keyboard Port
  • 2 x HDMI Ports
  • 2 x USB 3.2 Gen1 Type-A Ports
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Конектори:
  • 1 x SPI TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (4-pin)*
  • 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)e.
• Мрежа (LAN):
  • Gigabit LAN 10/100/1000 Mb/s
  • Realtek 8111H
• BIOS: 128Mb AMI UEFI Legal BIOS with GUI support
