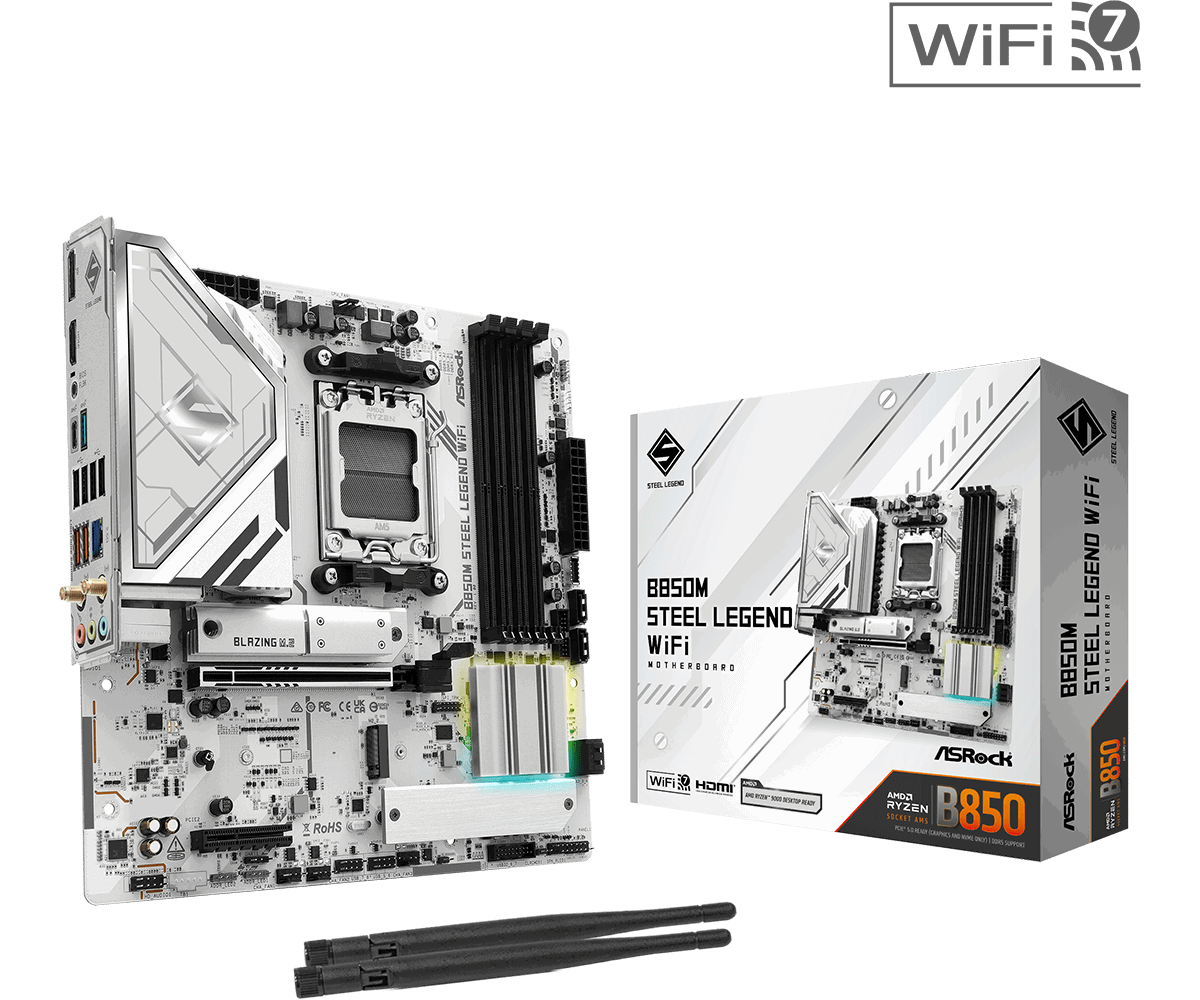

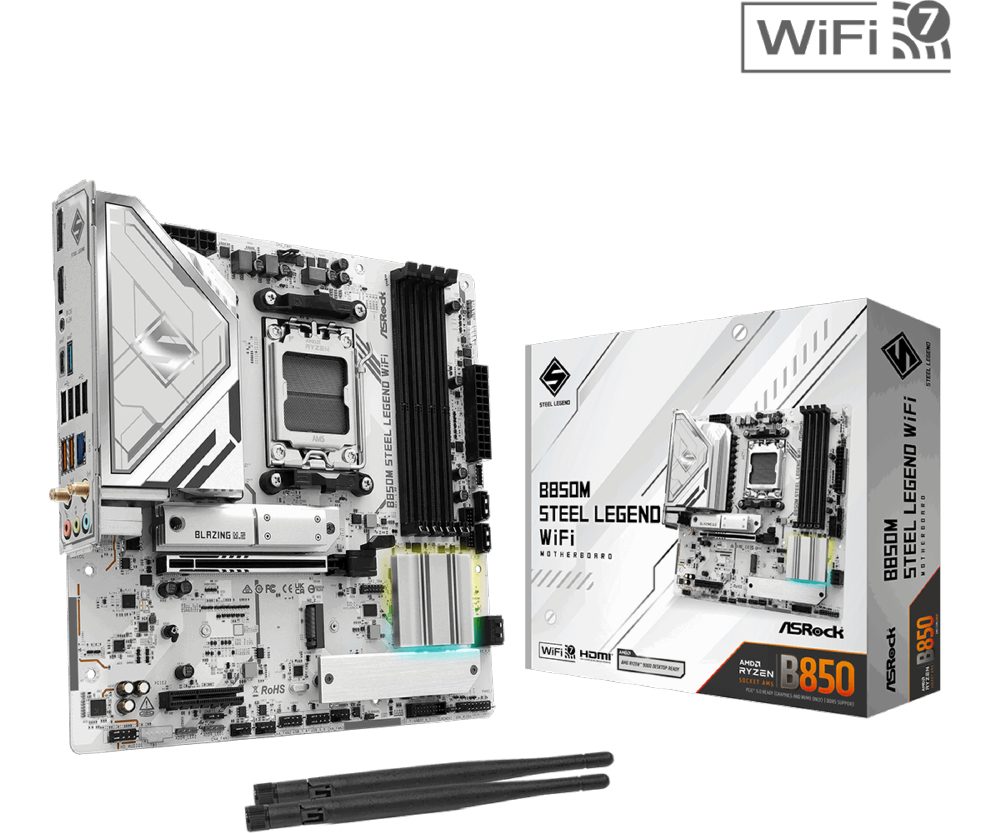

Дънна платка ASROCK B850M STEEL LEGEND WIFI

ASROCK B850M STEEL LEGEND WIFI

• Безжична връзка:
  • 802.11be 2x2 Wi-Fi 7 Module
  • Supports IEEE 802.11a/ b/ g/ n/ ac/ ax/ axe/ be
  • Supports 2.4GHz/ 5GHz/ 6GHz* frequency band
  • Supports 160MHz channel bandwidth with 6GHz* frequency band
  • 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
  • Supports Bluetooth 5.4
  • Supports MU-MIMO
• Bluetooth: 5.4
• Операционна система:
  • Microsoft Windows® 10 64-bit / 11 64-bit
  • Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC
  • UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
• Аудио:
  • 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
  • Impedance Sensing on Rear Out port
  • Individual PCB Layers for R/L Audio Channel
  • Nahimic Audio
• Памет:
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
  • Max. capacity of system memory: 256GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• Графика:
  • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
• Слотове за разширение:
  • CPU:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
  • 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*
  • Chipset:
  • 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
• Форм-фактор:
  • Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  • 2oz Copper PCB
• Поддържани процесори: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• Чипсет: AMD B850
• Съхранение:
  • CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
  • Chipset:
  • 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

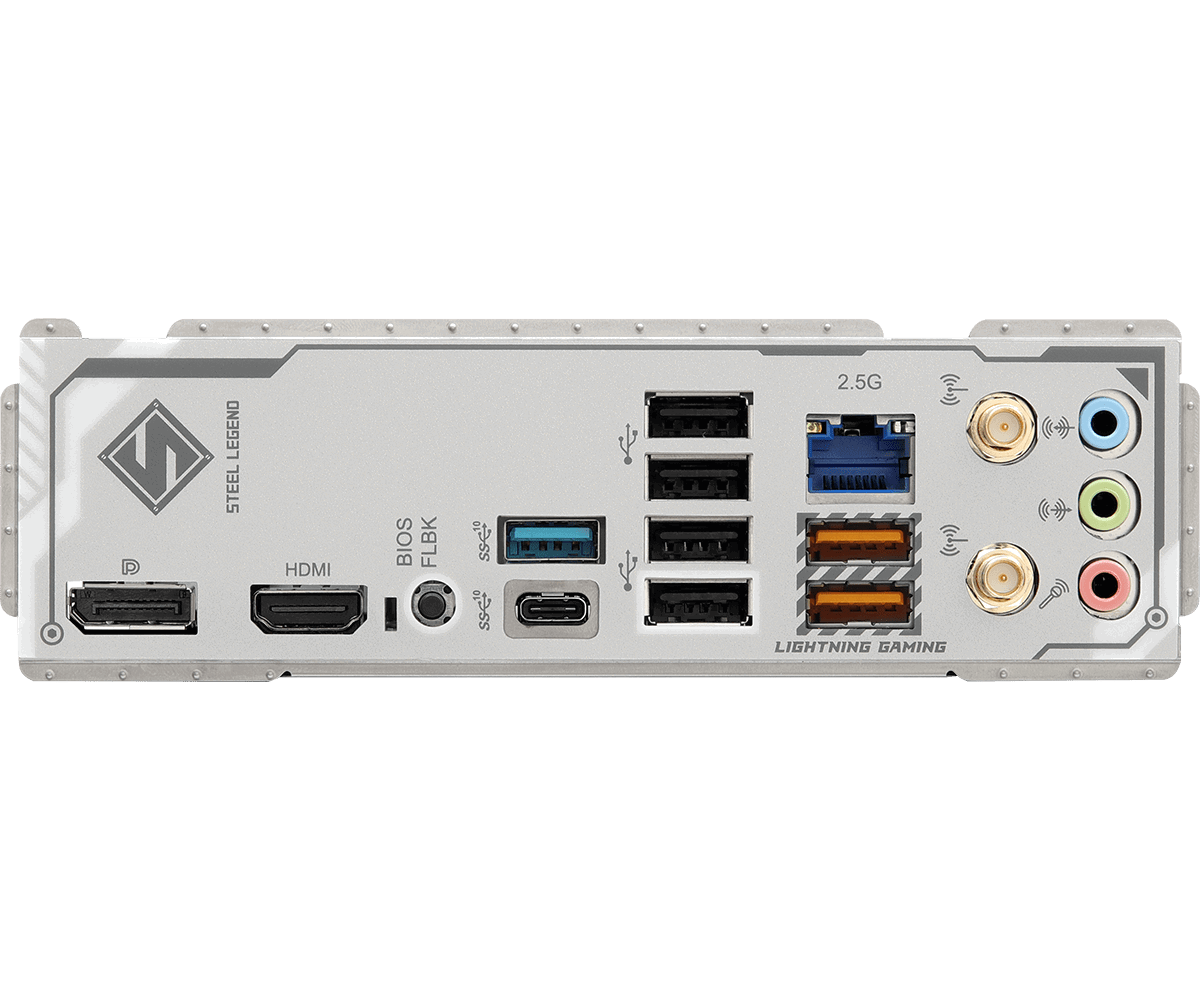

• Портове отзад:
  • 2 x Antenna Ports
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
  • 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
  • 2 x USB 3.2 Gen1 Ports
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Конектори:
  • 1 x SPI TPM Header
  • 1 x Thermistor Cable Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header
  • 3 x Addressable LED Headers
  • 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header
• Мрежа (LAN):
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control
• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
• USB:
  • CPU:
  • 1 x USB 3.2 Gen2 Type-C (Rear)
  • 1 x USB 3.2 Gen2 Type-A (Rear)
  • 1 x USB 3.2 Gen1 Type-A (Rear (USB32_2))
  • Chipset:
  • 1 x USB 3.2 Gen1 Type-C (Front)
  • 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 4 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)
