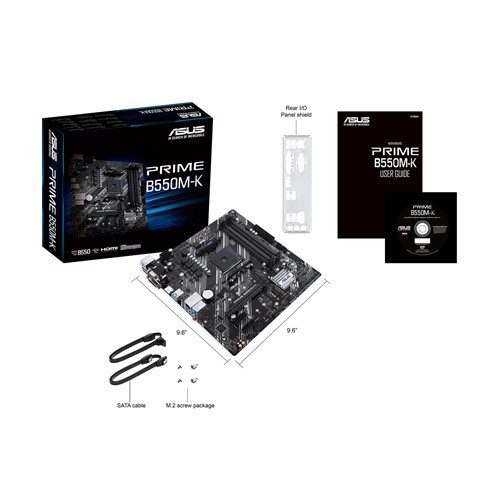

Дънна платка ASUS PRIME B550M-K /AM4

Дънна платка ASUS PRIME B550M-K /AM4

• Аудио:
  • Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *
  • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  • Audio Feature : - LED-illuminated design
  • Audio Shielding
  • Dedicated audio PCB layers
  • Premium Japanese audio capacitors
• Операционна система: Windows® 10 64-bit
• Памет:
  • 3rd Gen AMD Ryzen™ Processors
  • 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
  • 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
  • 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
  • Dual Channel Memory Architecture
  • ECC Memory (ECC mode) support varies by CPU.
• Графика:
  • 1 x D-Sub
  • 1 x DVI-D
  • 1 x HDMI 2.1(4K@60HZ)
• Слотове за разширение:
  • 3rd Gen AMD Ryzen™ Processors
  • 1 x PCIe 4.0 x16 (x16 mode)
  • 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
  • 1 x PCIe 3.0 x16 (x16 mode)
  • AMD B550 Chipset
  • 2 x PCIe 3.0 x1
• Форм-фактор:
  • mATX Form Factor
  • 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
• Конектори:
  • 1 x CPU Fan connector(s)
  • 2 x Chassis Fan connector(s)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
  • 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
  • 1 x SPI TPM header
  • 4 x SATA 6Gb/s connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Clear CMOS jumper(s)
  • 1 x System panel connector
  • 1 x COM port header
  • 1 x Speaker connector
• Чипсет: AMD B550
• Съхранение:
  • Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
  • 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
  • 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
  • AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
  • 4 x SATA 6Gb/s port(s),
  • Support Raid 0, 1, 10
• Портове отзад:
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI-D
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
  • 4 x USB 3.2 Gen 1 (blue) Type-A
  • 3 x Audio jack(s)
• Мрежа (LAN):
  • Realtek RTL8111H 1Gb Ethernet
  • ASUS LANGuard
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
