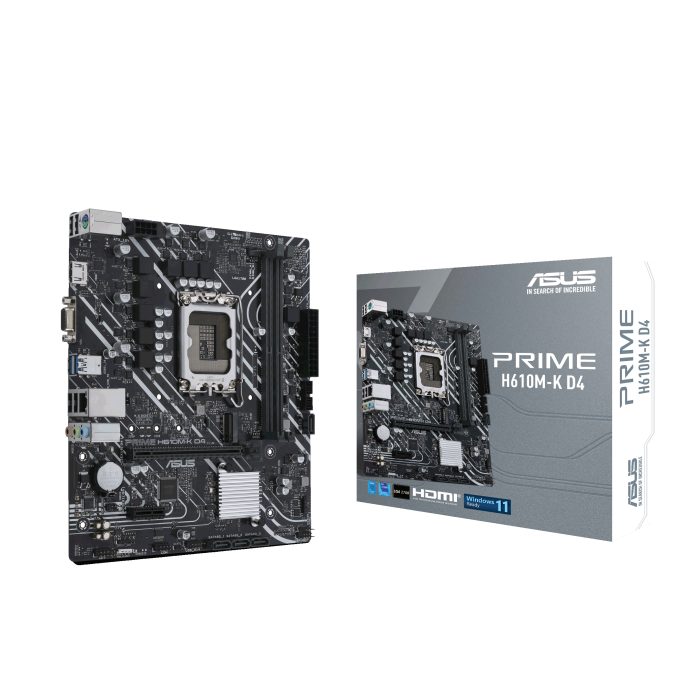

Дънна платка ASUS PRIME H610M-K D4 /LGA1700

Дънна платка ASUS PRIME H610M-K D4 /LGA1700

• Аудио:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Dedicated audio PCB layers
• Операционна система: Windows® 11 64-bit, Windows® 10 64-bit
• Памет:
  • 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
• Графика:
  • 1 x D-Sub port
  • 1 x HDMI® port**
• Слотове за разширение:
  • Intel® 12th Gen Processors
  • 1 x PCIe 4.0 x16 slot
  • Intel® H610 Chipset
  • 1 x PCIe 3.0 x1 slot
• Форм-фактор:
  • mATX Form Factor
  • 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
• Конектори:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin Chassis Fan header
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x M.2 slot (Key M)
  • 4 x SATA 6Gb/s ports
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
  • 1 x RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header
• Съхранение:
  • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  • Intel® H610 Chipset
  • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
• Портове отзад:
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x D-Sub port
  • 1 x HDMI® port
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
• Мрежа (LAN): 1 x Realtek 1Gb Ethernet
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
